Kenmore
Gas Range

Model # 1197067140 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1197067140 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

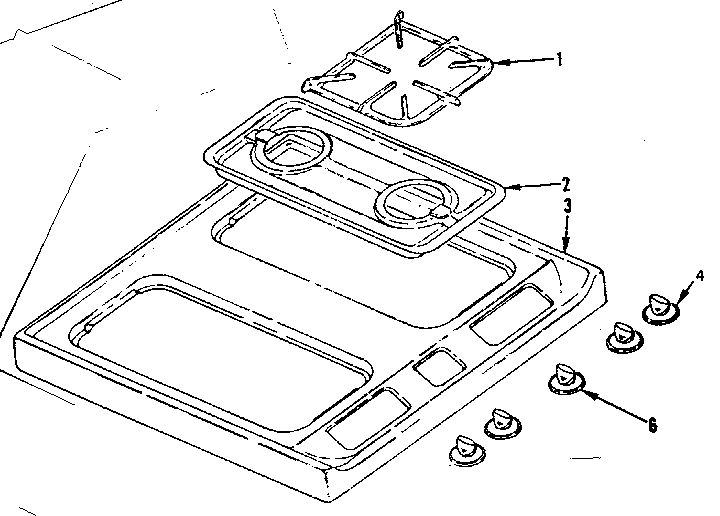

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Door Panel (gold) 6653
#66D

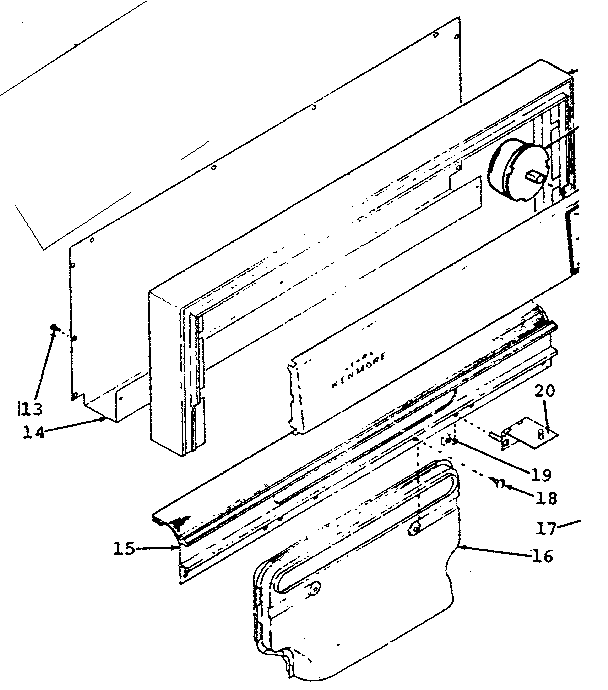

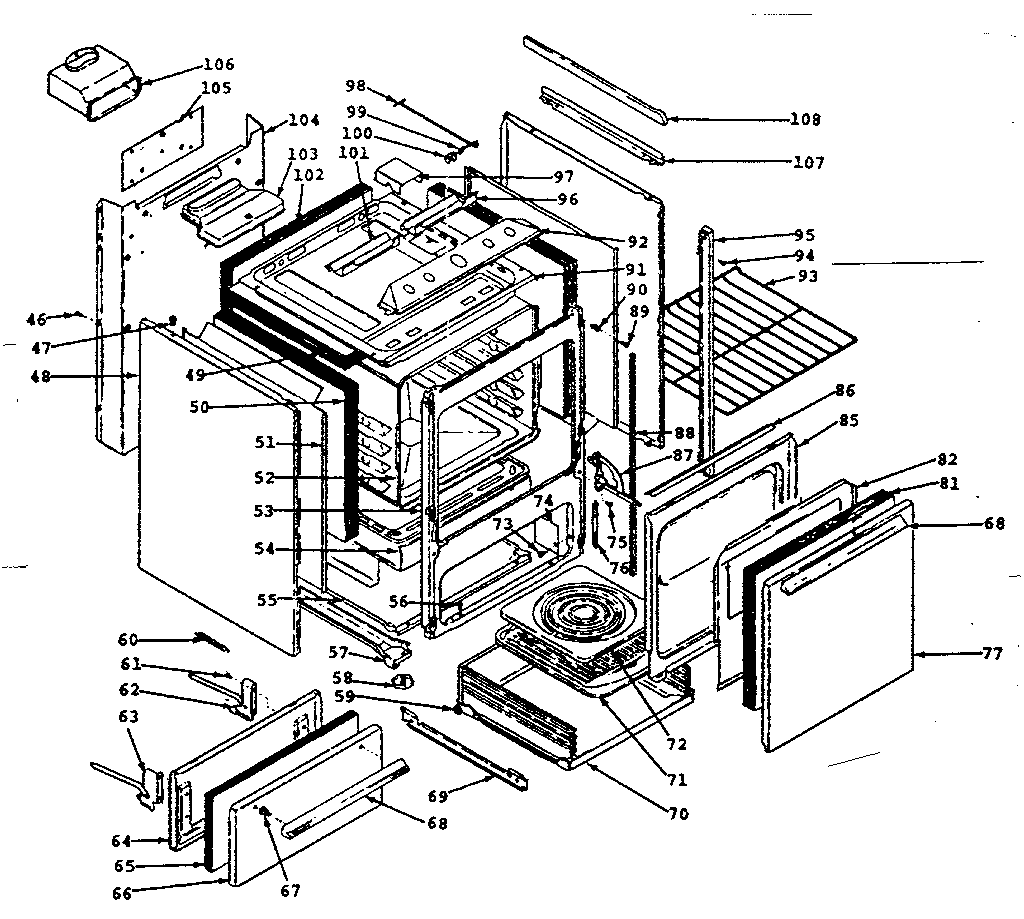

Body diagram

Door panel (gold)

Part #6653

$12.49
In Stock
Range Oven Door Outer Panel (coppertone) 6651
#66B

Body diagram

Range oven door outer panel (coppertone)

Part #6651

$13.69 |
13% OFF Phone Price : $15.69
In Stock
Door Panel 6652
#66C

Body diagram

Door panel

Part #6652

$12.49
In Stock
3/16 Nut Slv 5728
#115

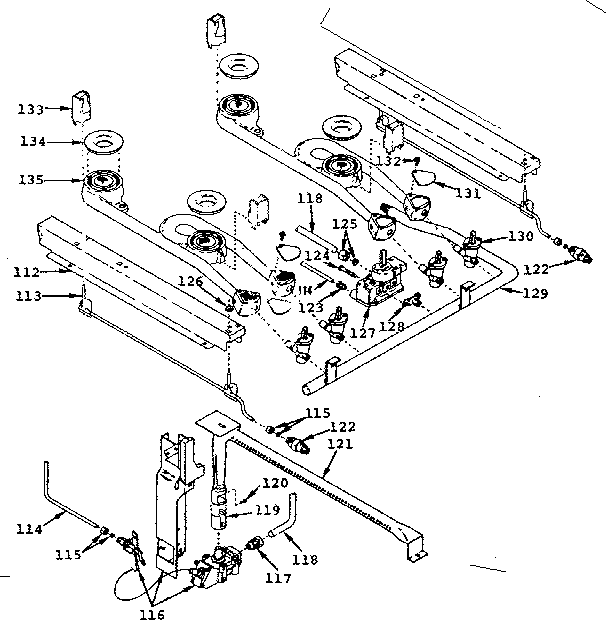

Oven and top burner diagram

3/16 nut slv

Part #5728

The manufacturer no longer makes this part, and there's no substitute part

3/8 Nut Slve 5725
#125

Oven and top burner diagram

3/8 nut slve

Part #5725

The manufacturer no longer makes this part, and there's no substitute part

Door Panel (white) 6650
#66A

Body diagram

Door panel (white)

Part #6650

The manufacturer no longer makes this part, and there's no substitute part

Door Seal 6671
#86

Body diagram

Door seal

Part #6671

The manufacturer no longer makes this part, and there's no substitute part

Feed Tube 6683
#118

Oven and top burner diagram

Feed tube

Part #6683

The manufacturer no longer makes this part, and there's no substitute part

Screw 6363
#18

Backguard diagram

Screw

Part #6363

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 6698
#85

Body diagram

Door lining

Part #6698

The manufacturer no longer makes this part, and there's no substitute part
