Whirlpool
Top-Mount Refrigerator

Model # ET20LKXAW00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool ET20LKXAW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

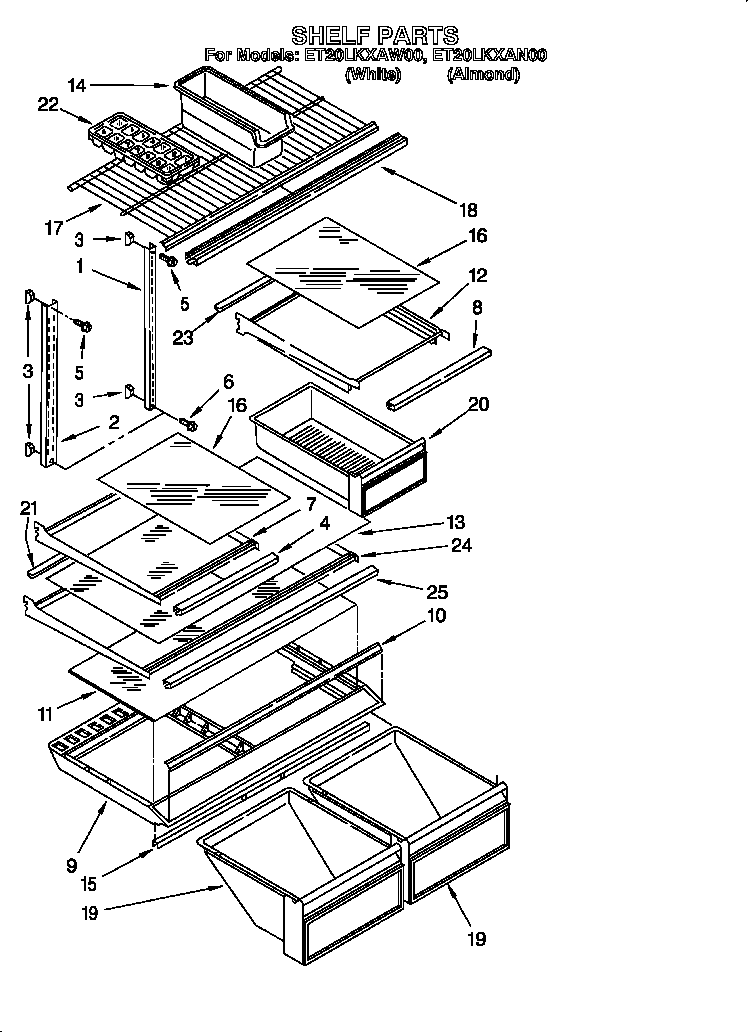

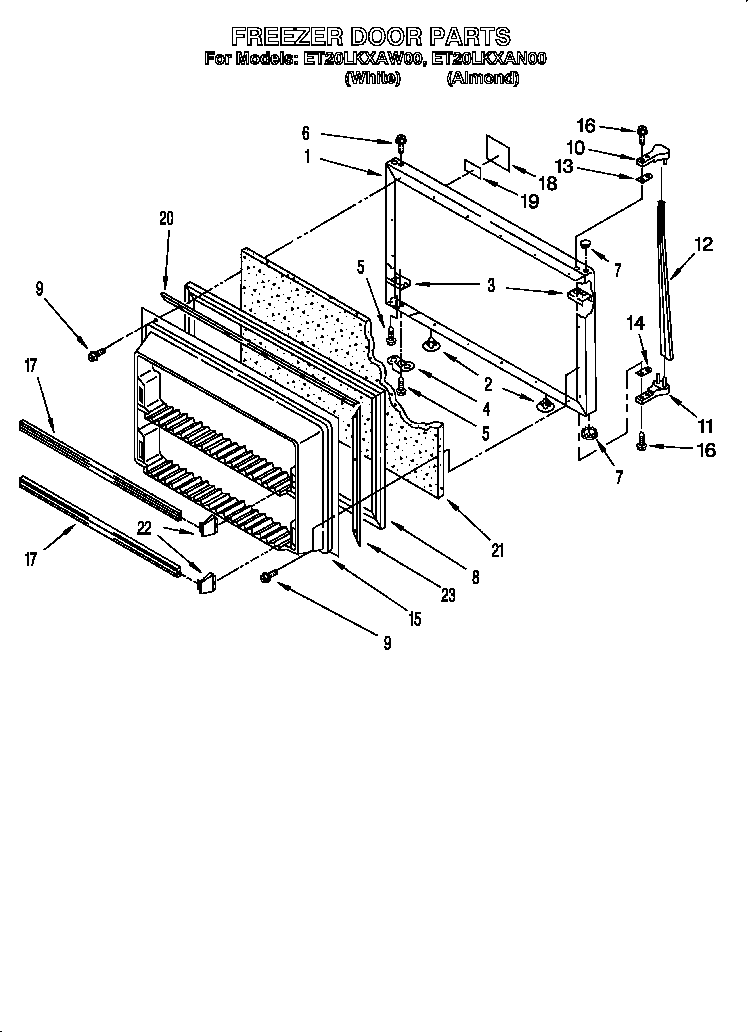

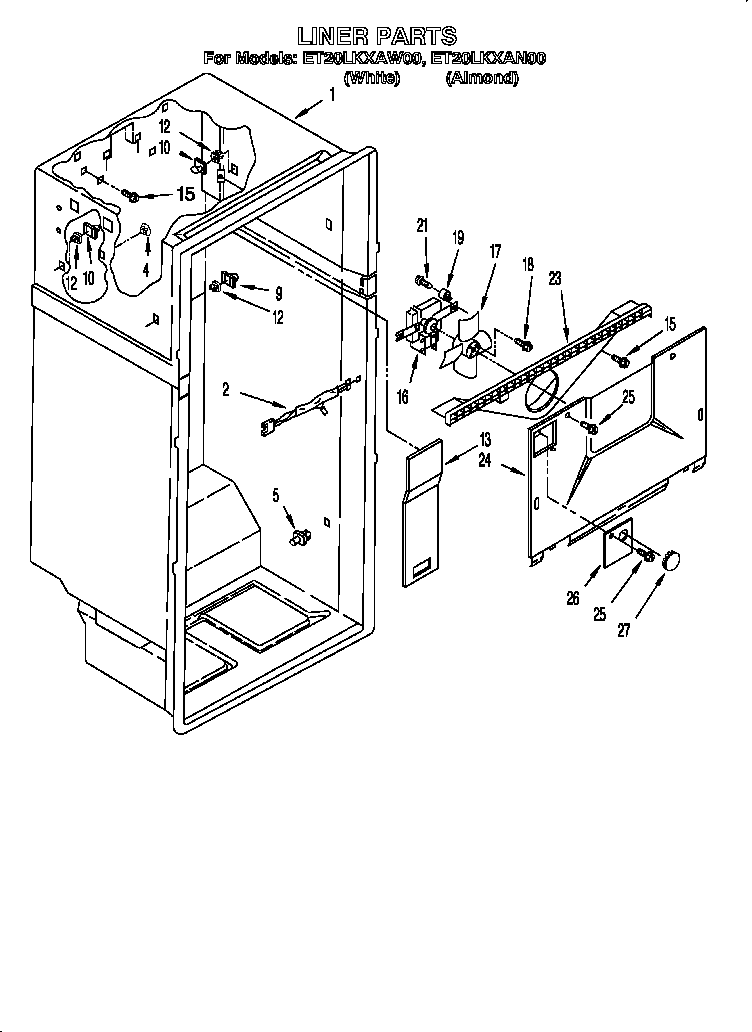

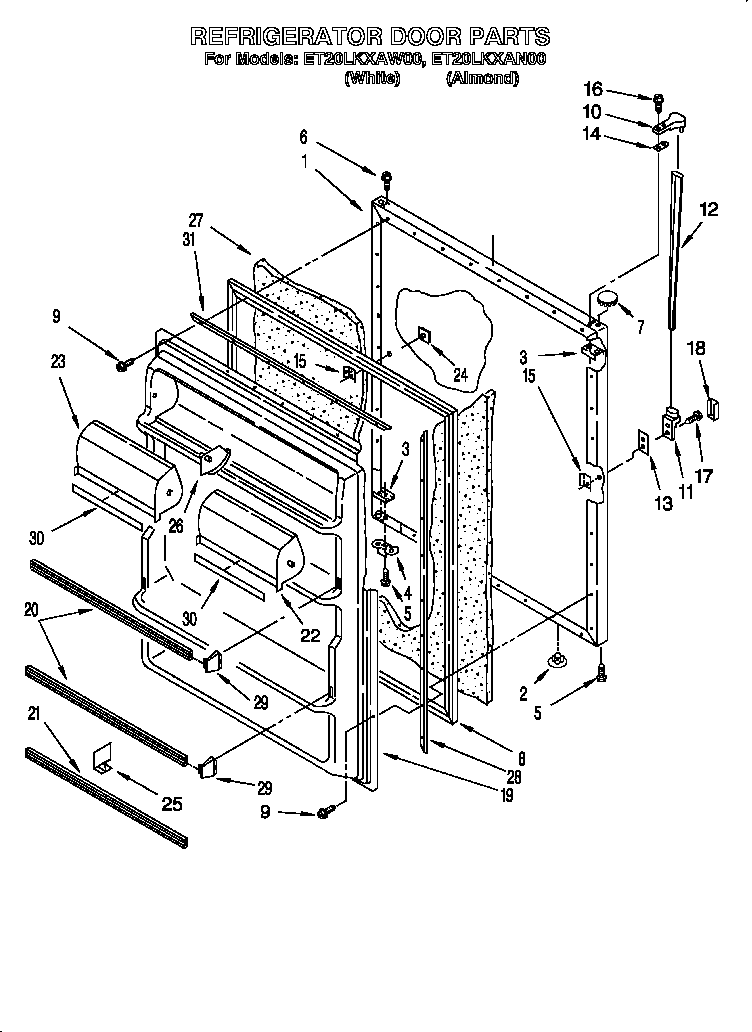

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 258 parts  |
Light Bulb 946059
#8

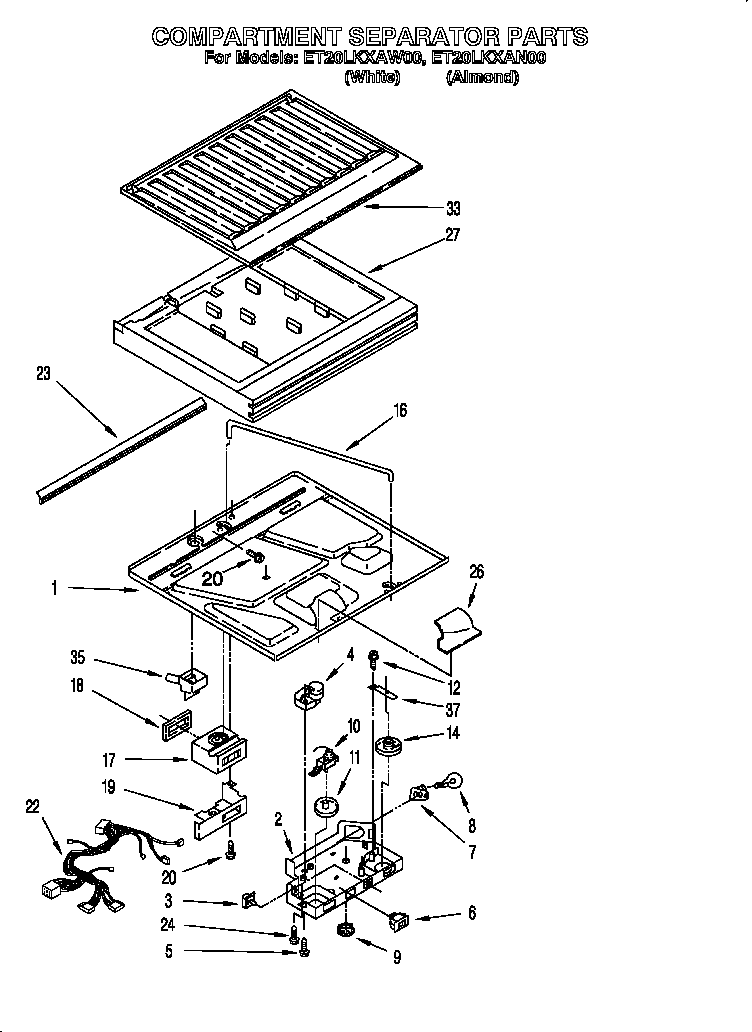

Compartment separator diagram

Light bulb

Part #946059

Replaced by #40A15

?
Manufacturer substitution
This part replaces 946059. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Defrost Timer 2154982
#4

Compartment separator diagram

Refrigerator defrost timer

Part #2154982

Replaced by #W10822278

?
Manufacturer substitution
This part replaces 2154982. Substitute parts can look different from the original.
BEST SELLER
$27.99 |
18% OFF Phone Price : $33.99
In Stock
Refrigerator Drier 2154002
#27

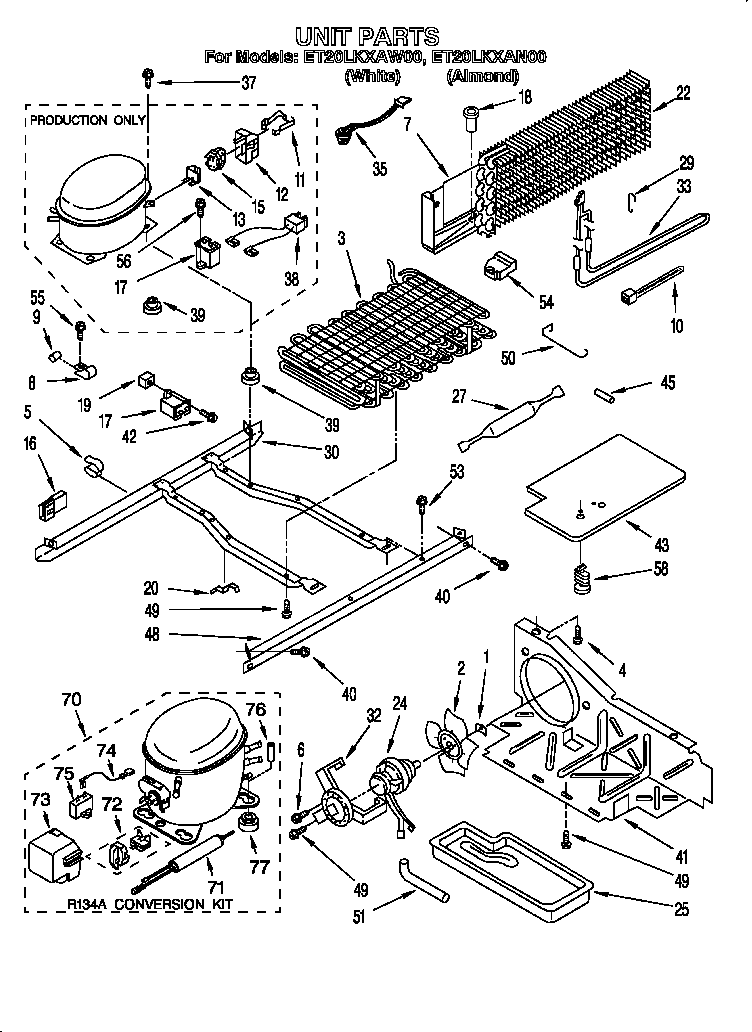

Unit diagram

Refrigerator drier

Part #2154002

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2154002. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Dryer Tube 4387019
#71

Unit diagram

Refrigerator dryer tube

Part #4387019

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4387019. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Defrost Bi-metal 2149643
#35

Unit diagram

Refrigerator defrost bi-metal

Part #2149643

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2149643. Substitute parts can look different from the original.
BEST SELLER
$39.71 |
13% OFF Phone Price : $45.71
In Stock
Condenser Motor 2154735
#24

Unit diagram

Condenser motor

Part #2154735

Replaced by #833697

?
Manufacturer substitution
This part replaces 2154735. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Door Switch 2149705
#3

Compartment separator diagram

Refrigerator door switch

Part #2149705

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 2149705. Substitute parts can look different from the original.
BEST SELLER
$27.81 |
18% OFF Phone Price : $33.81
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Drain Pan 1105523
#25

Unit diagram

Refrigerator drain pan

Part #1105523

Replaced by #WPW10614158

?
Manufacturer substitution
This part replaces 1105523. Substitute parts can look different from the original.
BEST SELLER
$54.81 |
10% OFF Phone Price : $60.81
In Stock
Refrigerator Fitting 2154070
#23

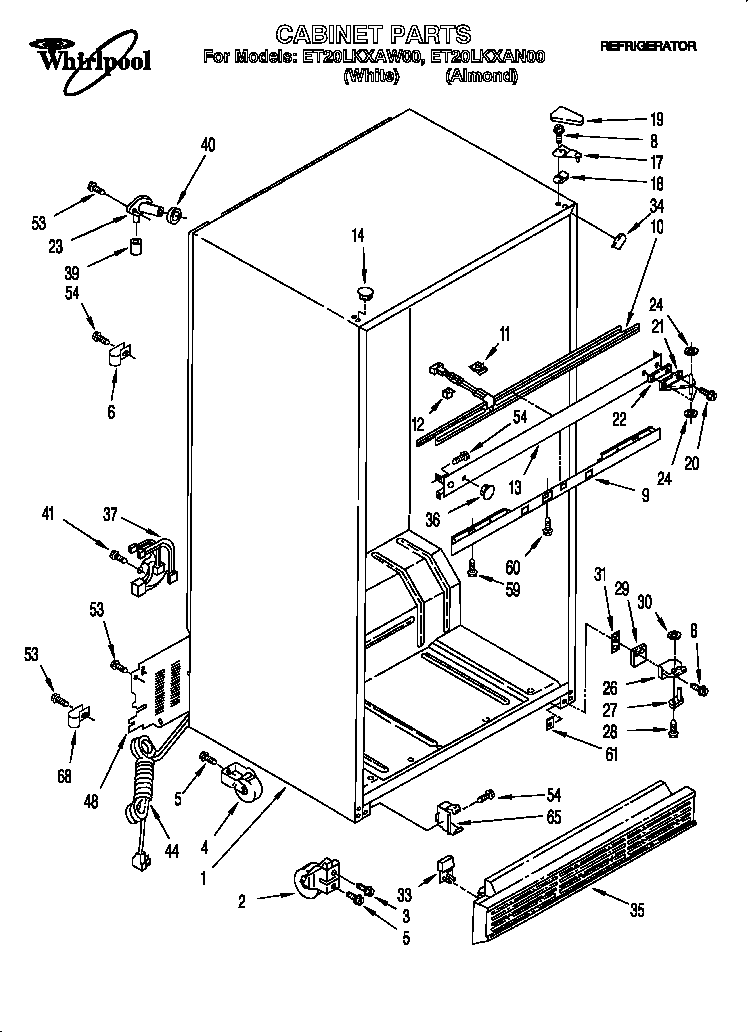

Cabinet diagram

Refrigerator fitting

Part #2154070

Replaced by #WP2196157

?
Manufacturer substitution
This part replaces 2154070. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.30 |
14% OFF Phone Price : $7.30
In Stock
