Electric Wall Oven

Model # ECWS3011ASA Official Electrolux wall oven

Here are the diagrams and repair parts for Official Electrolux ECWS3011ASA wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

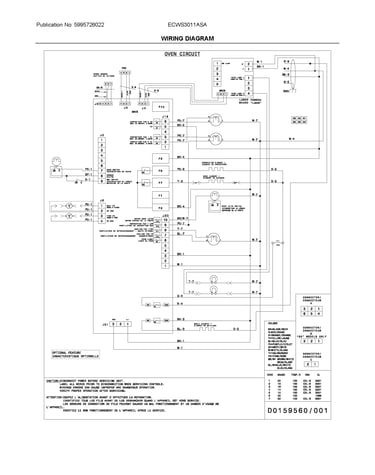

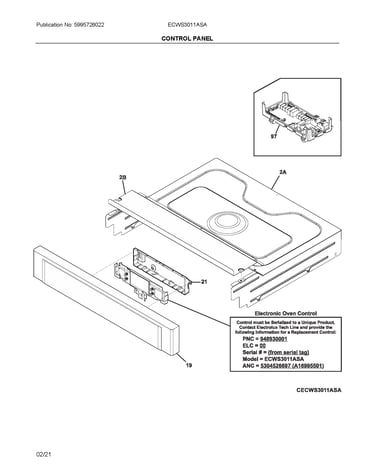

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Terminal Block 316056000
#62

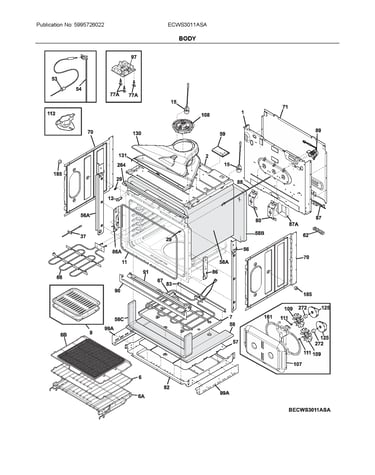

Body diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

Body diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$32.64 |
16% OFF Phone Price : $38.64
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Hex Head Screw, #8-18 X 3/8-in 316021105
Range hex head screw, #8-18 x 3/8-in

Part #316021105

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Screw 316021110
Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Door Light Switch 318394802
#12

Body diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Wall Oven Convection Fan Motor 139008504
#125

Body diagram

Wall oven convection fan motor

Part #139008504

$151.22 |
7% OFF Phone Price : $163.22
In Stock
Kelvinator Range Broil Pan And Insert (replaces 316081900, 316082000, 318126200, 318126300) 5304494997
#9

Body diagram

Kelvinator range broil pan and insert (replaces 316081900, 316082000, 318126200, 318126300)

Part #5304494997

$59.77 |
9% OFF Phone Price : $65.77
In Stock
Tube 139021700
#272

Body diagram

Tube

Part #139021700

$17.49
In Stock
Rack 5304525129
#6

Body diagram

Rack

Part #5304525129

Replaced by #5304514983

?
Manufacturer substitution
This part replaces 5304525129. Substitute parts can look different from the original.
$106.31 |
10% OFF Phone Price : $118.31
In Stock
