KitchenAid
Wall Oven/Microwave Combo

Model # KEMS306XAL6 Official KitchenAid 30" self-cleaning oven with convection microwave

Here are the diagrams and repair parts for Official KitchenAid KEMS306XAL6 30" self-cleaning oven with convection microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

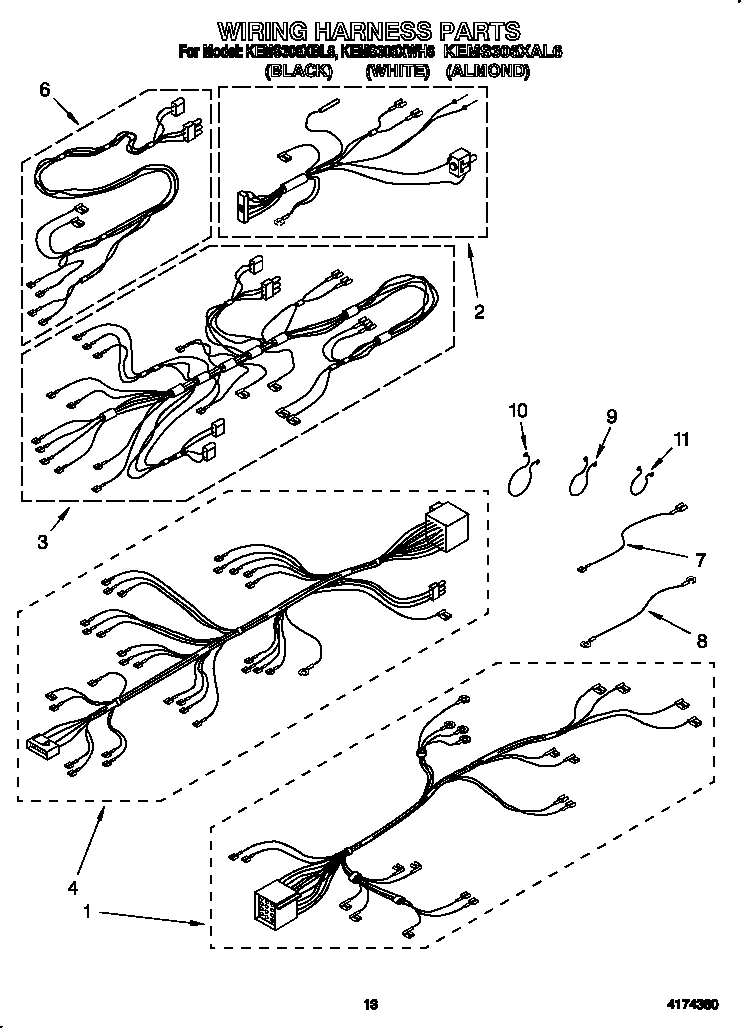

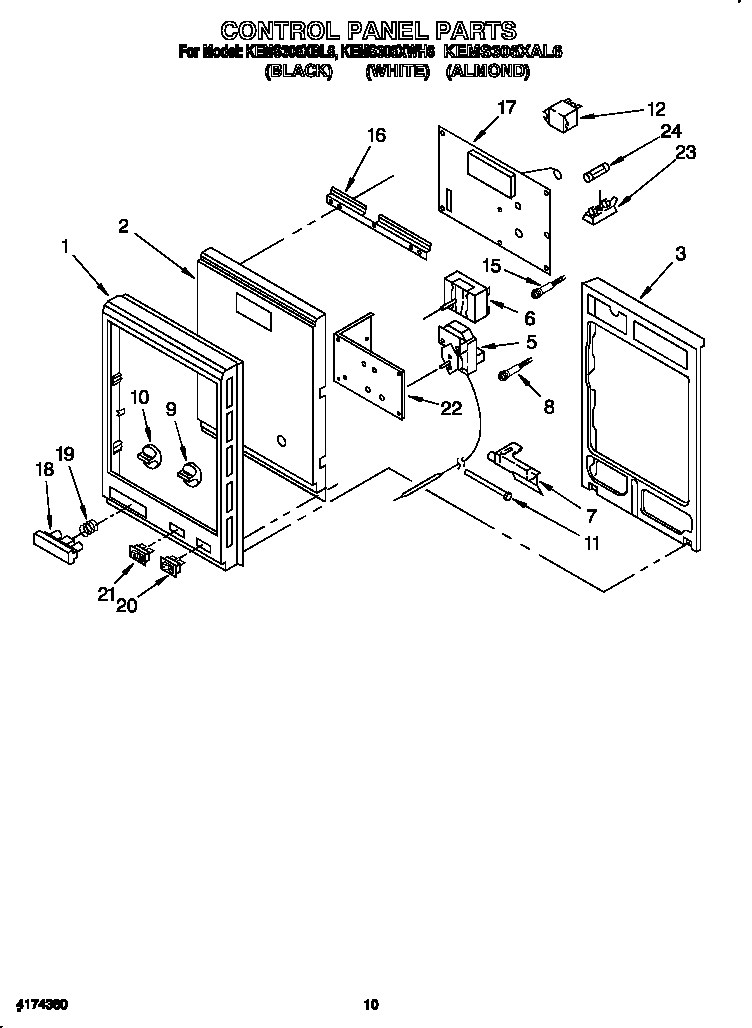

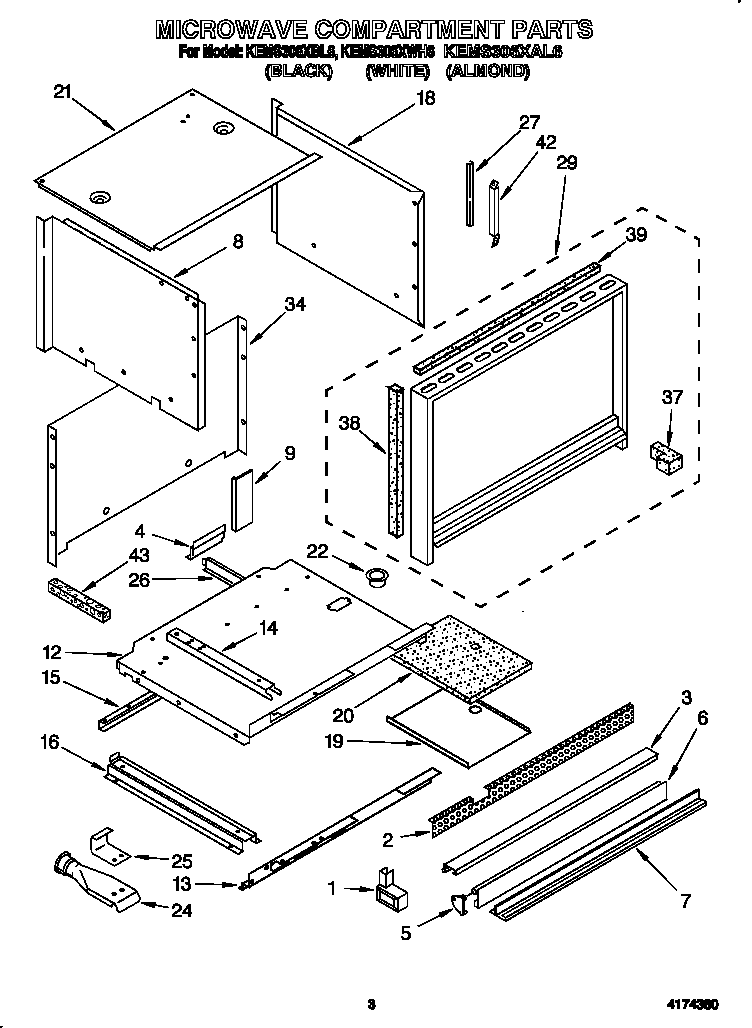

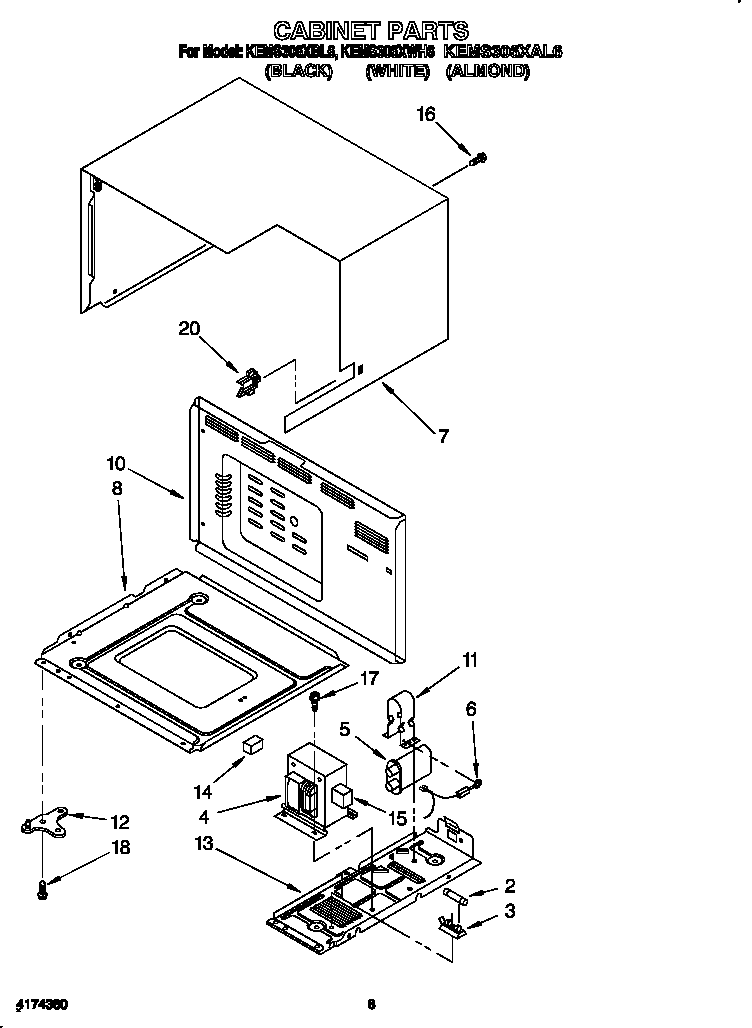

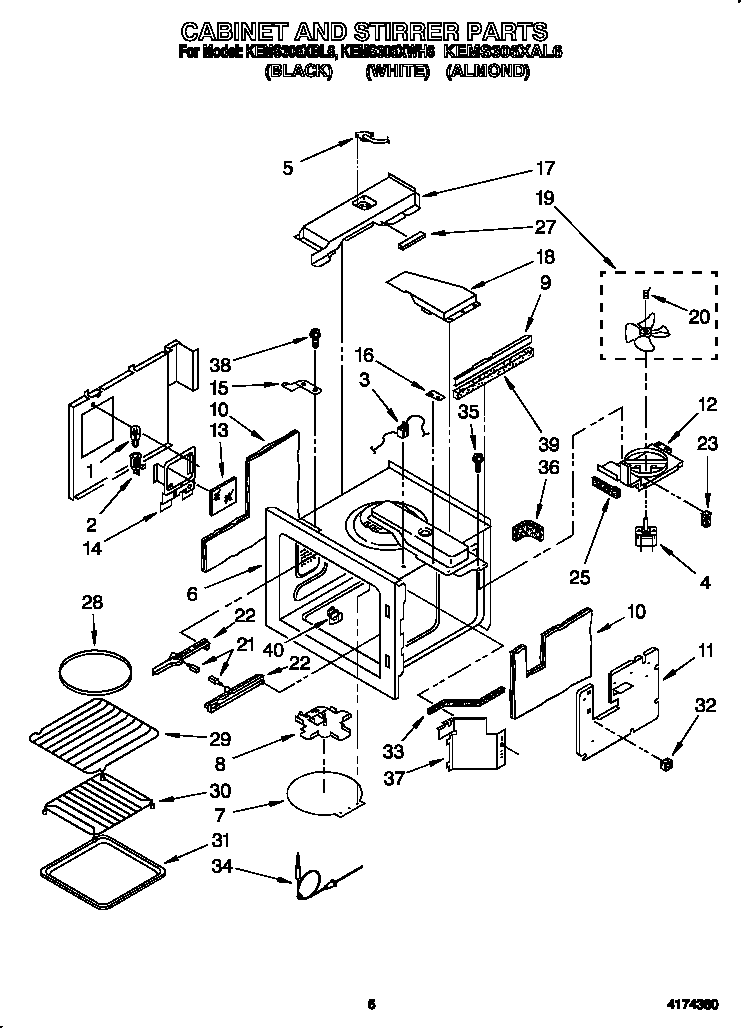

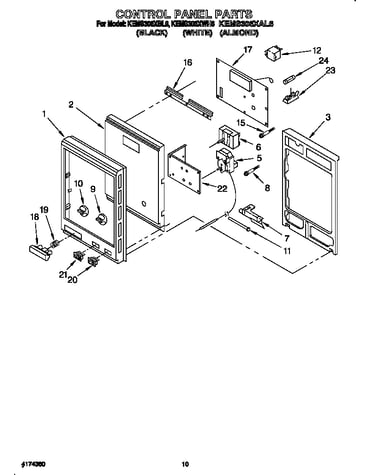

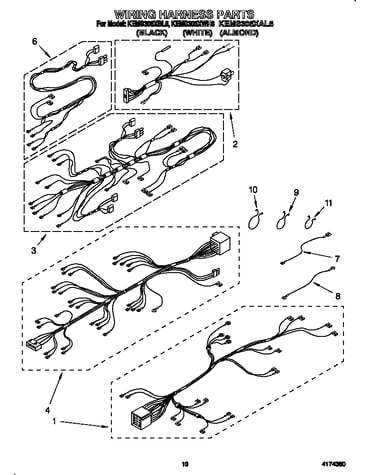

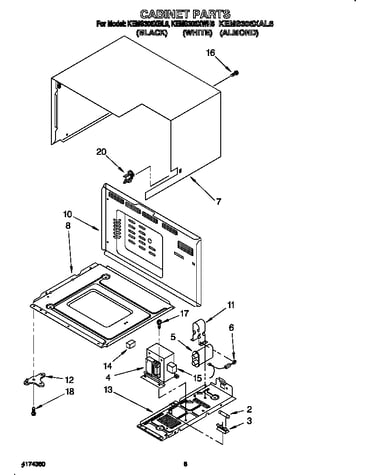

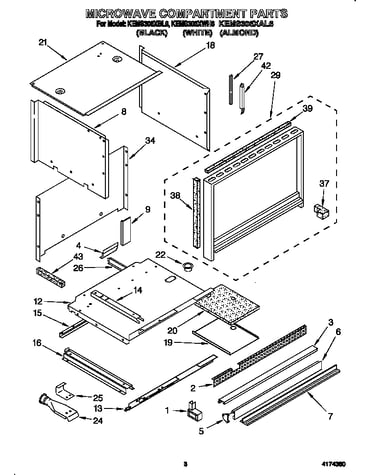

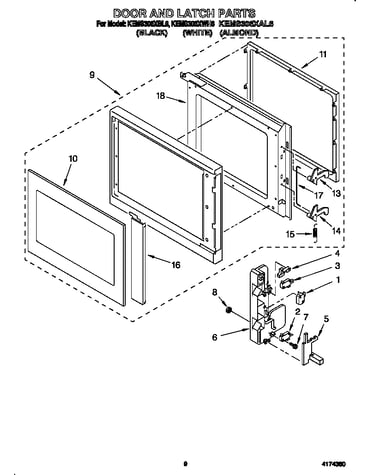

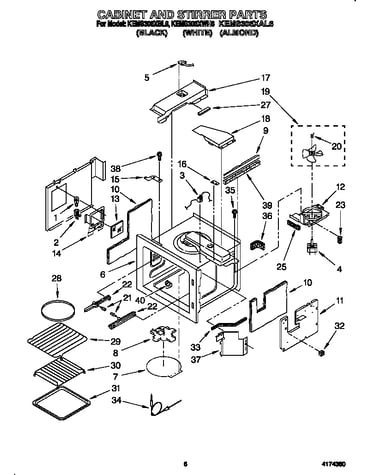

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 363 parts  |
Light Bulb 311255
#29

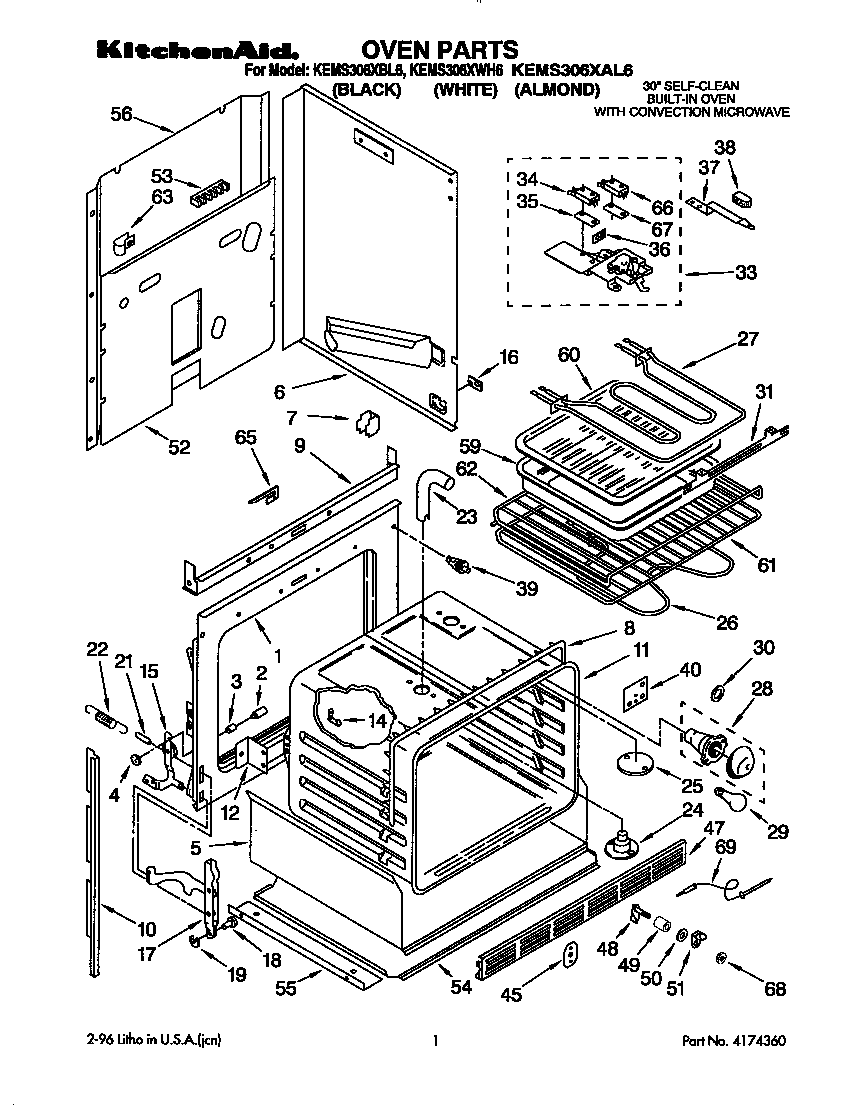

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Appliance Touch-up Paint 72017

#NI

All parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930

#NI

All parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Touchup Al 72107

#NI

All parts diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$13.87 |
13% OFF Phone Price : $15.87
In Stock
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Magnetron 4312833
#4

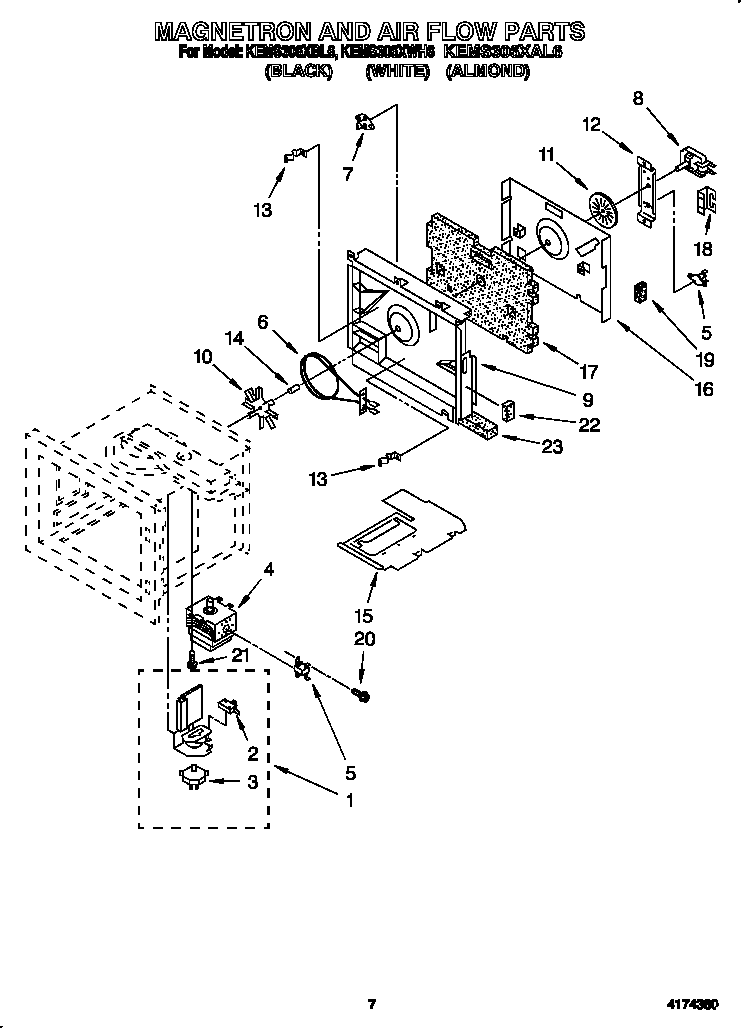

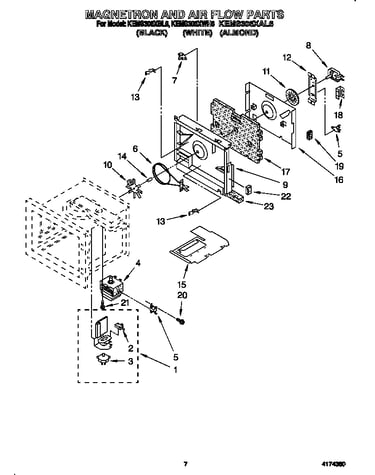

Magnetron and air flow diagram

Magnetron

Part #4312833

The manufacturer no longer makes this part, and there's no substitute part

Touchup Ng 72110

#NI

All parts diagram

Touchup ng

Part #72110

Replaced by #72110

?
Manufacturer substitution
This part replaces 72110. Substitute parts can look different from the original.
This item is not returnable
$13.24 |
13% OFF Phone Price : $15.24
In Stock

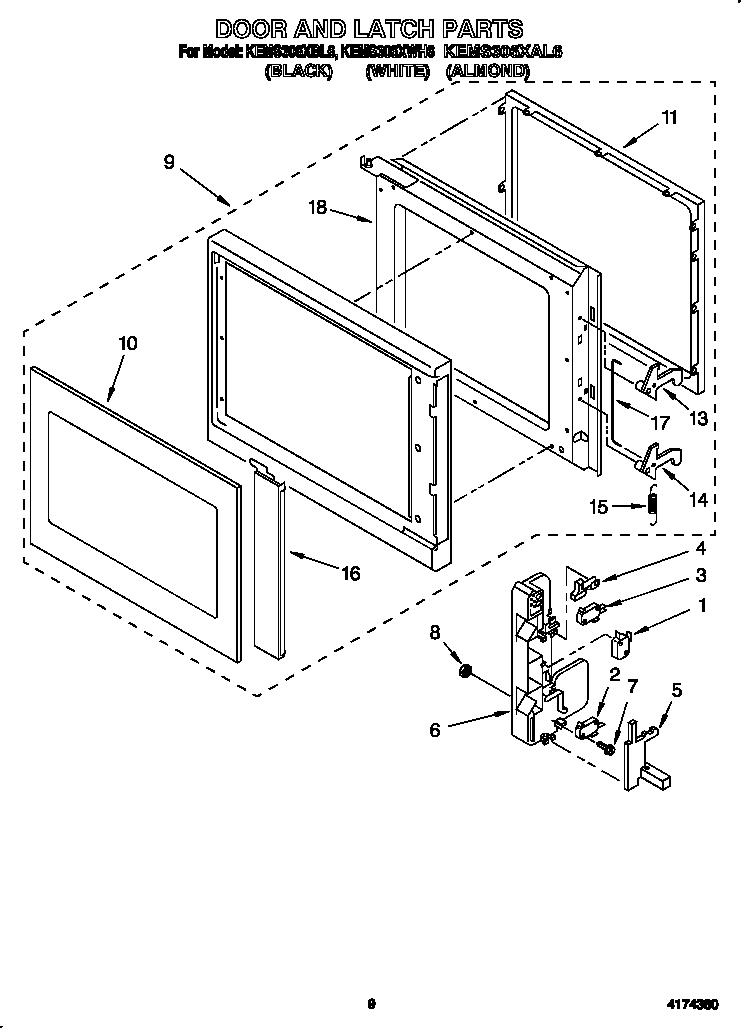

Wall Oven Door Inner Glass 3169203
#7

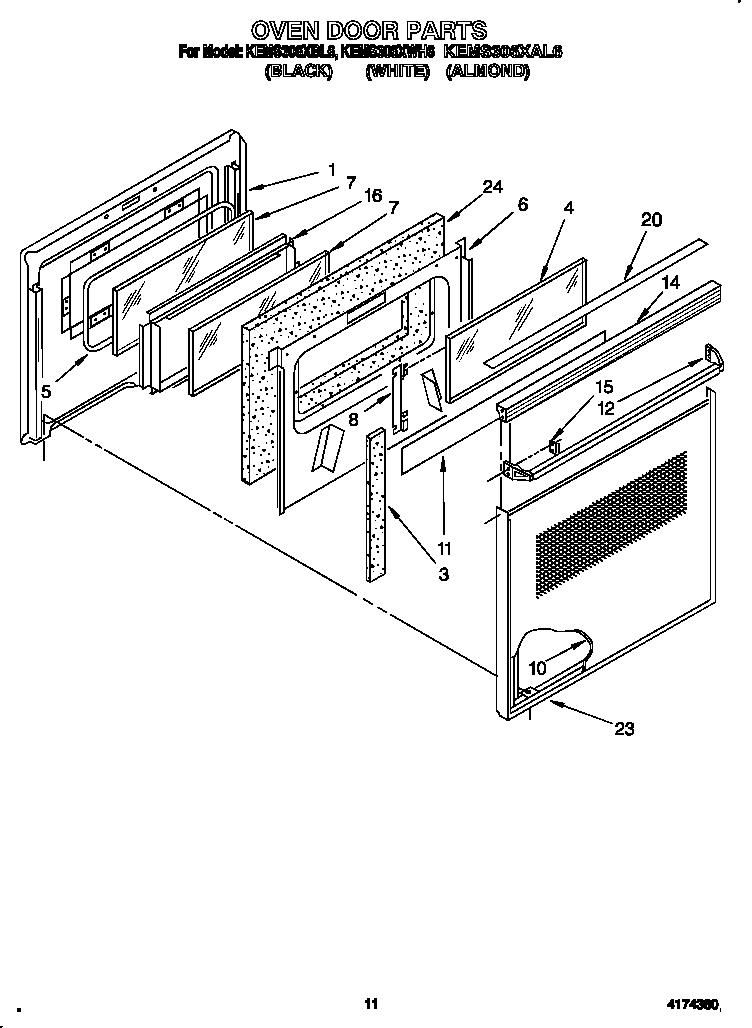

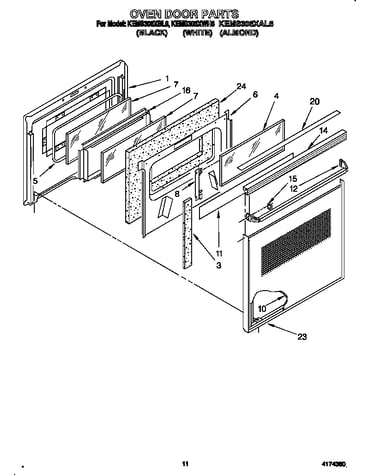

Oven door diagram
