Model # KUDS02FSPA4 Official KitchenAid dishwasher
Here are the diagrams and repair parts for Official KitchenAid KUDS02FSPA4 dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

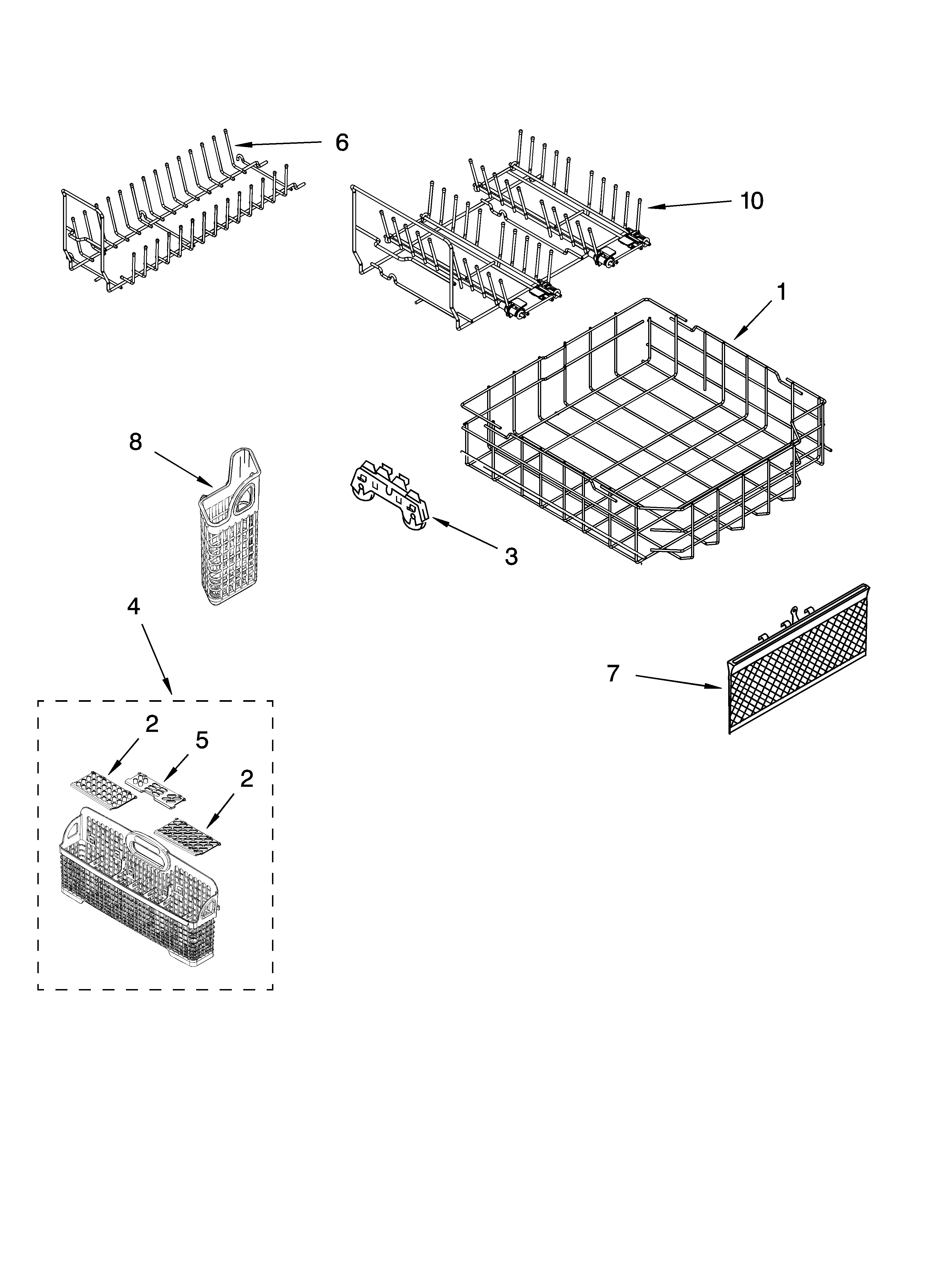

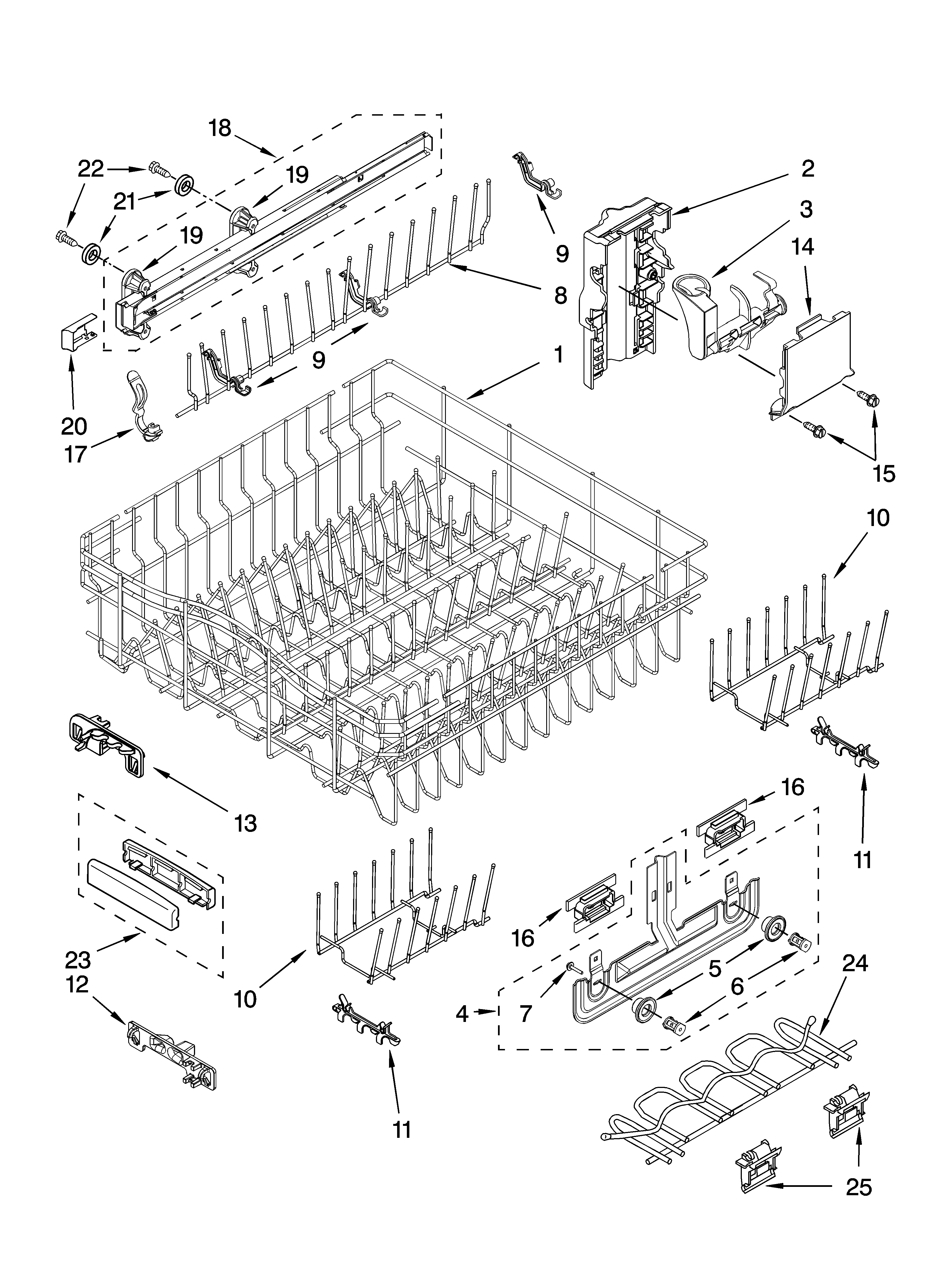

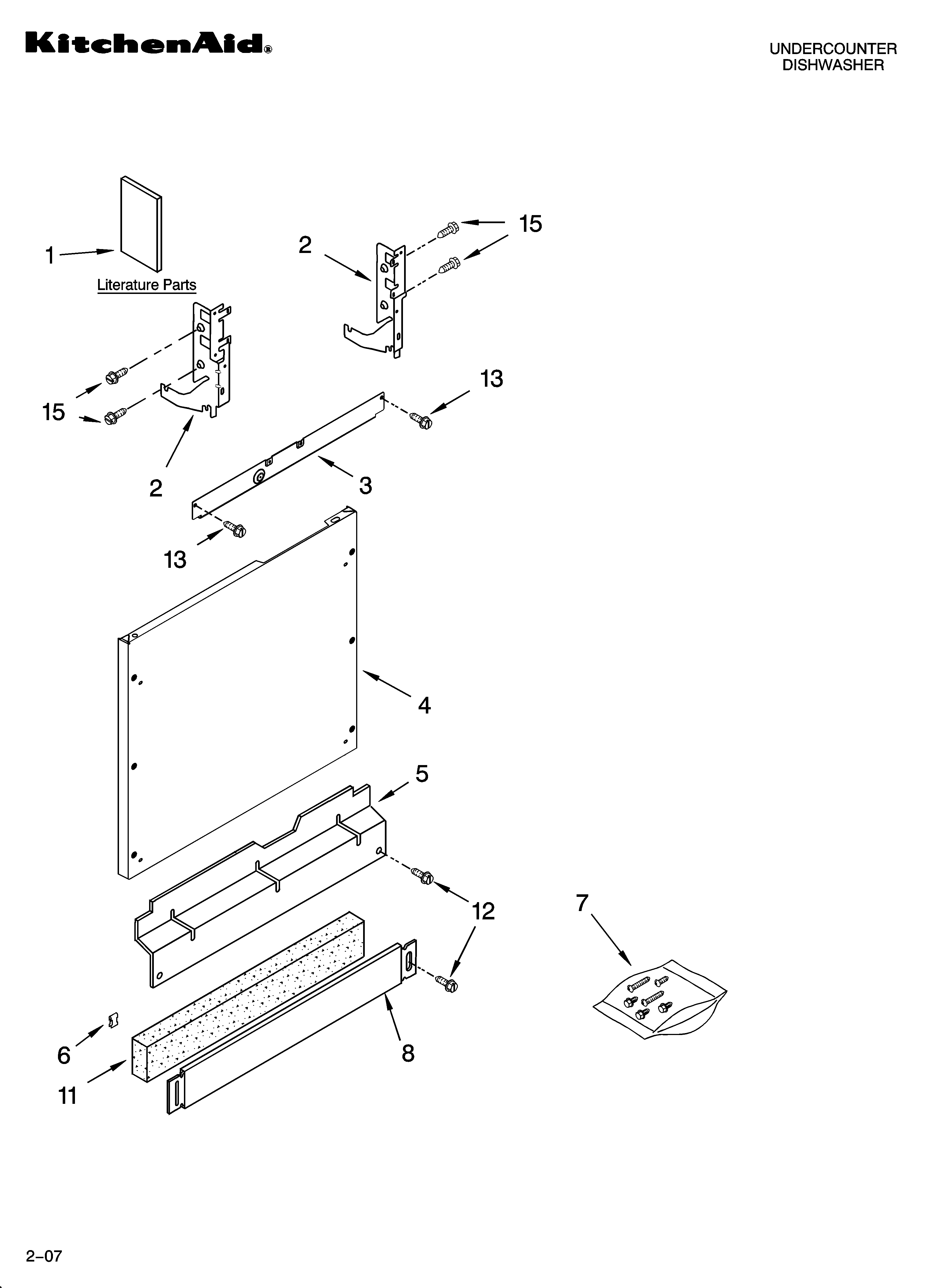

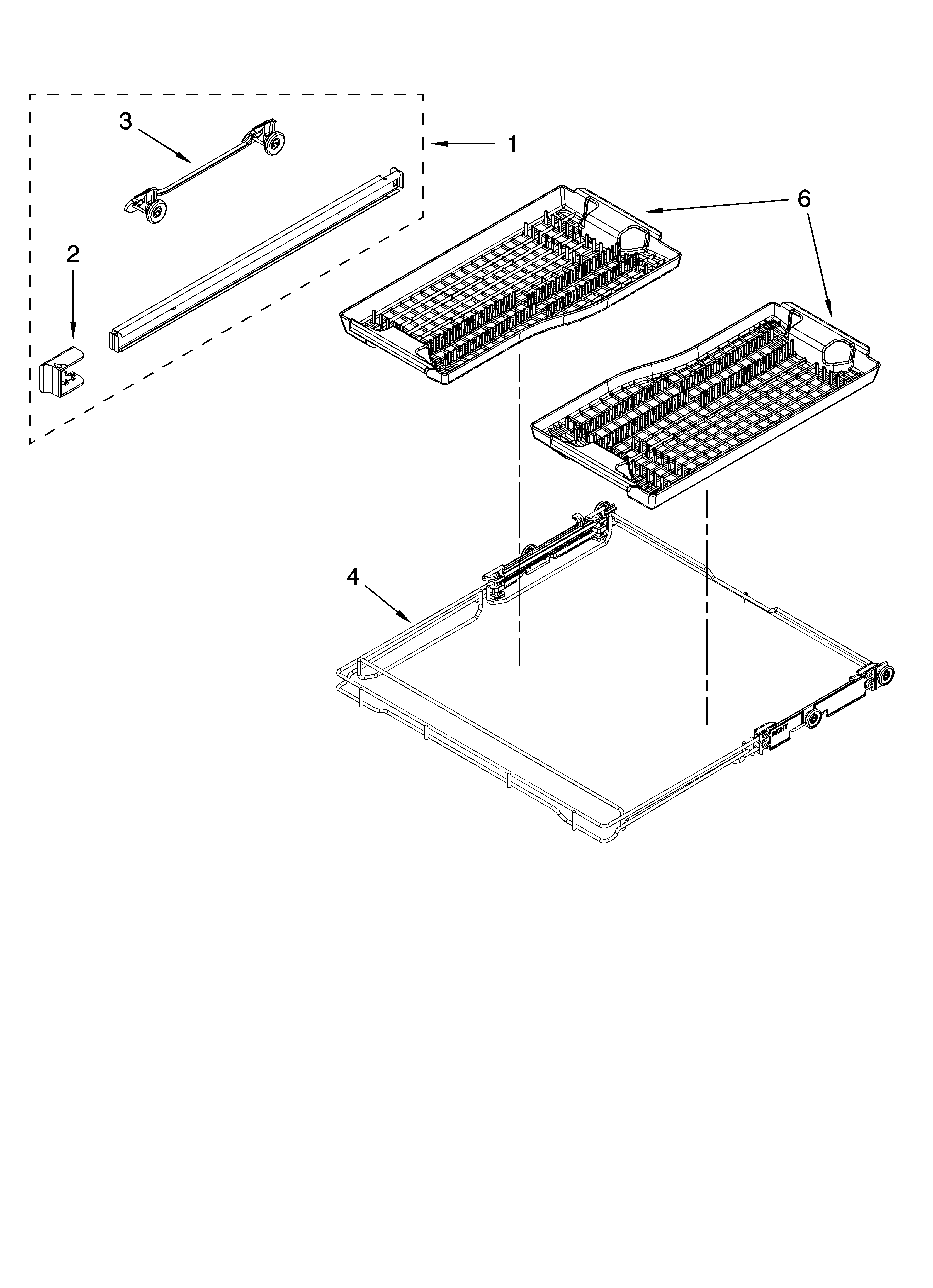

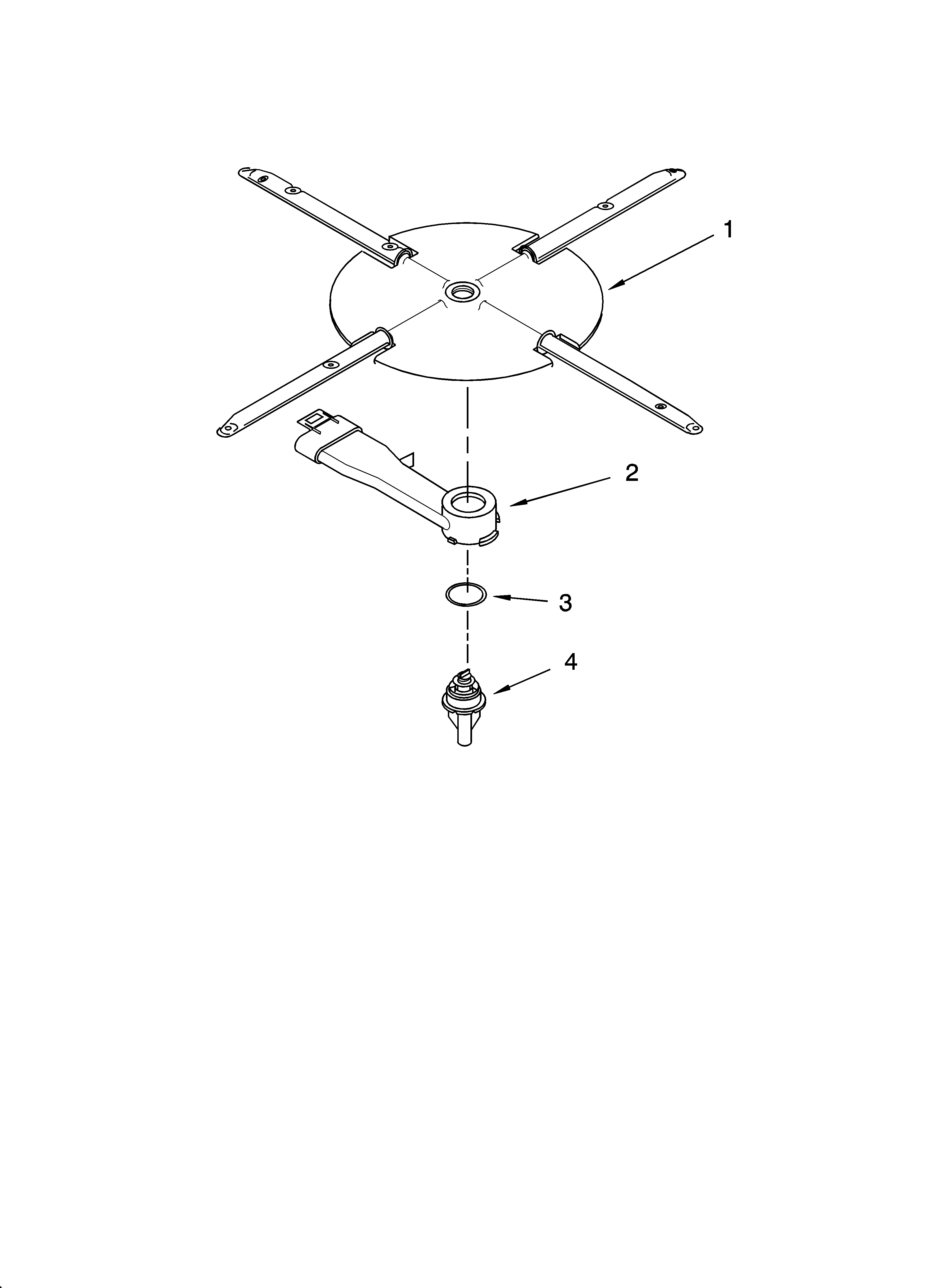

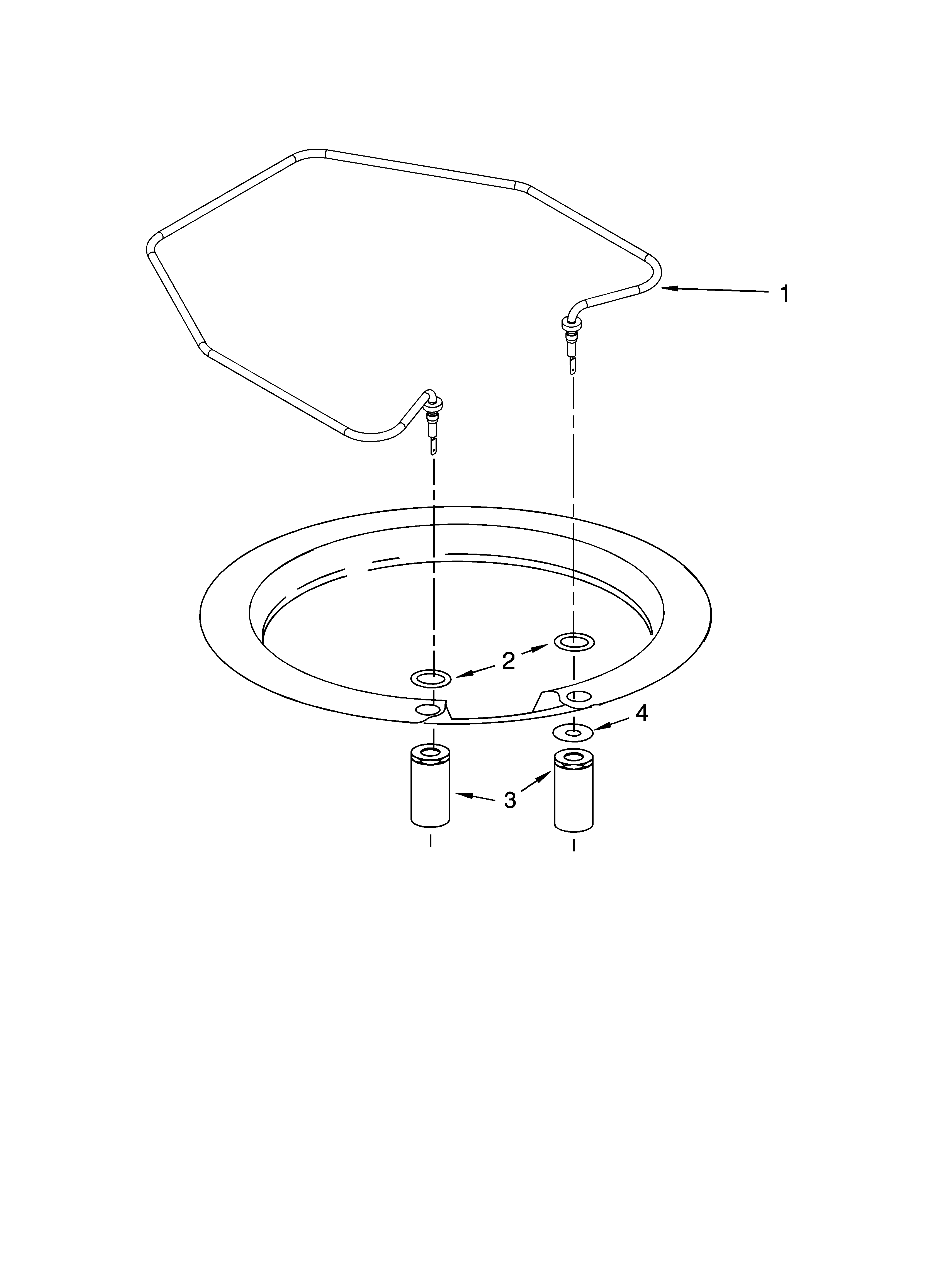

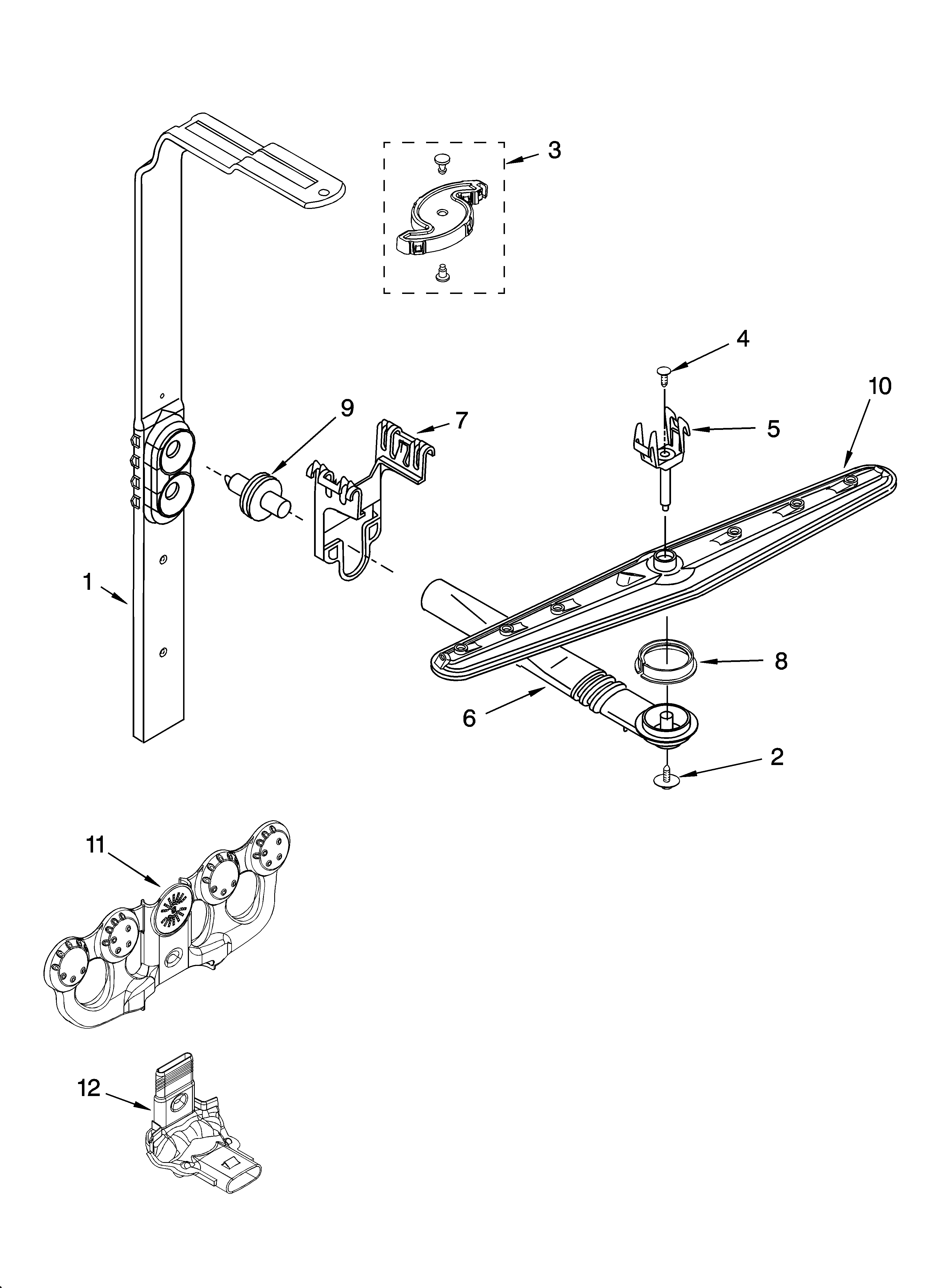

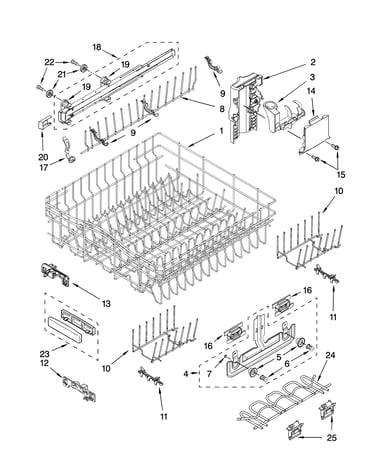

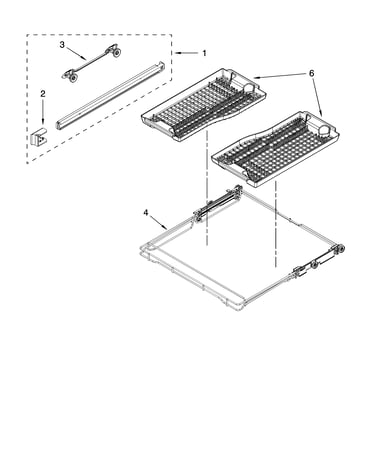

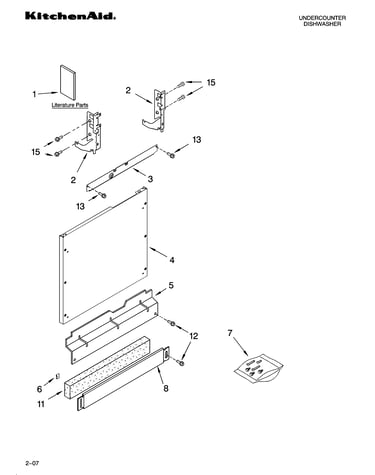

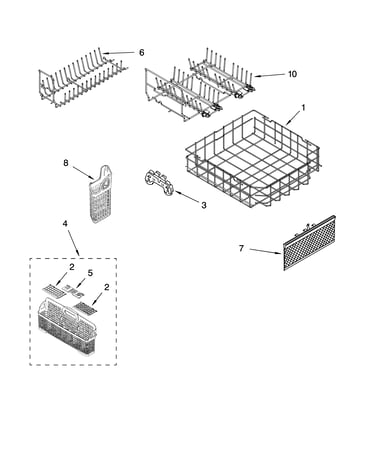

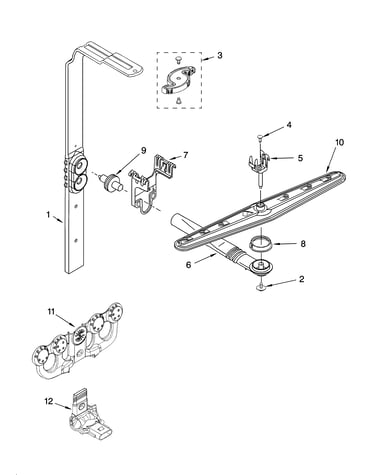

SELECT DIAGRAM
Browse Parts for
KUDS02FSPA4 Dishwasher
#17

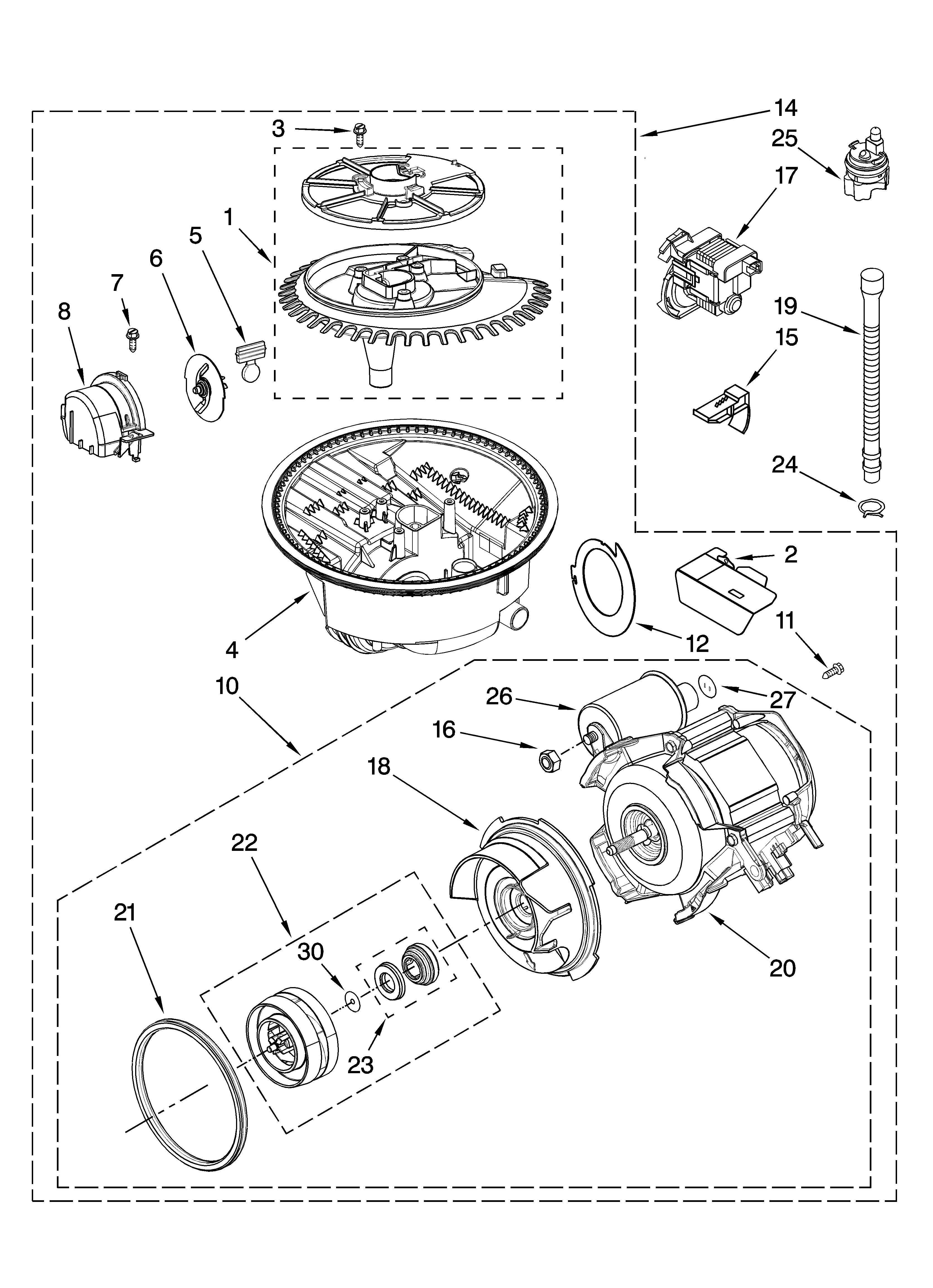

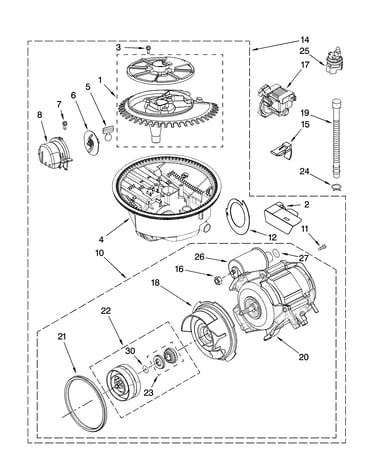

Pump and motor parts diagram
Dishwasher drain pump
Part #661662
Replaced by #WPW10348269
?
Manufacturer substitution
This part replaces 661662. Substitute parts can look different from the original.
$63.85 |
9% OFF Phone Price : $69.85
In Stock
#14
Pump and motor parts diagram
Pump motor
Part #8572617
Replaced by #WPW10780877
?
Manufacturer substitution
This part replaces 8572617. Substitute parts can look different from the original.
$202.83 |
6% OFF Phone Price : $214.83
In Stock
#6

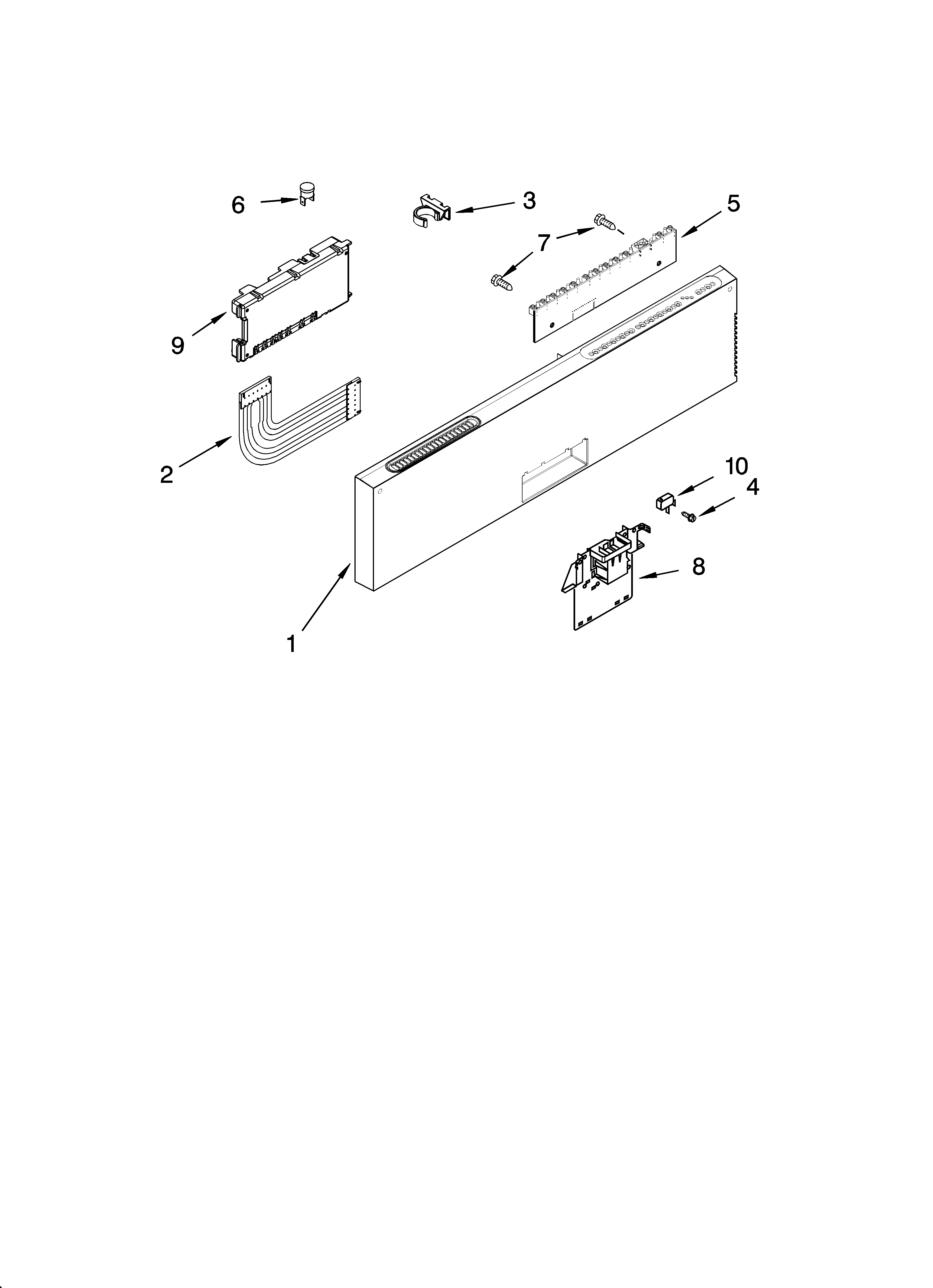

Control panel parts diagram
Fuse
Part #661663
Replaced by #W10258275
?
Manufacturer substitution
This part replaces 661663. Substitute parts can look different from the original.
$26.74 |
18% OFF Phone Price : $32.74
In Stock
#25
Pump and motor parts diagram
Sensor
Part #W10082647
Replaced by #WPW10705575
?
Manufacturer substitution
This part replaces W10082647. Substitute parts can look different from the original.
$22.47 |
21% OFF Phone Price : $28.47
In Stock
#6

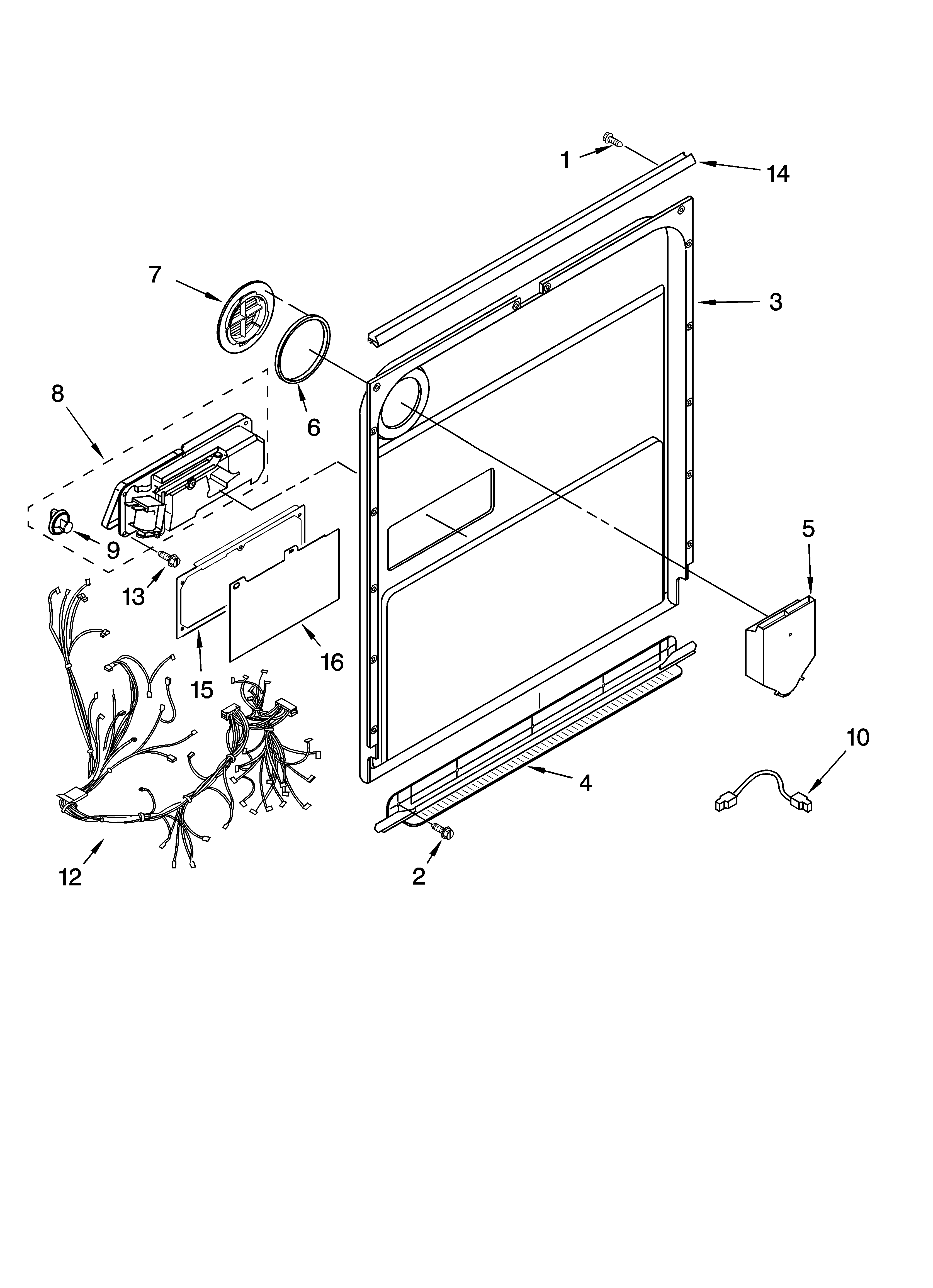

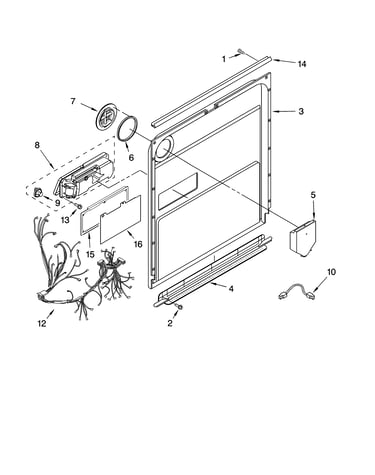

Door and latch parts diagram
Dishwasher vent gasket
Part #8269259
Replaced by #WP8269259
?
Manufacturer substitution
This part replaces 8269259. Substitute parts can look different from the original.
$32.68 |
16% OFF Phone Price : $38.68
In Stock
#10
Pump and motor parts diagram
Pump motor
Part #8535760
Replaced by #WPW10757217
?
Manufacturer substitution
This part replaces 8535760. Substitute parts can look different from the original.
$142.70 |
8% OFF Phone Price : $154.70
In Stock
#20
Pump and motor parts diagram
Pump motor
Part #8535759
Replaced by #WPW10757217
?
Manufacturer substitution
This part replaces 8535759. Substitute parts can look different from the original.
$142.70 |
8% OFF Phone Price : $154.70
In Stock
#2

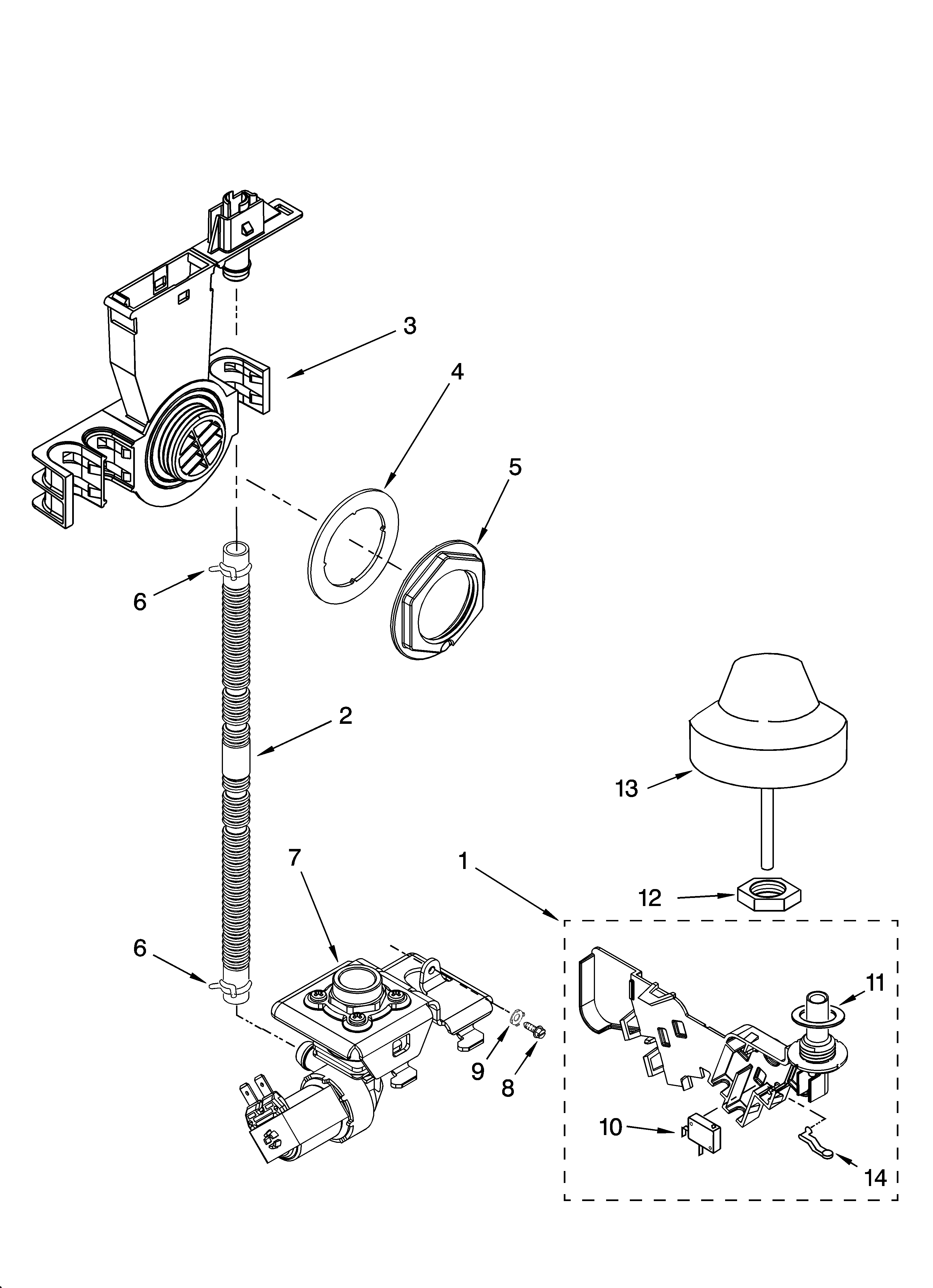

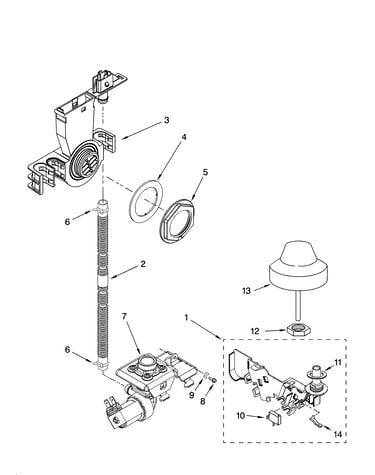

Fill and overfill parts diagram
Dishwasher water inlet tubing
Part #8531412
Replaced by #W10878507
?
Manufacturer substitution
This part replaces 8531412. Substitute parts can look different from the original.
$63.25 |
9% OFF Phone Price : $69.25
In Stock
#11

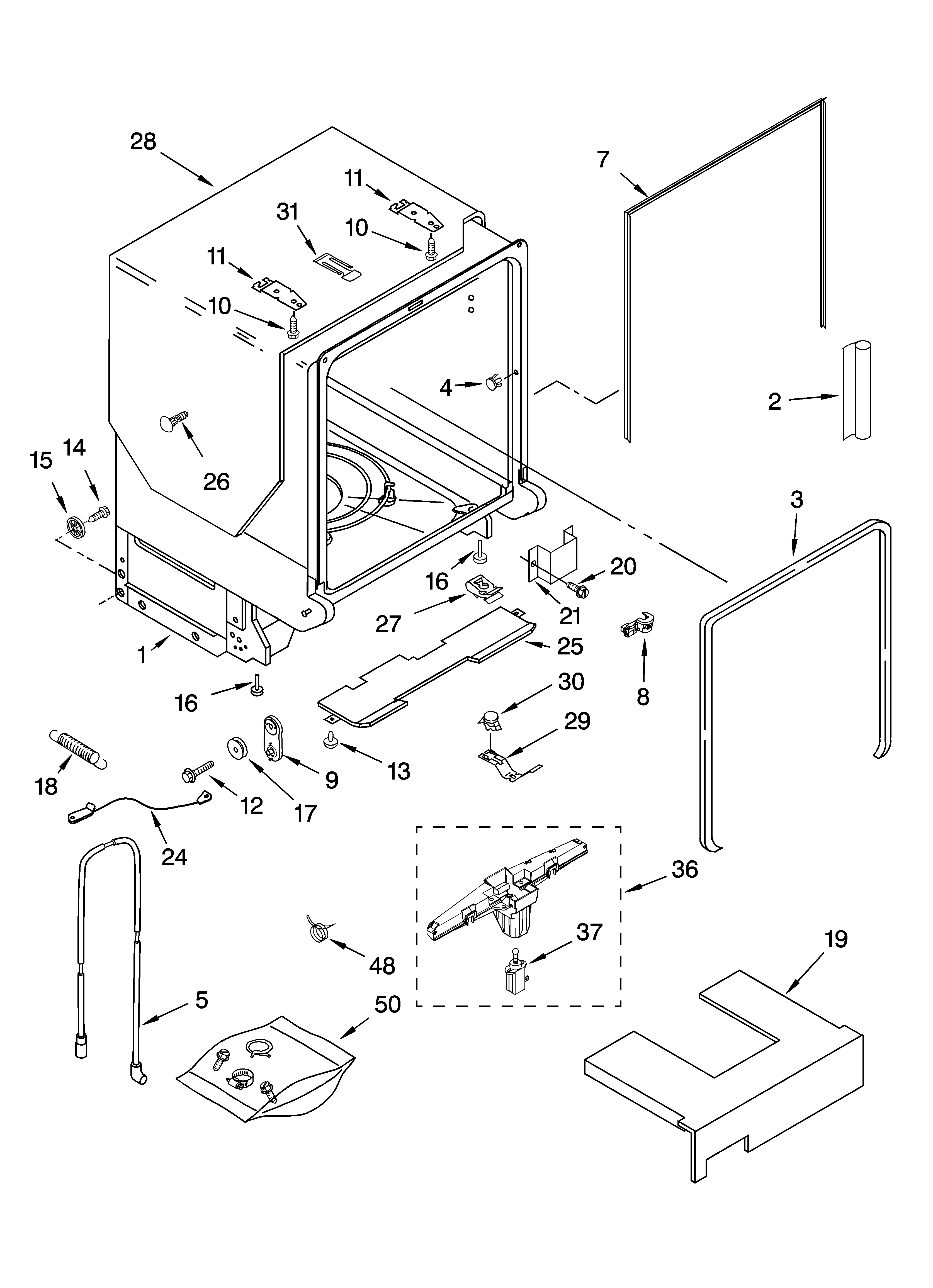

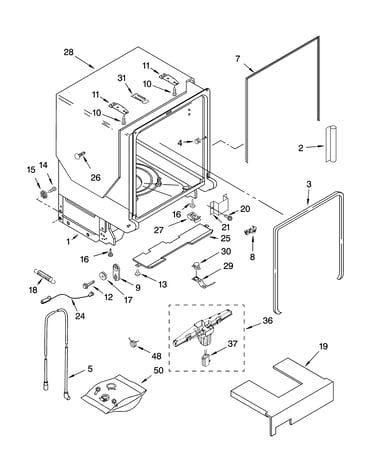

Tub and frame parts diagram
Dishwasher mounting bracket
Part #8269145
Replaced by #WP8269145
?
Manufacturer substitution
This part replaces 8269145. Substitute parts can look different from the original.
$16.26 |
11% OFF Phone Price : $18.26
In Stock
#10
Control panel parts diagram
Dishwasher door switch
Part #8269209
Replaced by #WP8269209
?
Manufacturer substitution
This part replaces 8269209. Substitute parts can look different from the original.
$20.60 |
23% OFF Phone Price : $26.60
In Stock
