Countertop Microwave

Model # MMC5086AAQ Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag MMC5086AAQ microwave, as well as links to manuals and error code tables, if available.

By Schematic

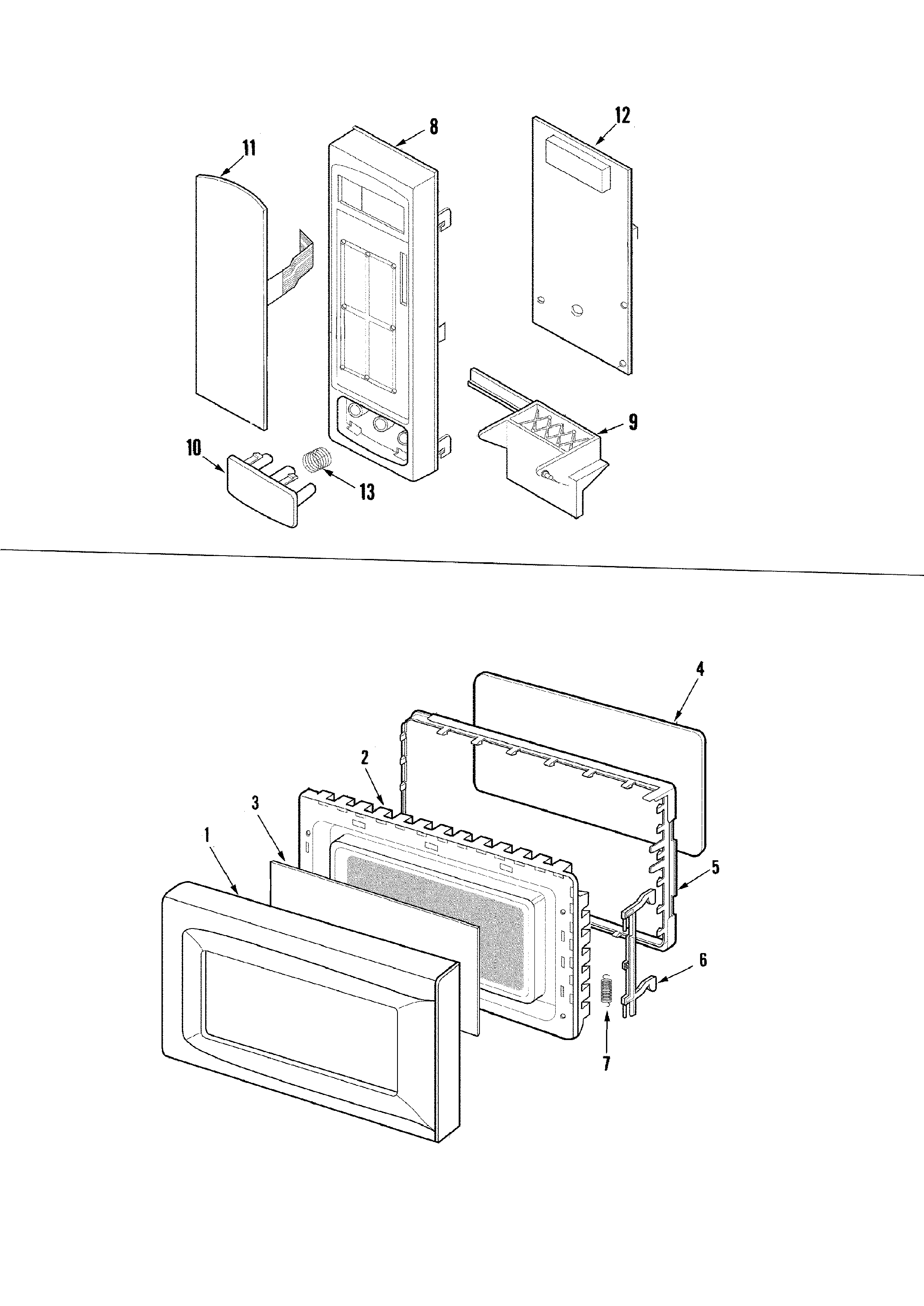

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MMC5086AAQ Microwaves
"switch, Micr" R0131108
#21

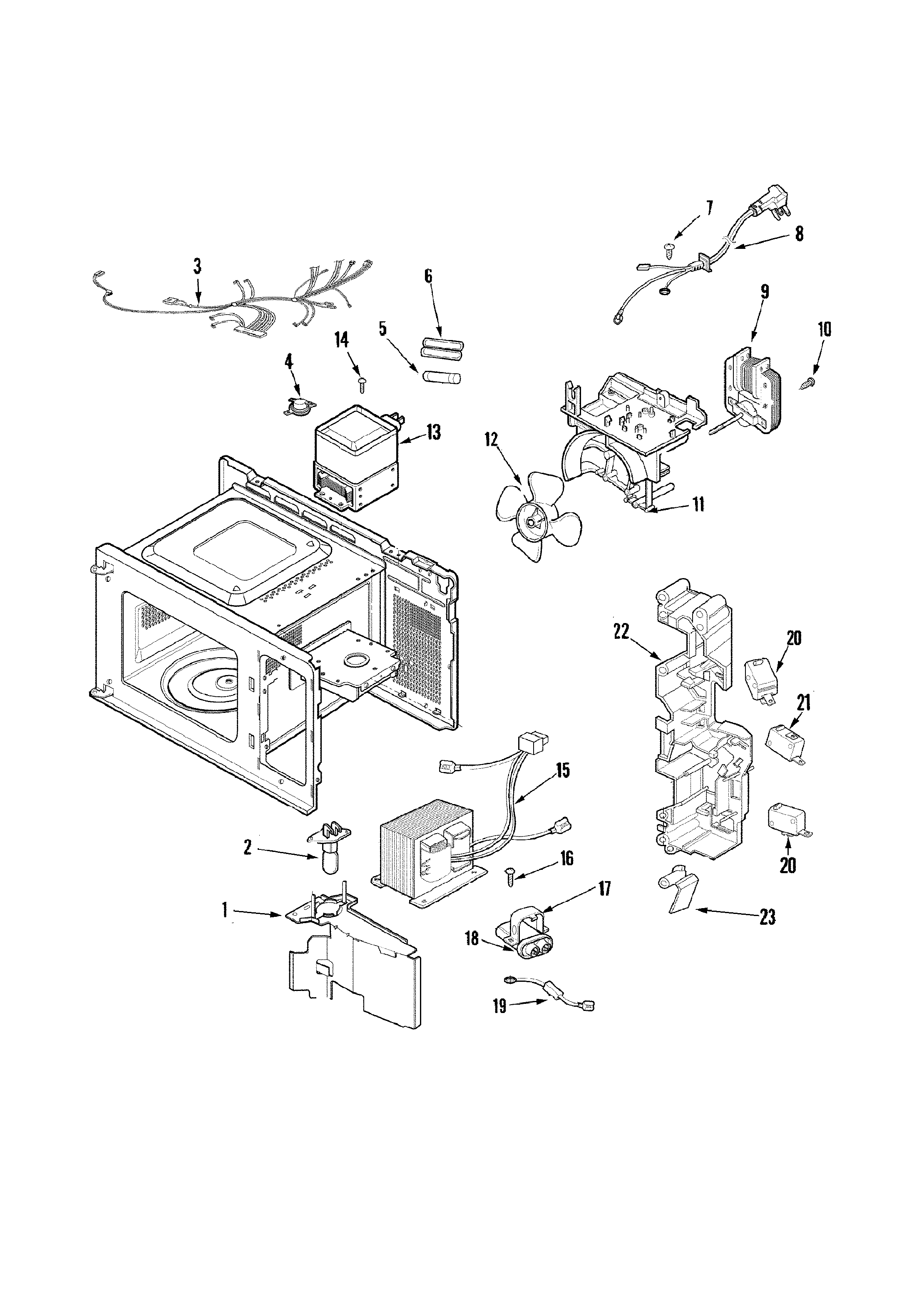

Interior controls diagram

"switch, micr"

Part #R0131108

Replaced by #4392027

?
Manufacturer substitution
This part replaces R0131108. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Lamp Oven Burner R9900373
#2

Interior controls diagram

Lamp oven burner

Part #R9900373

Replaced by #WP8183592

?
Manufacturer substitution
This part replaces R9900373. Substitute parts can look different from the original.
$24.11 |
20% OFF Phone Price : $30.11
In Stock
Diode Cable R0131079
#19

Interior controls diagram

Diode cable

Part #R0131079

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces R0131079. Substitute parts can look different from the original.
$23.01 |
21% OFF Phone Price : $29.01
In Stock
Screw R0131029
Screw

Part #R0131029

$13.11
In Stock
"motor, Turn" 53001094
#15

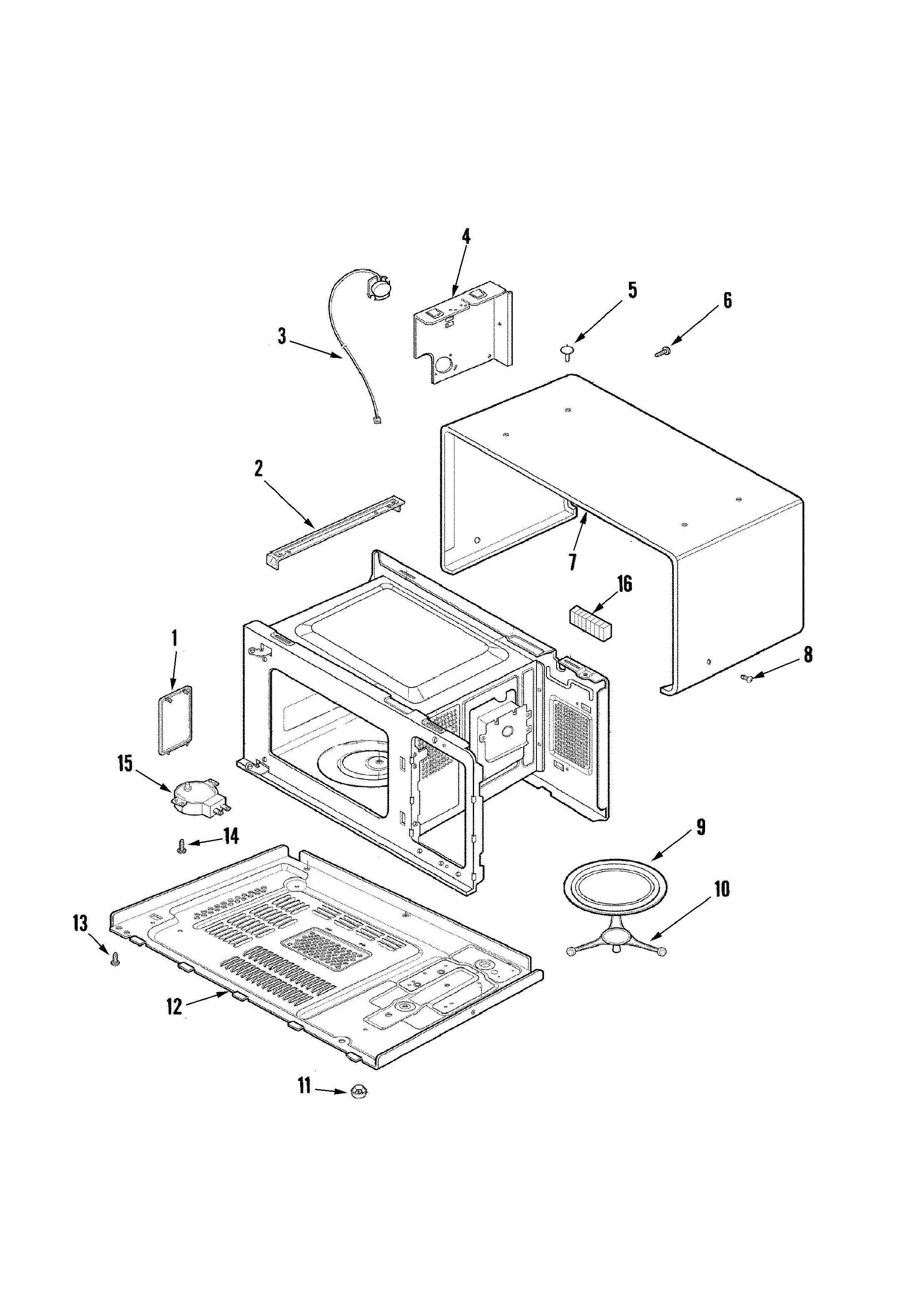

Cavity diagram

"motor, turn"

Part #53001094

Replaced by #WPW10159107

?
Manufacturer substitution
This part replaces 53001094. Substitute parts can look different from the original.
$70.45 |
8% OFF Phone Price : $76.45
In Stock
Magnetron R9900549
#13

Interior controls diagram

Magnetron

Part #R9900549

The manufacturer no longer makes this part, and there's no substitute part

Tapping Screw R0131246
Tapping screw

Part #R0131246

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0131246. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
"capacitor, H" R0131109
#18

Interior controls diagram

"capacitor, h"

Part #R0131109

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces R0131109. Substitute parts can look different from the original.
$87.46 |
6% OFF Phone Price : $93.46
In Stock
Cap R0131082
#11

Cavity diagram

Cap

Part #R0131082

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Capacitor (series 10-50) R0131071
#17

Interior controls diagram

Bracket, capacitor (series 10-50)

Part #R0131071

The manufacturer no longer makes this part, and there's no substitute part
