Model # FB25 TYPE 1 Official Weed Eater blower

Here are the diagrams and repair parts for Official Weed Eater FB25-TYPE-1 blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#31

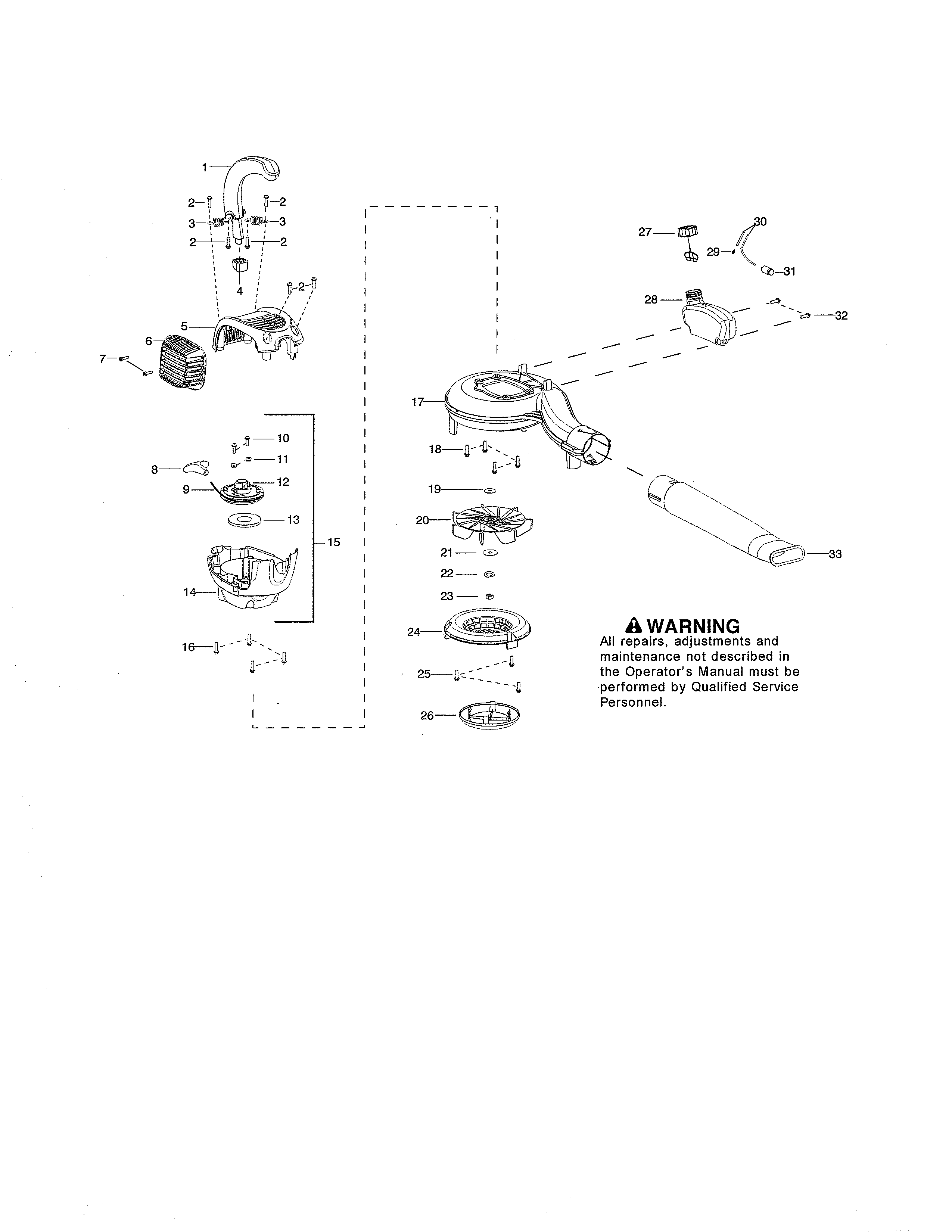

Scroll/hose/impeller diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#29

Scroll/hose/impeller diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Line Trimmer Fuel Tank Cap (replaces 14347, 530010729, 5300143-47, 530-014347, 530014370) 530014347
#27

Scroll/hose/impeller diagram

Line trimmer fuel tank cap (replaces 14347, 530010729, 5300143-47, 530-014347, 530014370)

Part #530014347

BEST SELLER
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Lawn & Garden Equipment Engine Fuel Return Line (replaces 5300695-99, 530-069599, 530069751) 530069599
#30

Scroll/hose/impeller diagram

Lawn & garden equipment engine fuel return line (replaces 5300695-99, 530-069599, 530069751)

Part #530069599

BEST SELLER
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Line Trimmer Primer Bulb 530058709
#31

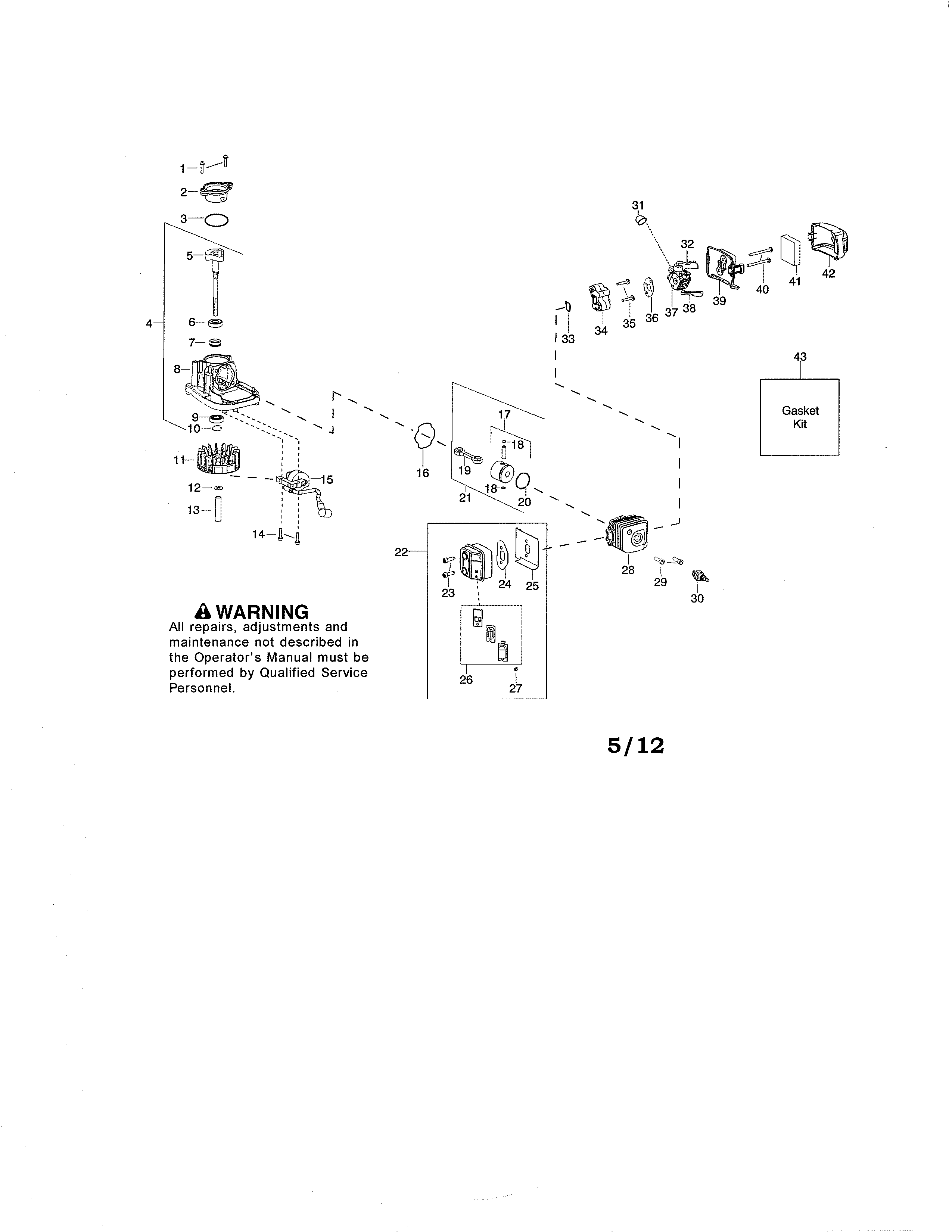

Muffler/cylinder/crankcase diagram

Line trimmer primer bulb

Part #530058709

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Line Trimmer Engine Piston Ring (replaces 530055120) 545154001
#20

Muffler/cylinder/crankcase diagram

Line trimmer engine piston ring (replaces 530055120)

Part #545154001

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Lawn & Garden Equipment Engine Crankcase Plug 530057954
#2

Muffler/cylinder/crankcase diagram

Lawn & garden equipment engine crankcase plug

Part #530057954

This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Start Spring 545054901
#13

Scroll/hose/impeller diagram

Start spring

Part #545054901

Replaced by #545008014

?
Manufacturer substitution
This part replaces 545054901. Substitute parts can look different from the original.
This item is not returnable
$13.00 |
13% OFF Phone Price : $15.00
In Stock
Lawn & Garden Equipment Flywheel 530054115
#11A

Muffler/cylinder/crankcase diagram

Lawn & garden equipment flywheel

Part #530054115

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530054115. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Leaf Blower Engine Flywheel 545197301
#11

Muffler/cylinder/crankcase diagram

Leaf blower engine flywheel

Part #545197301

Replaced by #545221701

?
Manufacturer substitution
This part replaces 545197301. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
