Model # DW744 TYPE 1 Official DeWalt 10" benchtop table saw

Here are the diagrams and repair parts for Official DeWalt DW744-TYPE-1 10" benchtop table saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

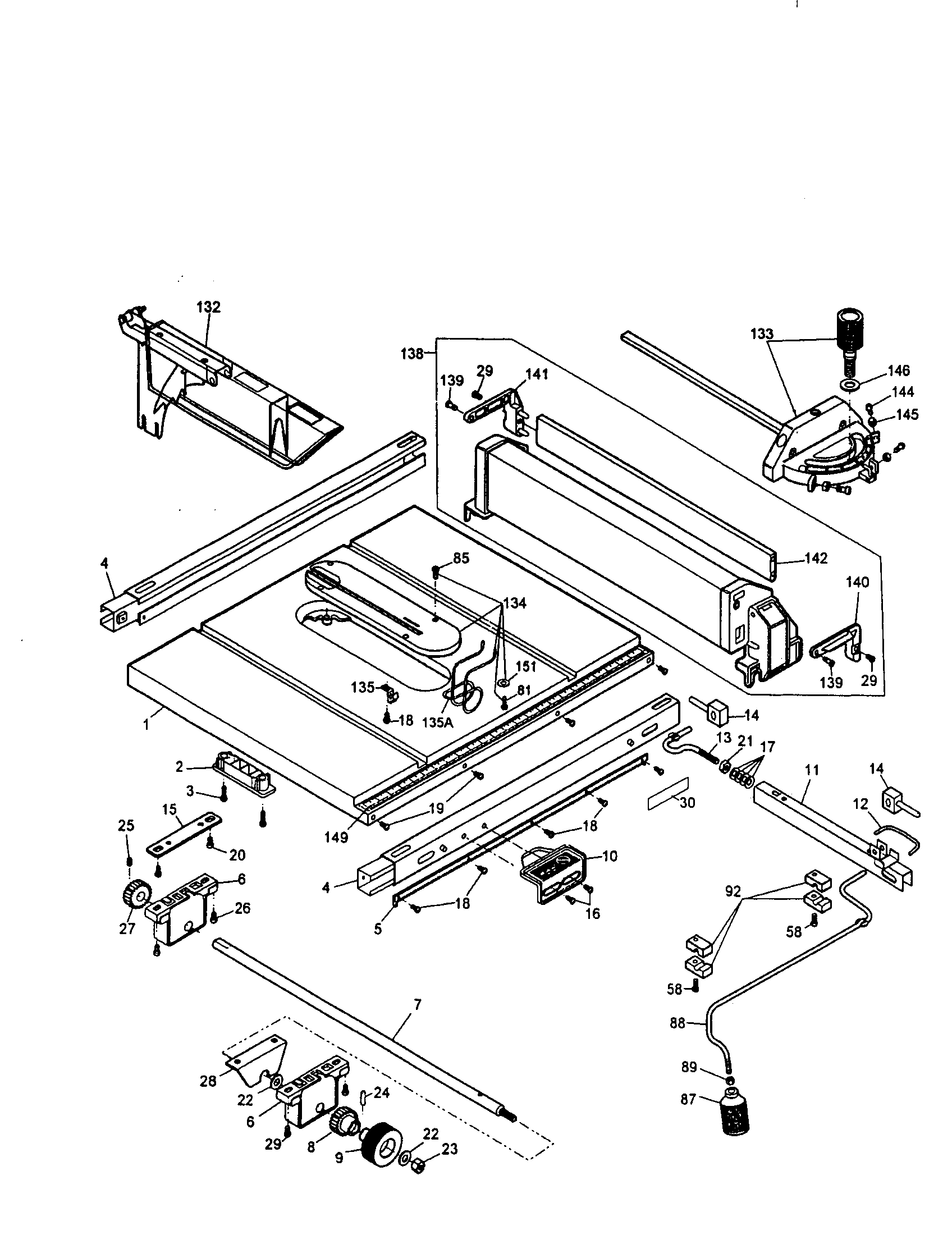

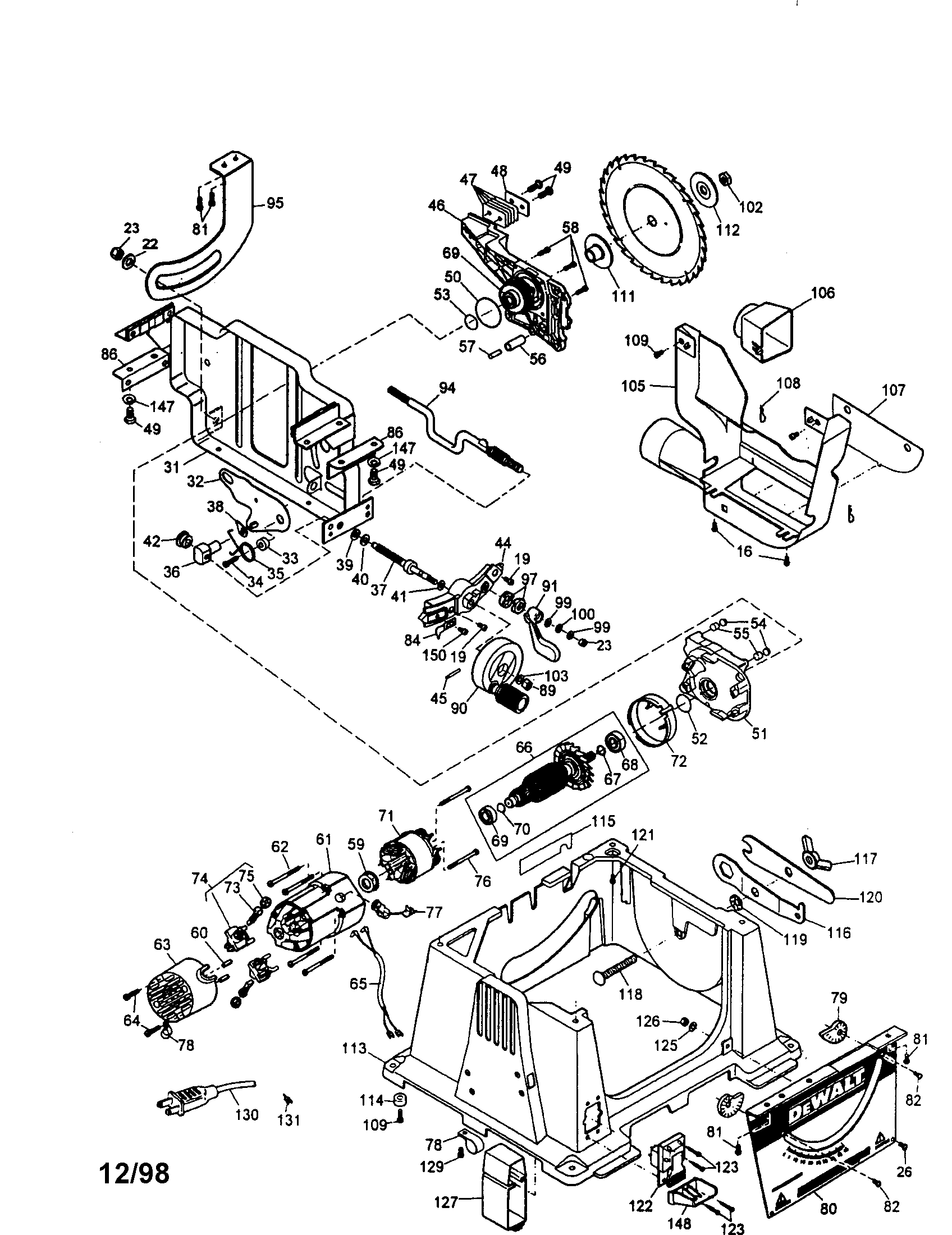

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Screw 153460-00

#16

All parts diagram

Screw

Part #153460-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-20

#64

All parts diagram

Screw

Part #330019-20

The manufacturer no longer makes this part, and there's no substitute part

Shaft 153472-00

#7

All parts diagram

Shaft

Part #153472-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw, 5 X 16-mm 330045-14

#26

All parts diagram

Power tool screw, 5 x 16-mm

Part #330045-14

The manufacturer no longer makes this part, and there's no substitute part

Bearing 153451-00

#100

All parts diagram

Bearing

Part #153451-00

The manufacturer no longer makes this part, and there's no substitute part

Screw, 2-pack 153637-01

#82

All parts diagram

Screw, 2-pack

Part #153637-01

The manufacturer no longer makes this part, and there's no substitute part

Link, Threaded 153385-00

#13

All parts diagram

Link, threaded

Part #153385-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 153479-00

#112

All parts diagram

Washer

Part #153479-00

The manufacturer no longer makes this part, and there's no substitute part

Shroud 153353-00

#105

All parts diagram

Shroud

Part #153353-00

The manufacturer no longer makes this part, and there's no substitute part

Bracket 153541-00

#28

All parts diagram

Bracket

Part #153541-00

The manufacturer no longer makes this part, and there's no substitute part
