Model # WWA8630SALAA Official GE washer

Here are the diagrams and repair parts for Official GE WWA8630SALAA washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

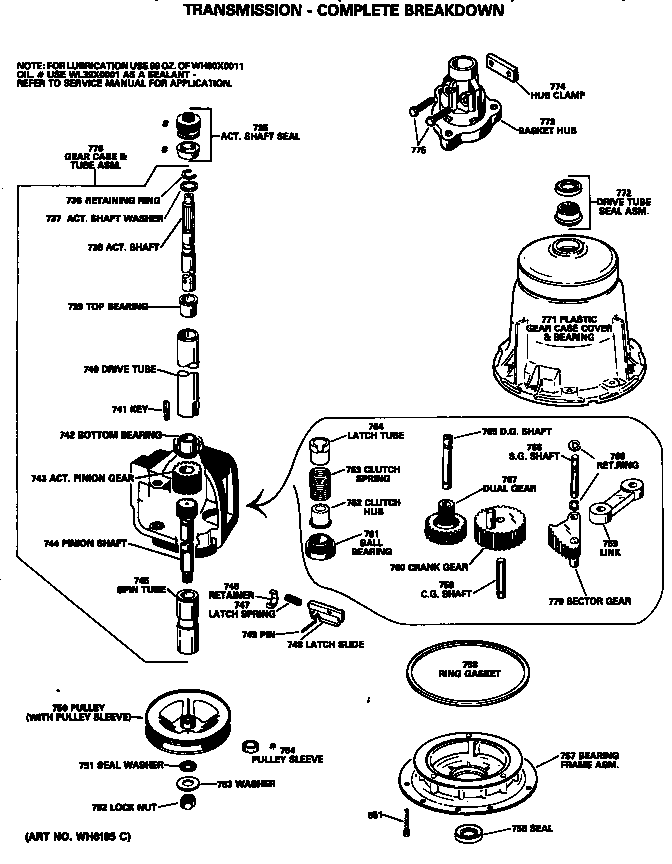

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 284 parts  |
Washer Timer Knob Clip (replaces Wh01x2117, Wh1x1499, Wh1x1610, Wh2x561) WH1X2117
#9

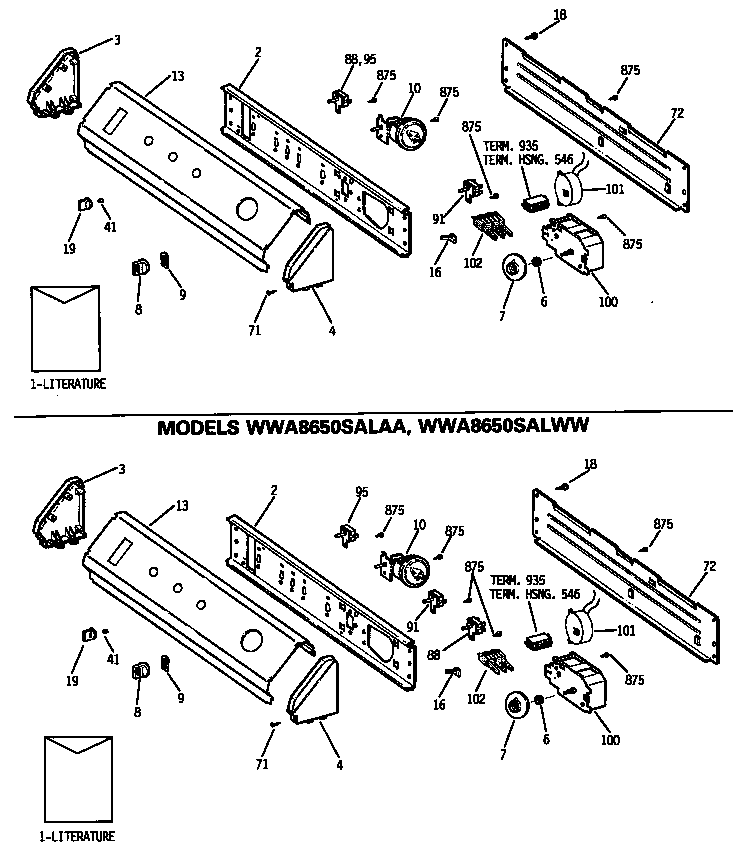

Control panels diagram

Washer timer knob clip (replaces wh01x2117, wh1x1499, wh1x1610, wh2x561)

Part #WH1X2117

BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Washer Hose Clamp Kit WH1X2036
Washer hose clamp kit

Part #WH1X2036

$11.59 |
15% OFF Phone Price : $13.59
In Stock
Knob WH1X2710
#8

Control panels diagram

Knob

Part #WH1X2710

Replaced by #WH1X2754

?
Manufacturer substitution
This part replaces WH1X2710. Substitute parts can look different from the original.
This item is not returnable
$7.71 |
11% OFF Phone Price : $8.71
In Stock
Washer Leveling Leg Rubber Pad WH1X484
#463

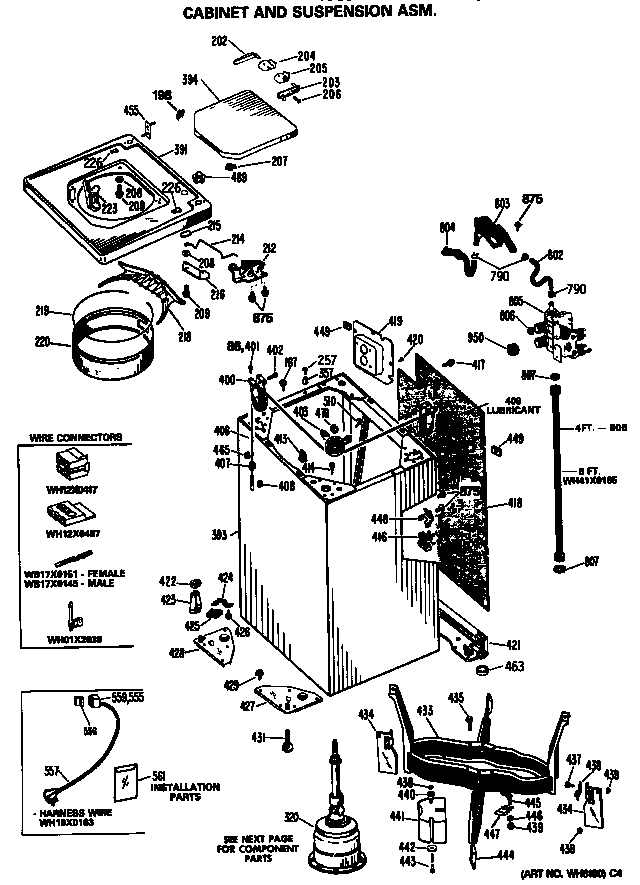

Cabinet and suspension asm diagram

Washer leveling leg rubber pad

Part #WH1X484

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Drain Hose Retainer Strap WH1X2594
#835

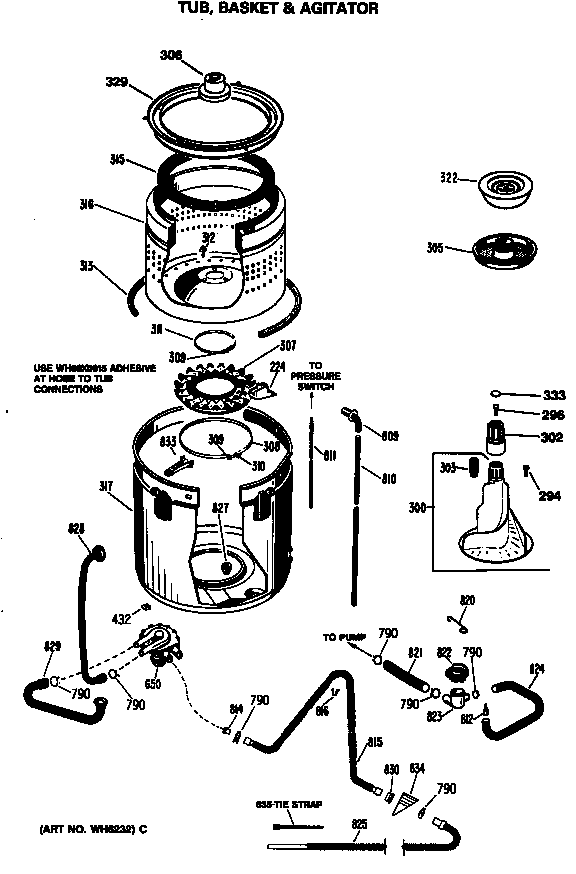

Tub, basket & agitator diagram

Washer drain hose retainer strap

Part #WH1X2594

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Drive Belt (replaces Wh01x2026, Wh1x1904) WH1X2026
#603

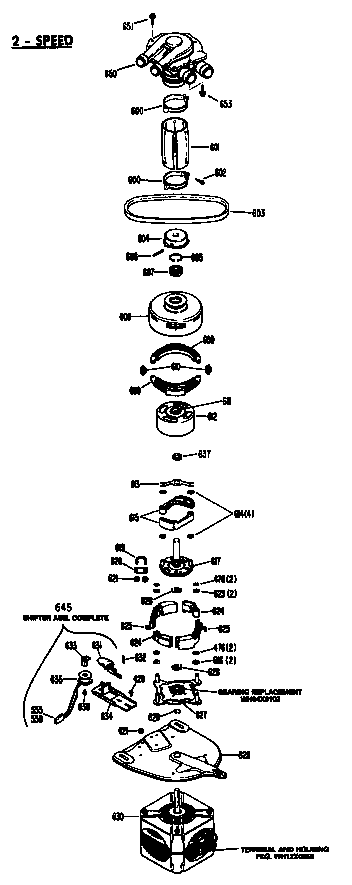

2 - speed diagram

Washer drive belt (replaces wh01x2026, wh1x1904)

Part #WH1X2026

$7.73 |
11% OFF Phone Price : $8.73
In Stock
Use And Care Guide 49-9786

#NI

All parts diagram

Use and care guide

Part #49-9786

$8.49
In Stock
Use And Care Guide 49-9788

#NI

All parts diagram

Use and care guide

Part #49-9788

$8.49
In Stock
Use And Care Guide 49-9787

#NI

All parts diagram

Use and care guide

Part #49-9787

$8.49
In Stock
Dryer Screw WH2X930
Dryer screw

Part #WH2X930

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

View all

Why won't my washing machine drain?

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Read more

Why won't my washing machine agitate or spin?

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Read more

Why won't my washing machine start?

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Read more

Why your washing machine won't finish its cycle

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Read more

Why is my washing machine noisy or shaking?

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Read more

Why won't my washing machine fill?

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Read more

Why doesn't my washing machine work at all?

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Read more

Why does my washing machine overfill?

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Read more

Why is the water in my washing machine the wrong temperature?

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Read more
