Model # 58771430 Official Kenmore portable dishwasher

Here are the diagrams and repair parts for Official Kenmore 58771430 portable dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Spray Arm 805577
#30

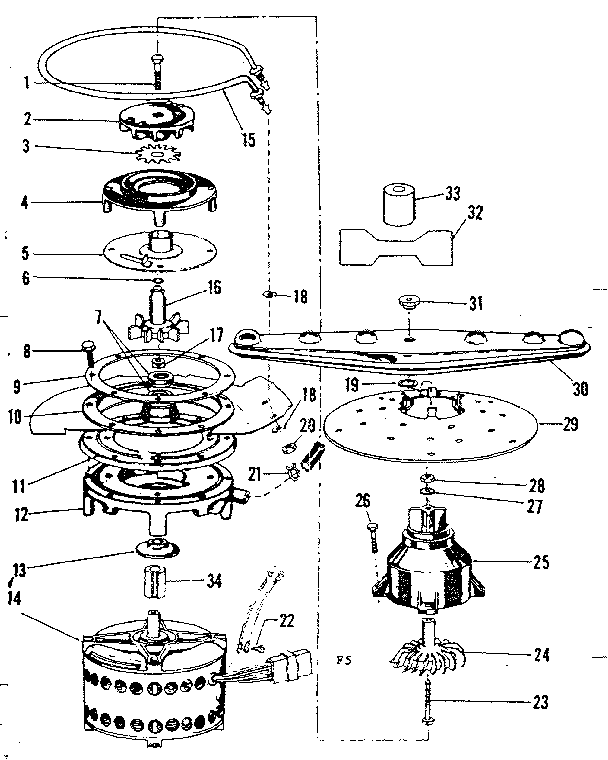

Motor, heater & spray arm details diagram

Spray arm

Part #805577

Replaced by #5300808961

?
Manufacturer substitution
This part replaces 805577. Substitute parts can look different from the original.
$142.10
In Stock
Nut 804527
#28

Motor, heater & spray arm details diagram

Nut

Part #804527

Replaced by #316205500

?
Manufacturer substitution
This part replaces 804527. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Washer 800787
#3

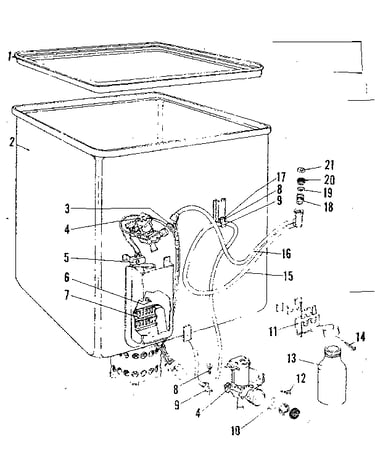

Tub details diagram

Washer

Part #800787

Replaced by #5300800787

?
Manufacturer substitution
This part replaces 800787. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
Screw 804517
#3

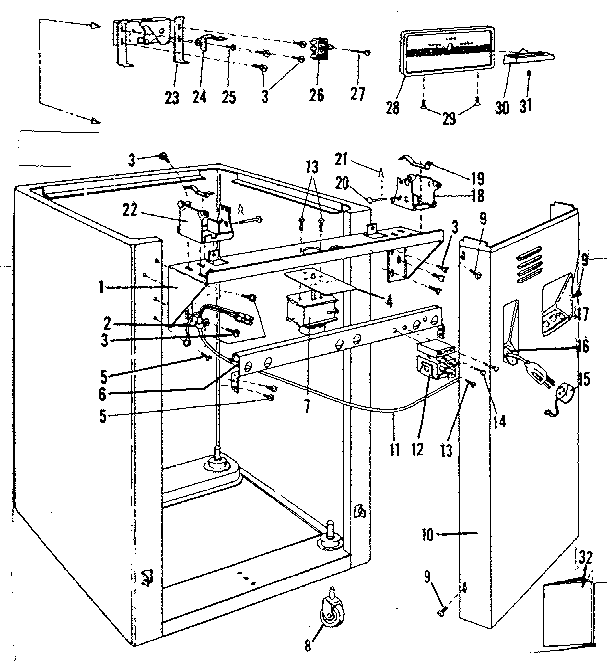

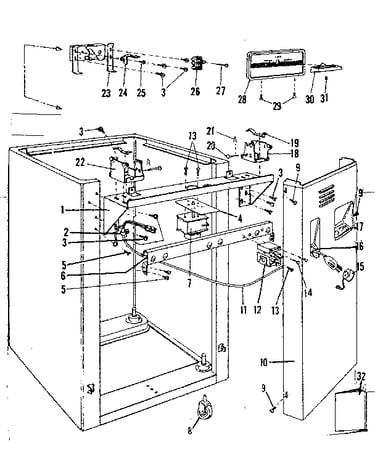

Frame details diagram

Screw

Part #804517

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw GM454033
#4

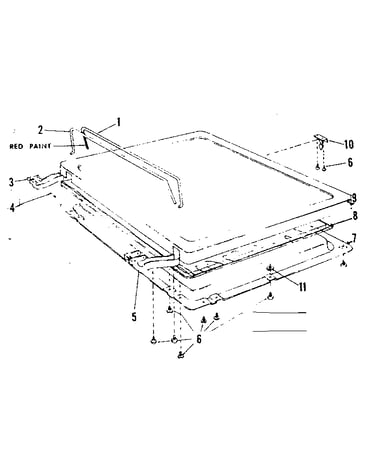

Lid details diagram

Washer screw

Part #GM454033

The manufacturer no longer makes this part, and there's no substitute part

Rack 806162
#3

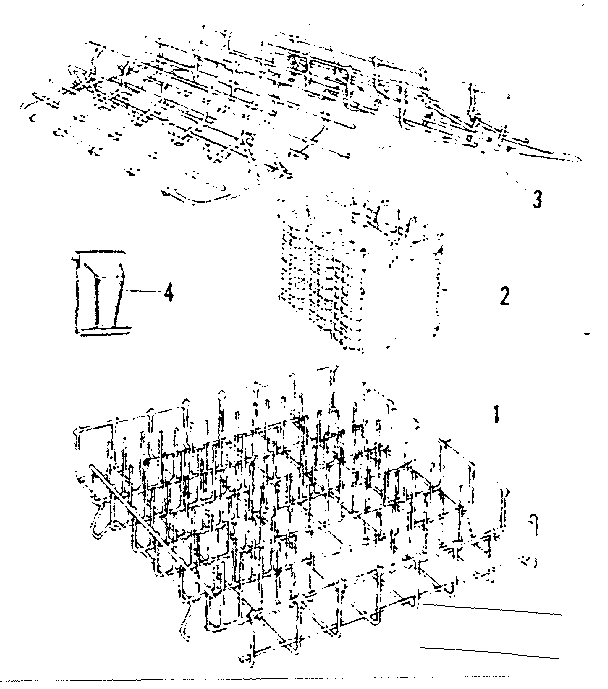

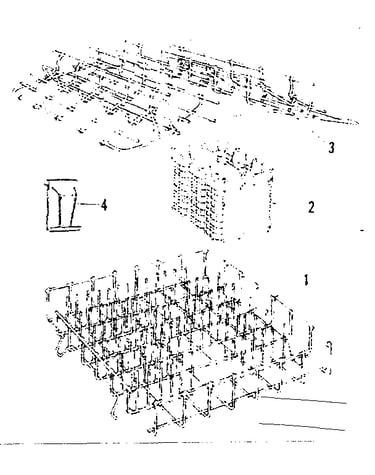

Rack assemblies diagram

Rack

Part #806162

The manufacturer no longer makes this part, and there's no substitute part

Rack-citron 806161
#1

Rack assemblies diagram

Rack-citron

Part #806161

The manufacturer no longer makes this part, and there's no substitute part

Panel 804331
#10

Frame details diagram

Panel

Part #804331

The manufacturer no longer makes this part, and there's no substitute part

Gasket Heatr 806109
#18

Motor, heater & spray arm details diagram

Gasket heatr

Part #806109

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 804926
#3

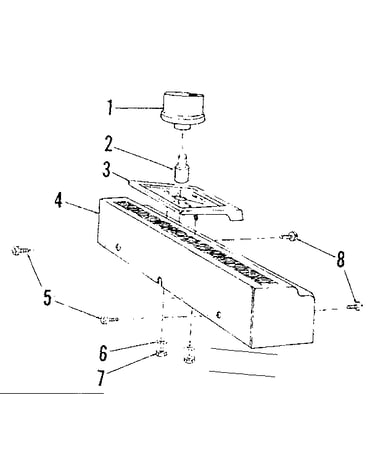

Console details diagram

Escutcheon

Part #804926

The manufacturer no longer makes this part, and there's no substitute part
