Model # SHE6AP05UC/02 Official Bosch dishwasher
Here are the diagrams and repair parts for Official Bosch SHE6AP05UC/02 dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
By Part

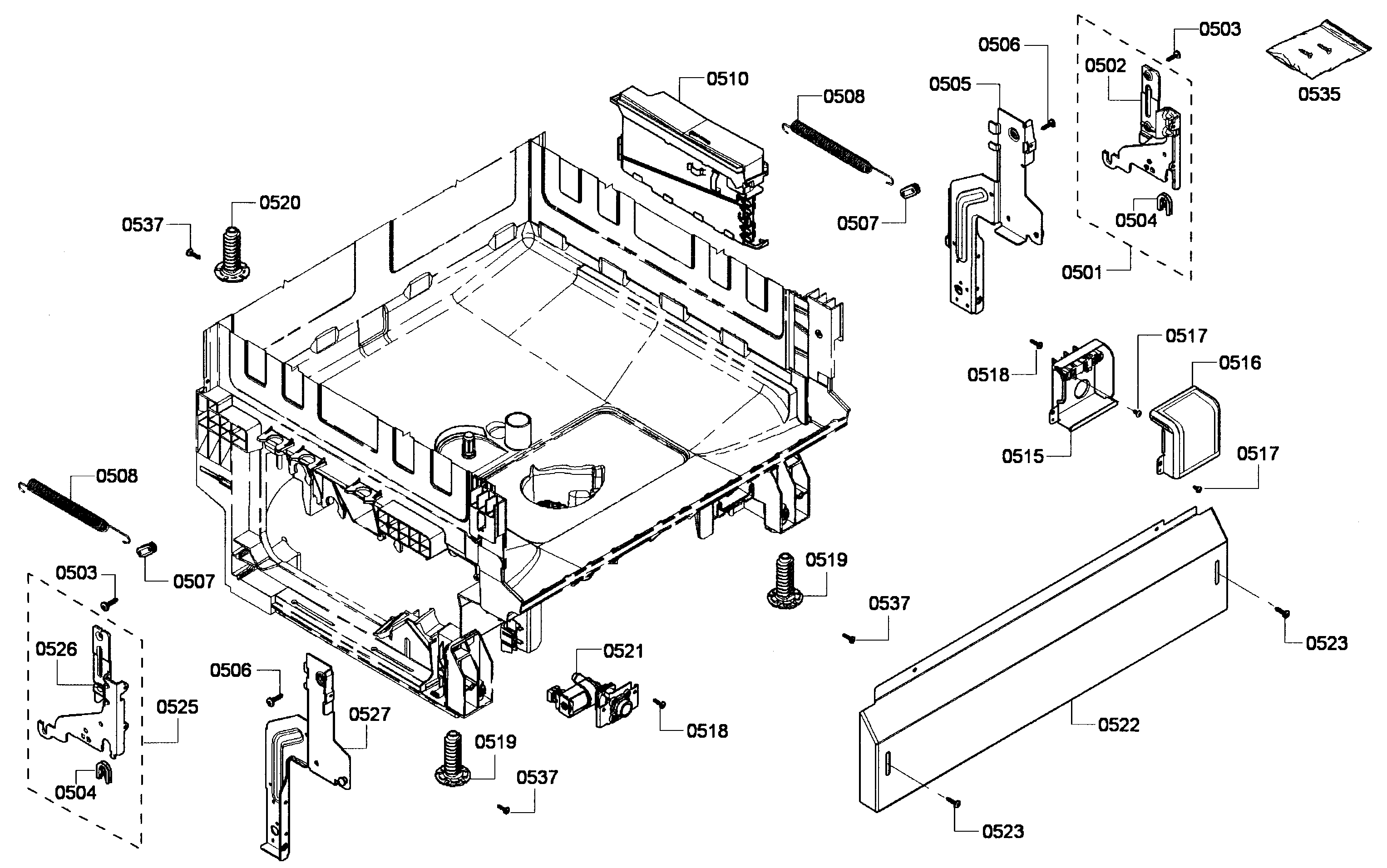

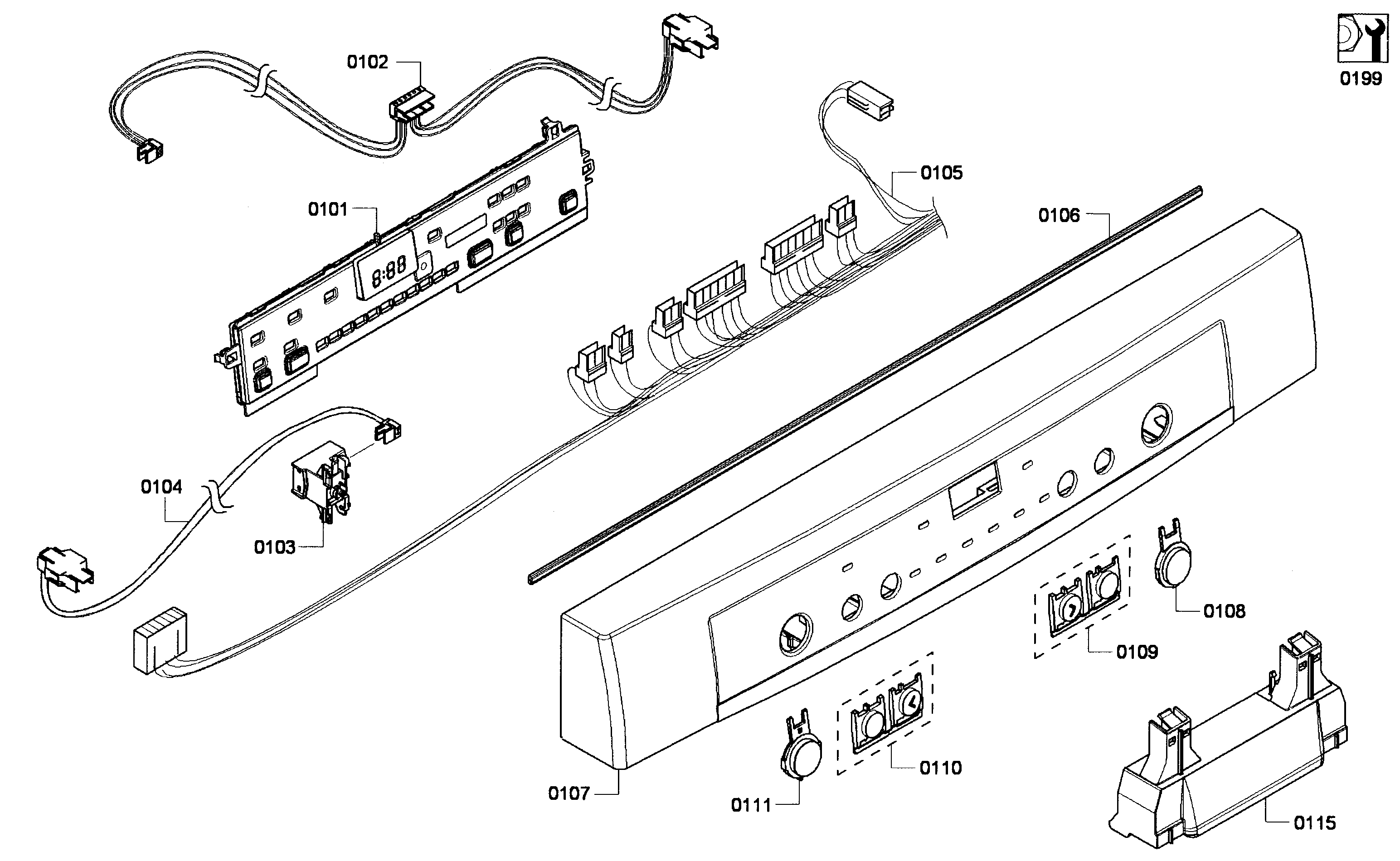

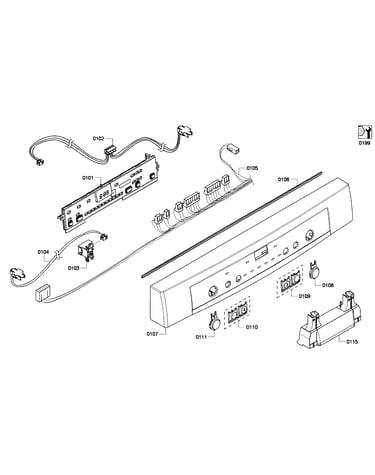

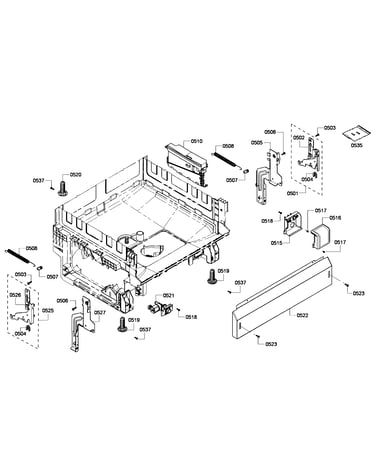

SELECT DIAGRAM
Browse Parts for
SHE6AP05UC/02 Dishwasher

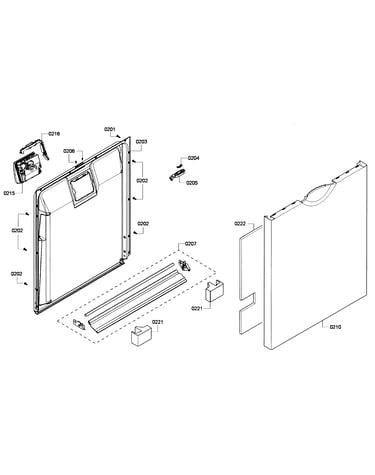

#215

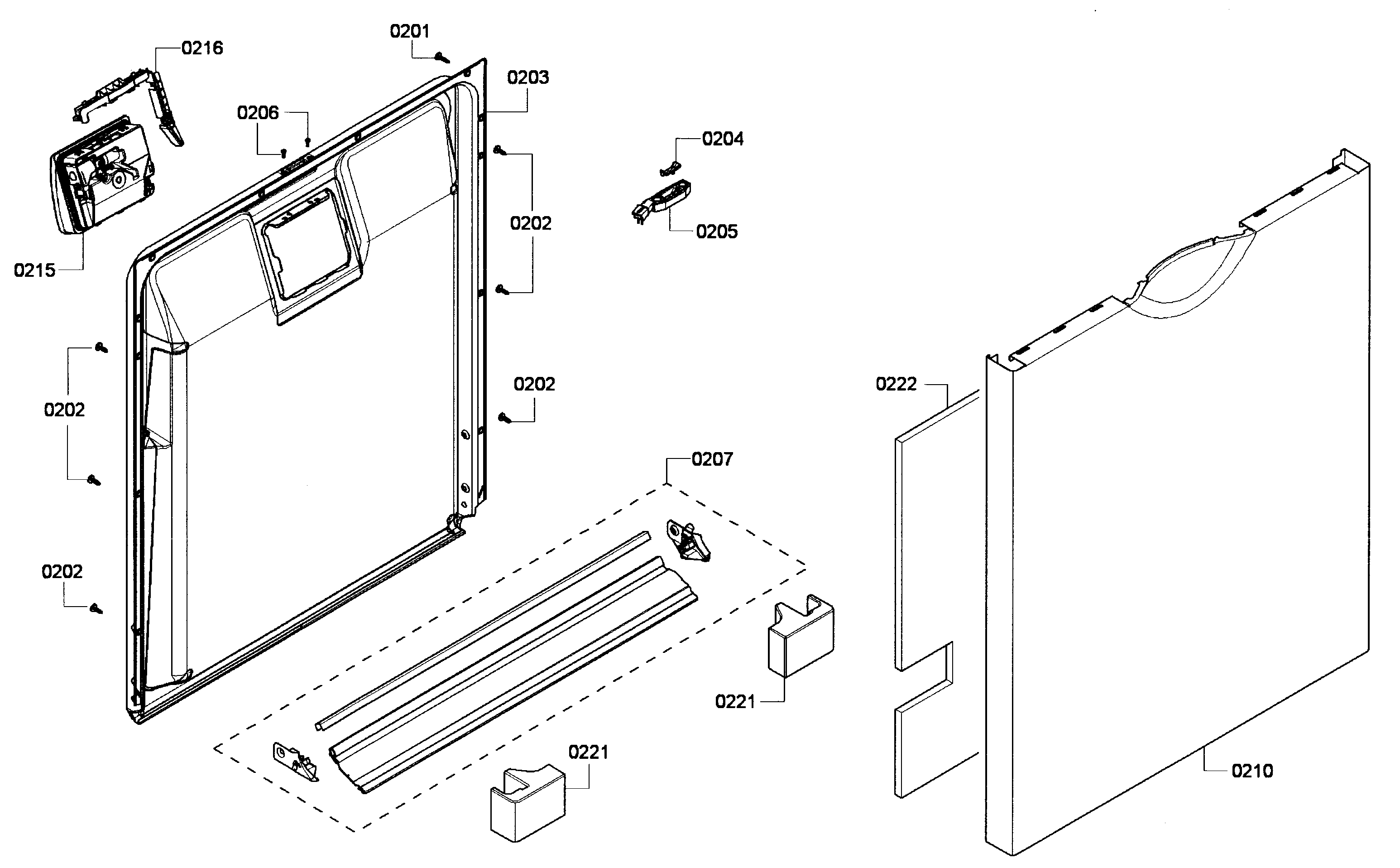

Door assy diagram
Dishwasher dispenser assembly
Part #645208
Replaced by #00645208
?
Manufacturer substitution
This part replaces 645208. Substitute parts can look different from the original.
$80.03 |
7% OFF Phone Price : $86.03
In Stock
#411

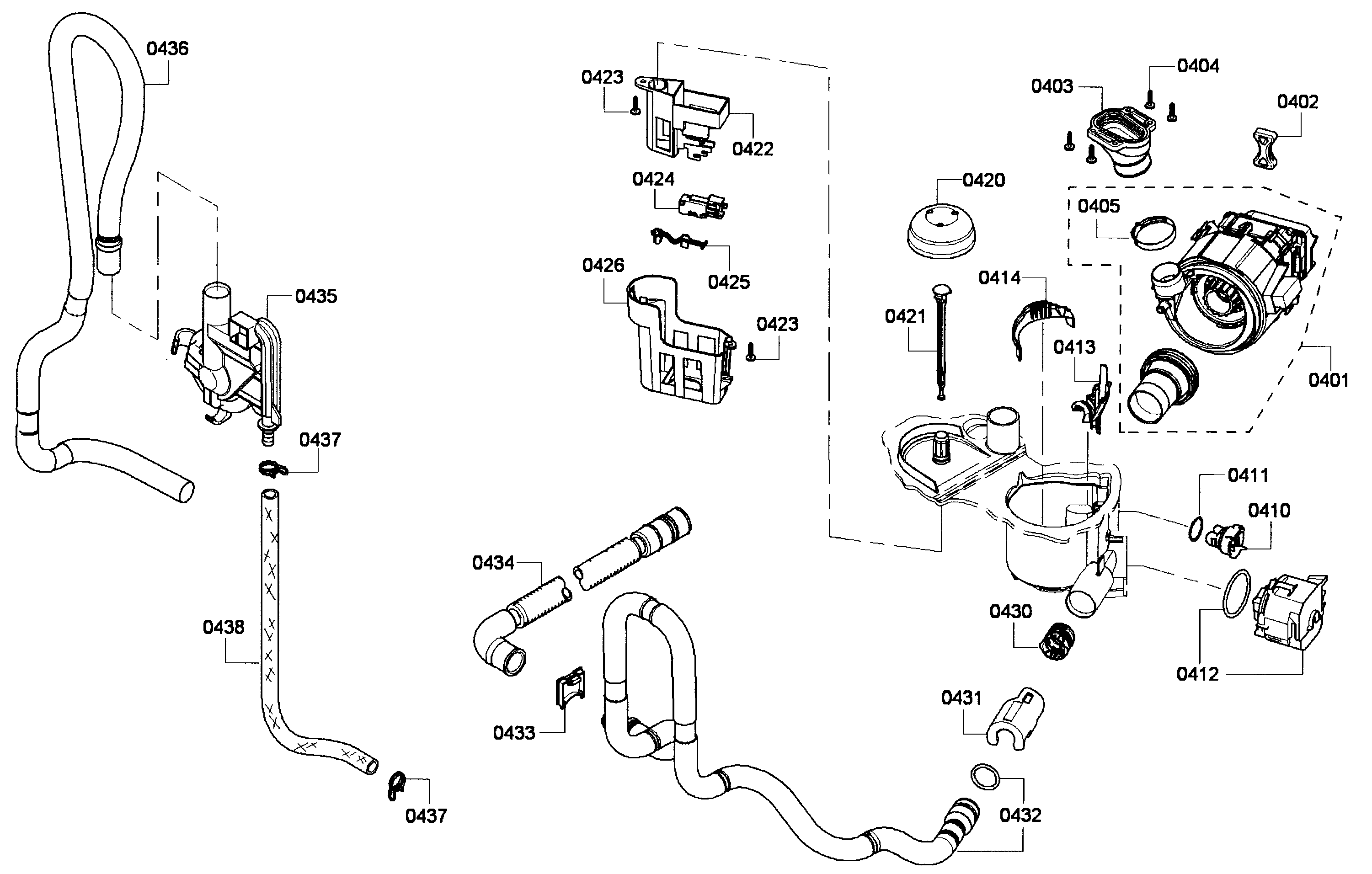

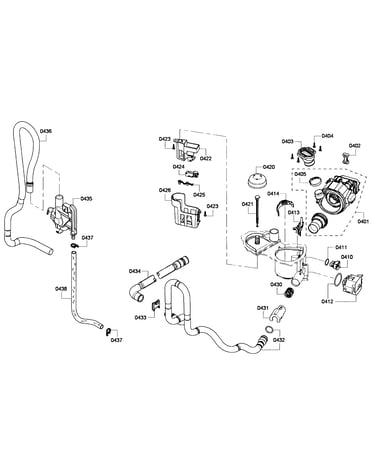

Pump assy diagram
Sealing
Part #611568
Replaced by #00611323
?
Manufacturer substitution
This part replaces 611568. Substitute parts can look different from the original.
$38.75 |
13% OFF Phone Price : $44.75
In Stock
#410
Pump assy diagram
Sensor
Part #611567
Replaced by #00611323
?
Manufacturer substitution
This part replaces 611567. Substitute parts can look different from the original.
$38.75 |
13% OFF Phone Price : $44.75
In Stock
#605

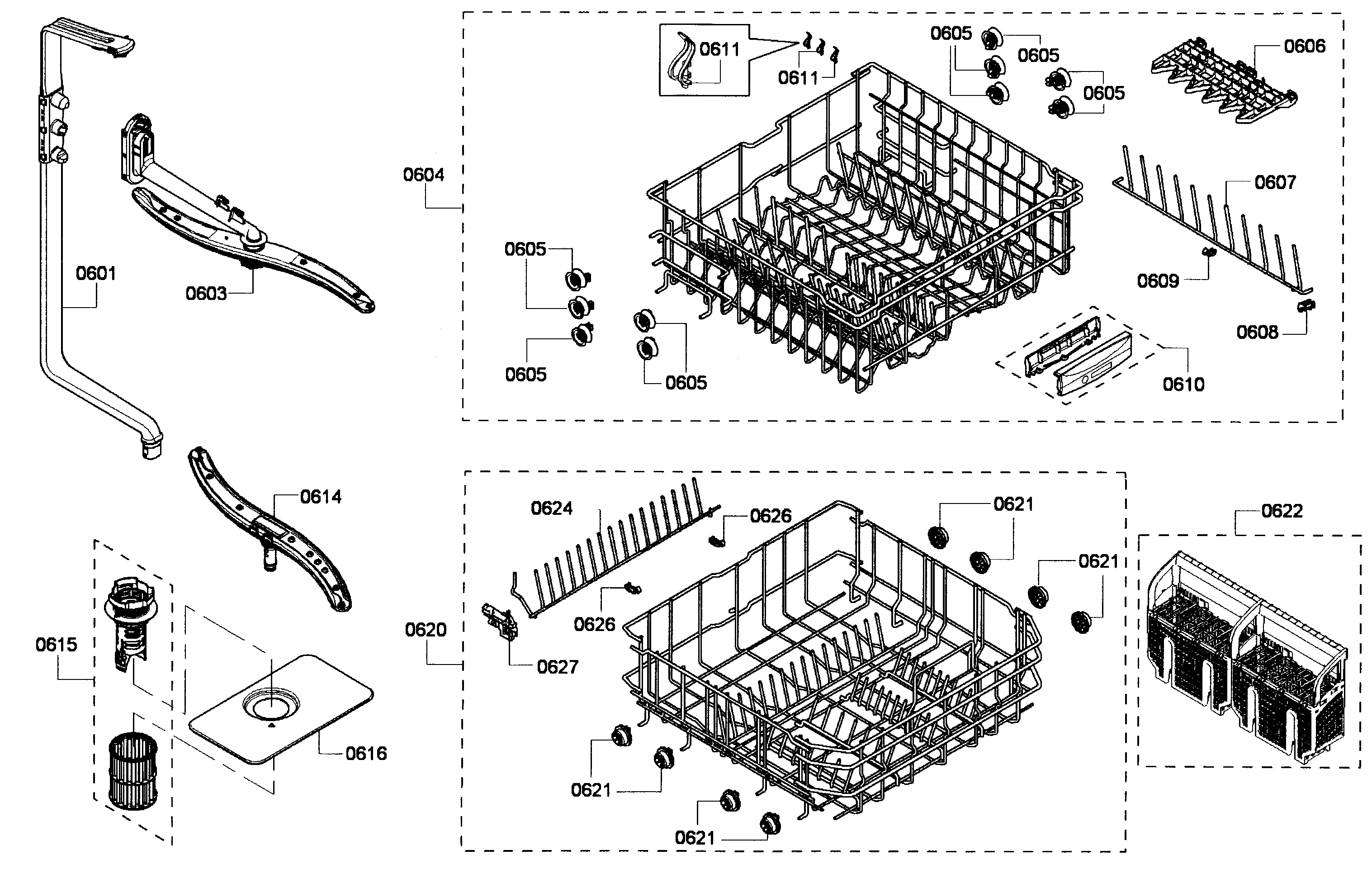

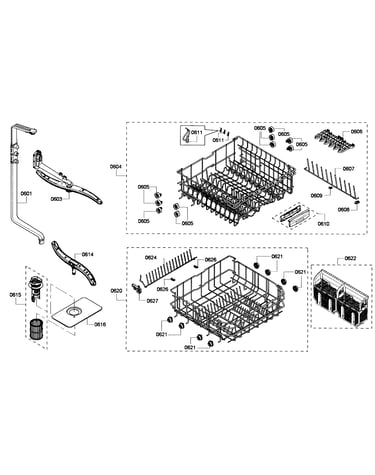

Baskets asst diagram
Wheel (gray)
Part #611666
Replaced by #00611666
?
Manufacturer substitution
This part replaces 611666. Substitute parts can look different from the original.
$9.64 |
9% OFF Phone Price : $10.64
In Stock
#401
Pump assy diagram
Pump
Part #669135
Replaced by #00669135
?
Manufacturer substitution
This part replaces 669135. Substitute parts can look different from the original.
$257.46 |
$12.00 OFF Phone Price : $269.46
In Stock
#207
Door assy diagram
Dishwasher door seal
Part #669221
Replaced by #00669221
?
Manufacturer substitution
This part replaces 669221. Substitute parts can look different from the original.
$30.51 |
16% OFF Phone Price : $36.51
In Stock
#603
Baskets asst diagram
Dishwasher spray arm
Part #668385
Replaced by #00668385
?
Manufacturer substitution
This part replaces 668385. Substitute parts can look different from the original.
$38.99 |
13% OFF Phone Price : $44.99
In Stock

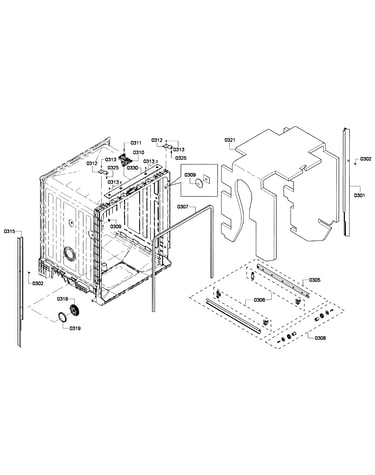

#310

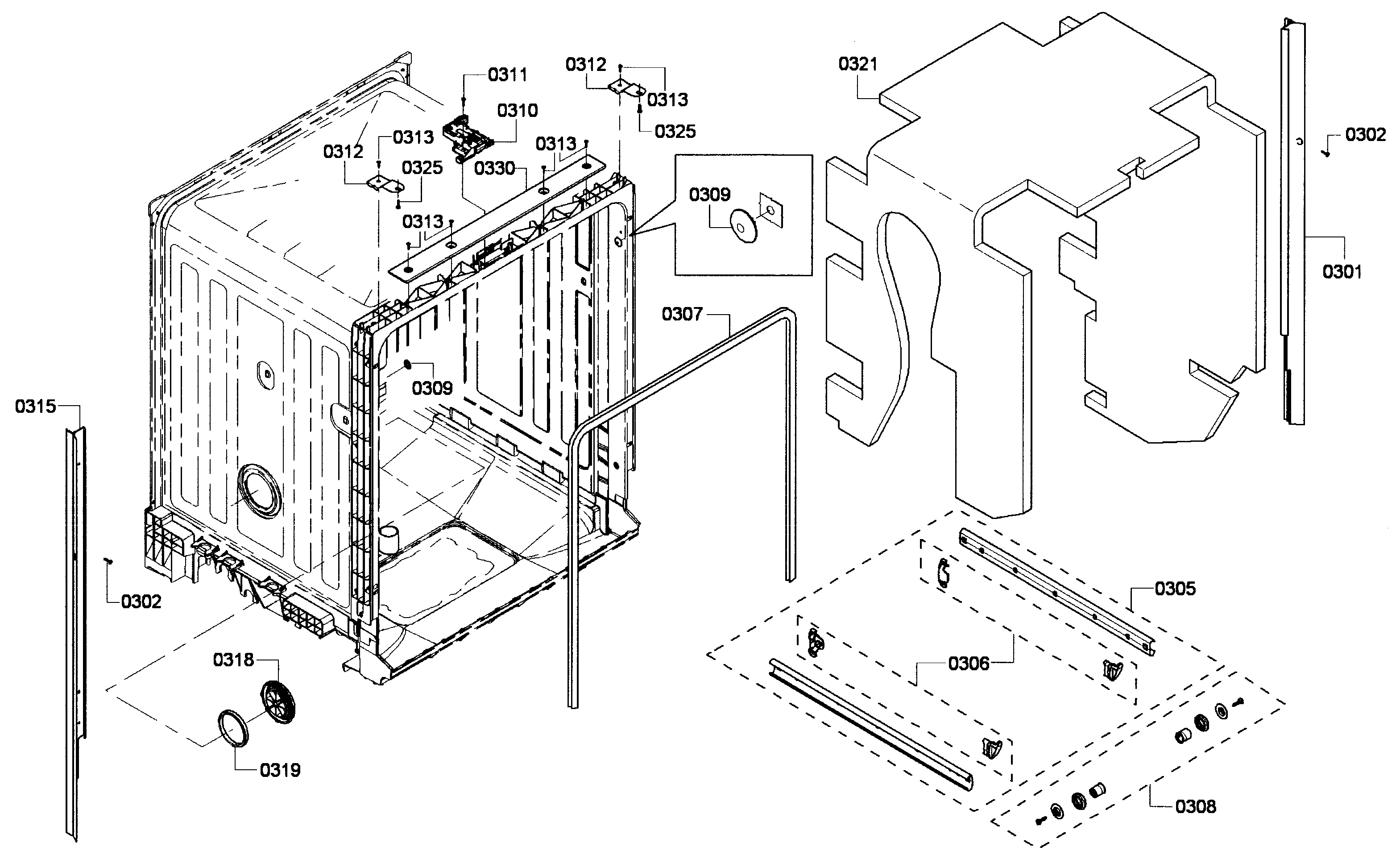

Cabinet diagram
Lock
Part #644989
Replaced by #00636708
?
Manufacturer substitution
This part replaces 644989. Substitute parts can look different from the original.
$36.99 |
14% OFF Phone Price : $42.99
In Stock
#626
Baskets asst diagram
Holder
Part #611981
Replaced by #00611981
?
Manufacturer substitution
This part replaces 611981. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
#615
Baskets asst diagram
Dishwasher micro filter with coarse filter
Part #645038
Replaced by #00645038
?
Manufacturer substitution
This part replaces 645038. Substitute parts can look different from the original.
$37.73 |
14% OFF Phone Price : $43.73
In Stock
