Model # GVS04BDWFSS Official GE beverage center

Here are the diagrams and repair parts for Official GE GVS04BDWFSS beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
R600 Drier W/ Red Cap WR87X30875
#44

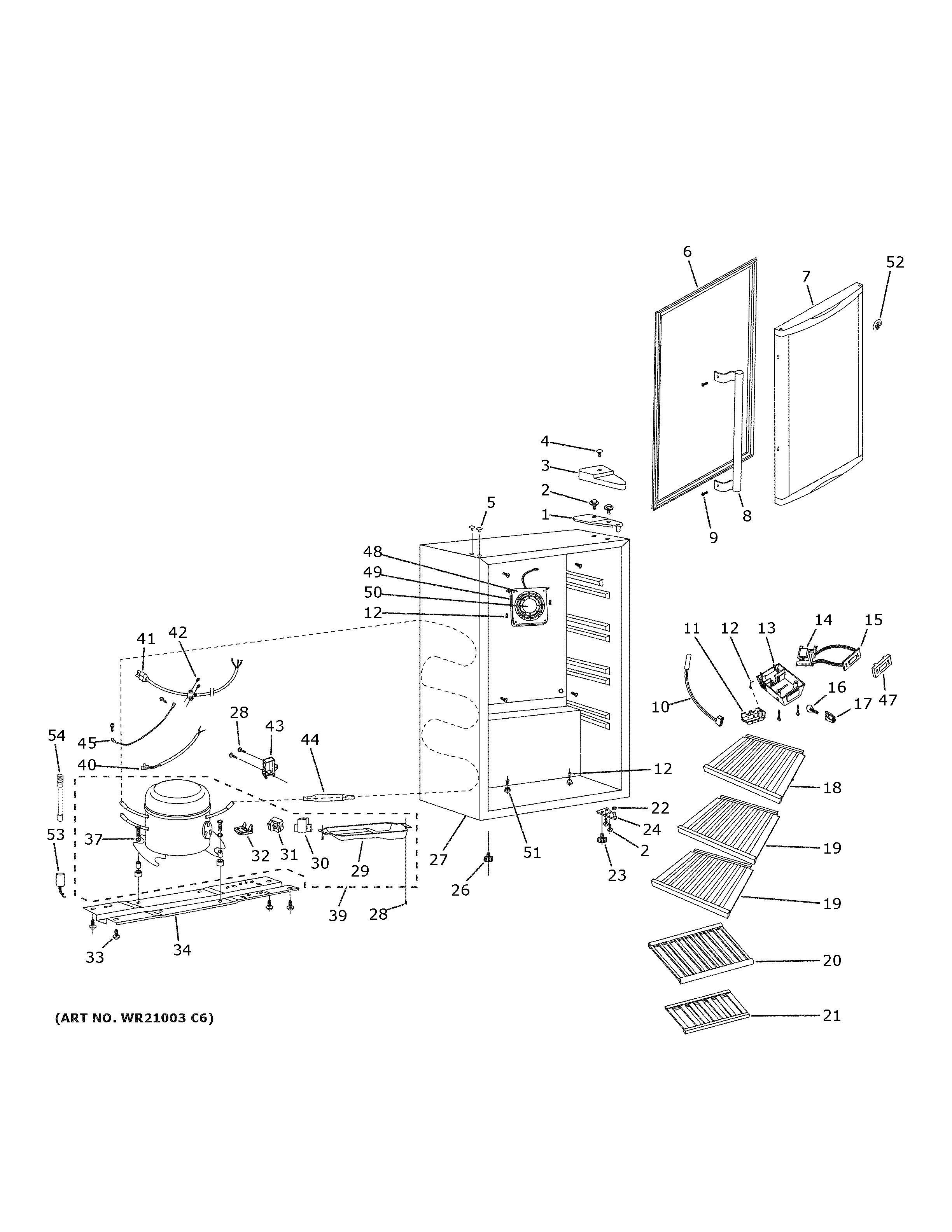

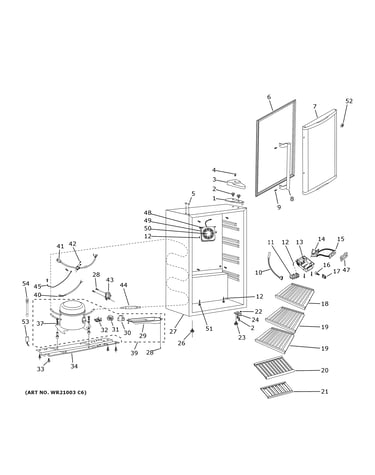

Beverage center diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
R600 Process WR87X30876
#54

Beverage center diagram

R600 process

Part #WR87X30876

BEST SELLER
$11.41 |
15% OFF Phone Price : $13.41
In Stock
Cplg1/4-5/32 WR97X10033
#7000

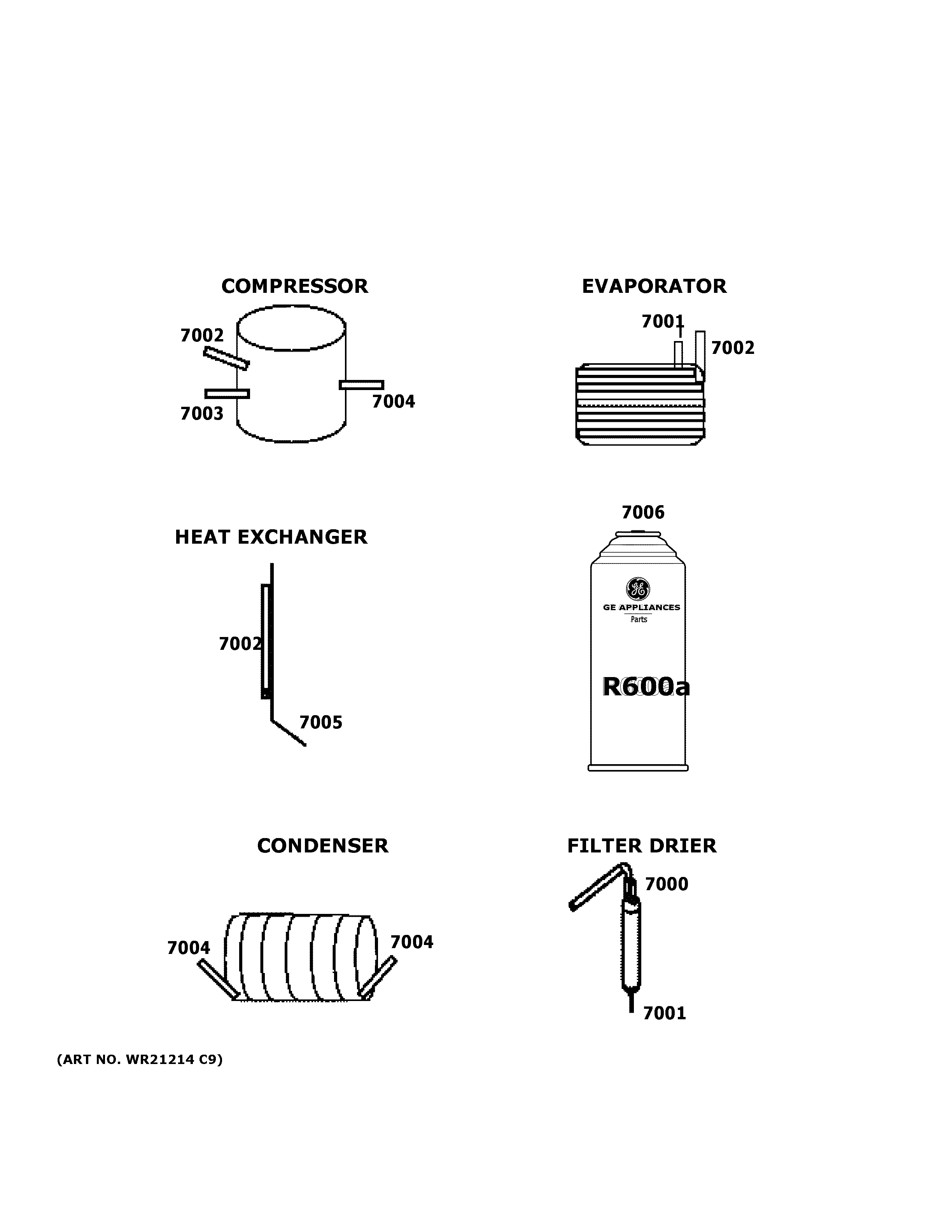

Lokring connectors diagram

Cplg1/4-5/32

Part #WR97X10033

$31.76
In Stock
Door Gasket WR24X20031
#6

Beverage center diagram

Door gasket

Part #WR24X20031

$64.87 |
8% OFF Phone Price : $70.87
In Stock
4mm / 3.2mm Lokring WR97X31252
#7004

Lokring connectors diagram

4mm / 3.2mm lokring

Part #WR97X31252

$59.99
In Stock
Lamp Socket WR02X31546
#17

Beverage center diagram

Lamp socket

Part #WR02X31546

$10.80
In Stock
Pcb Control WR55X24392
#14

Beverage center diagram

Pcb control

Part #WR55X24392

$241.49
In Stock
Hinge, Upper WR13X20026
#1

Beverage center diagram

Hinge, upper

Part #WR13X20026

$25.20
In Stock
Compressor WR87X31550
#39

Beverage center diagram

Compressor

Part #WR87X31550

$220.31
In Stock
Screw WR01X20034
#33

Beverage center diagram

Screw

Part #WR01X20034

This item is not returnable
$4.35
In Stock
