Troybilt
Gas Walk-Behind Mower

Model # 34021 Official Troybilt walk-behind lawn mower

Here are the diagrams and repair parts for Official Troybilt 34021 walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Pin 1766536
#16

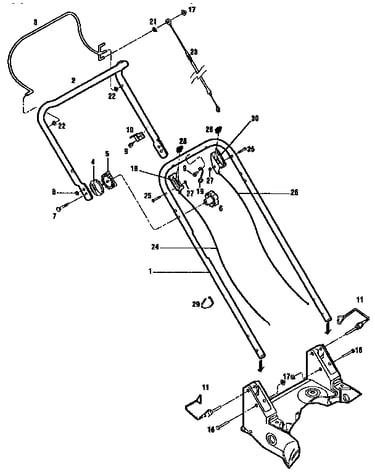

Handlebar and mower controls--models 34020 and 34021 diagram

Pin

Part #1766536

Replaced by #911-0813

?
Manufacturer substitution
This part replaces 1766536. Substitute parts can look different from the original.
$10.50 |
16% OFF Phone Price : $12.50
In Stock
Screw 1767754
Screw

Part #1767754

Replaced by #710-04460

?
Manufacturer substitution
This part replaces 1767754. Substitute parts can look different from the original.
$7.83
In Stock
Lock Washer 9914
#24

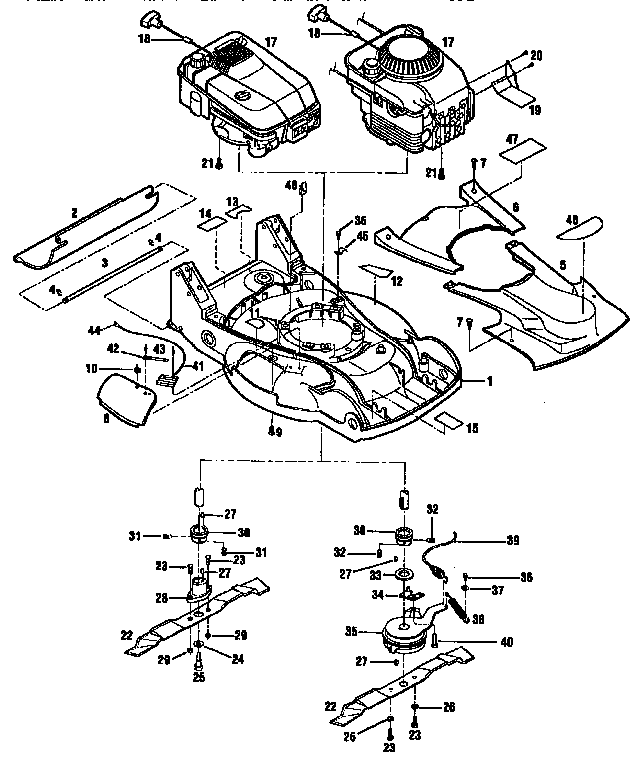

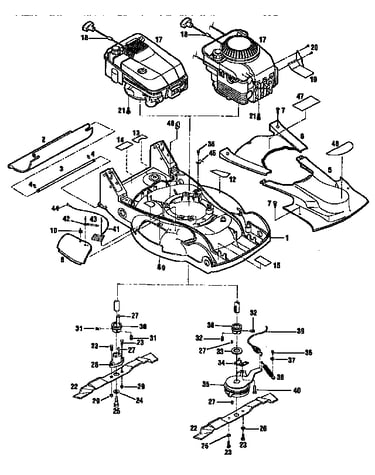

Engines, mower deck and blade assemblies diagram

Lock washer

Part #9914

Replaced by #736-0921

?
Manufacturer substitution
This part replaces 9914. Substitute parts can look different from the original.
$7.71
In Stock
Clip 1765550
#12

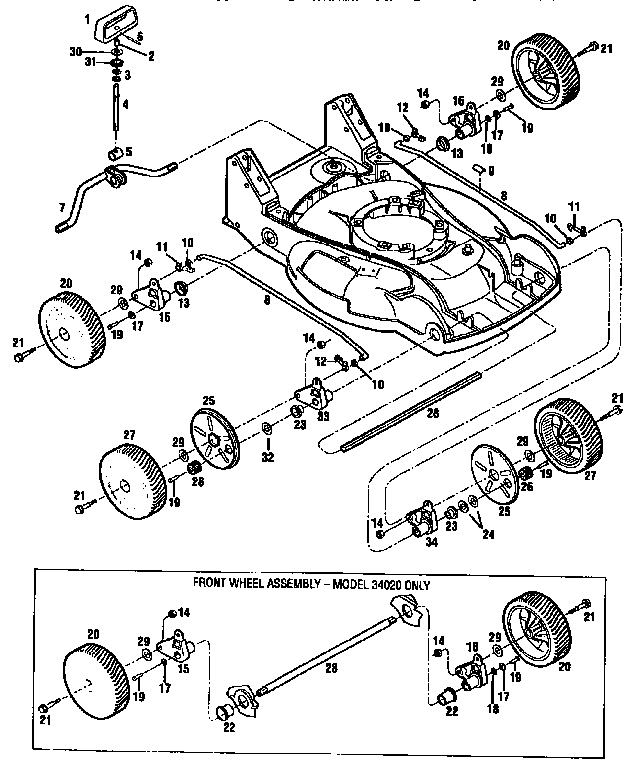

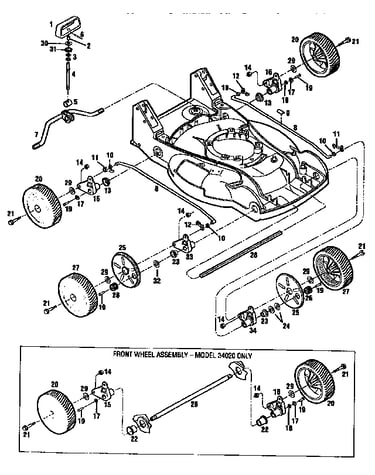

Cutting height control and wheel assemblies diagram

Clip

Part #1765550

Replaced by #1765550

?
Manufacturer substitution
This part replaces 1765550. Substitute parts can look different from the original.
$19.74
In Stock
Cotter Pin 9338
#14

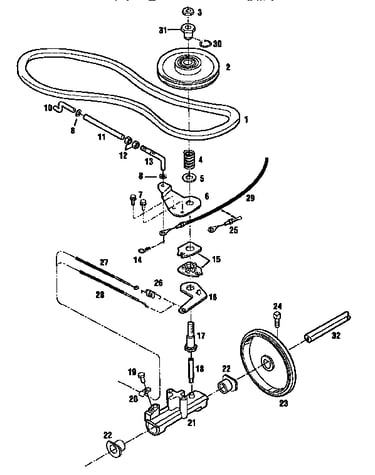

Wheel drive assemblies--models 34021, 34022, 34023, 34311 diagram

Cotter pin

Part #9338

Replaced by #714-04048

?
Manufacturer substitution
This part replaces 9338. Substitute parts can look different from the original.
$13.91
In Stock
Hex Nut 9807
#14

Cutting height control and wheel assemblies diagram

Hex nut

Part #9807

Replaced by #712-0375

?
Manufacturer substitution
This part replaces 9807. Substitute parts can look different from the original.
This item is not returnable
$6.37
In Stock
Knob 9057
#28

Handlebar and mower controls--models 34020 and 34021 diagram

Knob

Part #9057

Replaced by #GW-9057

?
Manufacturer substitution
This part replaces 9057. Substitute parts can look different from the original.
$12.58 |
14% OFF Phone Price : $14.58
In Stock
Nut 1766514
#10

Engines, mower deck and blade assemblies diagram

Nut

Part #1766514

Replaced by #912-0273

?
Manufacturer substitution
This part replaces 1766514. Substitute parts can look different from the original.
$7.94
In Stock
Kit 1768306
#22

Engines, mower deck and blade assemblies diagram

Kit

Part #1768306

Replaced by #1764381

?
Manufacturer substitution
This part replaces 1768306. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$49.40
In Stock
Cover 1768954
#5

Engines, mower deck and blade assemblies diagram

Cover

Part #1768954

Replaced by #956-04183

?
Manufacturer substitution
This part replaces 1768954. Substitute parts can look different from the original.
$106.14
In Stock
