Model # CS980SN2SS Official GE electric range

Here are the diagrams and repair parts for Official GE CS980SN2SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
40a15bulb STD372401
#235

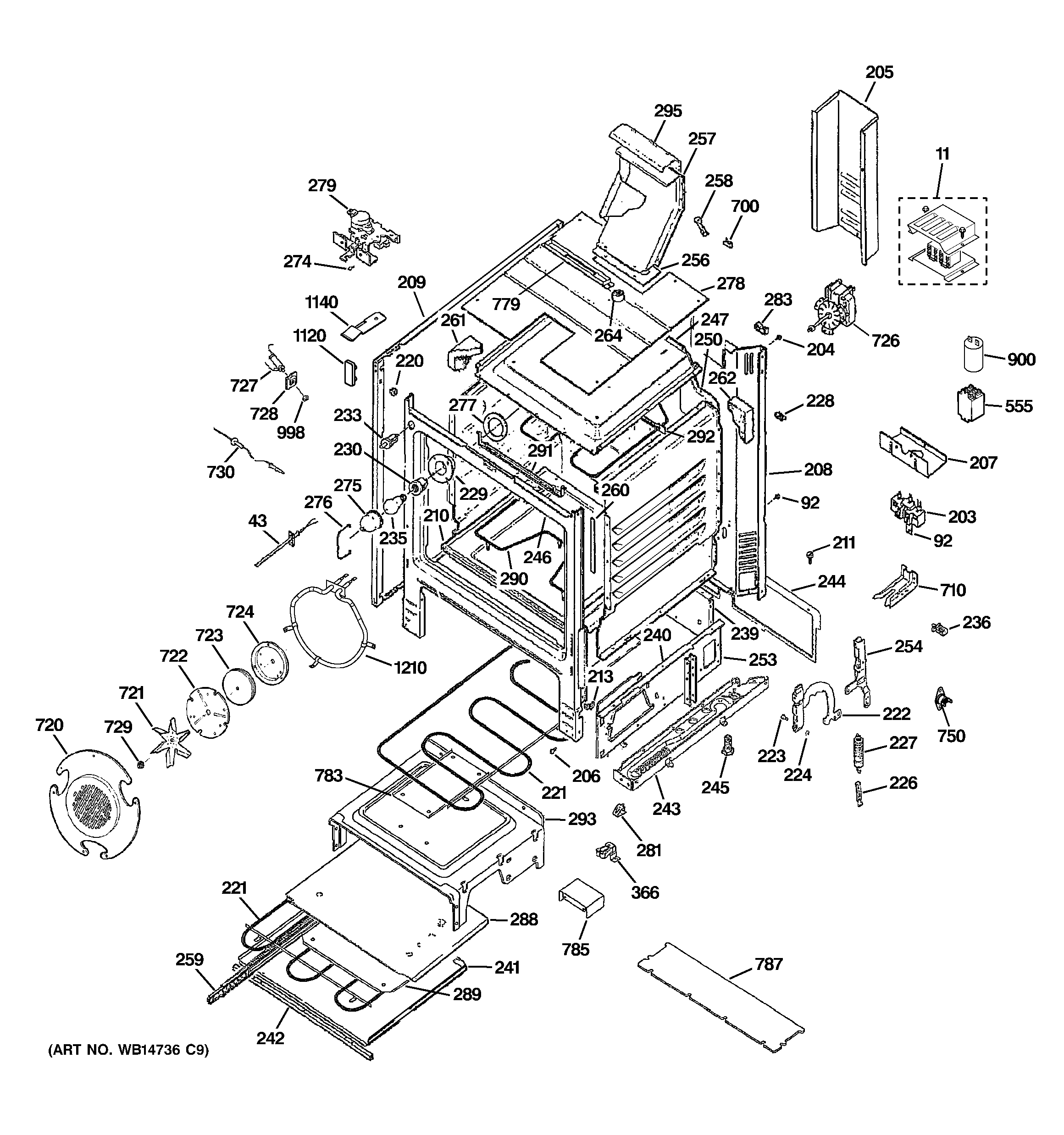

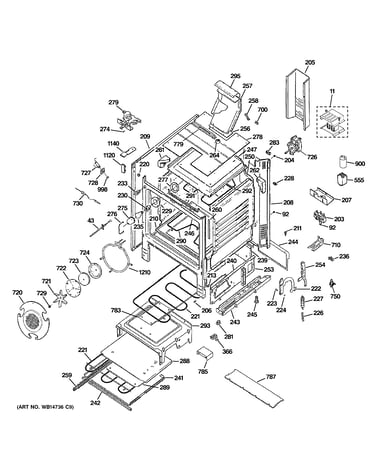

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Halogen Surface Element WB30T10130
#57

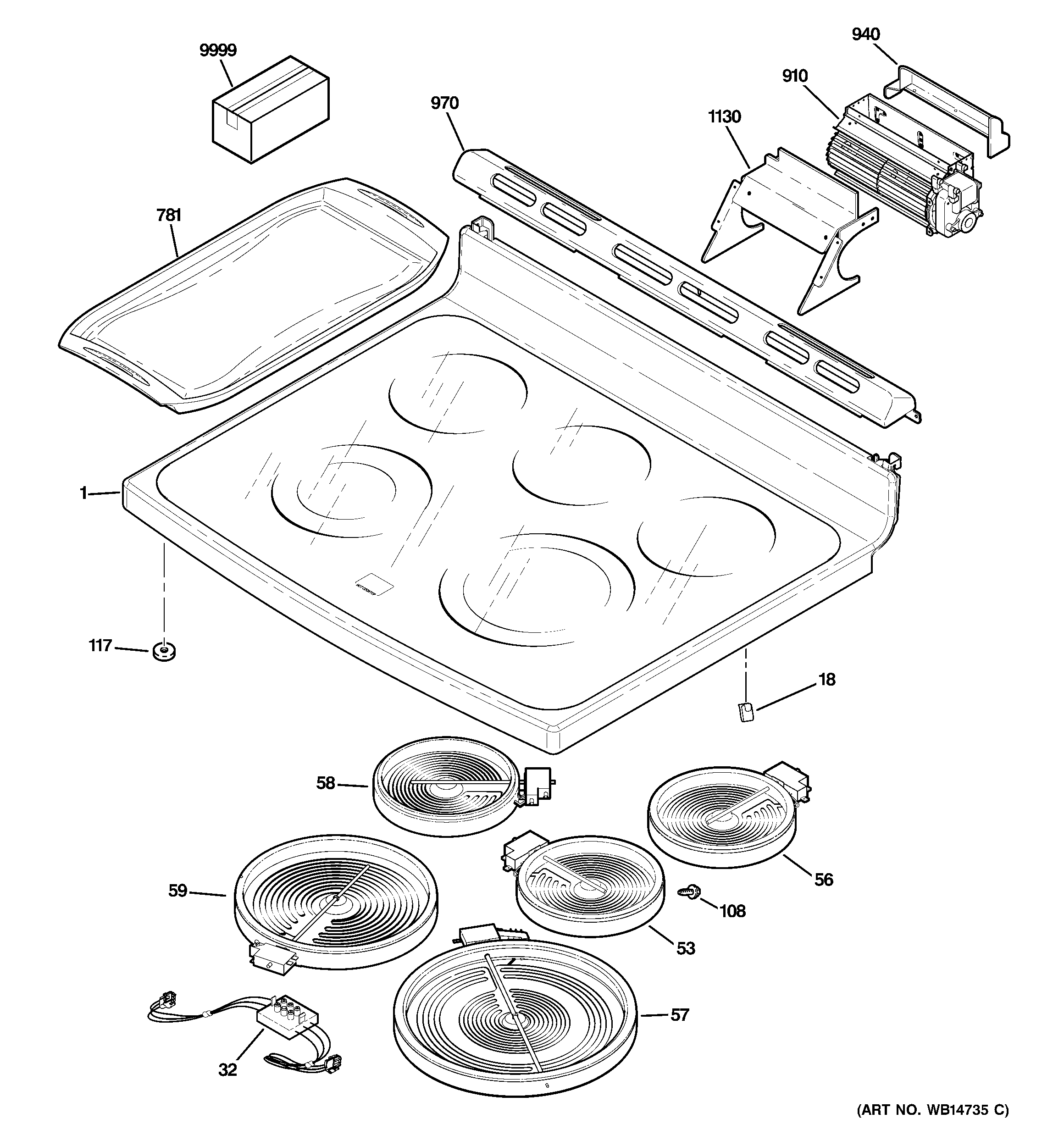

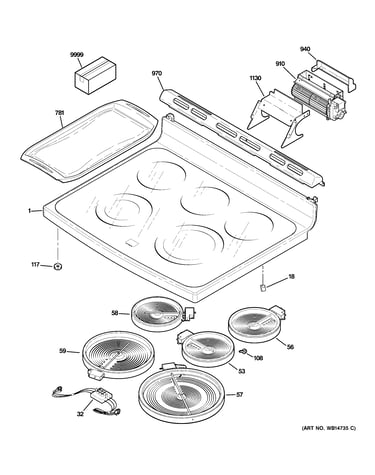

Cooktop diagram

Range halogen surface element

Part #WB30T10130

BEST SELLER
$133.06 |
8% OFF Phone Price : $145.06
In Stock
Halogen Element WB30T10127
#53

Cooktop diagram

Halogen element

Part #WB30T10127

Replaced by #WB30T10145

?
Manufacturer substitution
This part replaces WB30T10127. Substitute parts can look different from the original.
BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Wall Oven Temperature Sensor (replaces Wb20k5035, Wb20k5040, Wb23t10002, Wb24x5340) WB23X5340
#43

Body parts diagram

Wall oven temperature sensor (replaces wb20k5035, wb20k5040, wb23t10002, wb24x5340)

Part #WB23X5340

BEST SELLER
$126.20 |
10% OFF Was : $140.22
In Stock
Range Bake Element WB44K10005
#290

Body parts diagram

Range bake element

Part #WB44K10005

Replaced by #WB30X46987

?
Manufacturer substitution
This part replaces WB44K10005. Substitute parts can look different from the original.
BEST SELLER
$147.20
In Stock
Range Oven Door Gasket WB04K10016
#318

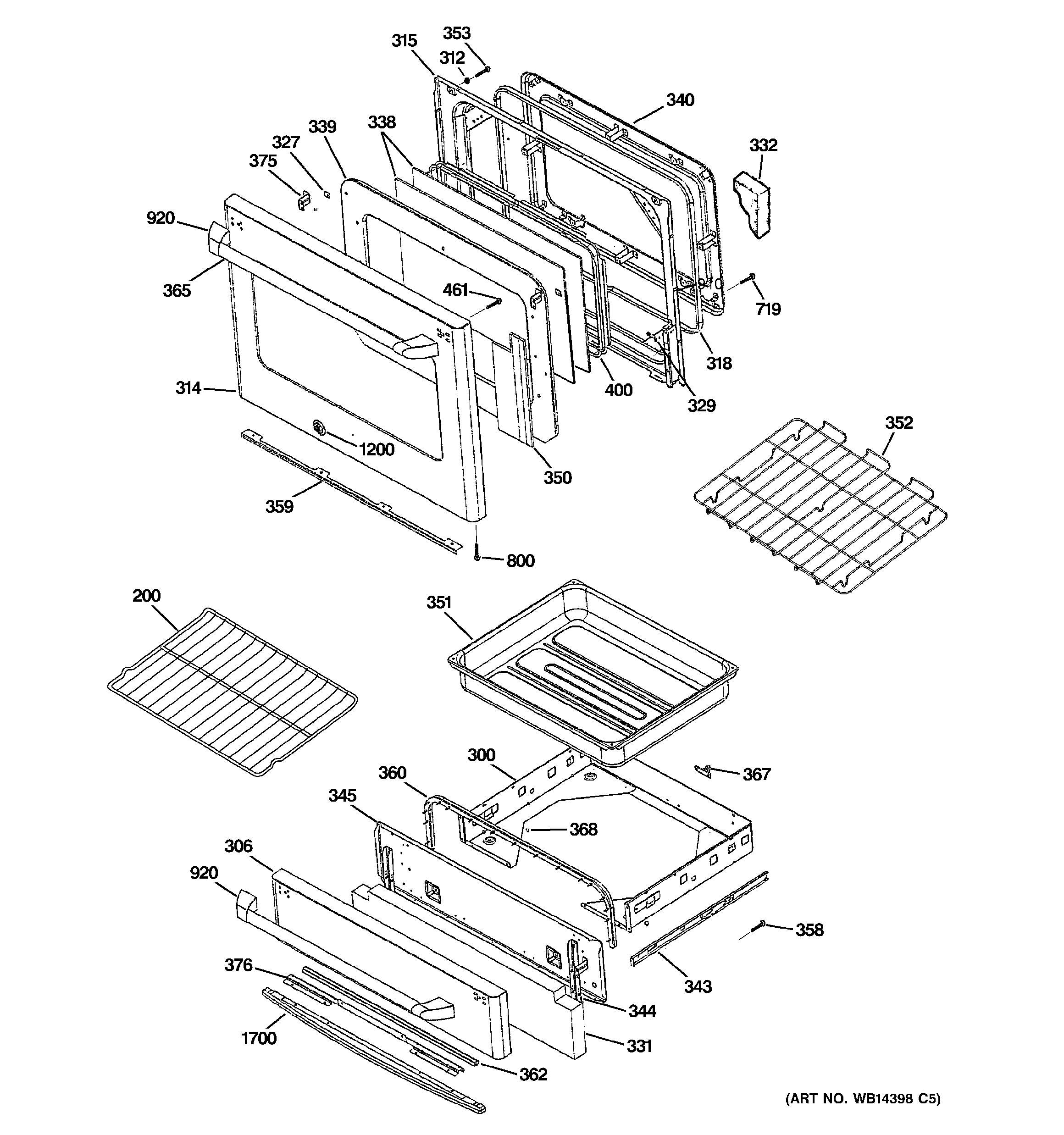

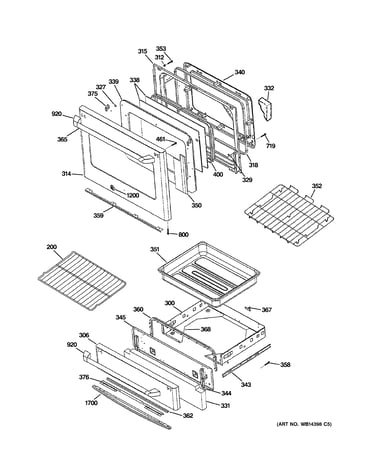

Door & drawer parts diagram

Range oven door gasket

Part #WB04K10016

Replaced by #WB35X29668

?
Manufacturer substitution
This part replaces WB04K10016. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30k5031, Wb30t10007) WB30T10045
#58

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30k5031, wb30t10007)

Part #WB30T10045

$134.96 |
8% OFF Phone Price : $146.96
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#230

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wb36x389 WB08K0005
#275

Body parts diagram

Wb36x389

Part #WB08K0005

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB08K0005. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Skirt WB04K10025
#930

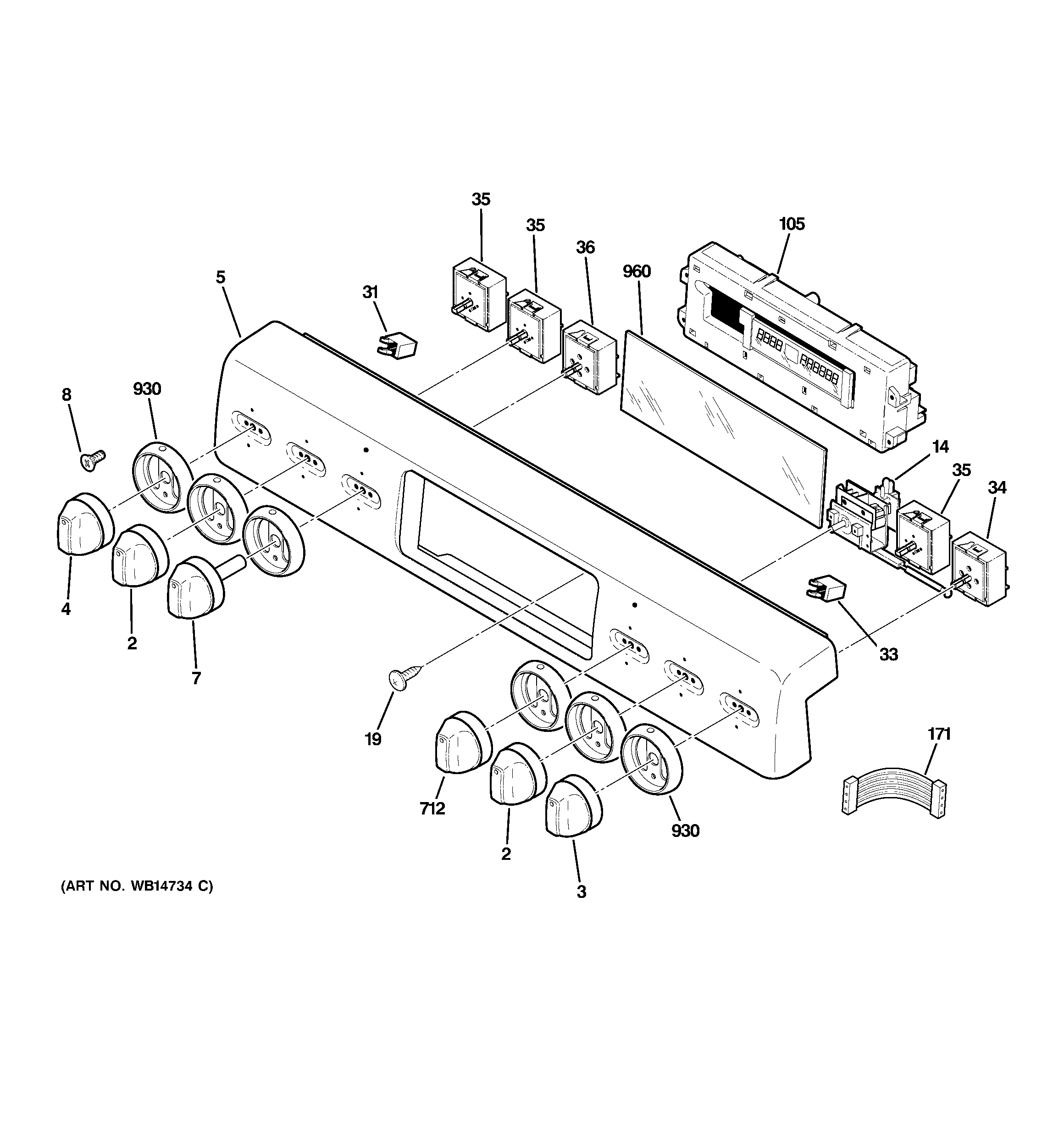

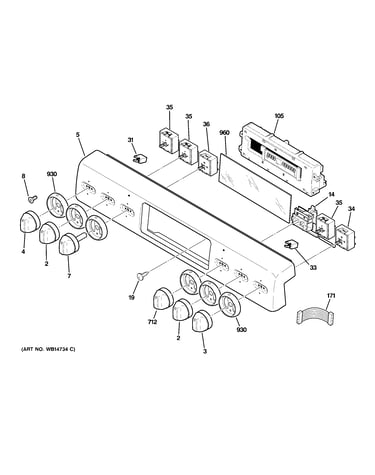

Control panel diagram

Skirt

Part #WB04K10025

Replaced by #WB04K10037

?
Manufacturer substitution
This part replaces WB04K10025. Substitute parts can look different from the original.
This item is not returnable
$20.59 |
23% OFF Phone Price : $26.59
In Stock
