Dacor
Downdraft Ventilation System

Model # ERV48 Official Dacor vent system

Here are the diagrams and repair parts for Official Dacor ERV48 vent system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Arm Stud 82243
#8

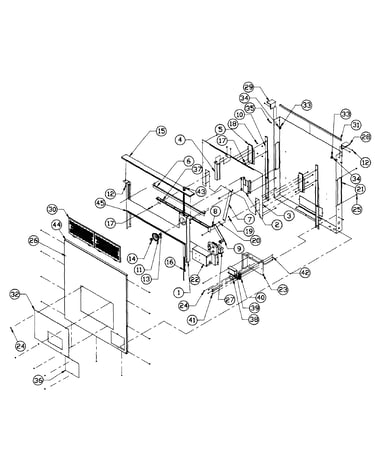

Vent system diagram

Arm stud

Part #82243

This item is not returnable
$2.16
In Stock
Downdraft Vent C-clip 83173
#19

Vent system diagram

Downdraft vent c-clip

Part #83173

This item is not returnable
$2.16
In Stock
Bracket 36366
#2

Vent system diagram

Bracket

Part #36366

$15.99
In Stock
Sleeve Fr 701219
#1

Vent system diagram

Sleeve fr

Part #701219

$194.99
In Stock
Downdraft Vent Wire Harness 72523
#16

Vent system diagram

Downdraft vent wire harness

Part #72523

$210.49
In Stock
Slim Bezel 72525
#11

Vent system diagram

Slim bezel

Part #72525

$18.49
In Stock
Dacor Cap 27814
#15

Vent system diagram

Dacor cap

Part #27814

$247.99
In Stock
Aces Panel 36886
#32

Vent system diagram

Aces panel

Part #36886

$18.49
In Stock
Drive Arm 72521
#9

Vent system diagram

Drive arm

Part #72521

$122.49
In Stock
Screw 83530
#41

Vent system diagram

Screw

Part #83530

This item is not returnable
$2.16
In Stock
