Maytag
Electric Wall Oven

Model # CWE4800ACS14 Official Maytag 24" electric wall oven

Here are the diagrams and repair parts for Official Maytag CWE4800ACS14 24" electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

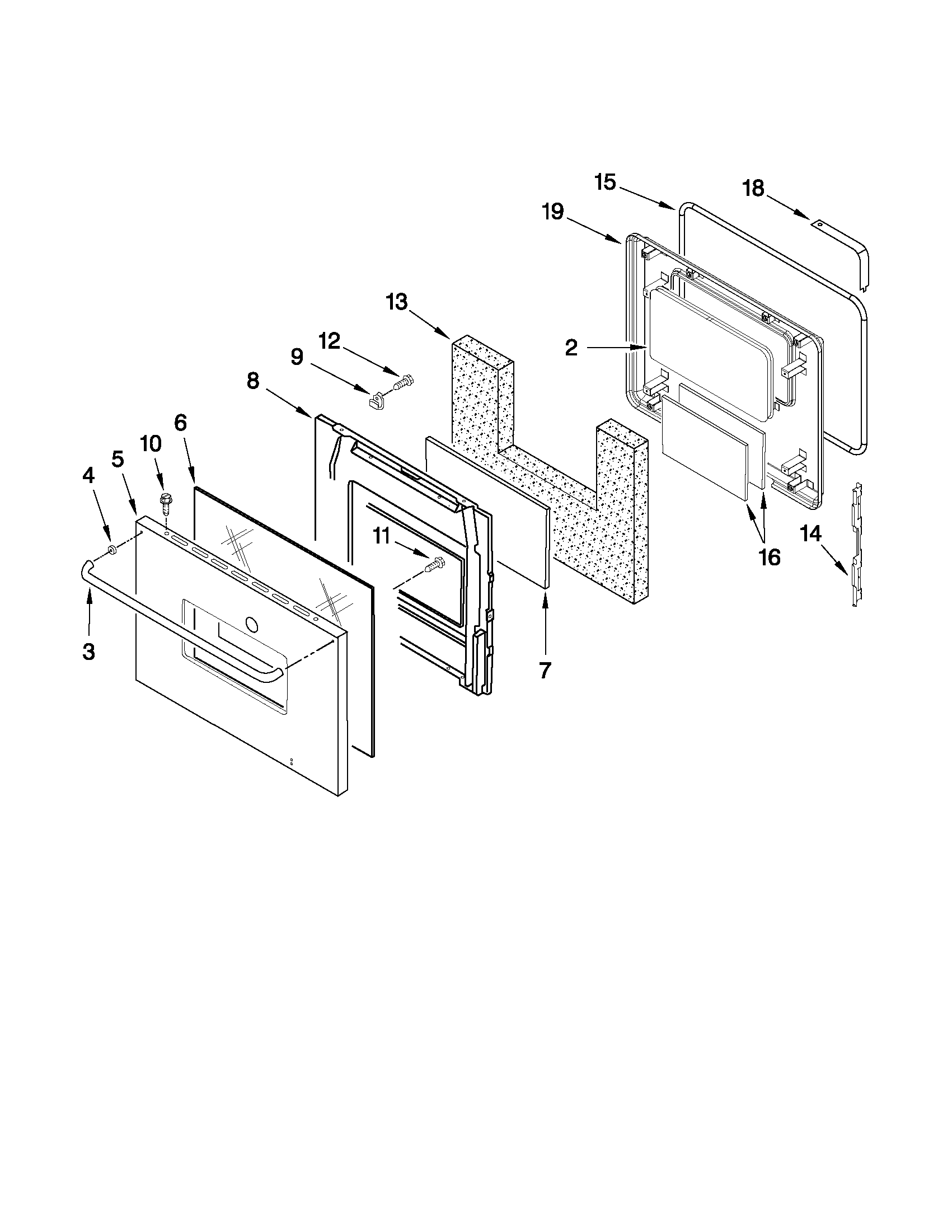

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Oven Bulb 7407P103-60
#21

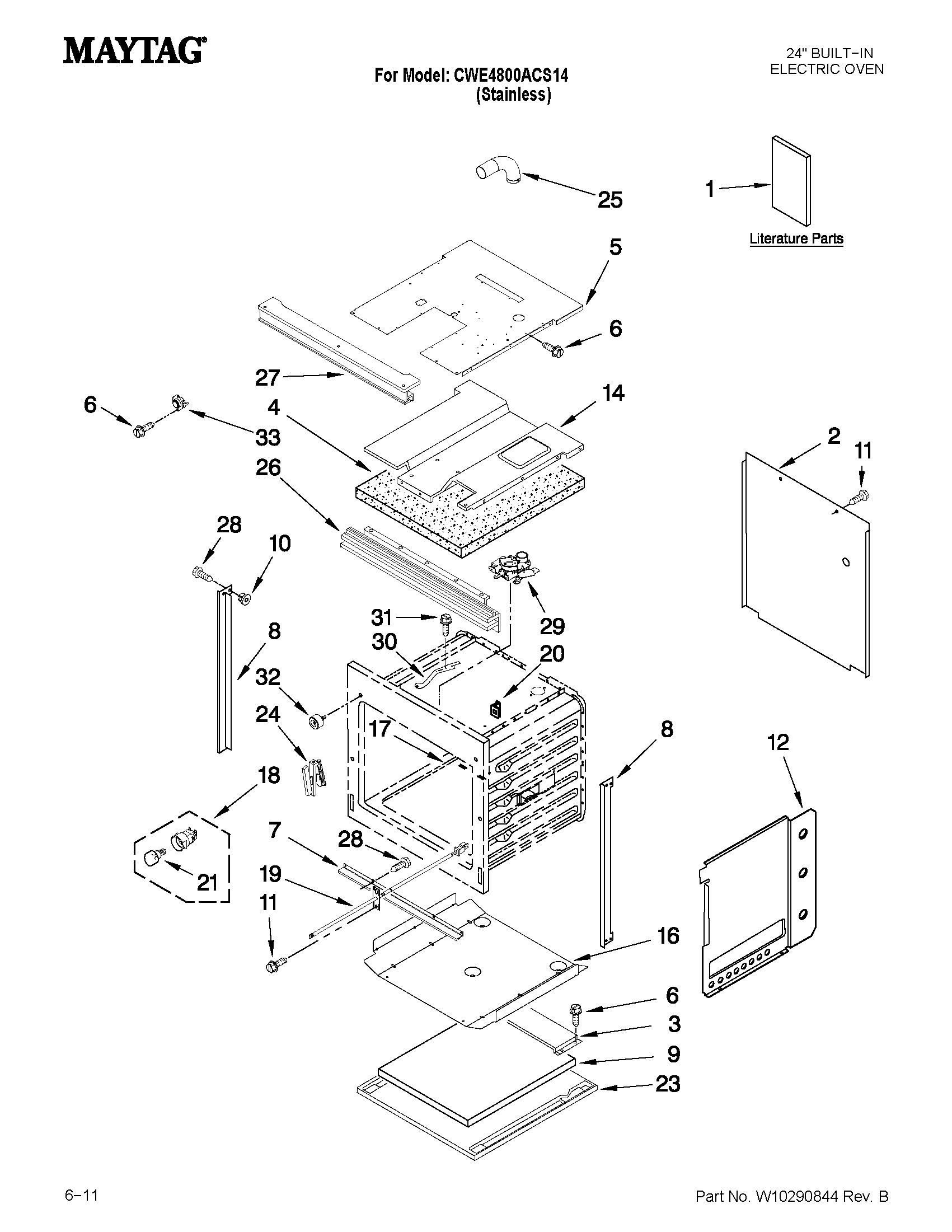

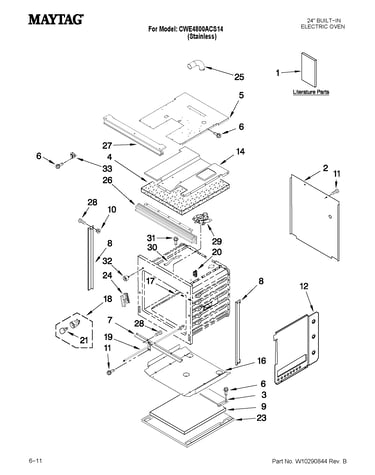

Oven parts diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Oven Temperature Sensor 7430P044-60
#19

Oven parts diagram

Range oven temperature sensor

Part #7430P044-60

Replaced by #WP7430P044-60

?
Manufacturer substitution
This part replaces 7430P044-60. Substitute parts can look different from the original.
BEST SELLER
$90.48 |
6% OFF Phone Price : $96.48
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Range Oven Control Board W10201915
#1

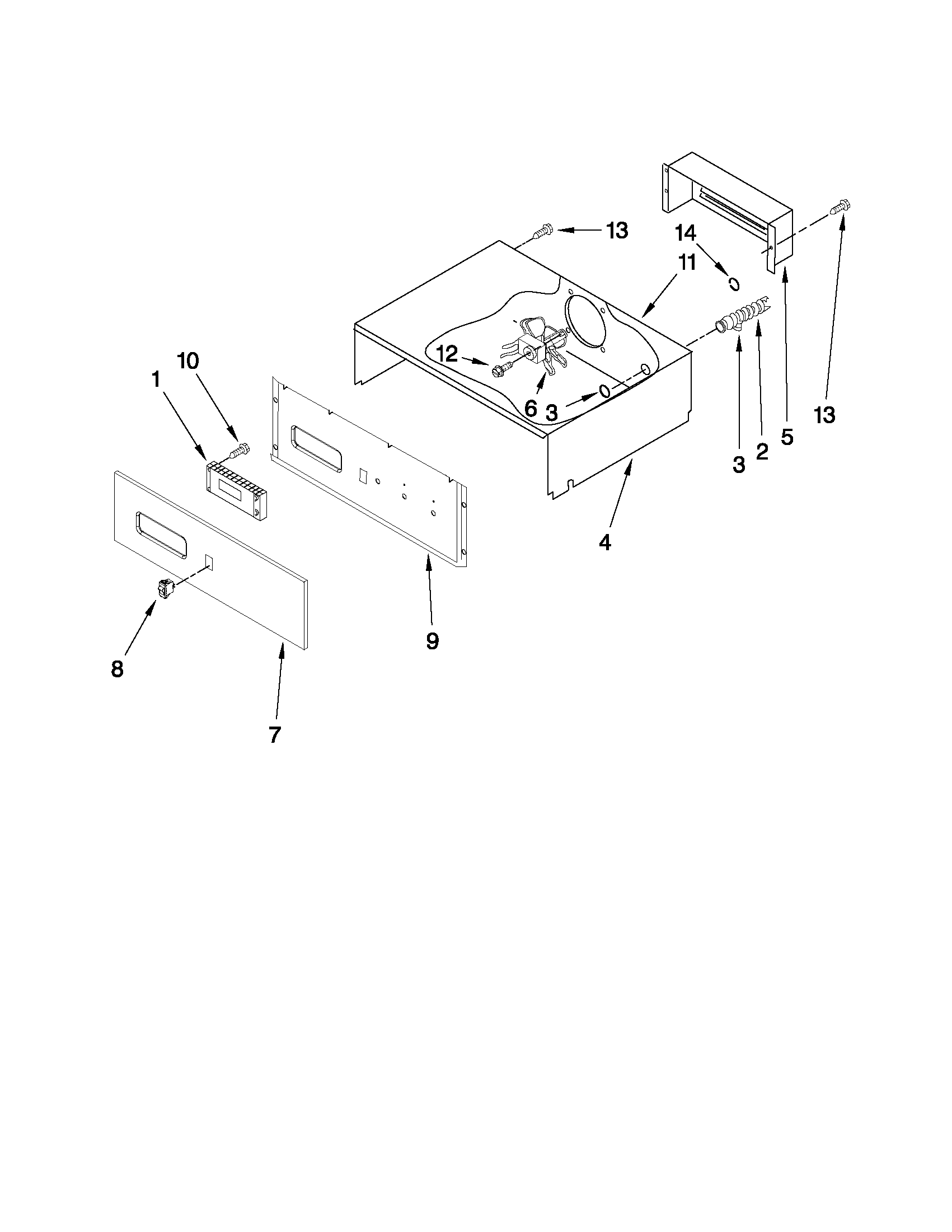

Control panel parts diagram

Range oven control board

Part #W10201915

Replaced by #WPW10201915

?
Manufacturer substitution
This part replaces W10201915. Substitute parts can look different from the original.
$189.72 |
6% OFF Phone Price : $201.72
In Stock
Elmnt-brol W10314683
#1

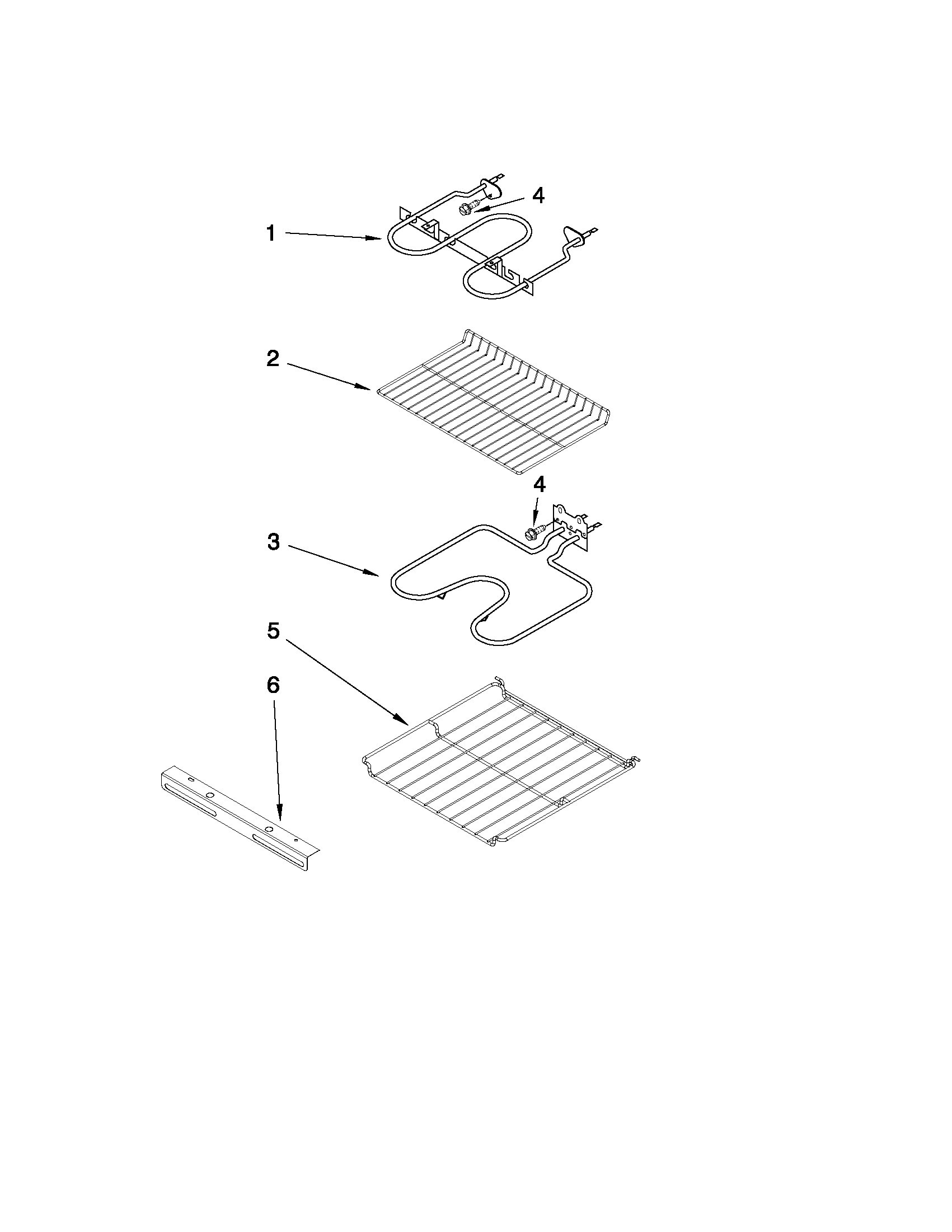

Internal oven parts diagram

Elmnt-brol

Part #W10314683

Replaced by #WP7406P203-60

?
Manufacturer substitution
This part replaces W10314683. Substitute parts can look different from the original.
$69.32 |
8% OFF Phone Price : $75.32
In Stock
Grounding Screw 7101P027-60
#(NI)

Optional parts diagram

Grounding screw

Part #7101P027-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P027-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P115-60
#31

Oven parts diagram

Screw

Part #7101P115-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P115-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Light- Ove 7407P181-60
#18

Oven parts diagram

Light- ove

Part #7407P181-60

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 7407P181-60. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Spray Bl 830864
#NI

Optional parts diagram

Spray bl

Part #830864

Replaced by #285006

?
Manufacturer substitution
This part replaces 830864. Substitute parts can look different from the original.
This item is not returnable
$28.89 |
17% OFF Phone Price : $34.89
In Stock
Cooktop Griddle (replaces 4396096, 4396096ra, W10297135, W10297135a, Wp74007078) 4396096RB
#NI

Optional parts diagram

Cooktop griddle (replaces 4396096, 4396096ra, w10297135, w10297135a, wp74007078)

Part #4396096RB

$149.09 |
7% OFF Phone Price : $161.09
In Stock
