Model # AGS746WW-P1130746NWW Official Amana gas range

Here are the diagrams and repair parts for Official Amana AGS746WW-P1130746NWW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

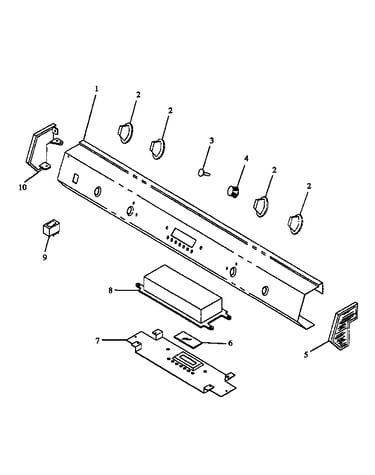

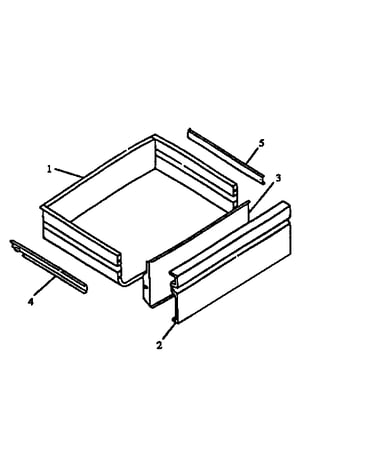

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Assembly 0308103
#999F

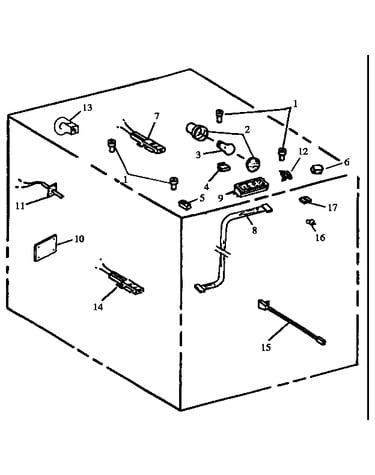

Electrical components diagram

Assembly

Part #0308103

Replaced by #786324

?
Manufacturer substitution
This part replaces 0308103. Substitute parts can look different from the original.
$46.23 |
11% OFF Phone Price : $52.23
In Stock
Igniter 0309145
Igniter

Part #0309145

Replaced by #786324

?
Manufacturer substitution
This part replaces 0309145. Substitute parts can look different from the original.
$46.23 |
11% OFF Phone Price : $52.23
In Stock
Assy, Electr 0309358
Assy, electr

Part #0309358

Replaced by #WP3185804

?
Manufacturer substitution
This part replaces 0309358. Substitute parts can look different from the original.
This item is not returnable
$34.99 |
15% OFF Phone Price : $40.99
In Stock
Nut K 0097886
#999C

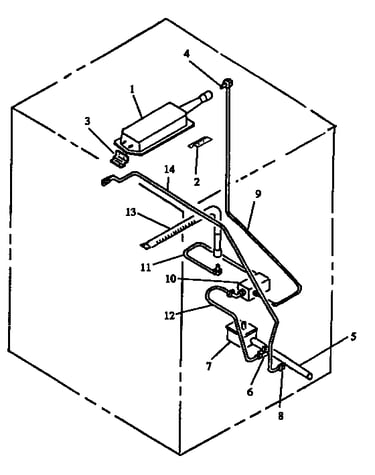

Gas components diagram

Nut k

Part #0097886

Replaced by #Y0097886

?
Manufacturer substitution
This part replaces 0097886. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Screw, #8-18 0041811
#999A

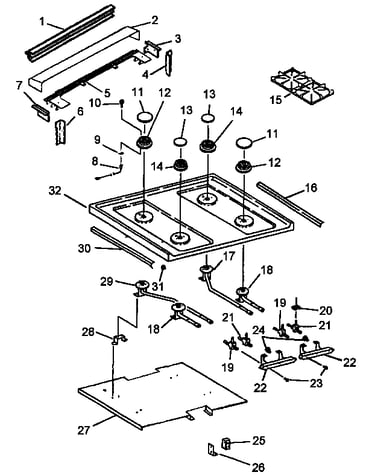

Main top diagram

Screw, #8-18

Part #0041811

Replaced by #8169479

?
Manufacturer substitution
This part replaces 0041811. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 0041809
#999

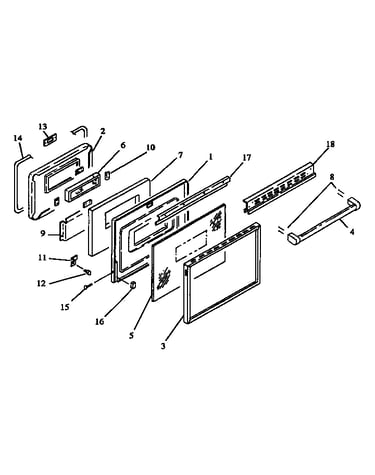

Oven door diagram

Screw

Part #0041809

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0041809. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Oven Rack 314763J
#6

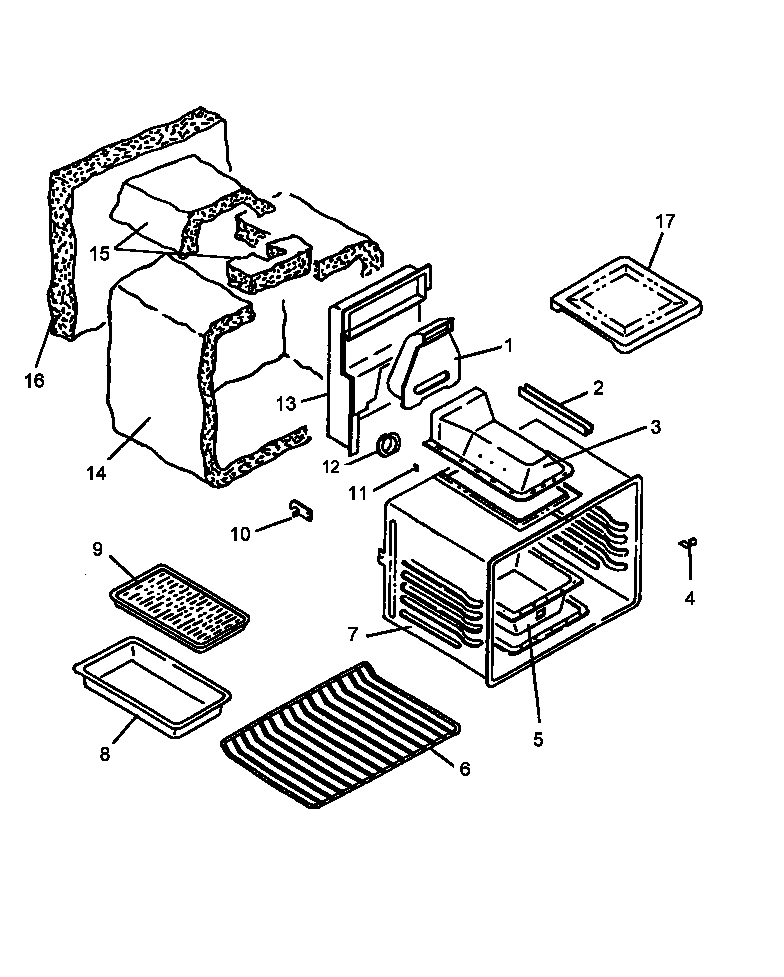

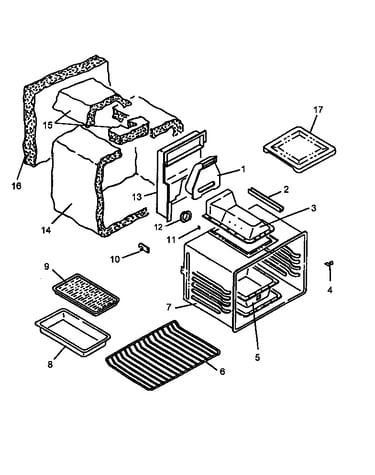

Cavity diagram

Range oven rack

Part #314763J

Replaced by #WP314763J

?
Manufacturer substitution
This part replaces 314763J. Substitute parts can look different from the original.
$35.63 |
14% OFF Phone Price : $41.63
In Stock
Screw, #8-18 0059445
Screw, #8-18

Part #0059445

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0059445. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 0041816
#999A

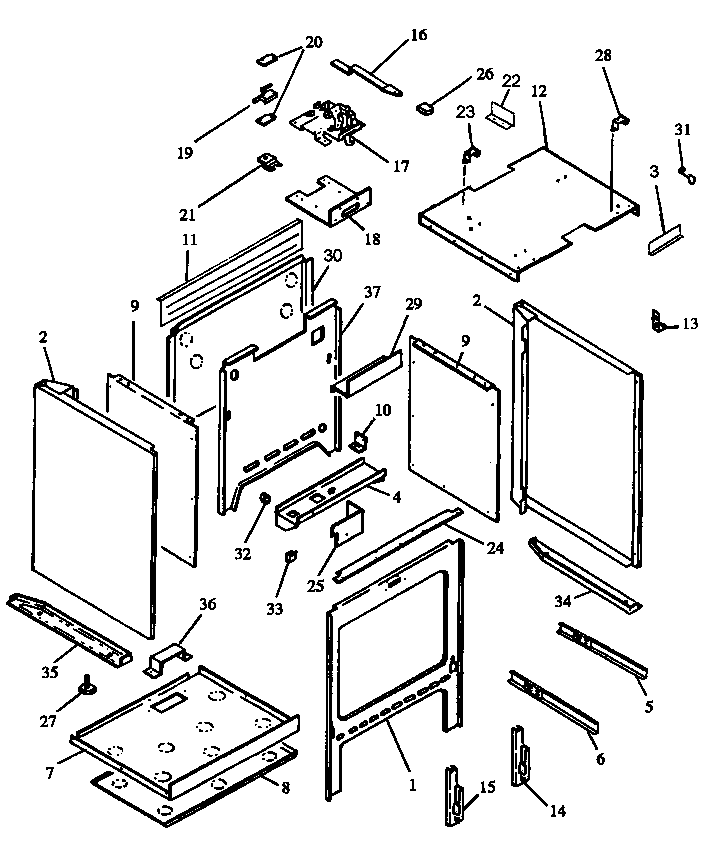

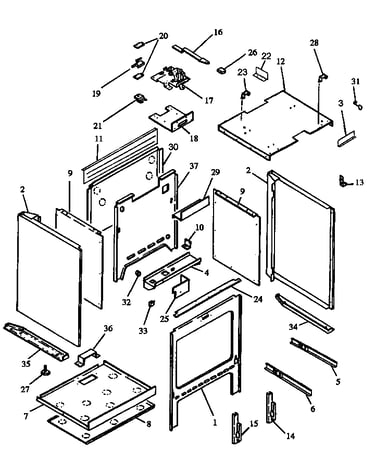

Cabinet diagram

Screw

Part #0041816

Replaced by #M0211016

?
Manufacturer substitution
This part replaces 0041816. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Grid, Broile 304451CG
#9

Cavity diagram

Grid, broile

Part #304451CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 304451CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
