Frigidaire
Electric Cooktop

Model # CBEF2EL1 Official Frigidaire electric cooktop & control box - lf32089020

Here are the diagrams and repair parts for Official Frigidaire CBEF2EL1 electric cooktop & control box - lf32089020, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Gasket 3200748
Gasket

Part #3200748

The manufacturer no longer makes this part, and there's no substitute part

Shield-lg 3200741
#4

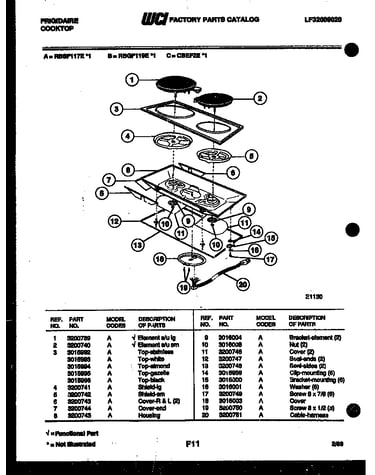

Cooktop parts diagram

Shield-lg

Part #3200741

The manufacturer no longer makes this part, and there's no substitute part

Screw 3200378
#10

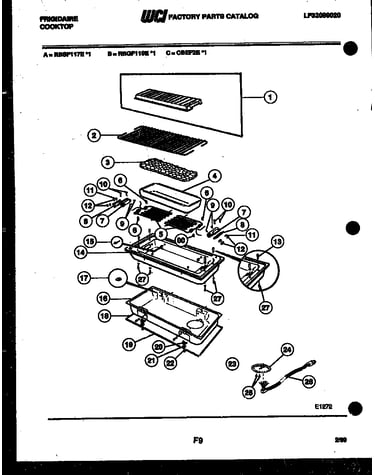

Control box parts diagram

Screw

Part #3200378

The manufacturer no longer makes this part, and there's no substitute part

Element 3200740
#2

Cooktop parts diagram

Element

Part #3200740

The manufacturer no longer makes this part, and there's no substitute part

Cover 3200753
#1

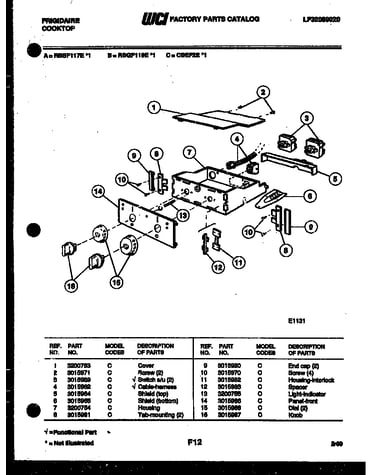

Power control diagram

Cover

Part #3200753

The manufacturer no longer makes this part, and there's no substitute part

Housing 3200745
#8

Cooktop parts diagram

Housing

Part #3200745

The manufacturer no longer makes this part, and there's no substitute part

Washer 3201986
#11

Control box parts diagram

Washer

Part #3201986

The manufacturer no longer makes this part, and there's no substitute part

Lid 3201994
#1

Control box parts diagram

Lid

Part #3201994

The manufacturer no longer makes this part, and there's no substitute part

Washer 3016001
Washer

Part #3016001

The manufacturer no longer makes this part, and there's no substitute part

Shield-sm 3200742
#5

Cooktop parts diagram

Shield-sm

Part #3200742

The manufacturer no longer makes this part, and there's no substitute part
