Model # JGBS20DEM2WW Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS20DEM2WW gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJGBS20DEM2WW Ranges

  • 40a15bulb STD372401
    #235

    Body parts diagram

    40a15bulb

    Part #STD372401

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces STD372401. Substitute parts can look different from the original.
    BEST SELLER
    $13.61
    13% OFF Phone Price : $15.61
    In Stock
  • Bake Burner Ignition WB13K0021
    #218

    Gas & burner parts diagram

    Bake burner ignition

    Part #WB13K0021

    Replaced by #WB13X40208

    ?
    Manufacturer substitution
    This part replaces WB13K0021. Substitute parts can look different from the original.
    BEST SELLER
    $77.76
    7% OFF Phone Price : $83.76
    In Stock
  • Range Oven Temperature Sensor WB20K10015
    #43

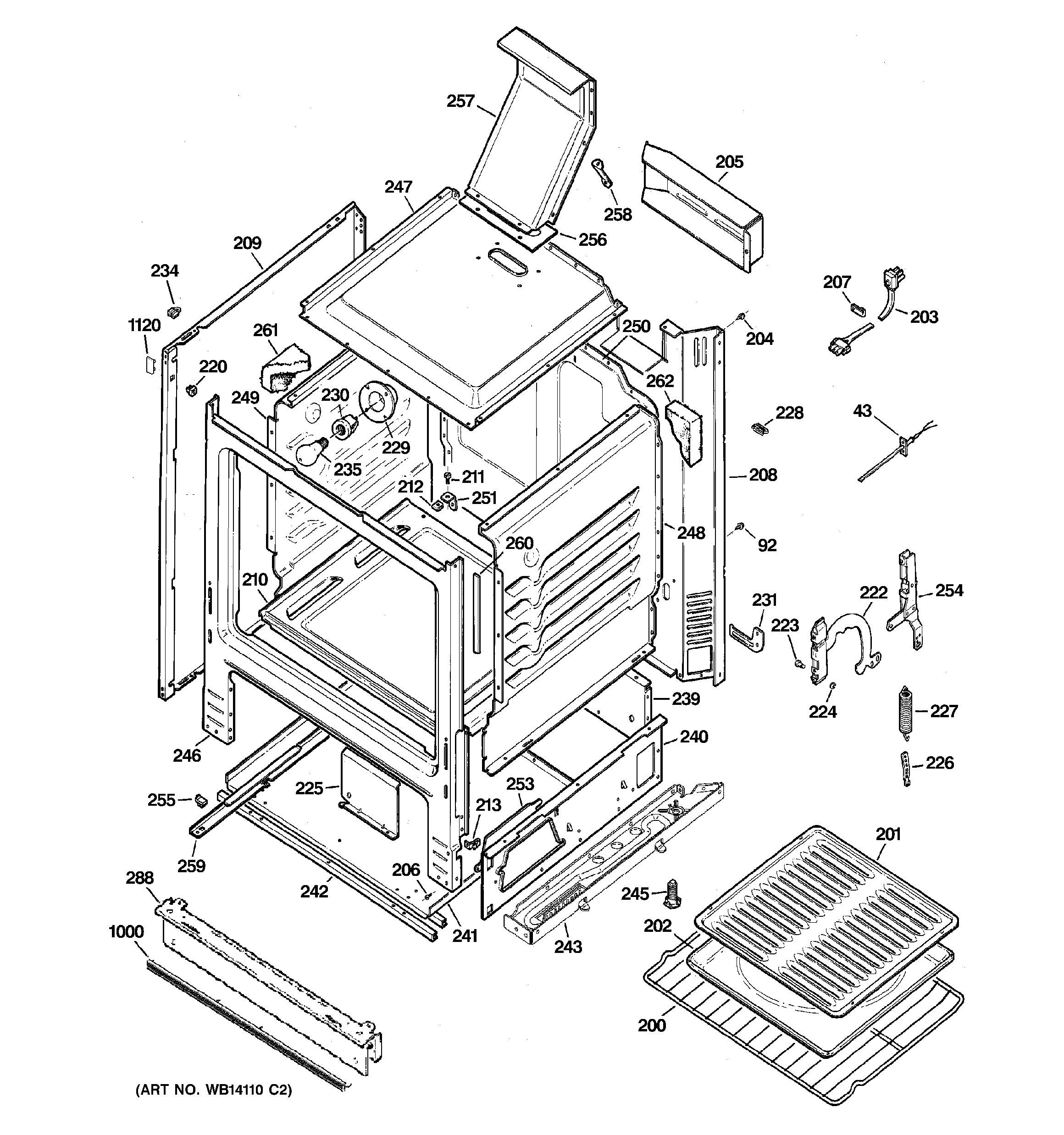

    Body parts diagram

    Range oven temperature sensor

    Part #WB20K10015

    BEST SELLER
    $47.47
    11% OFF Phone Price : $53.47
    In Stock
  • Hex Washer Head Screw WB01K0050
    #28

    Gas & burner parts diagram

    Hex washer head screw

    Part #WB01K0050

    Replaced by #WB1X1293

    ?
    Manufacturer substitution
    This part replaces WB01K0050. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $8.70
    10% OFF Phone Price : $9.70
    In Stock
  • Double Burner WB16K10003
    #4

    Gas & burner parts diagram

    Double burner

    Part #WB16K10003

    Replaced by #WB16K10026

    ?
    Manufacturer substitution
    This part replaces WB16K10003. Substitute parts can look different from the original.
    $61.83
    9% OFF Phone Price : $67.83
    In Stock
  • Range Main Top (black) WB62K10109
    #114

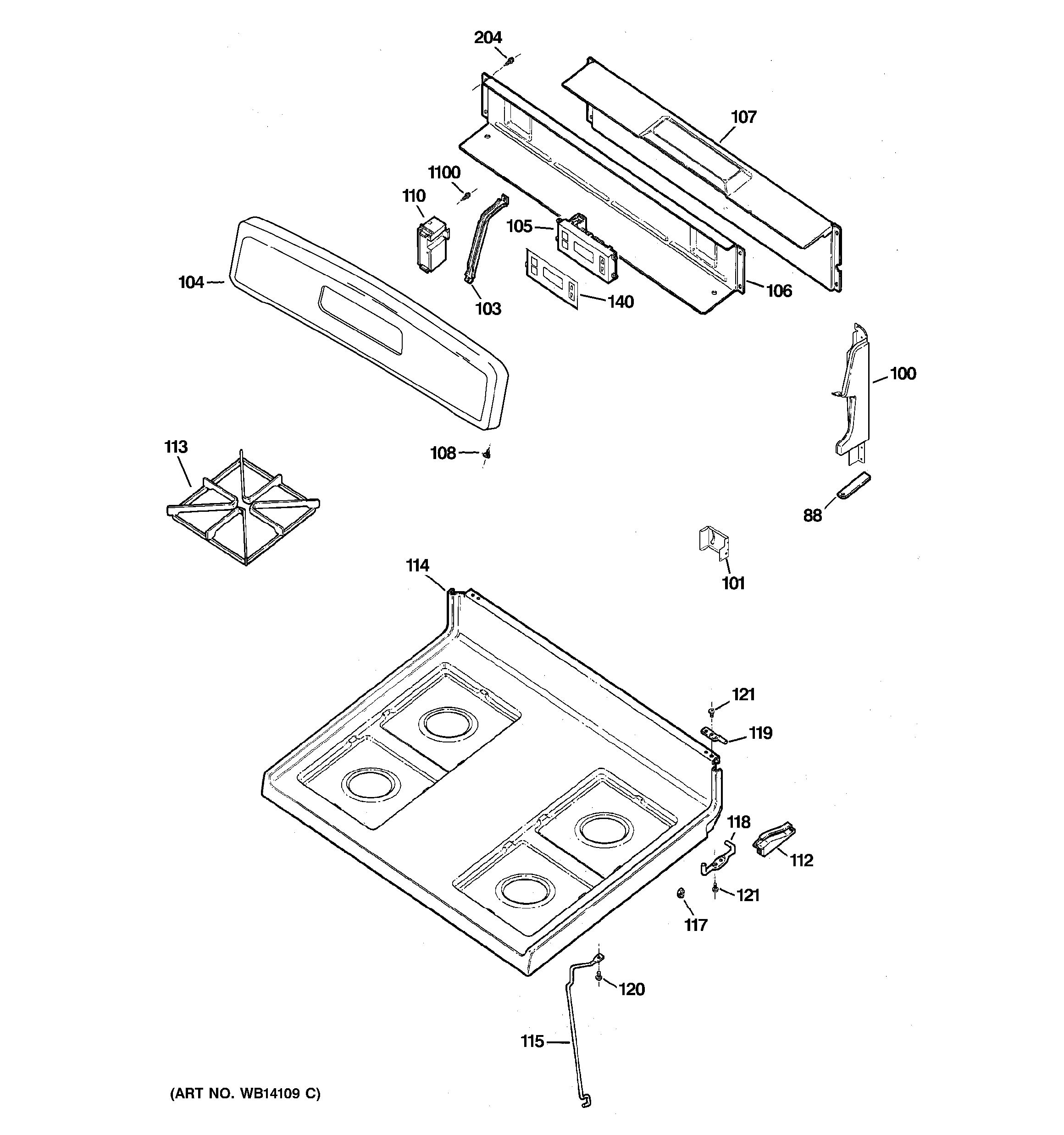

    Control panel & cooktop diagram

    Range main top (black)

    Part #WB62K10109

    $56.29
    10% OFF Phone Price : $62.29
    In Stock
  • Control T09 WB27K10243
    #105

    Control panel & cooktop diagram

    Control t09

    Part #WB27K10243

    Replaced by #WB27K10356

    ?
    Manufacturer substitution
    This part replaces WB27K10243. Substitute parts can look different from the original.
    $86.95
    6% OFF Phone Price : $92.95
    In Stock
  • Range Surface Burner Knob WB03K10218
    #2

    Gas & burner parts diagram

    Range surface burner knob

    Part #WB03K10218

    $9.64
    9% OFF Phone Price : $10.64
    In Stock
  • Range Surface Burner Knob WB03K10216
    #2

    Gas & burner parts diagram

    Range surface burner knob

    Part #WB03K10216

    This item is not returnable
    $9.64
    9% OFF Phone Price : $10.64
    In Stock
  • Range Oven Door Handle (black) WB15T10161
    #265

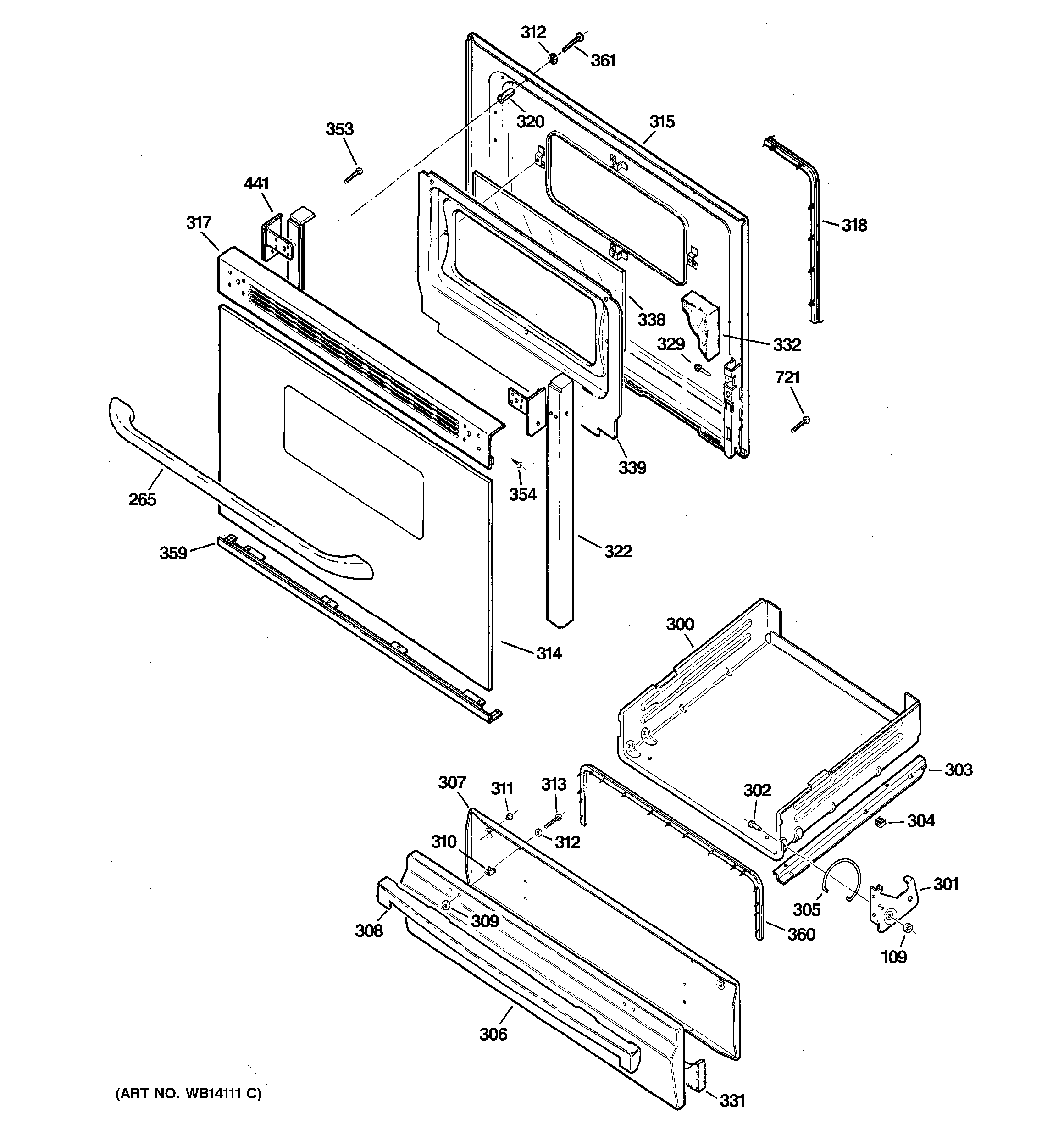

    Door & drawer parts diagram

    Range oven door handle (black)

    Part #WB15T10161

    $80.17
    7% OFF Phone Price : $86.17
    In Stock
