GE
Chest Freezer

Model # FCM7SUCWW Official GE freezer

Here are the diagrams and repair parts for Official GE FCM7SUCWW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Freezer Basket (replaces Wr21x10157, Wr71x27815) WR21X10208
#7

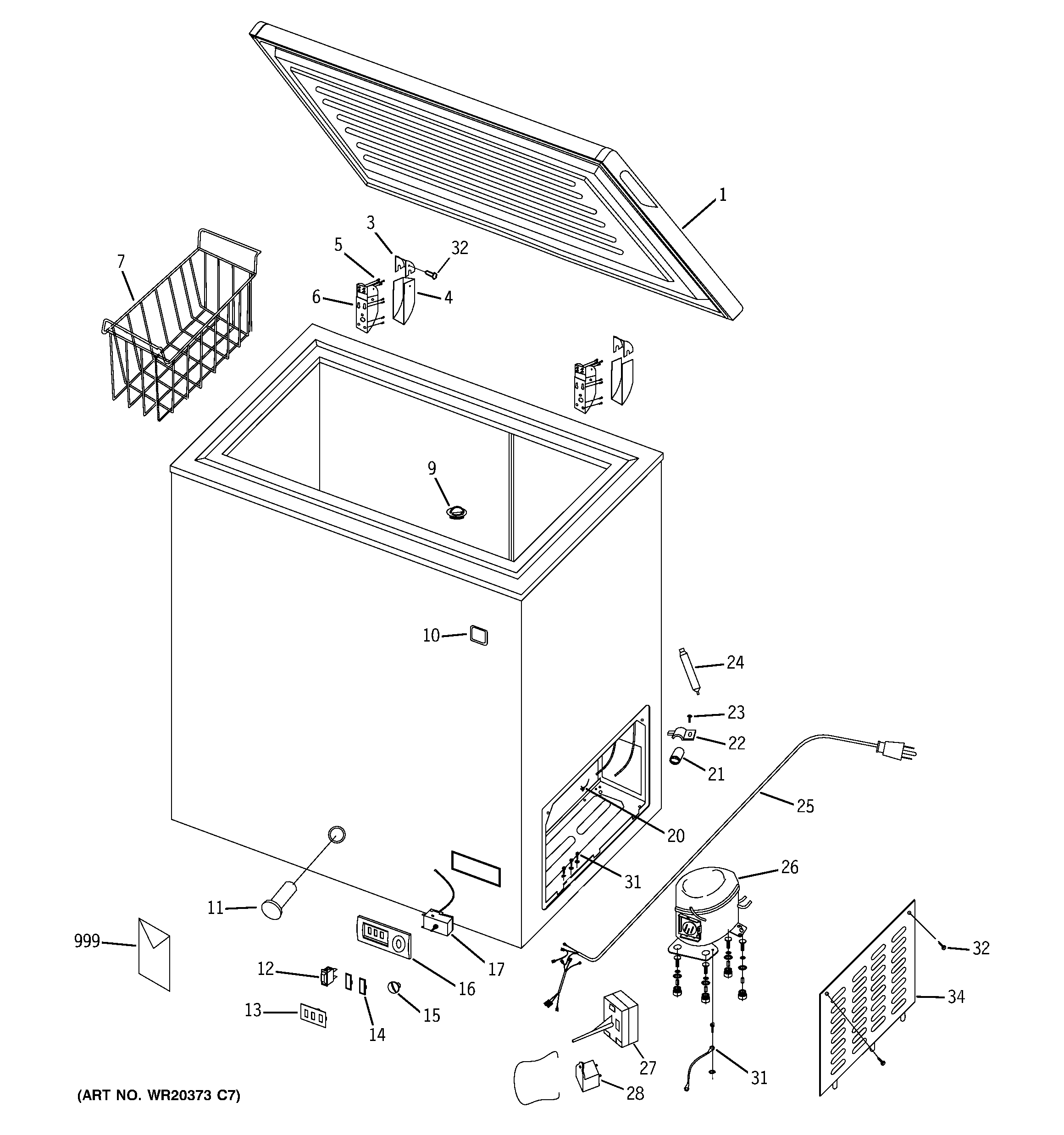

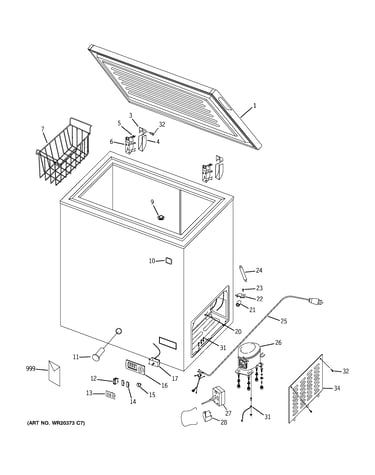

Freezer diagram

Freezer basket (replaces wr21x10157, wr71x27815)

Part #WR21X10208

$29.09 |
17% OFF Phone Price : $35.09
In Stock
Freezer Temperature Control Knob WR02X12190
#15

Freezer diagram

Freezer temperature control knob

Part #WR02X12190

$7.69 |
12% OFF Phone Price : $8.69
In Stock
Freezer Temperature Control Thermostat WR50X10085
#17

Freezer diagram

Freezer temperature control thermostat

Part #WR50X10085

$32.89 |
15% OFF Phone Price : $38.89
In Stock
Freezer Lid Assembly WR90X00045
#1

Freezer diagram

Freezer lid assembly

Part #WR90X00045

$65.99 |
8% OFF Phone Price : $71.99
In Stock
Rubber Grommet WR02X12194
#21

Freezer diagram

Rubber grommet

Part #WR02X12194

$8.92 |
10% OFF Phone Price : $9.92
In Stock
Power Cord F WR01X10745
#20

Freezer diagram

Power cord f

Part #WR01X10745

$8.64 |
10% OFF Phone Price : $9.64
In Stock
Hinge Cover WR13X10369
#3

Freezer diagram

Hinge cover

Part #WR13X10369

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Drain Stopper WR02X12189
#9

Freezer diagram

Drain stopper

Part #WR02X12189

Replaced by #WR01X28051

?
Manufacturer substitution
This part replaces WR02X12189. Substitute parts can look different from the original.
$8.95 |
10% OFF Phone Price : $9.95
In Stock
Freezer Screw WR01X10743
#5

Freezer diagram

Freezer screw

Part #WR01X10743

Replaced by #WR01X35245

?
Manufacturer substitution
This part replaces WR01X10743. Substitute parts can look different from the original.
$8.11
In Stock
Freezer Screw WR01X10487
#32

Freezer diagram

Freezer screw

Part #WR01X10487

Replaced by #WR01X27843

?
Manufacturer substitution
This part replaces WR01X10487. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
