Amana
Range/Microwave Combo

Model # 631.003 Official Amana electric range/microwave combo

Here are the diagrams and repair parts for Official Amana 631003 electric range/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

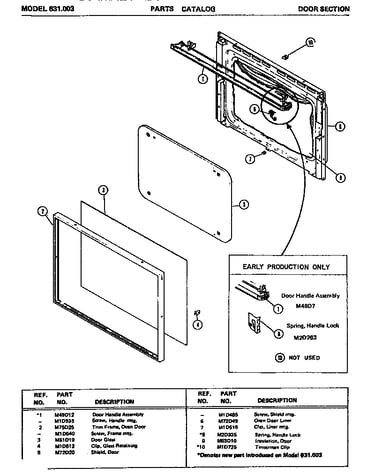

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Lower Side Panel (copper) M82D105
#30D

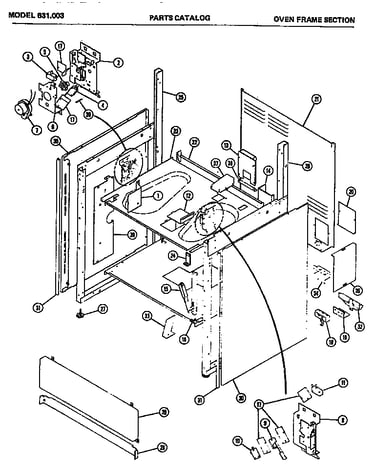

Oven frame section (631.003) diagram

Lower side panel (copper)

Part #M82D105

The manufacturer no longer makes this part, and there's no substitute part

Thermal Relay M16D47
#48A

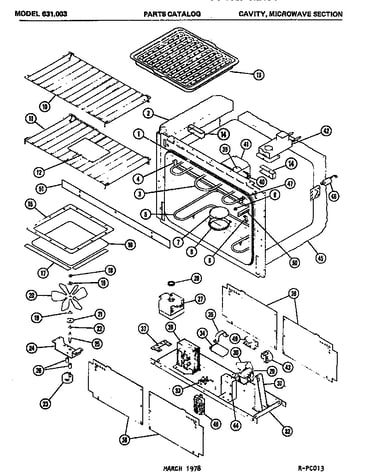

(631.003) diagram

Thermal relay

Part #M16D47

The manufacturer no longer makes this part, and there's no substitute part

Burner Bowl, Large M44D12
#8

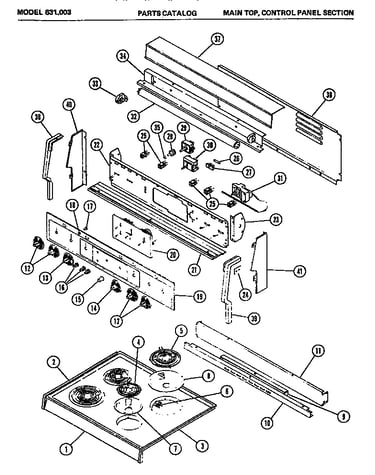

Main top (631.003) diagram

Burner bowl, large

Part #M44D12

The manufacturer no longer makes this part, and there's no substitute part

Lower Side Panel (h. Gold) M82D103
#30B

Oven frame section (631.003) diagram

Lower side panel (h. gold)

Part #M82D103

The manufacturer no longer makes this part, and there's no substitute part

Side Cover, Left (avocado M53D28
#40C

Main top (631.003) diagram

Side cover, left (avocado

Part #M53D28

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Trim Alignment M2D323
#24

Main top (631.003) diagram

Bracket, trim alignment

Part #M2D323

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Defrost Timer/relay Mtg. M8D127
#44A

(631.003) diagram

Bracket, defrost timer/relay mtg.

Part #M8D127

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Microwave Shelf M25D42
#17

(631.003) diagram

Gasket, microwave shelf

Part #M25D42

The manufacturer no longer makes this part, and there's no substitute part

Main Top (avocado) M82D110
#1C

Main top (631.003) diagram

Main top (avocado)

Part #M82D110

The manufacturer no longer makes this part, and there's no substitute part

Light Switch Button M6D158
#17

Main top (631.003) diagram

Light switch button

Part #M6D158

The manufacturer no longer makes this part, and there's no substitute part
