Model # I2703 Official Proctor Silex iron

Here are the diagrams and repair parts for Official Proctor Silex I2703 iron, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

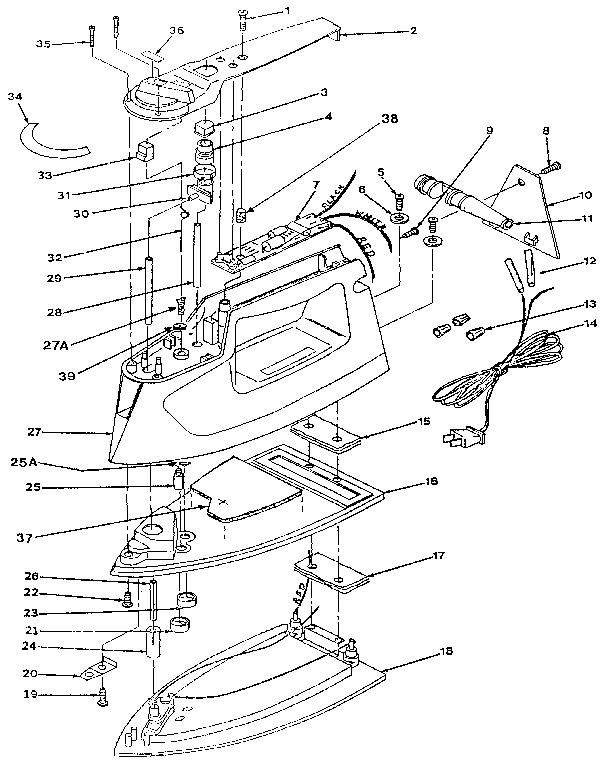

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Screw, Washer, Handle To Soleplate 114322
#5

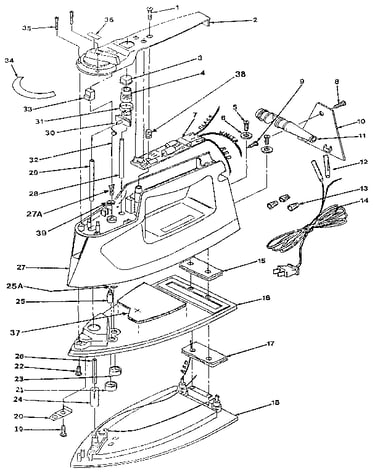

Replacement parts diagram

Screw, washer, handle to soleplate

Part #114322

The manufacturer no longer makes this part, and there's no substitute part

Exten Button 105379
#32

Replacement parts diagram

Exten button

Part #105379

The manufacturer no longer makes this part, and there's no substitute part

Fill Tube 134890
#28

Replacement parts diagram

Fill tube

Part #134890

The manufacturer no longer makes this part, and there's no substitute part

Blast Valve 610527
#25

Replacement parts diagram

Blast valve

Part #610527

The manufacturer no longer makes this part, and there's no substitute part

Screw, #6-19 X 1/2" Oval Phillips Self Tapping, Rear Cover To Handle 114262
Screw, #6-19 x 1/2" oval phillips self tapping, rear cover to handle

Part #114262

The manufacturer no longer makes this part, and there's no substitute part

Pump Housing, Single 957498
#30

Replacement parts diagram

Pump housing, single

Part #957498

The manufacturer no longer makes this part, and there's no substitute part

Clamp 121101
#31

Replacement parts diagram

Clamp

Part #121101

The manufacturer no longer makes this part, and there's no substitute part

Sleeving, Handle Post 163046
#38

Replacement parts diagram

Sleeving, handle post

Part #163046

The manufacturer no longer makes this part, and there's no substitute part

Valve Seal 162202
#25A

Replacement parts diagram

Valve seal

Part #162202

The manufacturer no longer makes this part, and there's no substitute part

Screw 002748
Screw

Part #002748

The manufacturer no longer makes this part, and there's no substitute part
