GE
Bottom-Mount Refrigerator

Model # GDE21EMKGRES Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE GDE21EMKGRES bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

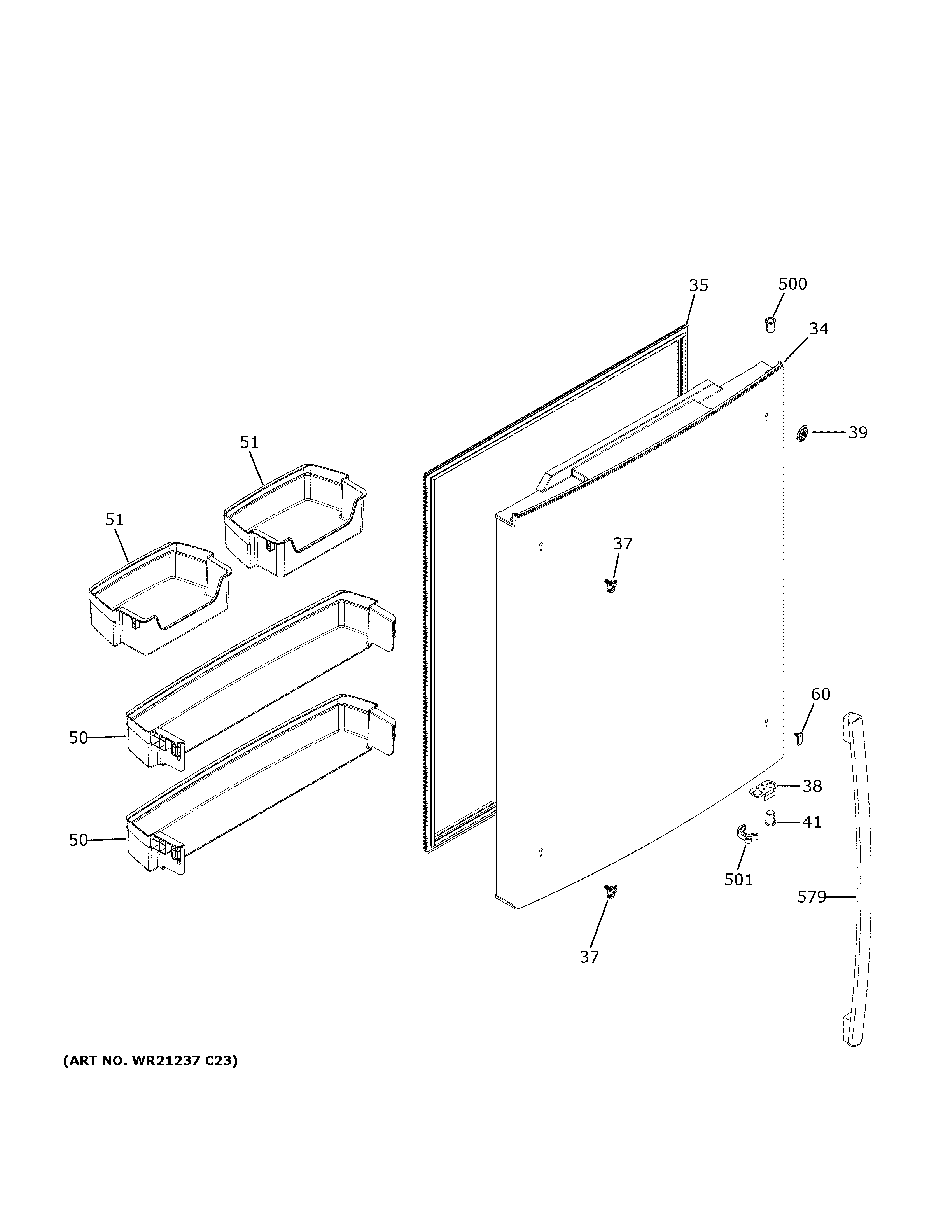

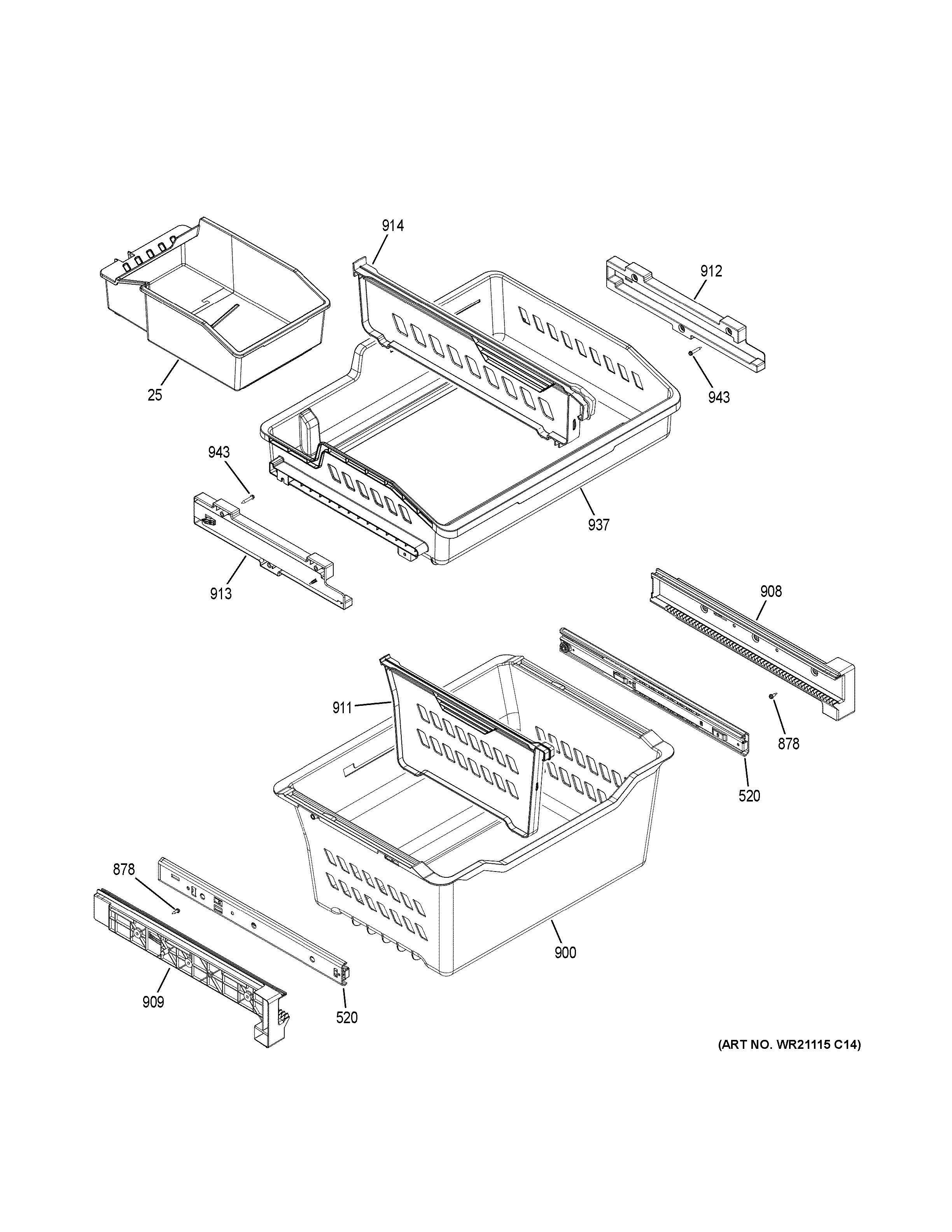

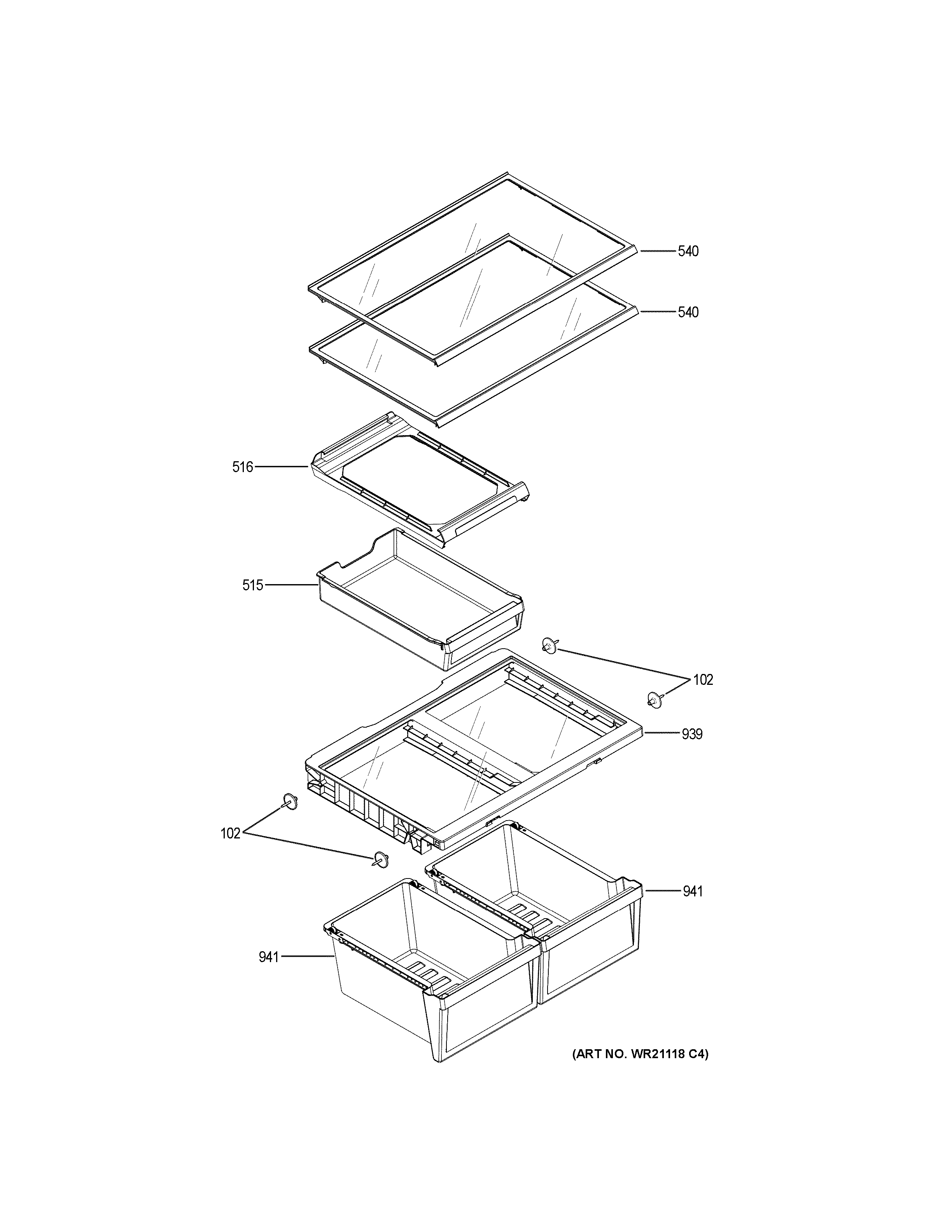

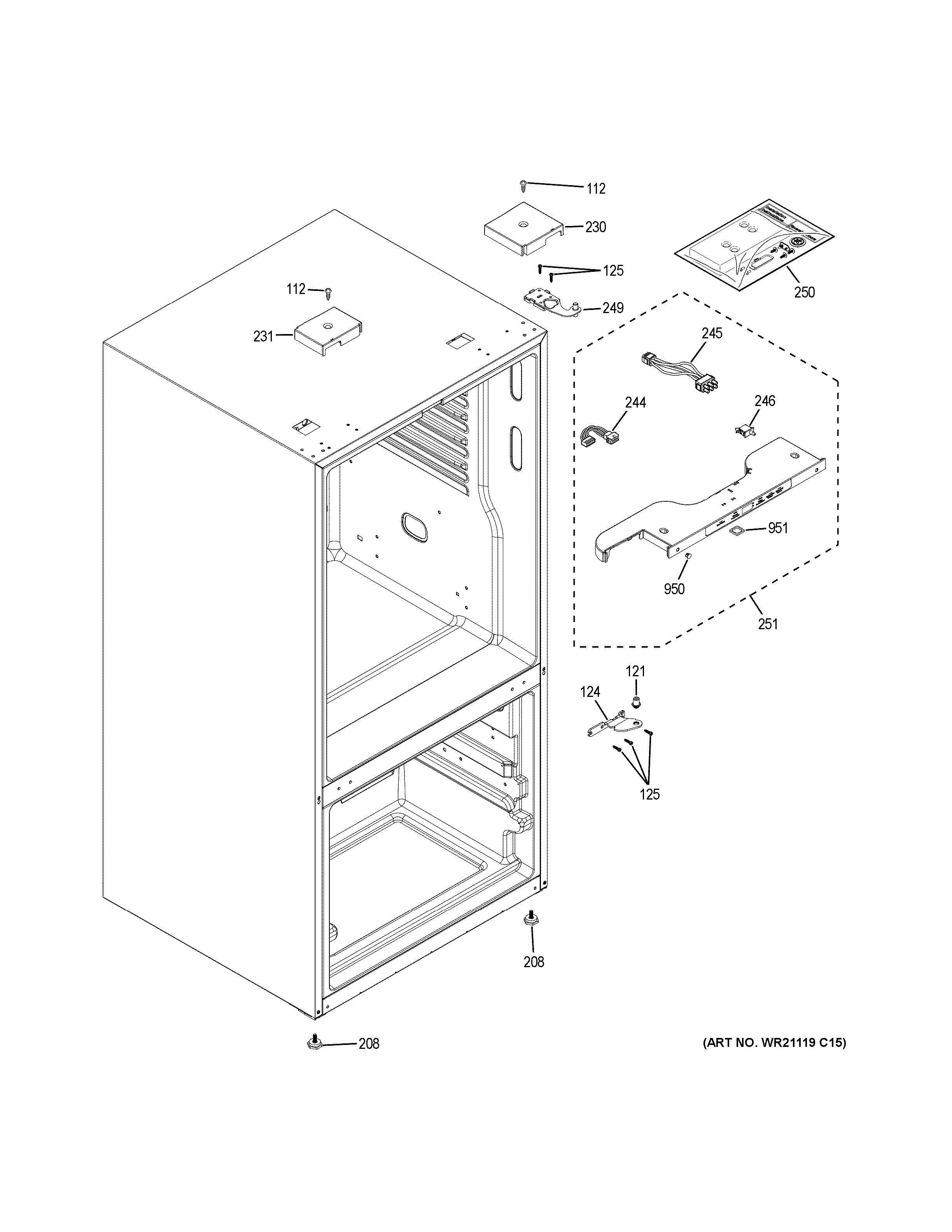

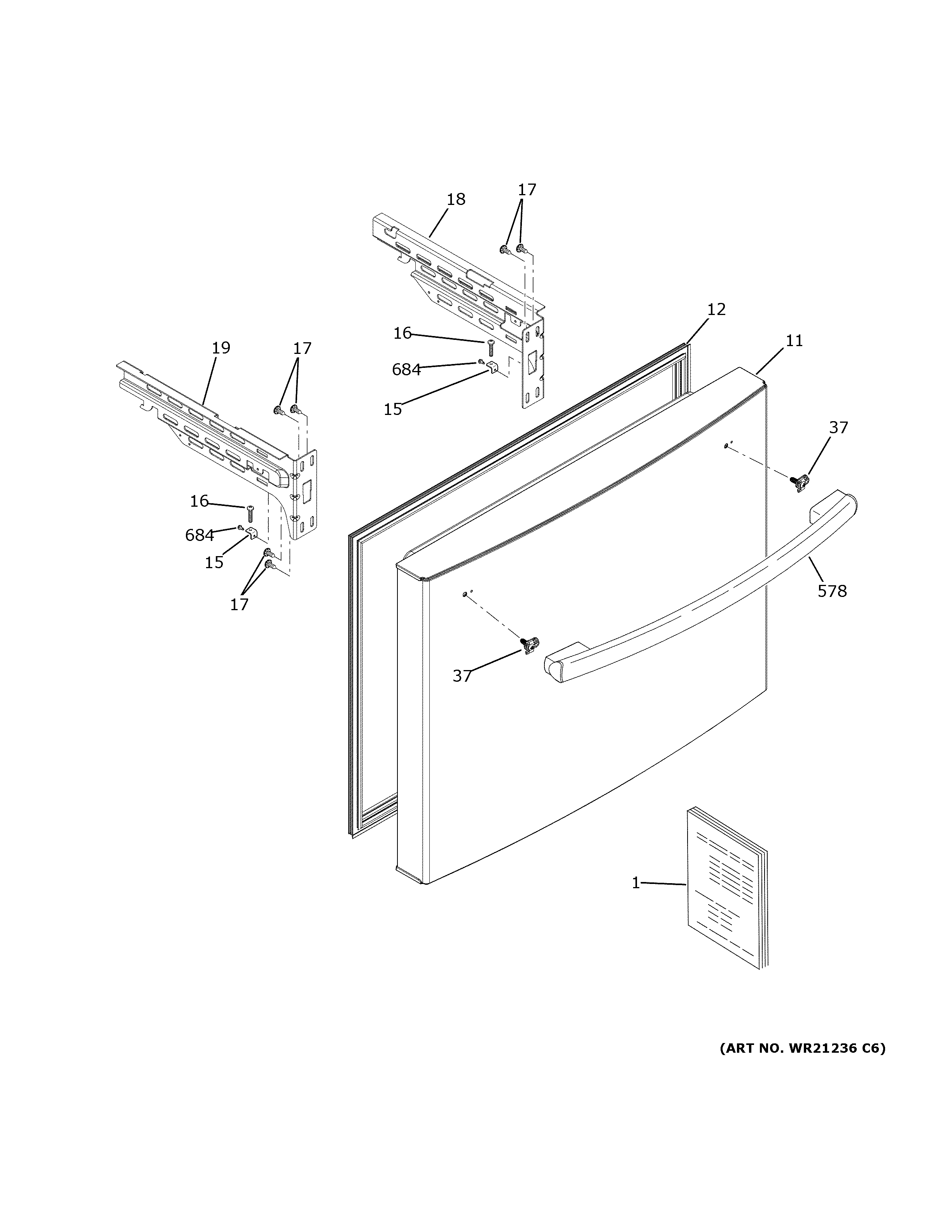

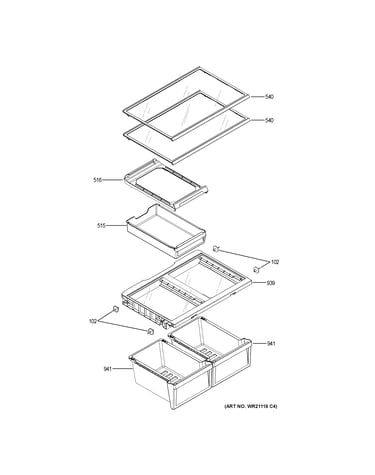

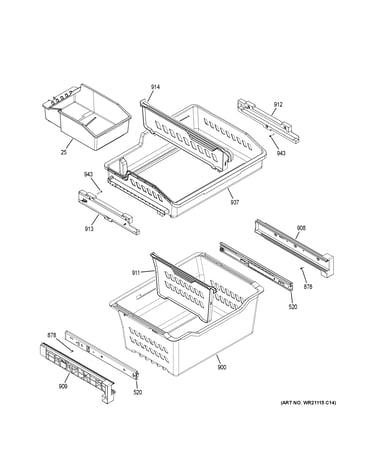

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dryer Filter WR86X0096
#740

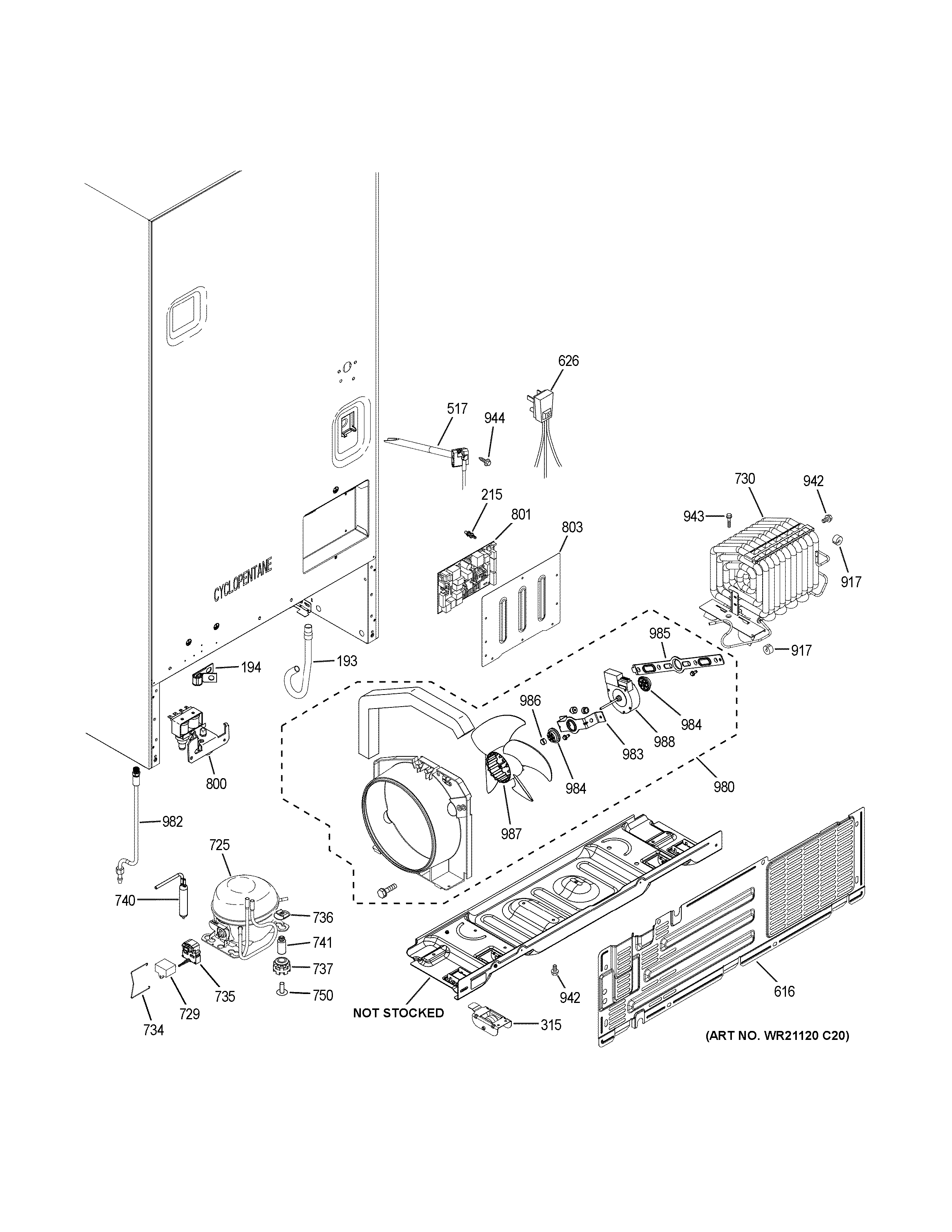

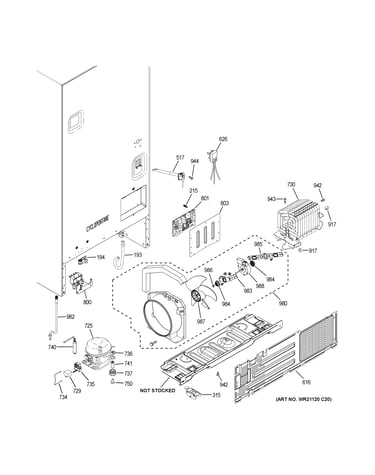

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Ge Refrigerator Water Filter XWF
#281

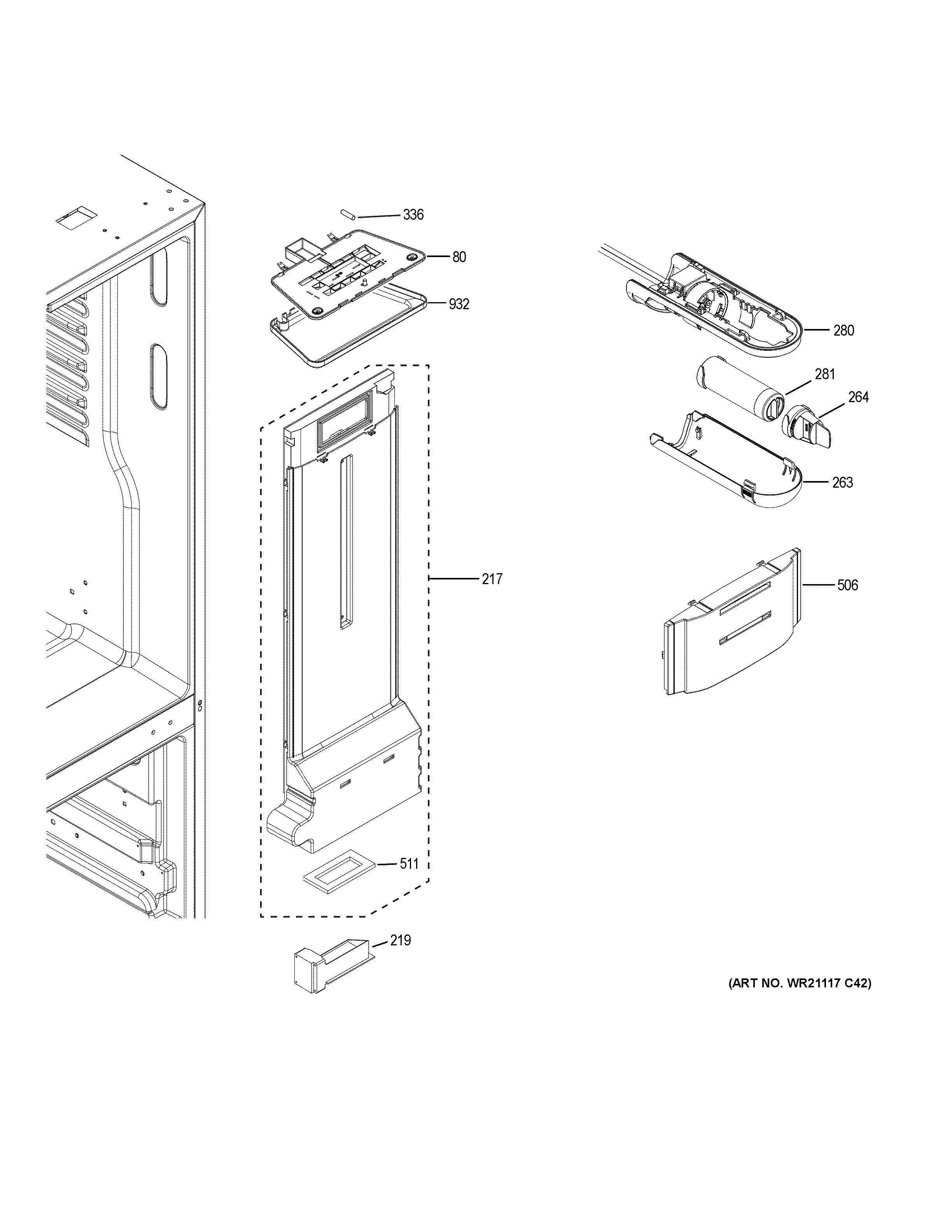

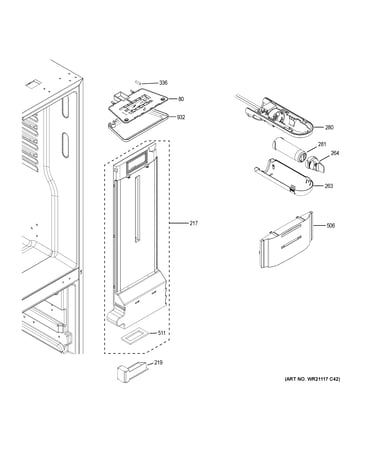

Fresh food section diagram

Ge refrigerator water filter

Part #XWF

Replaced by #XWFE

?
Manufacturer substitution
This part replaces XWF. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$71.06 |
8% OFF Phone Price : $77.06
In Stock
Refrigerator Defrost Bi-metal Thermostat WR50X10069
#241

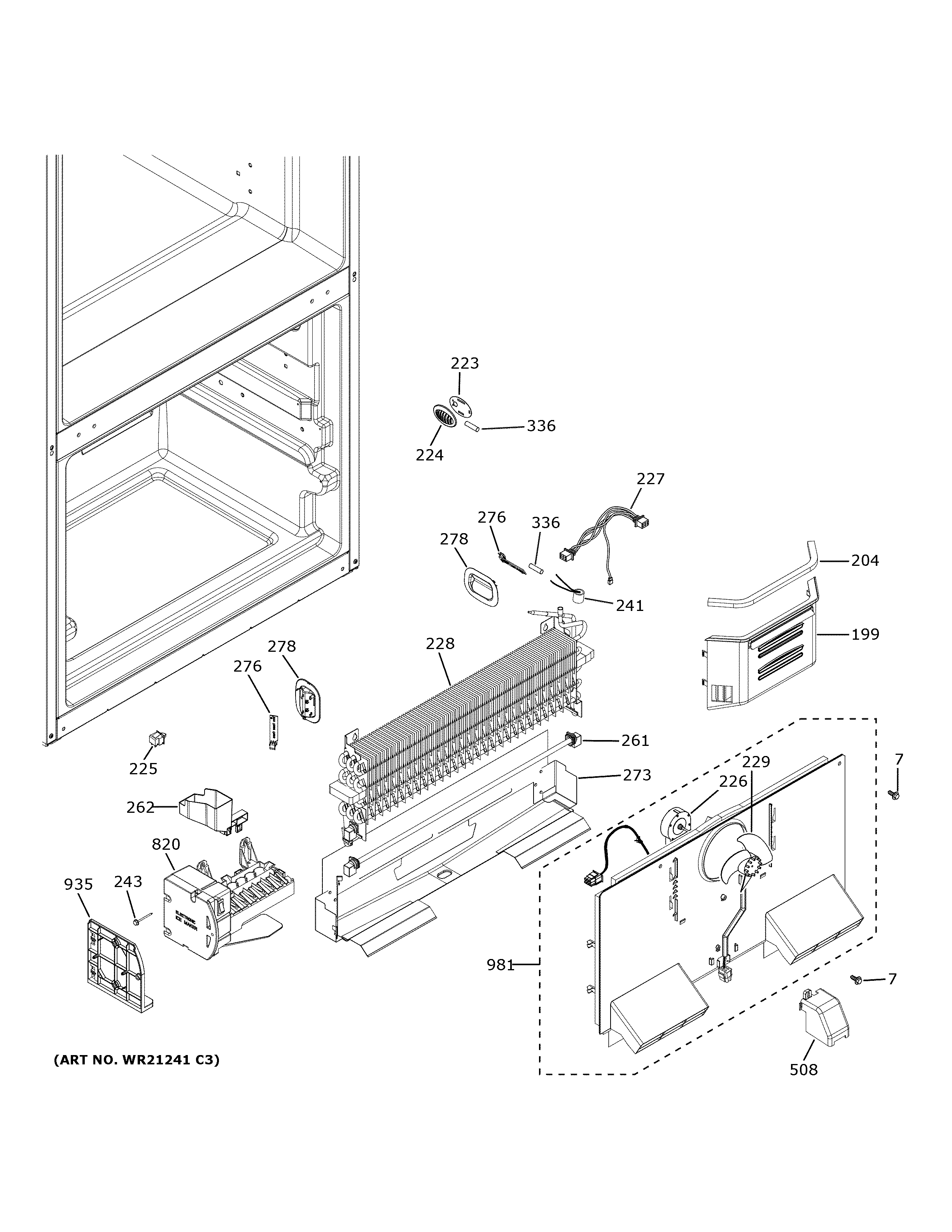

Freezer section diagram

Refrigerator defrost bi-metal thermostat

Part #WR50X10069

BEST SELLER
This item is not returnable
$20.56 |
23% OFF Phone Price : $26.56
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#229

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Refrigerator Air Damper (replaces Wr31x20918) WR60X27396
#219

Fresh food section diagram

Refrigerator air damper (replaces wr31x20918)

Part #WR60X27396

BEST SELLER
$118.81 |
9% OFF Phone Price : $130.81
In Stock
Refrigerator Compressor Kit (replaces Wr84x26734, Wr87x10096, Wr87x10131, Wr87x27951, Wr87x28008, Wr87x31410, Wr87x31587, Wr87x32004, Wr87x35145, Wr87x37645) WR87X10224
#725

Machine compartment diagram

Refrigerator compressor kit (replaces wr84x26734, wr87x10096, wr87x10131, wr87x27951, wr87x28008, wr87x31410, wr87x31587, wr87x32004, wr87x35145, wr87x37645)

Part #WR87X10224

BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Water Filter Bypass WR17X30044
#264

Fresh food section diagram

Refrigerator water filter bypass

Part #WR17X30044

Replaced by #WR17X33825

?
Manufacturer substitution
This part replaces WR17X30044. Substitute parts can look different from the original.
BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Xwf Manifold & Housing WR14X30263
#280

Fresh food section diagram

Xwf manifold & housing

Part #WR14X30263

Replaced by #WR14X34687

?
Manufacturer substitution
This part replaces WR14X30263. Substitute parts can look different from the original.
BEST SELLER
$101.92
In Stock
Refrigerator Reservoir-to-dispenser Water Tubing WR29X24766
#517

Machine compartment diagram

Refrigerator reservoir-to-dispenser water tubing

Part #WR29X24766

BEST SELLER
$103.10 |
10% OFF Phone Price : $115.10
In Stock
