Whirlpool
Side-By-Side Refrigerator

Model # BRS70FBANA00 Official Whirlpool side-by-side refrigerator

Here are the diagrams and repair parts for Official Whirlpool BRS70FBANA00 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

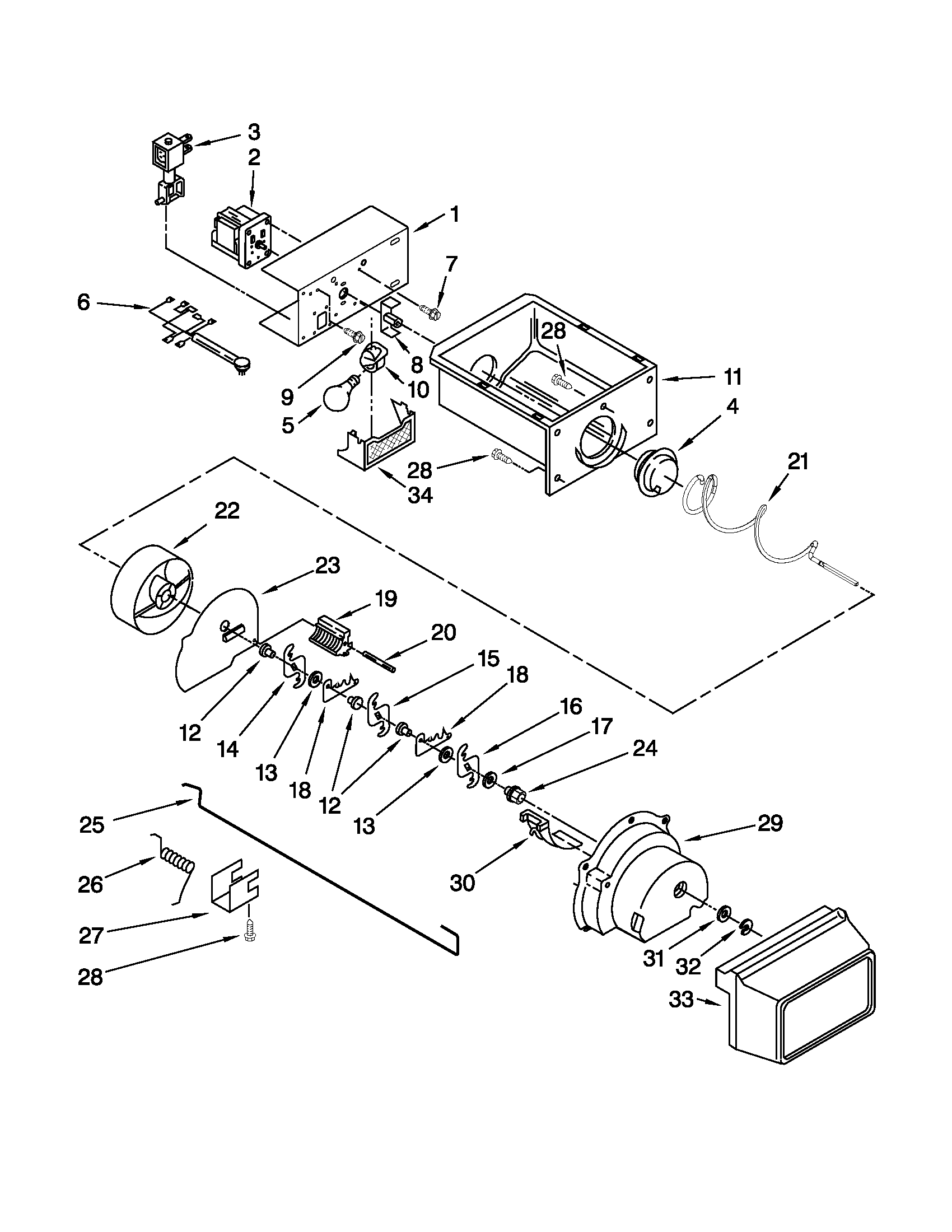

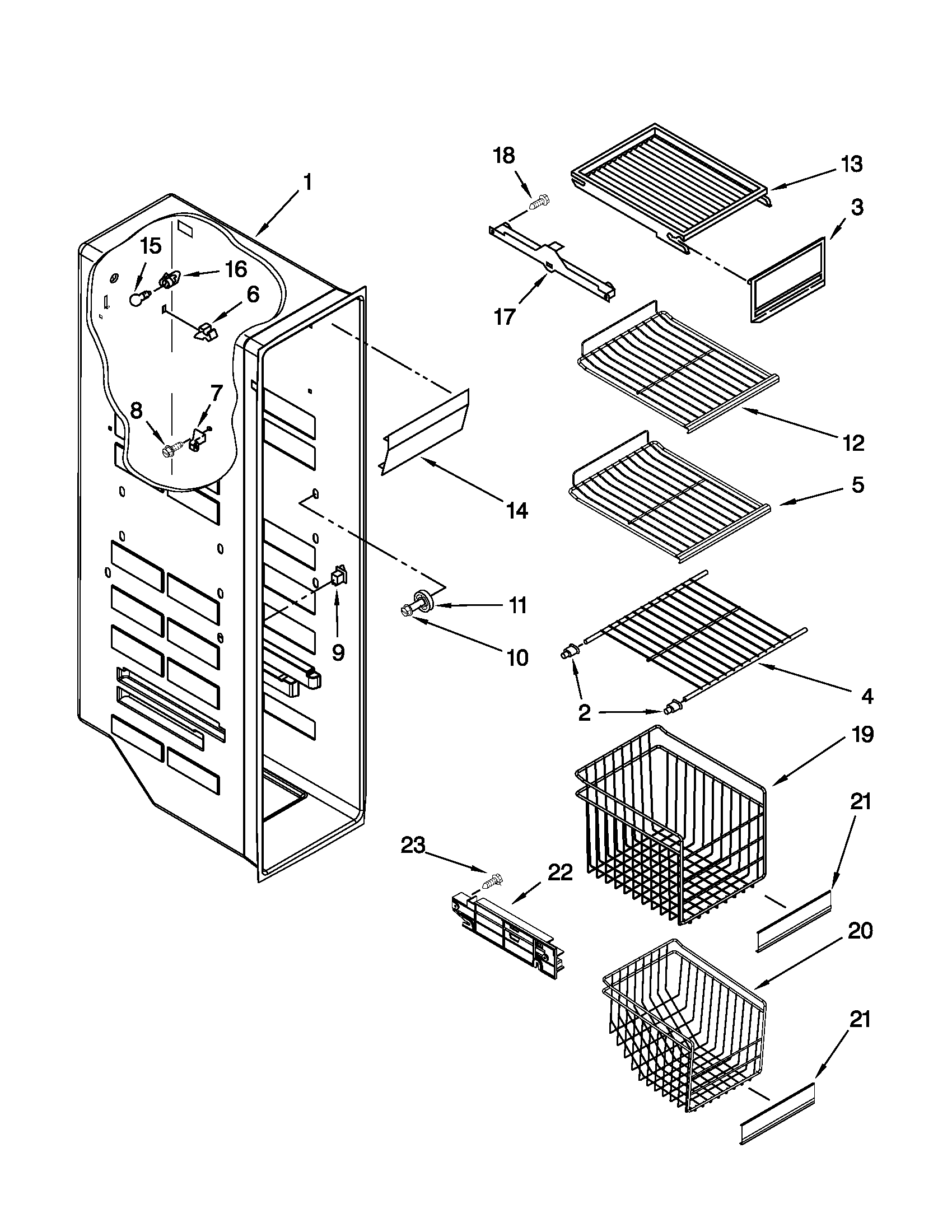

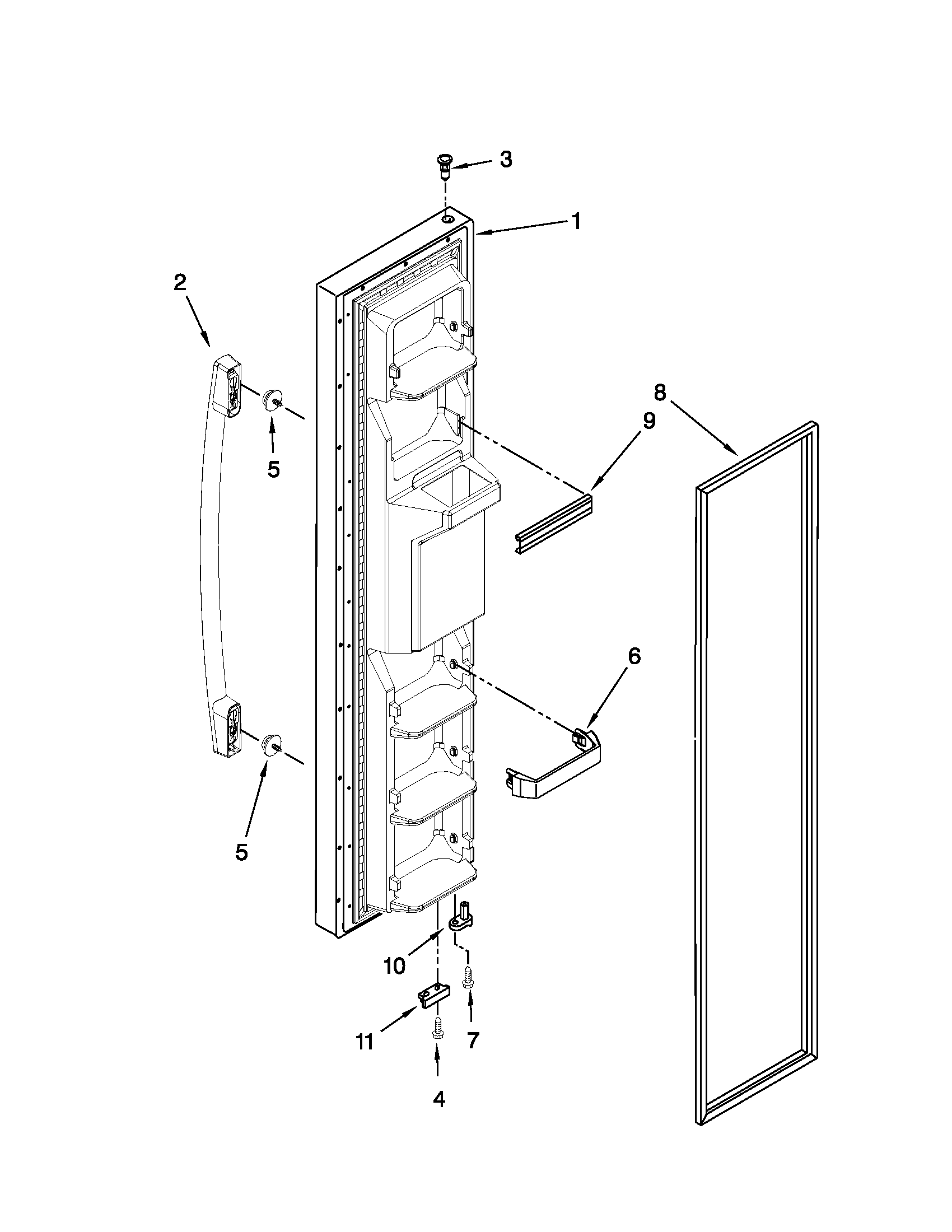

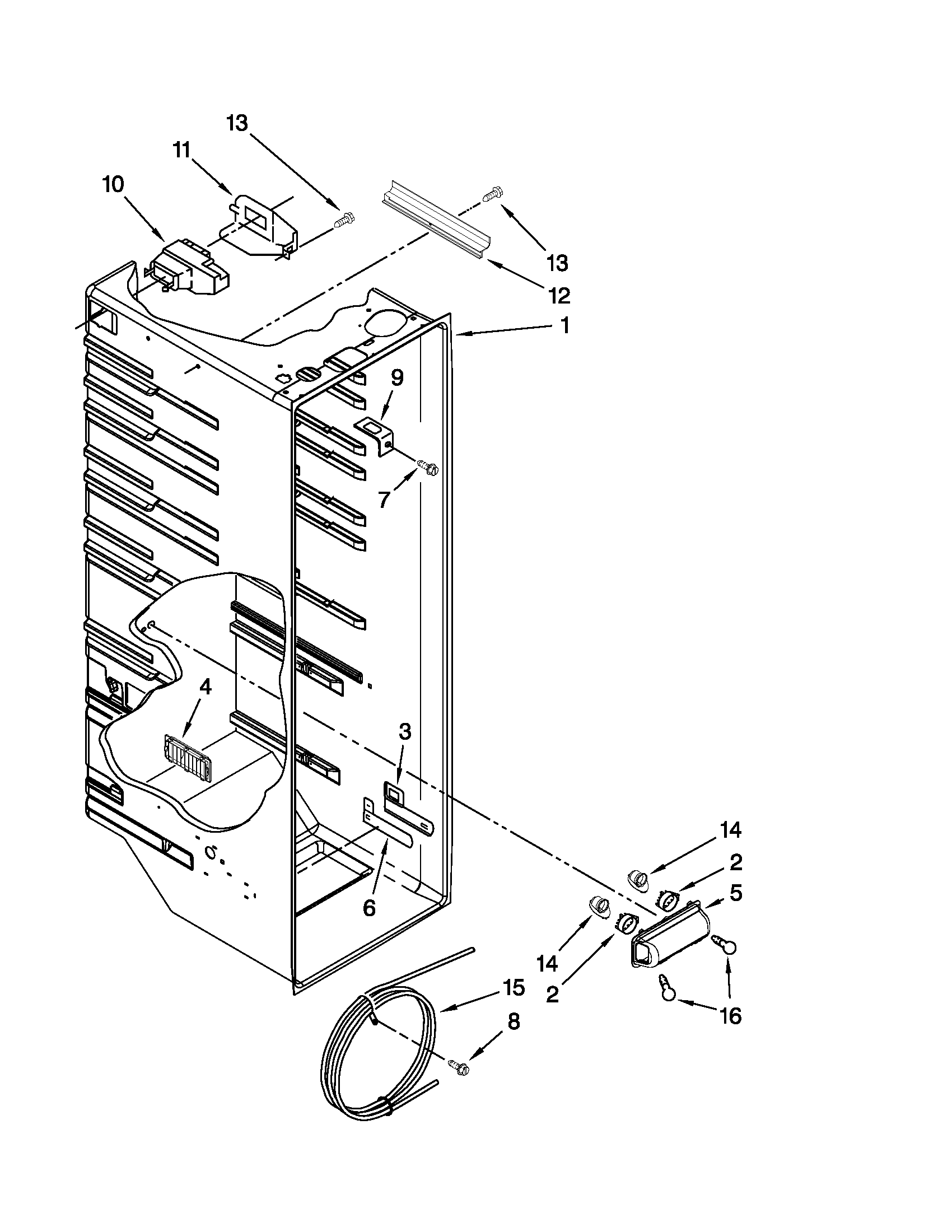

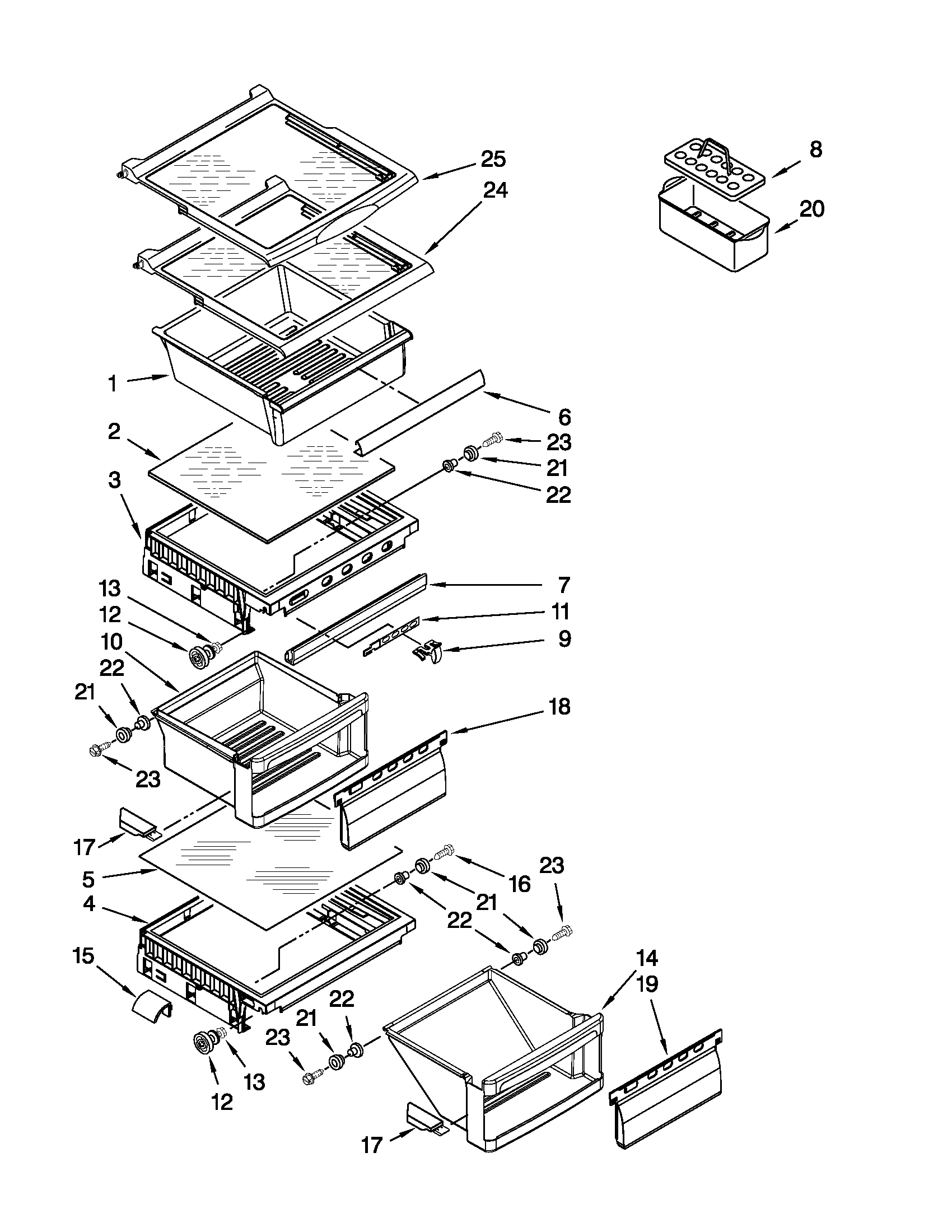

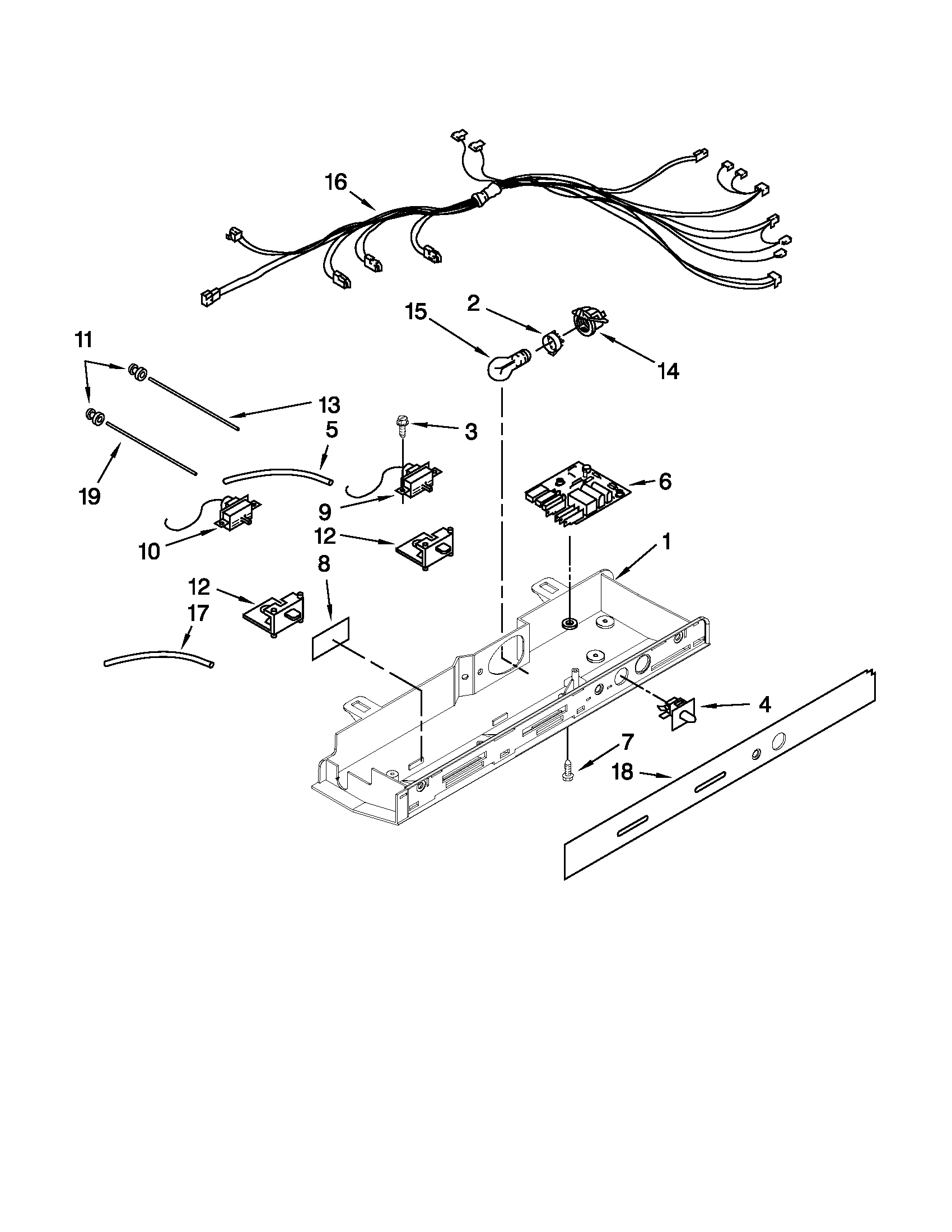

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 301 parts  |
Refrigerator Water Filter 4396841
#11

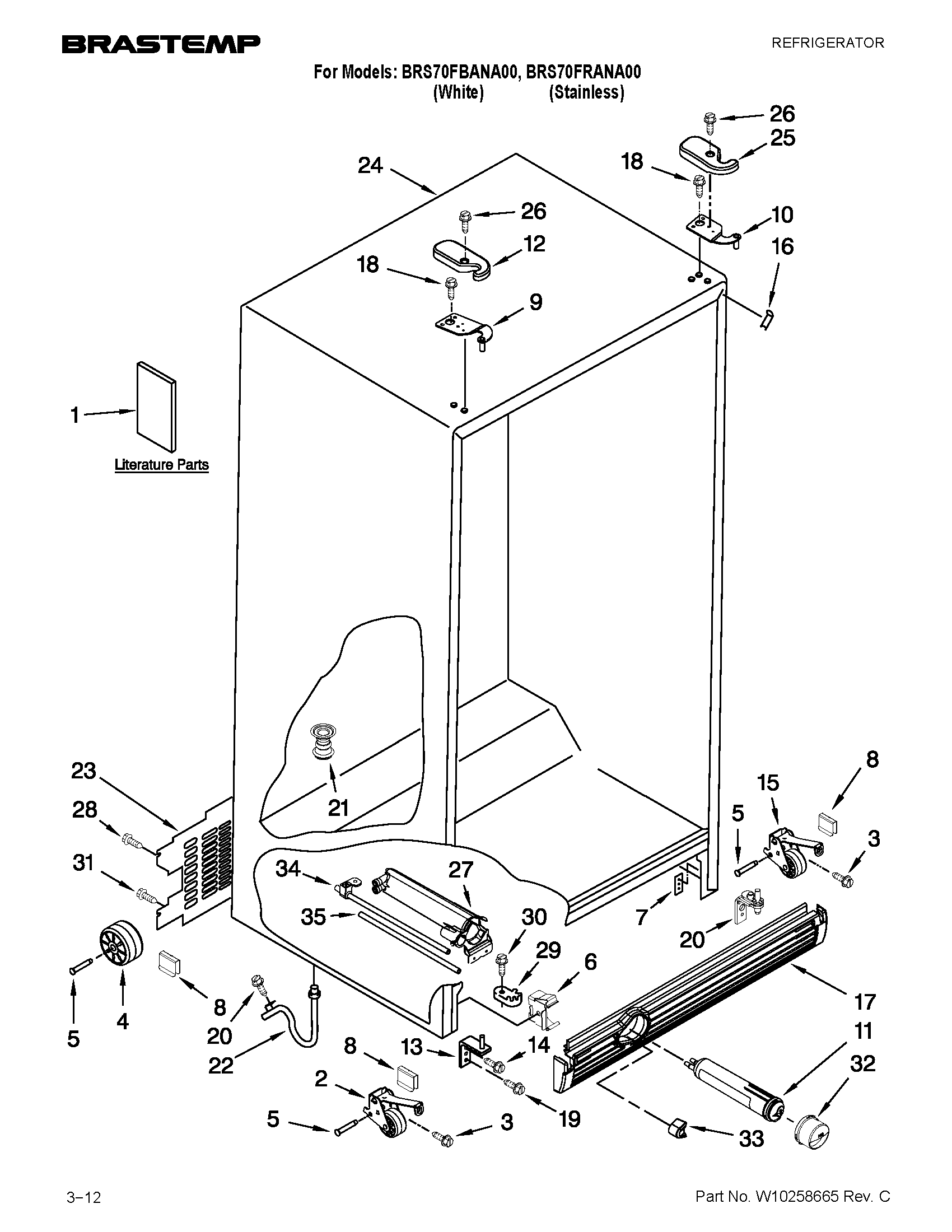

Cabinet parts diagram

Refrigerator water filter

Part #4396841

Replaced by #EDR3RXD1

?
Manufacturer substitution
This part replaces 4396841. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Drier Tube W10177049
#27

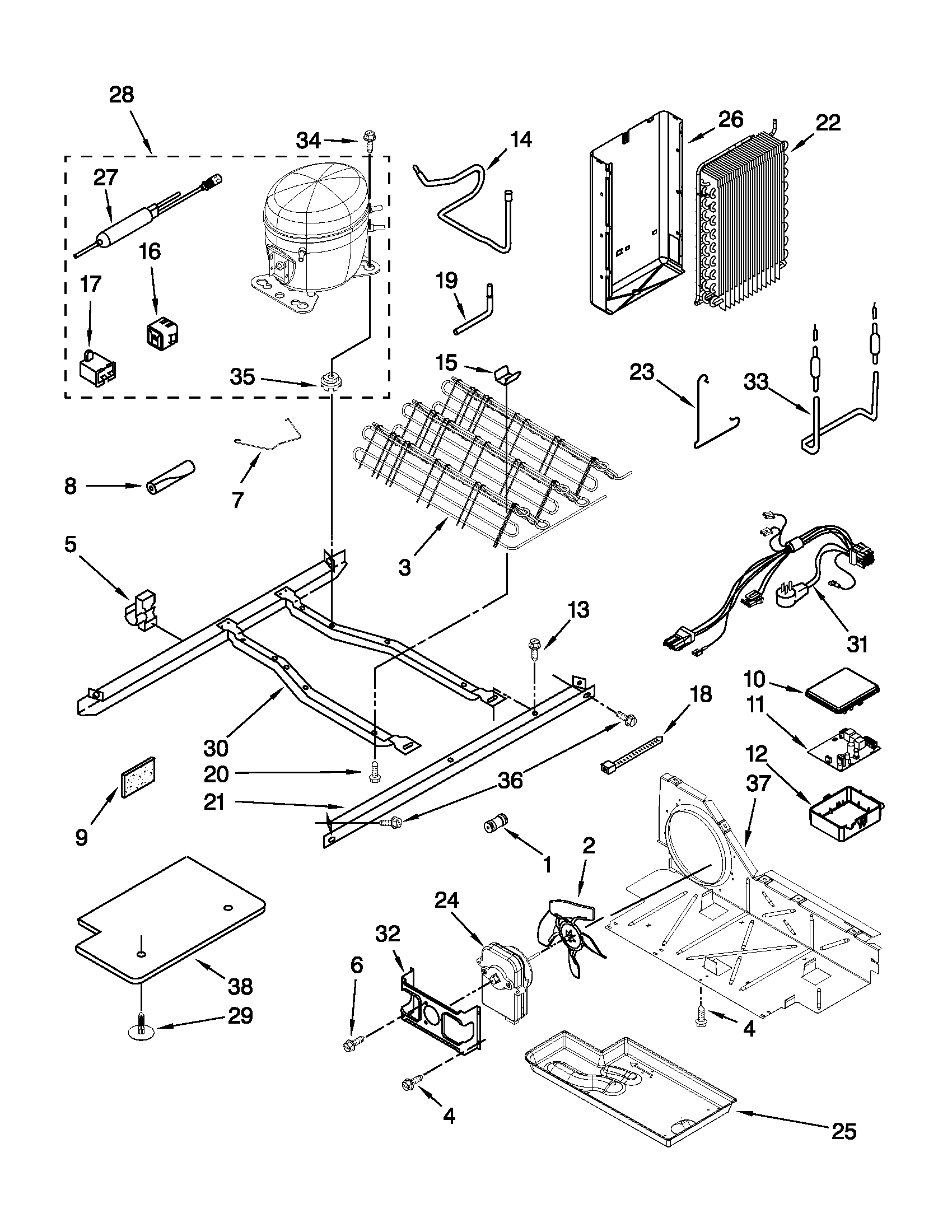

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Drier W/dye 2317845
#27A

Unit parts diagram

Drier w/dye

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Water Inlet Valve 2188708
#6

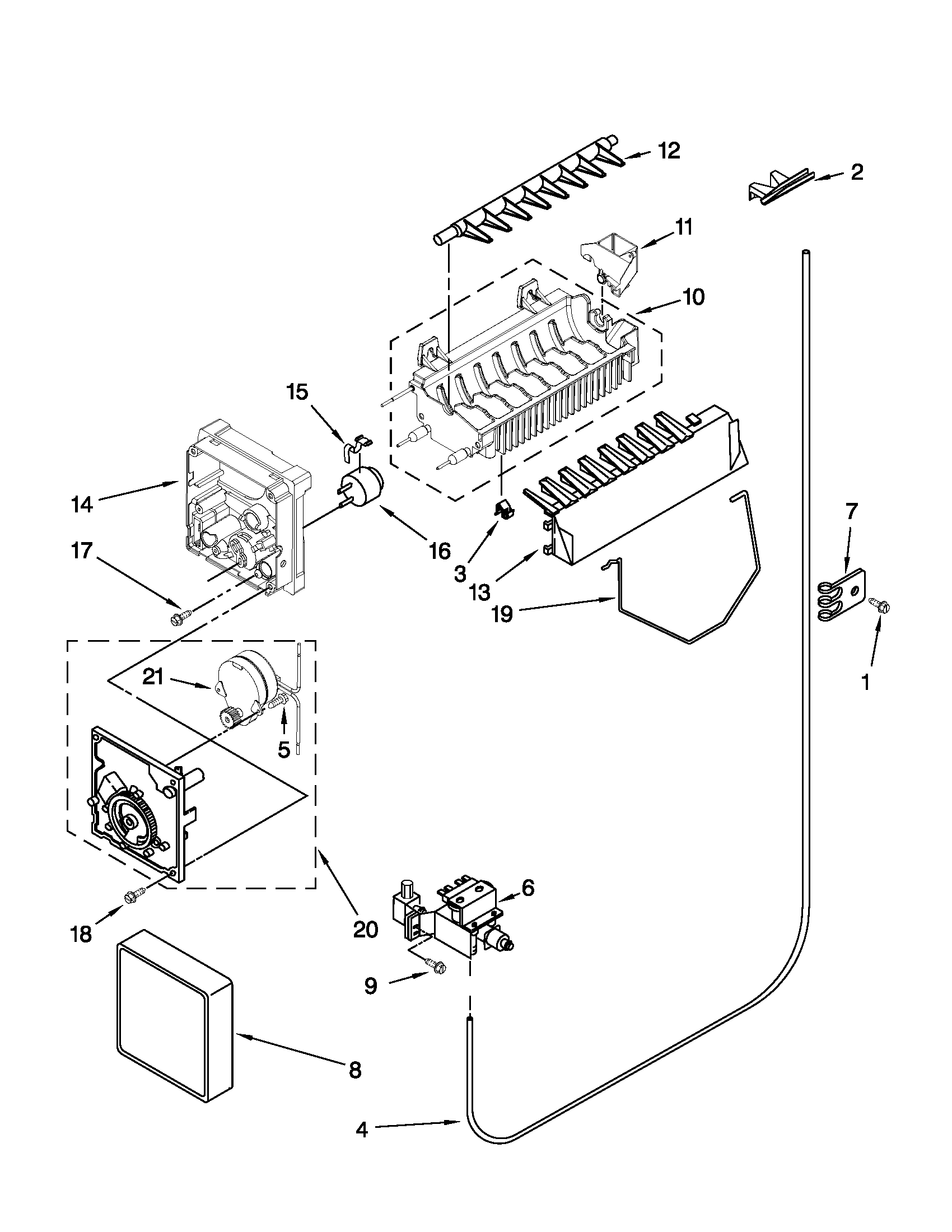

Icemaker parts diagram

Refrigerator water inlet valve

Part #2188708

Replaced by #W10408179

?
Manufacturer substitution
This part replaces 2188708. Substitute parts can look different from the original.
BEST SELLER
$79.63 |
7% OFF Phone Price : $85.63
In Stock
Refrigerator Defrost Bi-metal 2321802
#4

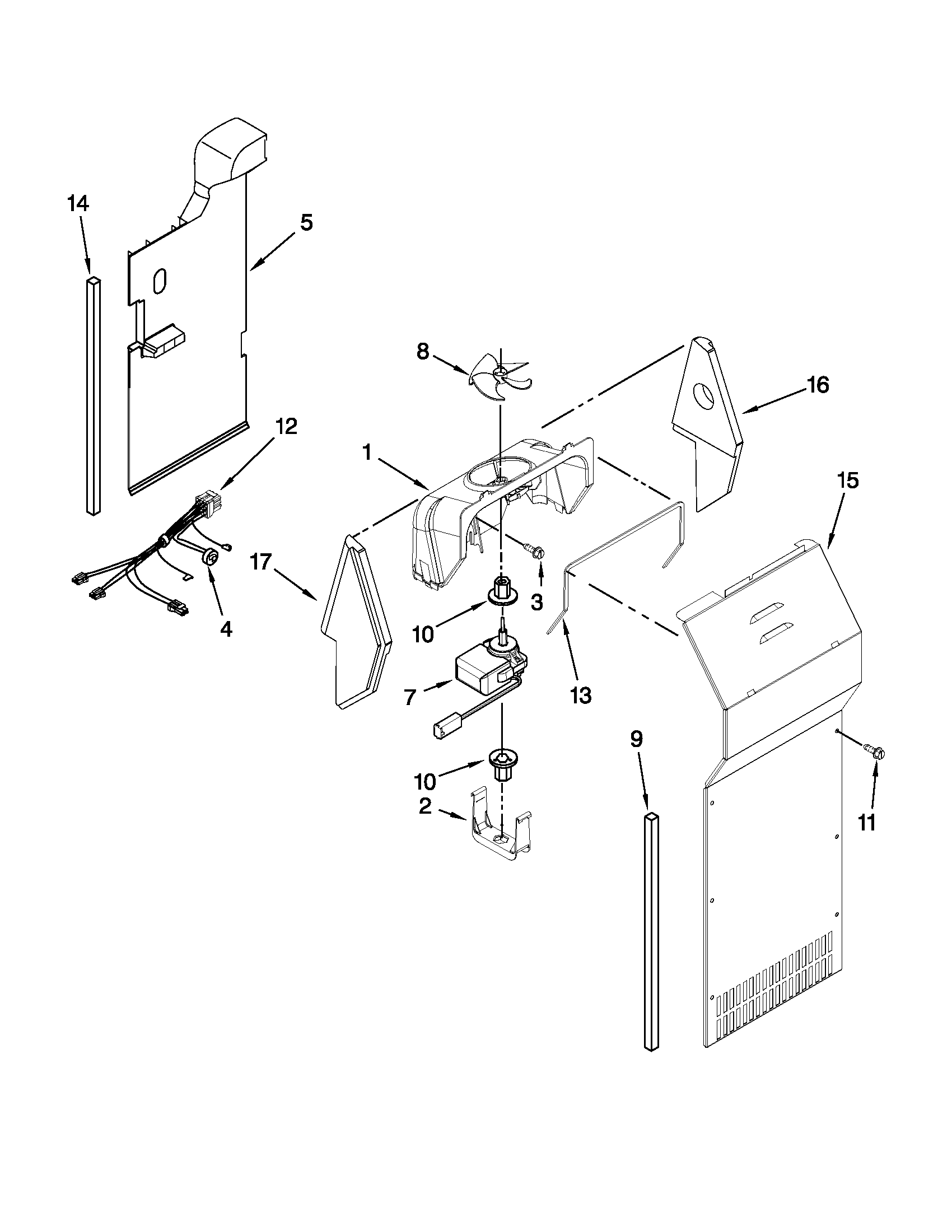

Air flow parts diagram

Refrigerator defrost bi-metal

Part #2321802

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2321802. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Refrigerator Ice Maker W10270037
#100

Icemaker parts diagram

Refrigerator ice maker

Part #W10270037

Replaced by #WPW10190965

?
Manufacturer substitution
This part replaces W10270037. Substitute parts can look different from the original.
BEST SELLER
$92.11 |
6% OFF Phone Price : $98.11
In Stock
Refrigerator Door Cam (black) 2182178
#10

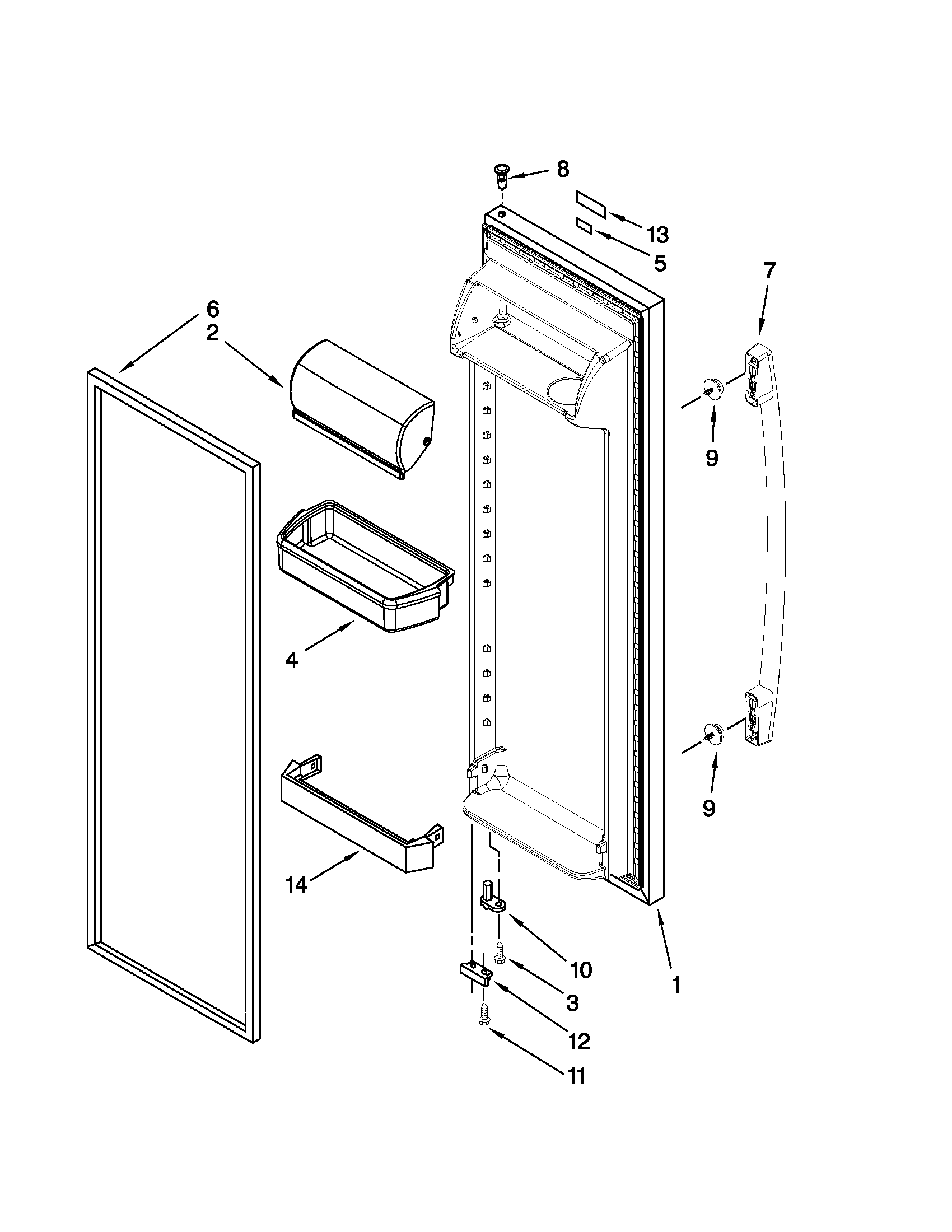

Refrigerator door parts diagram

Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Mechanism W10467899
#8

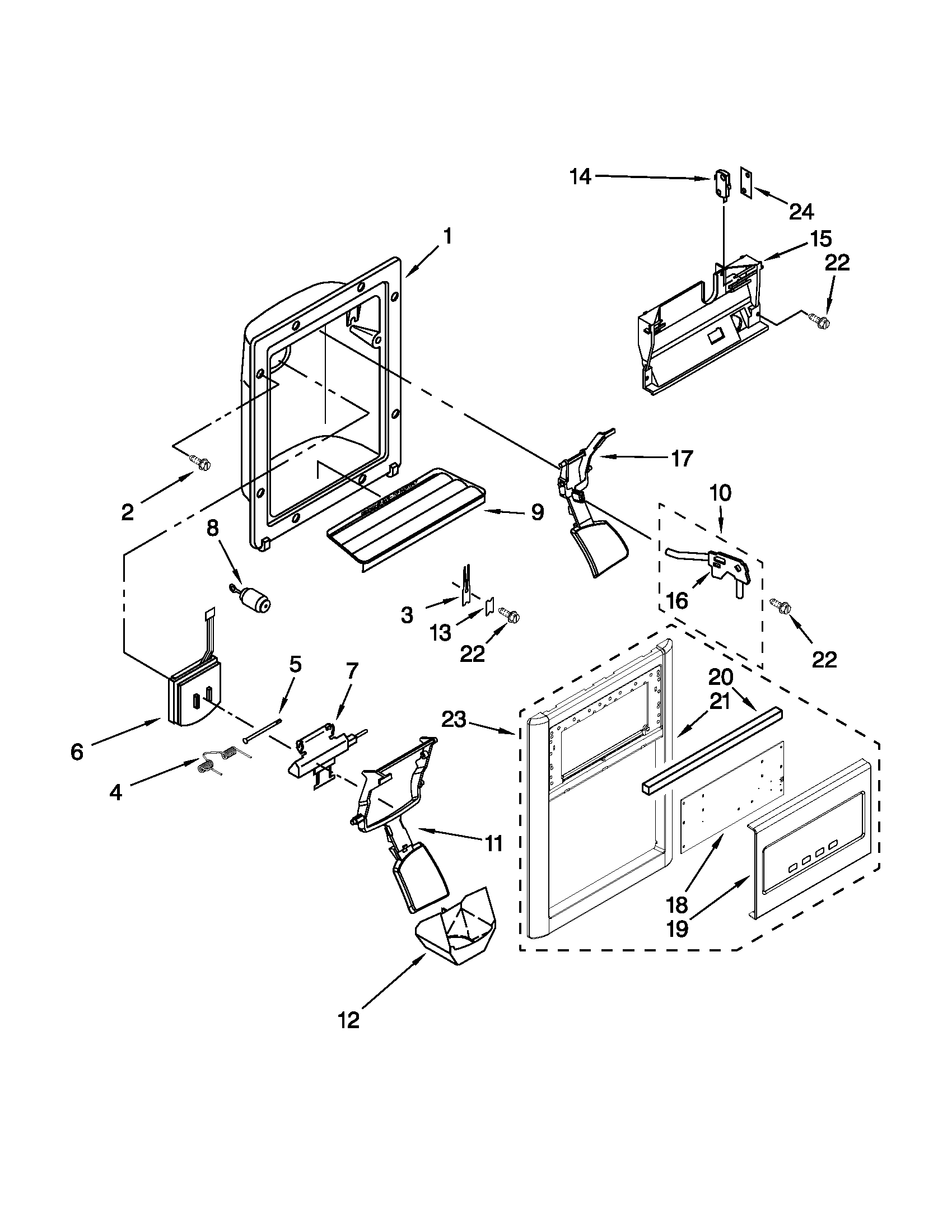

Dispenser front parts diagram

Refrigerator mechanism

Part #W10467899

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Mechanism 2304355
#7

Dispenser front parts diagram

Refrigerator mechanism

Part #2304355

The manufacturer no longer makes this part, and there's no substitute part
