Model # 14634437410 Official Kenmore outdoor sink module

Here are the diagrams and repair parts for Official Kenmore 14634437410 outdoor sink module, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |

Gas Grill Door Bracket, Right 40200057
#10

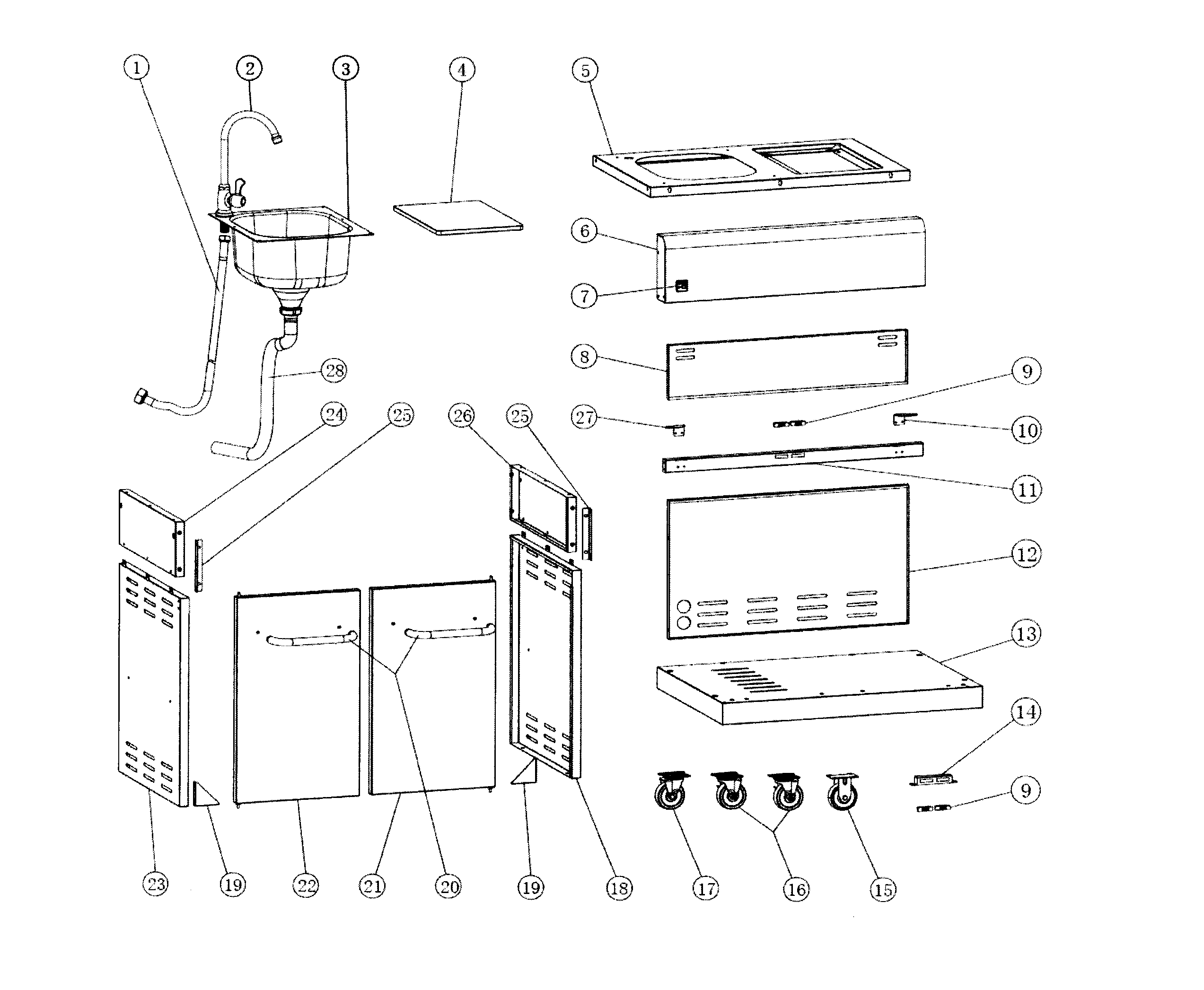

Grill assy diagram

Gas grill door bracket, right

Part #40200057

This item is not returnable
In Stock
Gas Grill Door Magnet Box 40200072
#14

Grill assy diagram

Gas grill door magnet box

Part #40200072

$8.77
10% OFF Phone Price : $9.77
In Stock
Kenmore Gas Grill Sink Module Faucet 00400002
#2

Grill assy diagram

Kenmore gas grill sink module faucet

Part #00400002

In Stock
Gas Grill Side Panel Angle Bracket 40900060
#19

Grill assy diagram

Gas grill side panel angle bracket

Part #40900060

This item is not returnable
In Stock
Gas Grill Wheel 40900214
#15

Grill assy diagram

Gas grill wheel

Part #40900214

In Stock
Bracket 40800036
#25

Grill assy diagram

Bracket

Part #40800036

This item is not returnable
In Stock
Gas Grill Caster Wheel 40900213
#17

Grill assy diagram

Gas grill caster wheel

Part #40900213

$28.29
17% OFF Phone Price : $34.29
In Stock
Gas Grill Caster Wheel And Brake 40900212
#16

Grill assy diagram

Gas grill caster wheel and brake

Part #40900212

In Stock
Gas Grill Door Handle 40900076
#20

Grill assy diagram

Gas grill door handle

Part #40900076

In Stock
Gas Grill Door Magnet 40200094
#9

Grill assy diagram

Gas grill door magnet

Part #40200094

This item is not returnable
$6.43
13% OFF Phone Price : $7.43
In Stock
