Model # AW0893M Official Samsung room air conditioner

Here are the diagrams and repair parts for Official Samsung AW0893M room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Flange Nut DB60-30020A
#21

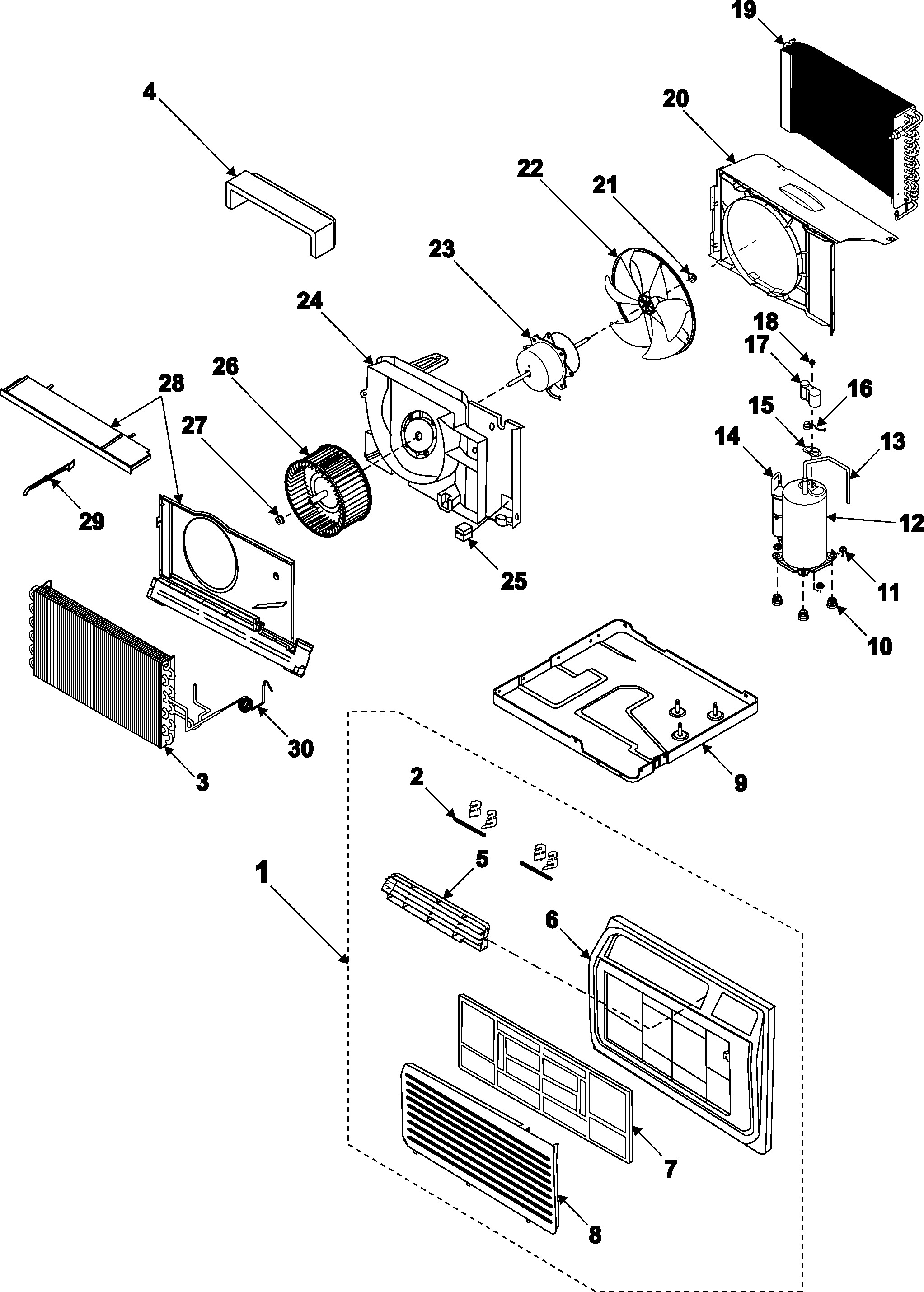

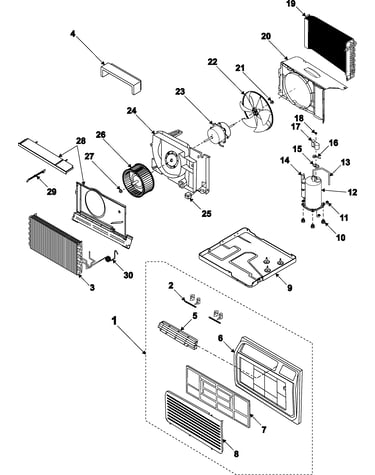

Chassis assembly diagram

Flange nut

Part #DB60-30020A

This item is not returnable
$2.59
In Stock
Gasket;r/c DB63-00765A
#15

Chassis assembly diagram

Gasket;r/c

Part #DB63-00765A

This item is not returnable
$2.30
In Stock
Room Air Conditioner Outdoor Fan Blade DB67-50077A
#22

Chassis assembly diagram

Room air conditioner outdoor fan blade

Part #DB67-50077A

The manufacturer no longer makes this part, and there's no substitute part

Grommet DB63-00763A
#10

Chassis assembly diagram

Grommet

Part #DB63-00763A

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Fan DB67-50078A
#26A

Chassis assembly diagram

Air conditioner blower fan

Part #DB67-50078A

The manufacturer no longer makes this part, and there's no substitute part

Frame Blade DB61-01530A
#5

Chassis assembly diagram

Frame blade

Part #DB61-01530A

The manufacturer no longer makes this part, and there's no substitute part

Thermostat DB47-20074D
#5

Control assembly(aw0693m aw0893m) diagram

Thermostat

Part #DB47-20074D

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 2501-001229
#11

Control assembly(aw0693m aw0893m) diagram

Capacitor

Part #2501-001229

The manufacturer no longer makes this part, and there's no substitute part

Bracket DB61-30219F
#3

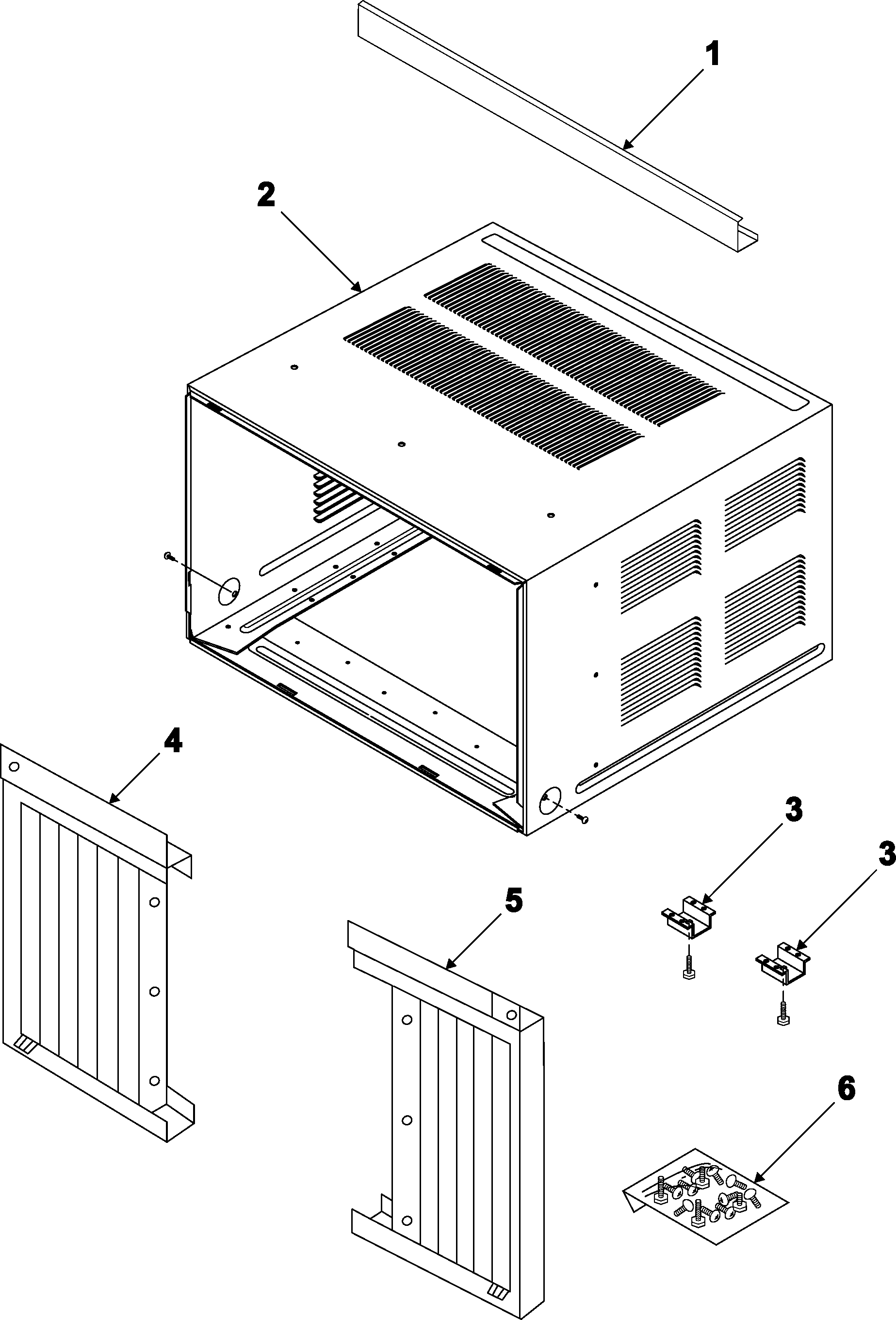

Outer case assembly diagram

Bracket

Part #DB61-30219F

The manufacturer no longer makes this part, and there's no substitute part

Case Control DB61-01536A
#2

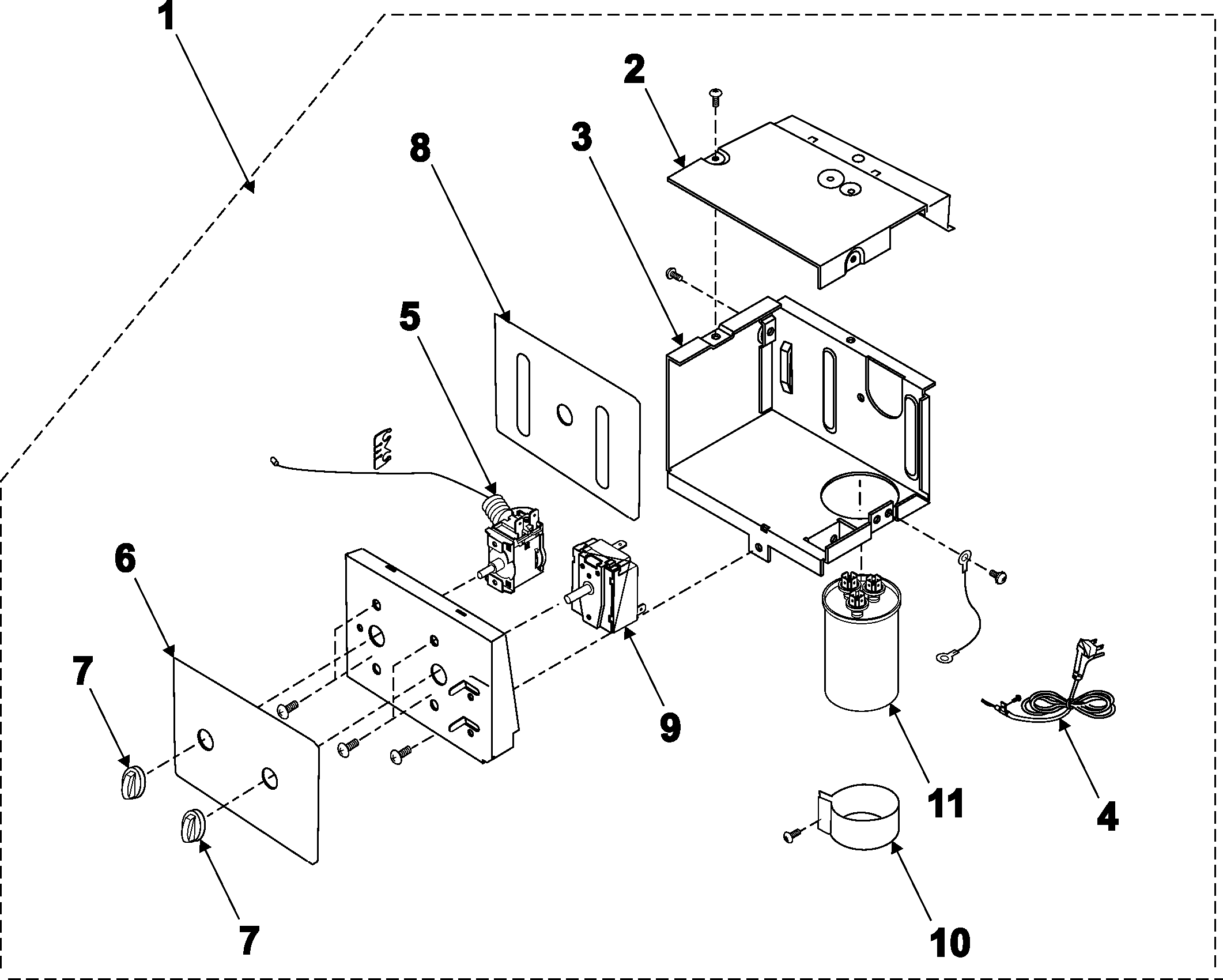

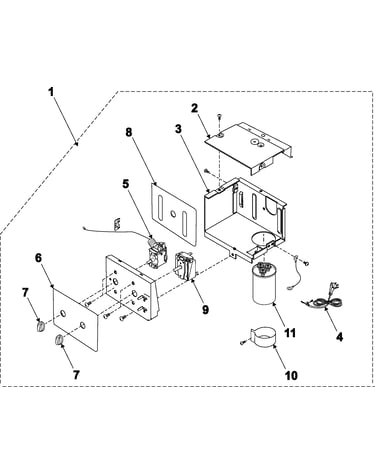

Control assembly(aw0693m aw0893m) diagram

Case control

Part #DB61-01536A

The manufacturer no longer makes this part, and there's no substitute part
