Model # G2160-23 Official Chamberlain storm & screen door

Here are the diagrams and repair parts for Official Chamberlain G2160-23 storm & screen door, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |

Vinyl Seep 17654
#5

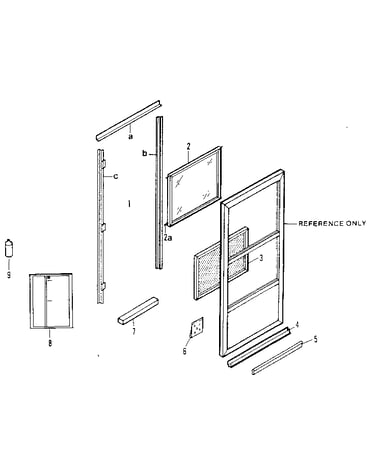

Contemporary "heritage" diagram

Vinyl seep

Part #17654

The manufacturer no longer makes this part, and there's no substitute part

Mill Expdr 18479
#4

Contemporary "heritage" diagram

Mill expdr

Part #18479

The manufacturer no longer makes this part, and there's no substitute part

Millz Bar Pk 11874
#1

Contemporary "heritage" diagram

Millz bar pk

Part #11874

The manufacturer no longer makes this part, and there's no substitute part

Pack Screw 11821
#6

Contemporary "heritage" diagram

Pack screw

Part #11821

The manufacturer no longer makes this part, and there's no substitute part

Hndl And Ltc 12109
#7A

Contemporary "heritage" diagram

Hndl and ltc

Part #12109

The manufacturer no longer makes this part, and there's no substitute part

Windchain 12258
#7C

Contemporary "heritage" diagram

Windchain

Part #12258

The manufacturer no longer makes this part, and there's no substitute part

Hardware Box 11492
#7

Contemporary "heritage" diagram

Hardware box

Part #11492

The manufacturer no longer makes this part, and there's no substitute part

Closure 12257
#7B

Contemporary "heritage" diagram

Closure

Part #12257

The manufacturer no longer makes this part, and there's no substitute part

(1a) Header Frame N/P
#9

Contemporary "heritage" diagram

(1a) header frame

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Hinge Frame 13485
#1C

Contemporary "heritage" diagram

Hinge frame

Part #13485

The manufacturer no longer makes this part, and there's no substitute part
