Model # 11323430 Official Craftsman 1/6-hp split-phase motor
Here are the diagrams and repair parts for Official Craftsman 11323430 1/6-hp split-phase motor, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
11323430 1/6-HP Split-Phase Motor
#12

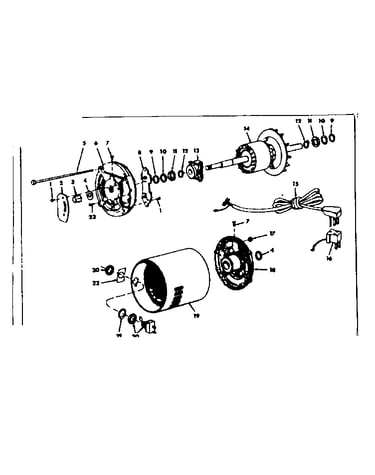

115 volts, 60 cycles, 1140 r.p.m. diagram
Retaining ring
Part #30783
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Form - inst
Part #64044
The manufacturer no longer makes this part, and there's no substitute part
#3
115 volts, 60 cycles, 1140 r.p.m. diagram
Radial arm saw motor shaft cap
Part #30582
The manufacturer no longer makes this part, and there's no substitute part
#6
115 volts, 60 cycles, 1140 r.p.m. diagram
Shield assembly
Part #64046
The manufacturer no longer makes this part, and there's no substitute part
#9
115 volts, 60 cycles, 1140 r.p.m. diagram
Washer
Part #60086
The manufacturer no longer makes this part, and there's no substitute part
#16
115 volts, 60 cycles, 1140 r.p.m. diagram
Adapter plug
Part #37568
The manufacturer no longer makes this part, and there's no substitute part
Washer
Part #30450
The manufacturer no longer makes this part, and there's no substitute part
#19
115 volts, 60 cycles, 1140 r.p.m. diagram
Stator assembly
Part #64039
The manufacturer no longer makes this part, and there's no substitute part
#21
115 volts, 60 cycles, 1140 r.p.m. diagram
Ring locking
Part #37981
The manufacturer no longer makes this part, and there's no substitute part
#17
115 volts, 60 cycles, 1140 r.p.m. diagram
Hex nut
Part #64041
The manufacturer no longer makes this part, and there's no substitute part
