GE
Electric Wall Oven

Model # JKP75DP2BB Official GE electric wall oven

Here are the diagrams and repair parts for Official GE JKP75DP2BB electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

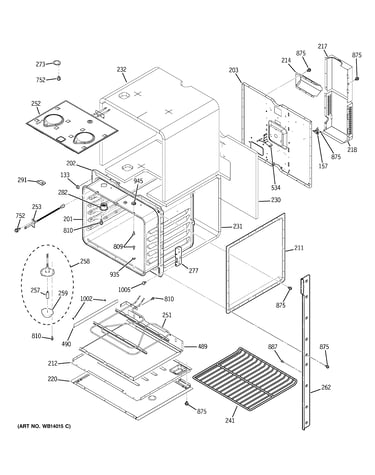

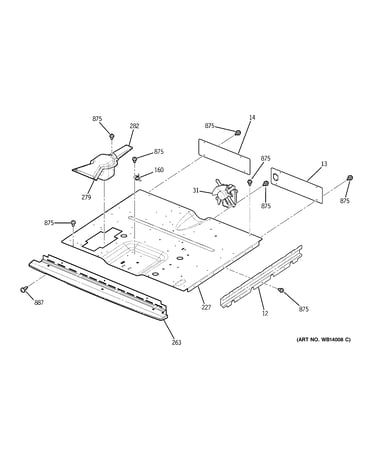

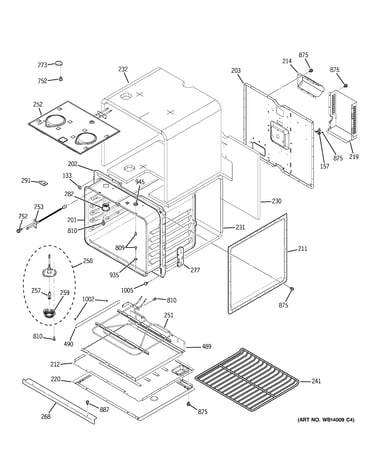

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Sensor WB21T10017
Sensor

Part #WB21T10017

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10017. Substitute parts can look different from the original.
BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Broil Element WB44T10099
Range broil element

Part #WB44T10099

$87.54 |
6% OFF Phone Price : $93.54
In Stock
Range Convection Fan Blade WB02T10289
#43

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Screw, #10-32 X 17/32-in WB01X1253
Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Relay Control Board WB27T10569
#46

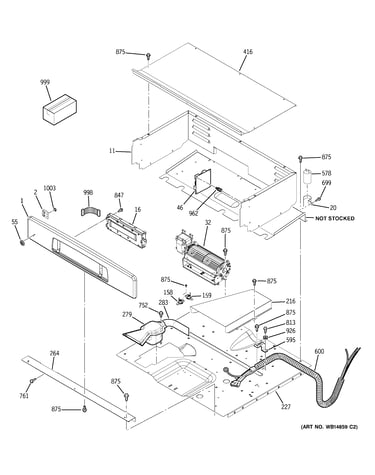

Control panel diagram

Wall oven relay control board

Part #WB27T10569

This item is not returnable
$62.62 |
9% OFF Phone Price : $68.62
In Stock
Wall Oven Cooling Fan Assembly WB26T10060
#32

Control panel diagram

Wall oven cooling fan assembly

Part #WB26T10060

$145.12 |
8% OFF Phone Price : $157.12
In Stock
Range Convection Fan Motor Start Capacitor WB27T10662
#578

Control panel diagram

Range convection fan motor start capacitor

Part #WB27T10662

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Wall Oven Door Middle Glass WB55T10086
#338

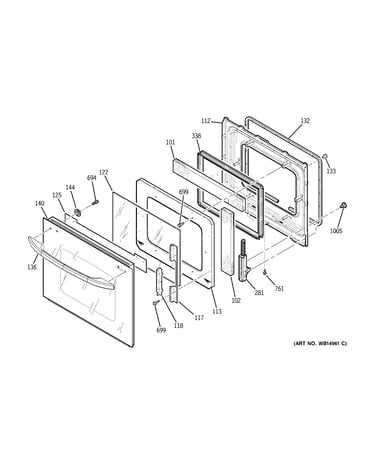

Door diagram

Wall oven door middle glass

Part #WB55T10086

$147.60 |
8% OFF Phone Price : $159.60
In Stock
Range Halogen Light Bulb WB08T10021
Range halogen light bulb

Part #WB08T10021

Replaced by #WB49X29679

?
Manufacturer substitution
This part replaces WB08T10021. Substitute parts can look different from the original.
This item is not returnable
$47.12 |
11% OFF Phone Price : $53.12
In Stock
