Model # MW8100XP0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MW8100XP0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

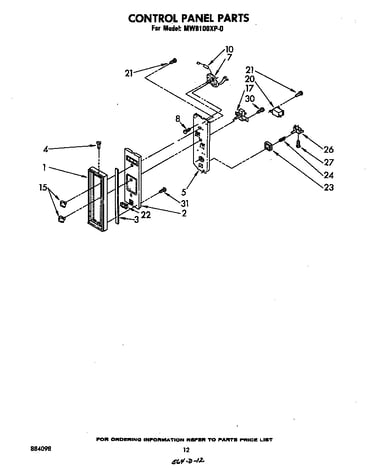

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Light Bulb 311255
#20

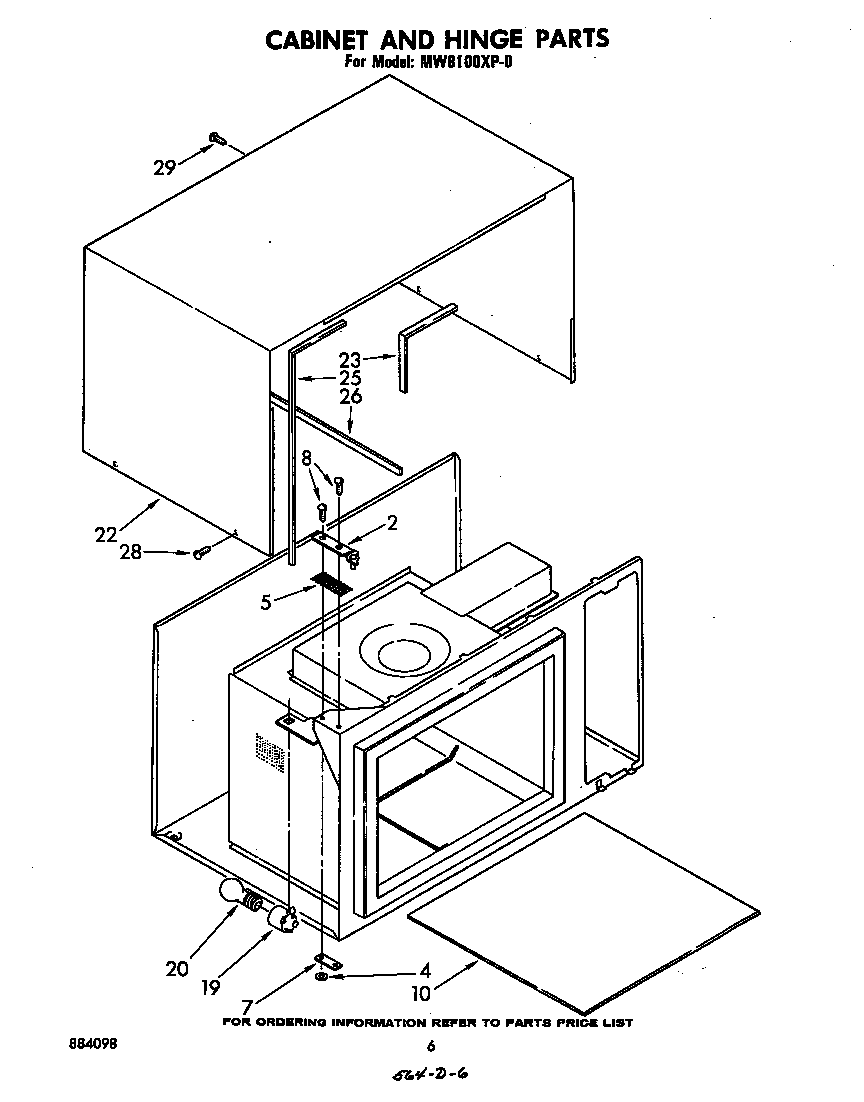

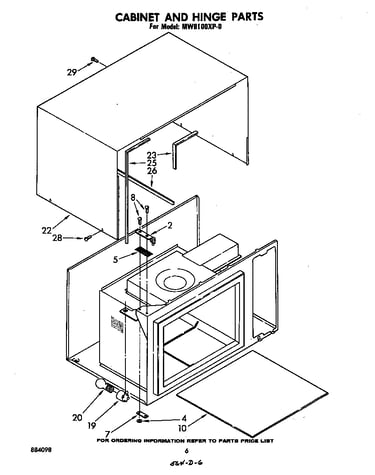

Cabinet and hinge diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw 253549
#28

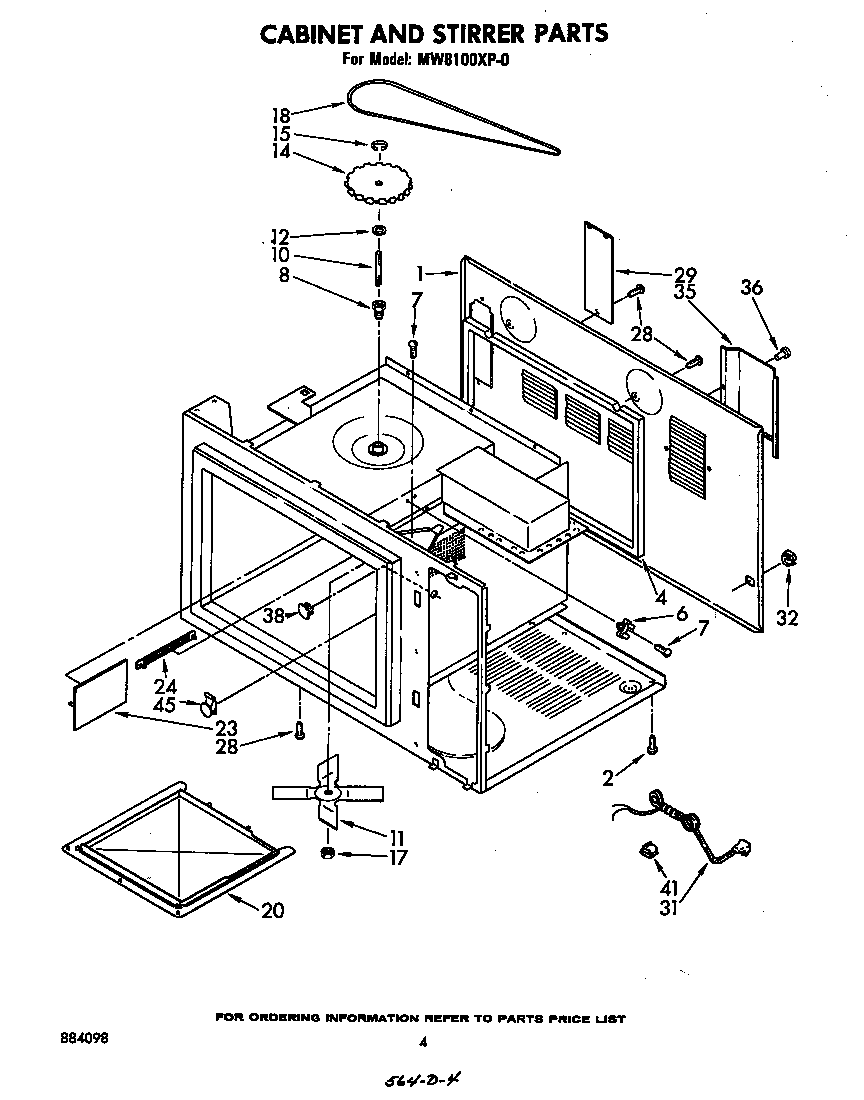

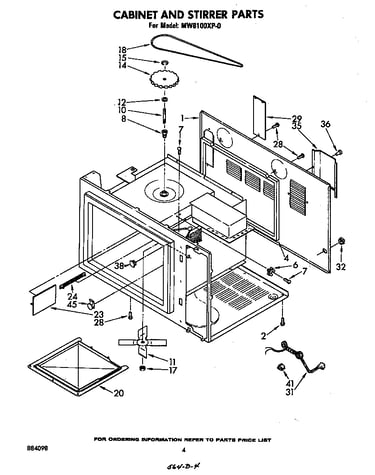

Cabinet and stirrer diagram

Screw

Part #253549

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 253549. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Line Fuse 312801
#22

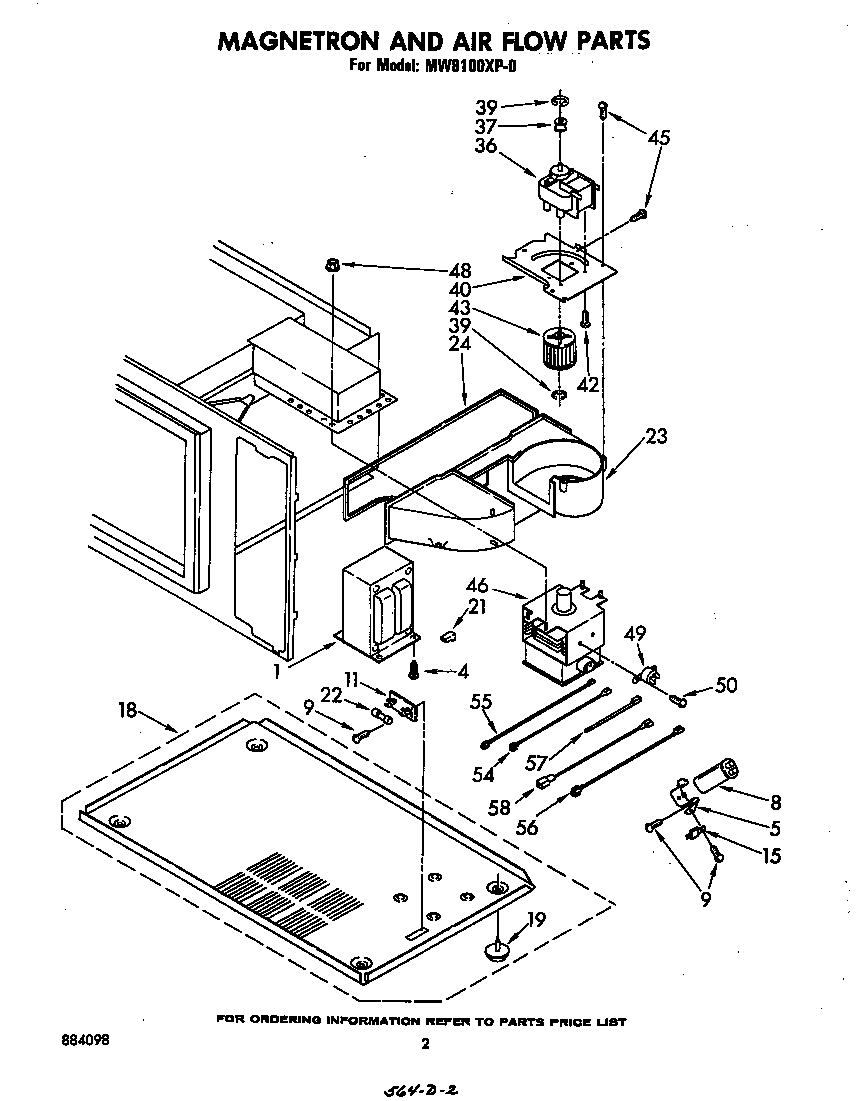

Magnetron and air flow diagram

Line fuse

Part #312801

Replaced by #WPW10017410

?
Manufacturer substitution
This part replaces 312801. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
Cable Tie 309330
Cable tie

Part #309330

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces 309330. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Wall Oven Touch-up Paint 261869
#14A

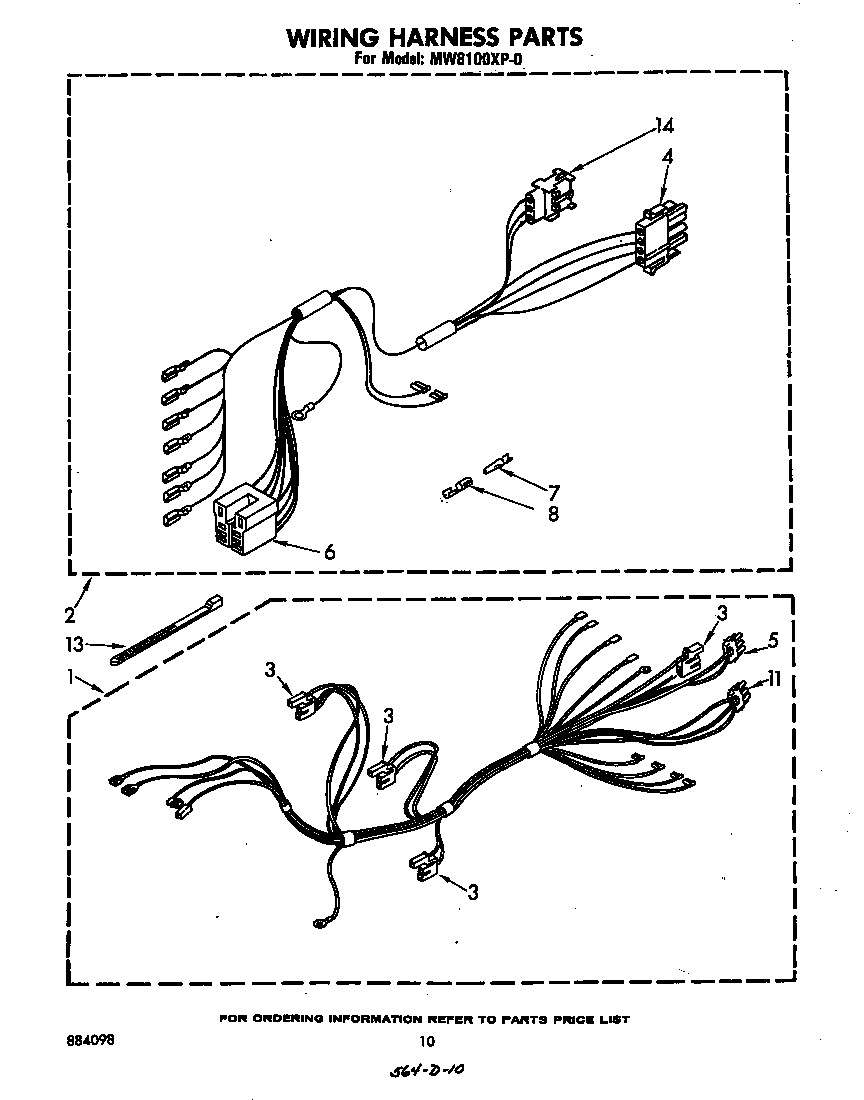

Wiring harness diagram

Wall oven touch-up paint

Part #261869

Replaced by #WP261869

?
Manufacturer substitution
This part replaces 261869. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

#NI

All parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Appliance Touch-up Paint, 6-oz (citrine White) 261900

#NI

All parts diagram

Appliance touch-up paint, 6-oz (citrine white)

Part #261900

$23.19 |
21% OFF Phone Price : $29.19
In Stock
Seal 311956
#24

Magnetron and air flow diagram

Seal

Part #311956

Replaced by #WP339956

?
Manufacturer substitution
This part replaces 311956. Substitute parts can look different from the original.
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Screw 311722
#37

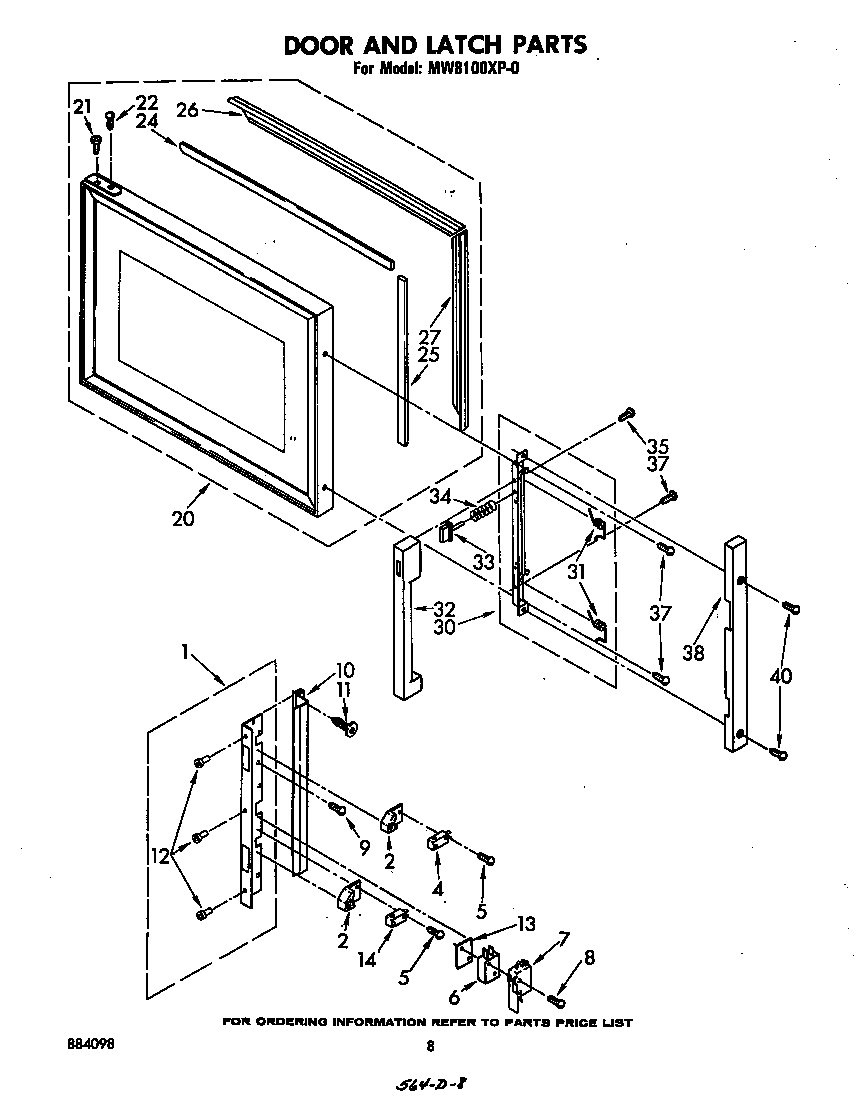

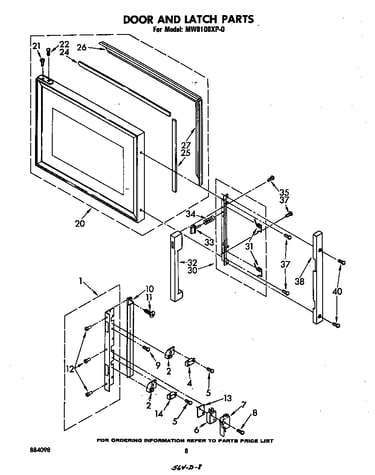

Door and latch diagram

Screw

Part #311722

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 311722. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
