Kenmore
Electric Water Heater

Model # 153316260 Official Kenmore power miser 6+ electric water heater

Here are the diagrams and repair parts for Official Kenmore 153316260 power miser 6+ electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Water Heater Heating Element Gasket 9000308
#5

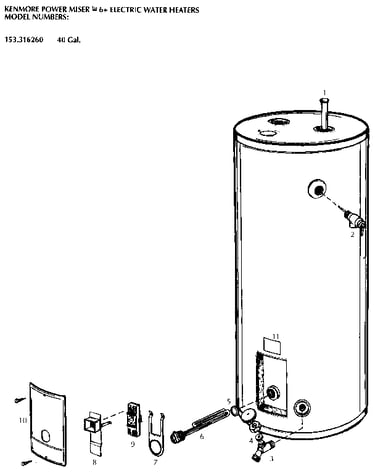

Replacement parts diagram

Water heater heating element gasket

Part #9000308

Replaced by #9000308005

?
Manufacturer substitution
This part replaces 9000308. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
Owner's Manual 0291171

#NI

All parts diagram

Owner's manual

Part #0291171

Replaced by #0291171-02

?
Manufacturer substitution
This part replaces 0291171. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Water Heater Thermostat Bracket (replaces 0110238, 0110238-01, 0110322, 9000309015) 9000309
#7

Replacement parts diagram

Water heater thermostat bracket (replaces 0110238, 0110238-01, 0110322, 9000309015)

Part #9000309

Replaced by #100108380

?
Manufacturer substitution
This part replaces 9000309. Substitute parts can look different from the original.
$27.78
In Stock
Thermostat 9000509
#9

Replacement parts diagram

Thermostat

Part #9000509

Replaced by #100108424

?
Manufacturer substitution
This part replaces 9000509. Substitute parts can look different from the original.
$30.00
In Stock
Kenmore Elite Water Heater Washer (replaces 0540042) 9001584
#4

Replacement parts diagram

Kenmore elite water heater washer (replaces 0540042)

Part #9001584

Replaced by #100108603

?
Manufacturer substitution
This part replaces 9001584. Substitute parts can look different from the original.
$24.44
In Stock
Element 3800 9000260
#6

Replacement parts diagram

Element 3800

Part #9000260

Replaced by #100108327

?
Manufacturer substitution
This part replaces 9000260. Substitute parts can look different from the original.
$60.00
In Stock
Wheelers Water Heater Temperature And Pressure Relief Valve 9000728
#2

Replacement parts diagram

Wheelers water heater temperature and pressure relief valve

Part #9000728

Replaced by #100108455

?
Manufacturer substitution
This part replaces 9000728. Substitute parts can look different from the original.
$35.56
In Stock
Drain 9000058
#3

Replacement parts diagram

Drain

Part #9000058

Replaced by #100108269

?
Manufacturer substitution
This part replaces 9000058. Substitute parts can look different from the original.
$18.57
In Stock
State Dip Tube 9001598
#1

Replacement parts diagram

State dip tube

Part #9001598

Replaced by #100108611

?
Manufacturer substitution
This part replaces 9001598. Substitute parts can look different from the original.
$24.29
In Stock
Cover 9001592
#8

Replacement parts diagram

Cover

Part #9001592

The manufacturer no longer makes this part, and there's no substitute part
