Model # 580320041 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 580320041 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

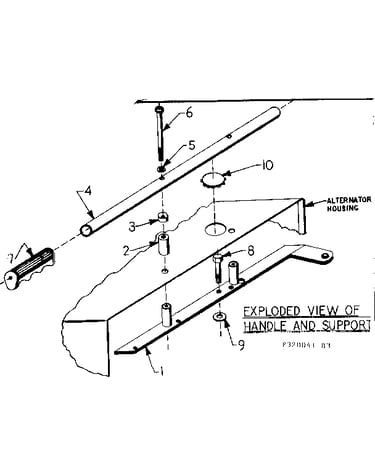

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Binding Post 25367
#8

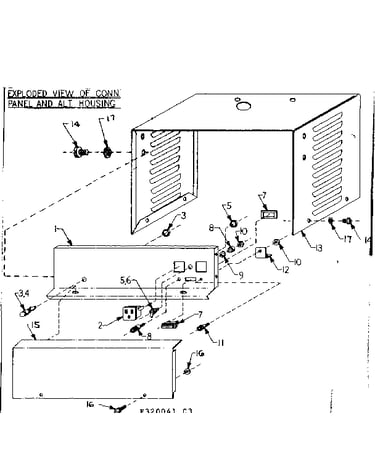

Connection panel & alternator housing diagram

Binding post

Part #25367

Replaced by #25367GS

?
Manufacturer substitution
This part replaces 25367. Substitute parts can look different from the original.
$31.71
In Stock
Screw 24419
#20

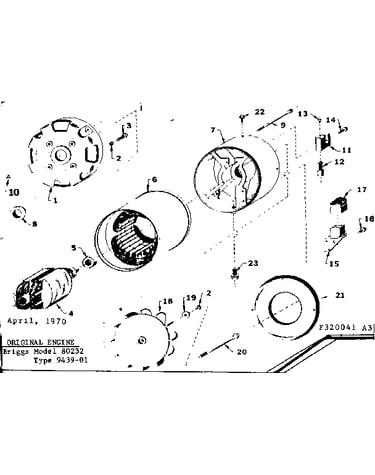

Stator assembly diagram

Screw

Part #24419

Replaced by #24419GS

?
Manufacturer substitution
This part replaces 24419. Substitute parts can look different from the original.
$24.27
In Stock
Hex Nut 24237
#10

Stator assembly diagram

Hex nut

Part #24237

The manufacturer no longer makes this part, and there's no substitute part

Holder 22669
#3

Connection panel & alternator housing diagram

Holder

Part #22669

The manufacturer no longer makes this part, and there's no substitute part

Shroud 32977
#13

Connection panel & alternator housing diagram

Shroud

Part #32977

The manufacturer no longer makes this part, and there's no substitute part

Fan 24880
#18

Stator assembly diagram

Fan

Part #24880

The manufacturer no longer makes this part, and there's no substitute part

Carrier 27213
#7

Stator assembly diagram

Carrier

Part #27213

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22142
#2

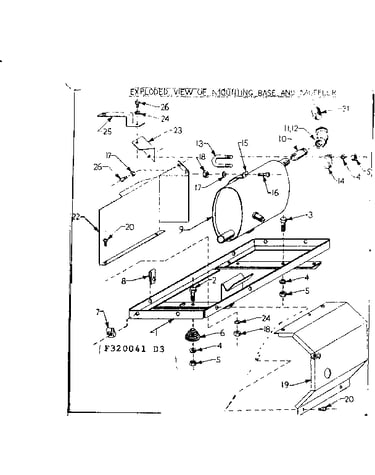

Mounting base and muffler diagram

Cap screw

Part #22142

The manufacturer no longer makes this part, and there's no substitute part

Washer 22131
Washer

Part #22131

The manufacturer no longer makes this part, and there's no substitute part

Fuse 20 Amp. 22667
#4

Connection panel & alternator housing diagram

Fuse 20 amp.

Part #22667

The manufacturer no longer makes this part, and there's no substitute part
