Model # 2539276011 Official Kenmore upright freezer

Here are the diagrams and repair parts for Official Kenmore 2539276011 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Filter Drier 216099900
#4

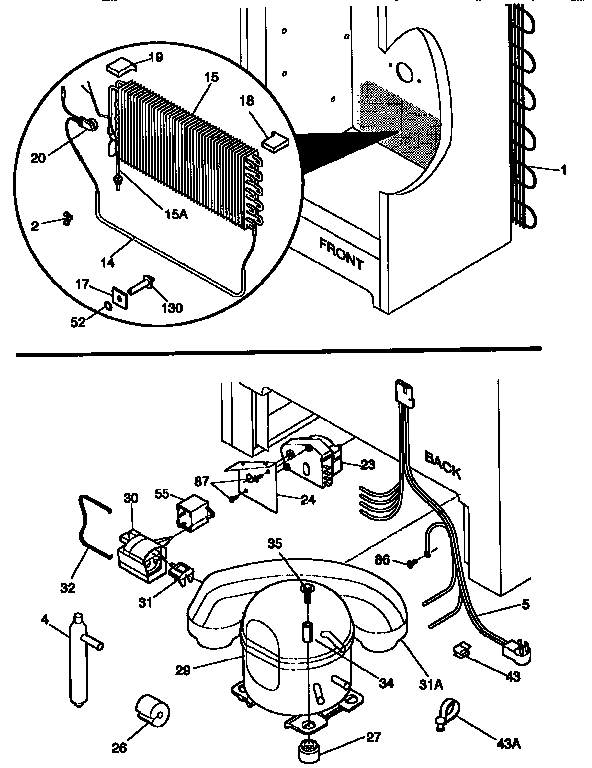

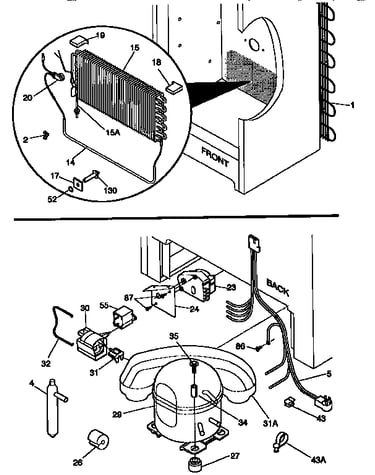

System diagram

Filter drier

Part #216099900

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Capacitor 216236200
#55

System diagram

Capacitor

Part #216236200

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236200. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Grille Screw 131168200
#62

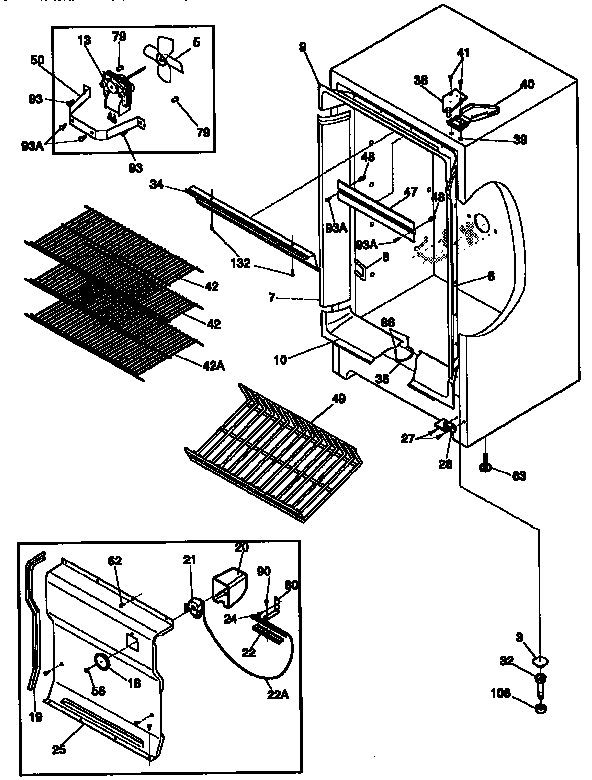

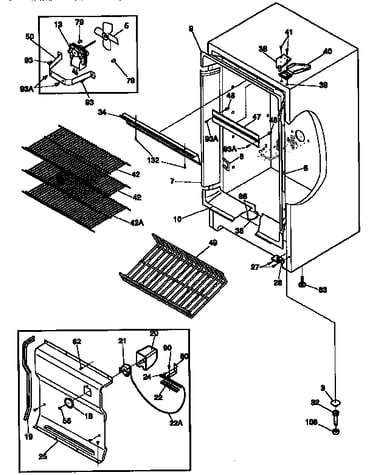

Cabinet diagram

Grille screw

Part #131168200

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131168200. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Hinge Bearing 216503200
#22A

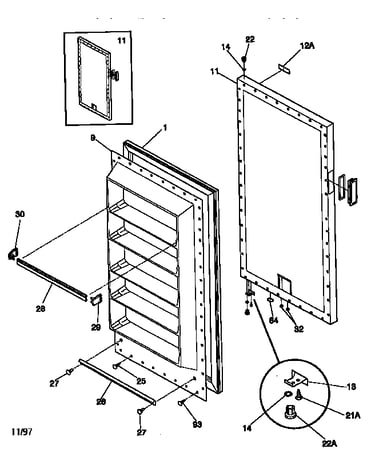

Door diagram

Hinge bearing

Part #216503200

Replaced by #297006800

?
Manufacturer substitution
This part replaces 216503200. Substitute parts can look different from the original.
This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Evaporator Motor 216482400
#13

Cabinet diagram

Evaporator motor

Part #216482400

Replaced by #5304442620

?
Manufacturer substitution
This part replaces 216482400. Substitute parts can look different from the original.
$147.29 |
8% OFF Phone Price : $159.29
In Stock
Refrigerator Thermostat Sensor Barrier 5303916855
#22A

Cabinet diagram

Refrigerator thermostat sensor barrier

Part #5303916855

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Crosley Refrigeration Appliance Compressor Grommet 216498900
#27

System diagram

Crosley refrigeration appliance compressor grommet

Part #216498900

This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Freezer Defrost Heater 216254600
#14

System diagram

Freezer defrost heater

Part #216254600

$187.61 |
6% OFF Phone Price : $199.61
In Stock
Screw (i 216036600
Screw (i

Part #216036600

Replaced by #216036601

?
Manufacturer substitution
This part replaces 216036600. Substitute parts can look different from the original.
$12.57
In Stock
