Craftsman
Water Pump

Model # 390304610 Official Craftsman 1/3-hp submersible sump pump

Here are the diagrams and repair parts for Official Craftsman 390304610 1/3-hp submersible sump pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

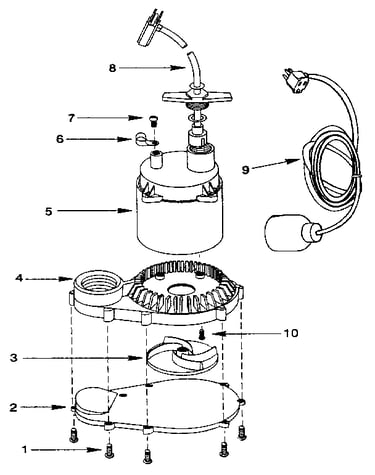

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Pump Cable Clamp CC0030-13
#6

Replacement parts diagram

Pump cable clamp

Part #CC0030-13

This item is not returnable
$4.04
In Stock
Impeller RP000911A
#3

Replacement parts diagram

Impeller

Part #RP000911A

The manufacturer no longer makes this part, and there's no substitute part

Volute PS1-29P
#4

Replacement parts diagram

Volute

Part #PS1-29P

The manufacturer no longer makes this part, and there's no substitute part

"v" Ring (only) N/P
#5

Replacement parts diagram

"v" ring (only)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Scerw SC004-133
#7

Replacement parts diagram

Scerw

Part #SC004-133

The manufacturer no longer makes this part, and there's no substitute part

Sump Pump Base Plate PS4-17P
#2

Replacement parts diagram

Sump pump base plate

Part #PS4-17P

The manufacturer no longer makes this part, and there's no substitute part

Screw U30-912ZP
#10

Replacement parts diagram

Screw

Part #U30-912ZP

The manufacturer no longer makes this part, and there's no substitute part

Power Cord PS17-53
#8

Replacement parts diagram

Power cord

Part #PS17-53

The manufacturer no longer makes this part, and there's no substitute part

Screw U30-934ZP
#1

Replacement parts diagram

Screw

Part #U30-934ZP

The manufacturer no longer makes this part, and there's no substitute part

Switch 3031
#9

Replacement parts diagram

Switch

Part #3031

The manufacturer no longer makes this part, and there's no substitute part
