Model # AW149CB Official Samsung air conditioner

Here are the diagrams and repair parts for Official Samsung AW149CB air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

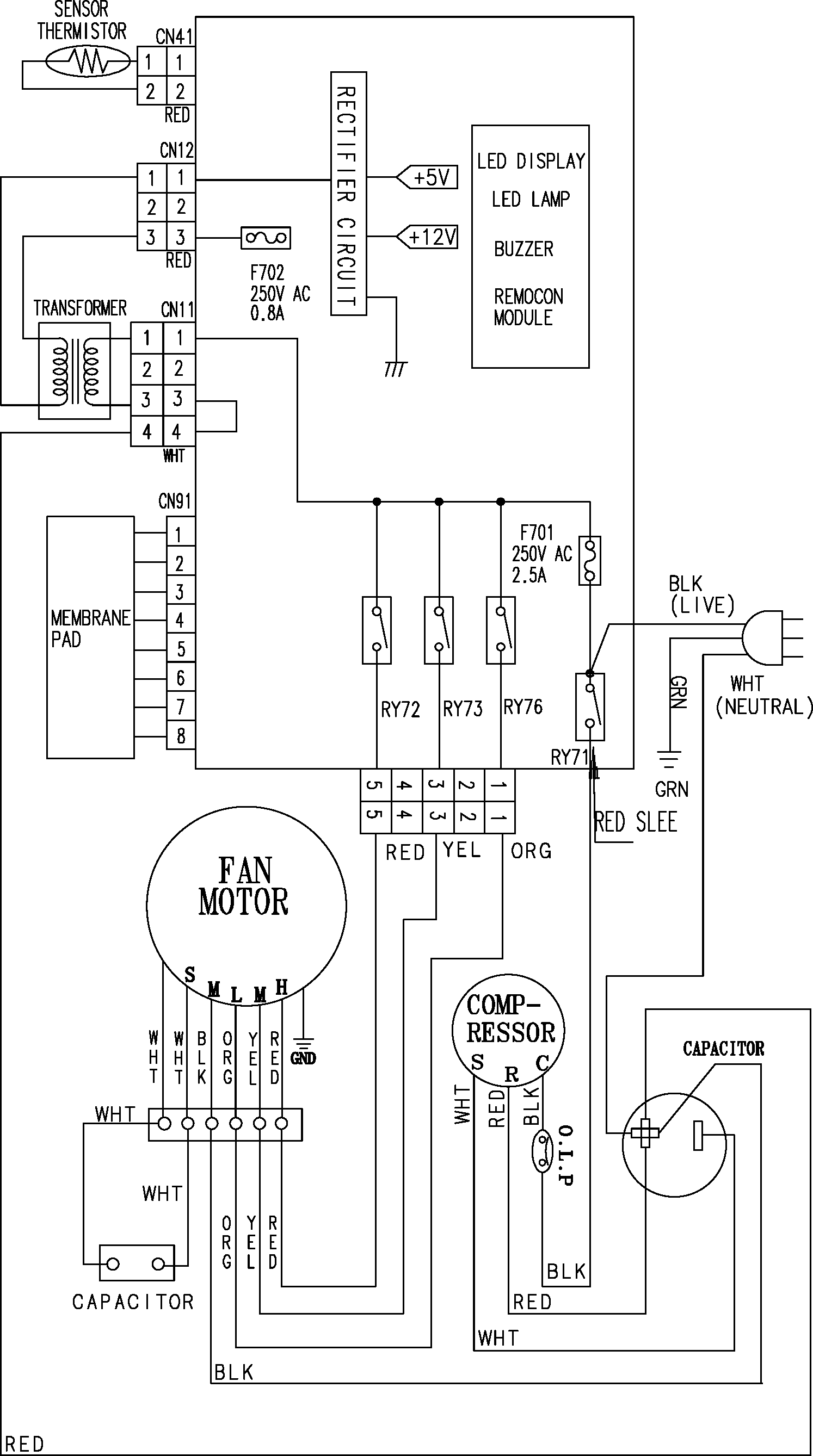

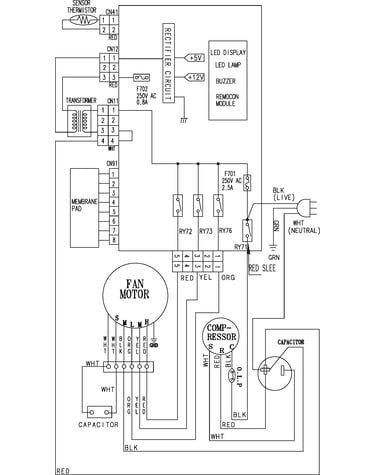

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Flange Nut DB60-30020A
#18

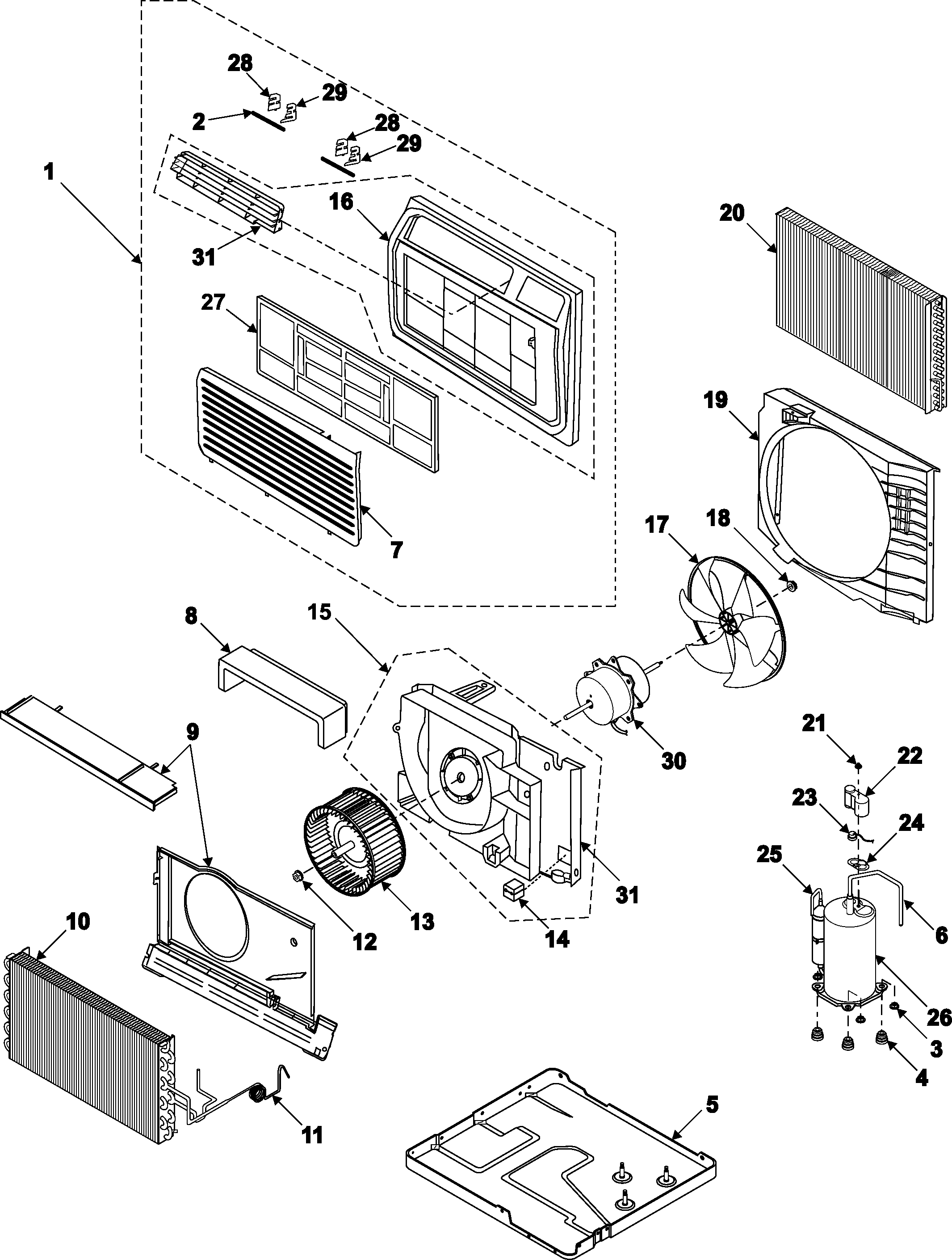

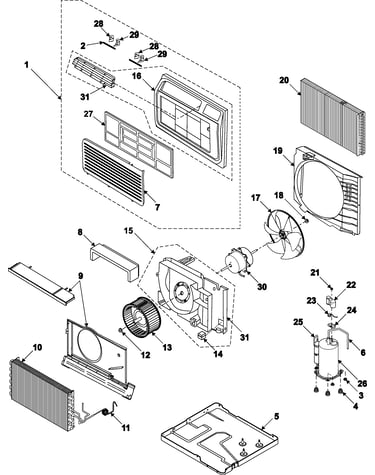

Chassis assembly diagram

Flange nut

Part #DB60-30020A

This item is not returnable
$2.59
In Stock
Gasket;r/c DB63-00765A
#24

Chassis assembly diagram

Gasket;r/c

Part #DB63-00765A

This item is not returnable
$2.30
In Stock
Fan Probe DB67-00047B
#17

Chassis assembly diagram

Fan probe

Part #DB67-00047B

Replaced by #DB67-00047B

?
Manufacturer substitution
This part replaces DB67-00047B. Substitute parts can look different from the original.
$85.82 |
7% OFF Phone Price : $91.82
In Stock
Evaporator Assembly DB96-05580A
#10

Chassis assembly diagram

Evaporator assembly

Part #DB96-05580A

The manufacturer no longer makes this part, and there's no substitute part

Suction Tube DB62-02470C
#25

Chassis assembly diagram

Suction tube

Part #DB62-02470C

The manufacturer no longer makes this part, and there's no substitute part

Shutter-an DB64-01020A
#1

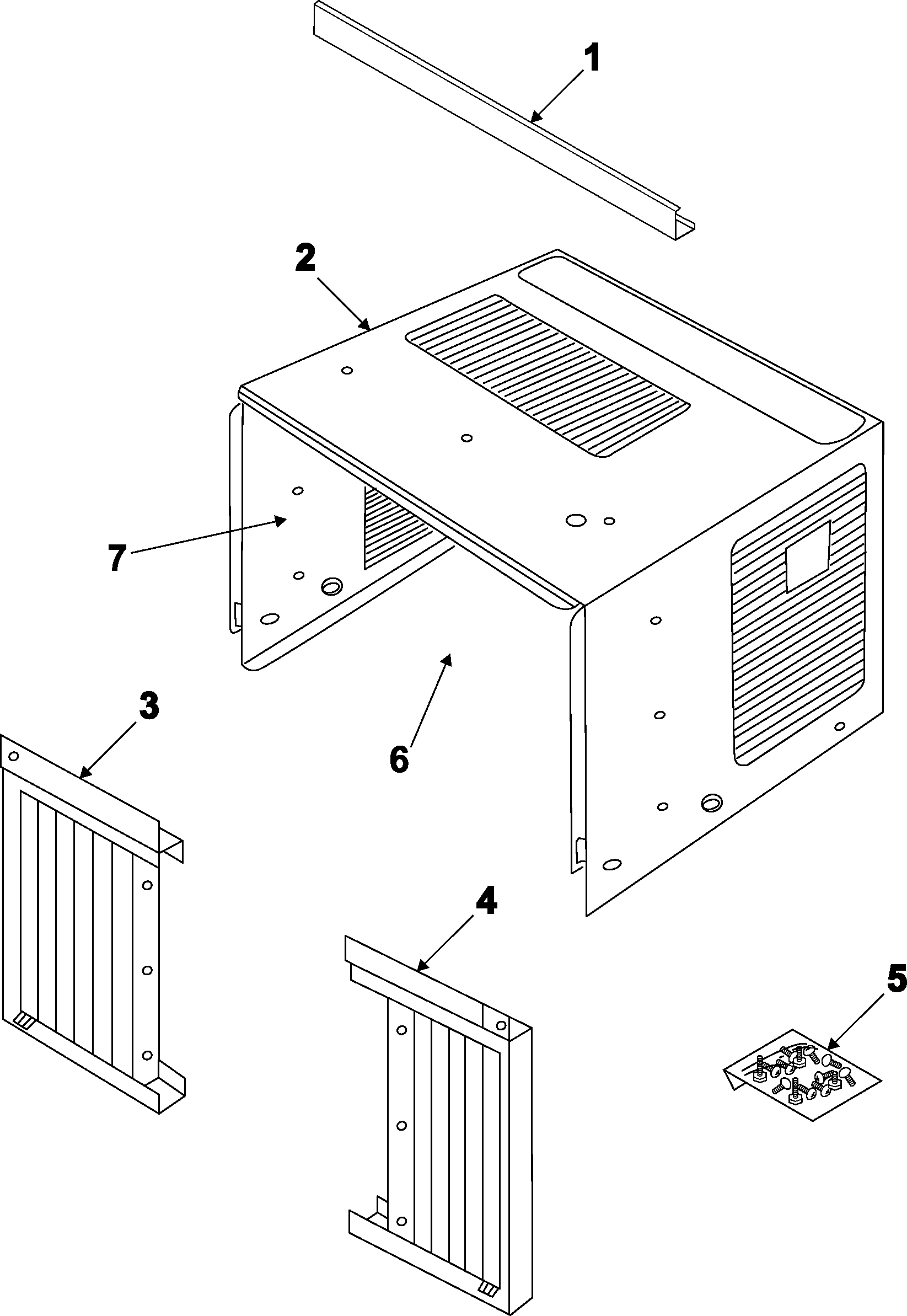

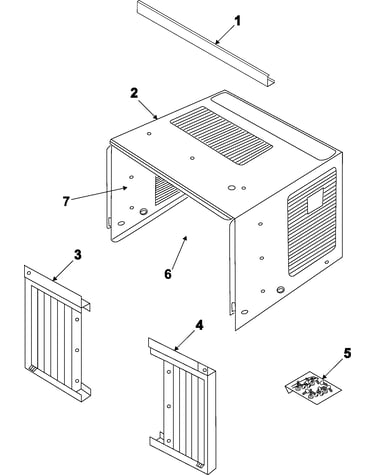

Outer case assembly diagram

Shutter-an

Part #DB64-01020A

The manufacturer no longer makes this part, and there's no substitute part

Overload Protector DB47-20001U
#23

Chassis assembly diagram

Overload protector

Part #DB47-20001U

The manufacturer no longer makes this part, and there's no substitute part

Trans L.v- DB26-00006J
#8

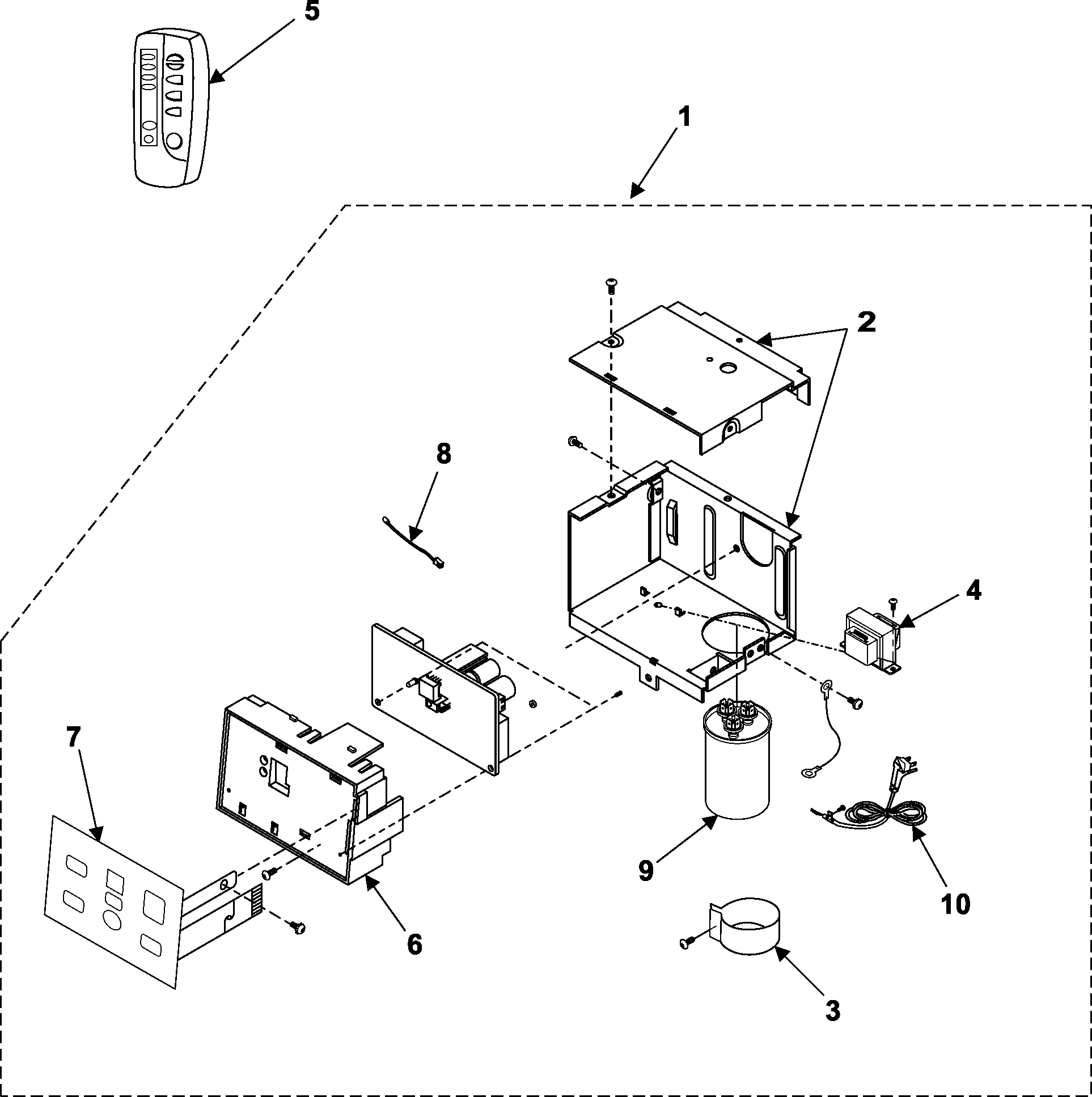

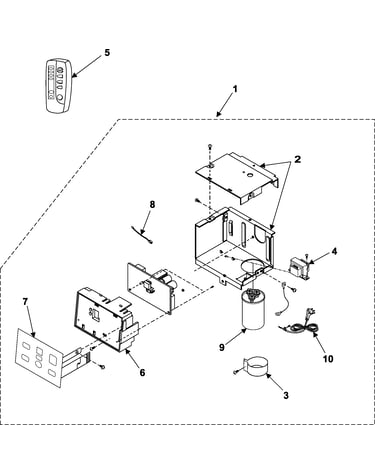

Control assembly diagram

Trans l.v-

Part #DB26-00006J

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Air Filter DB63-00807C
#27

Chassis assembly diagram

Room air conditioner air filter

Part #DB63-00807C

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly DB90-01215C
#5

Chassis assembly diagram

Base assembly

Part #DB90-01215C

The manufacturer no longer makes this part, and there's no substitute part
