DeWalt
Angle Grinder

Model # DW840K TYPE 2 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt DW840K-TYPE-2 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Label 398941-00
#816

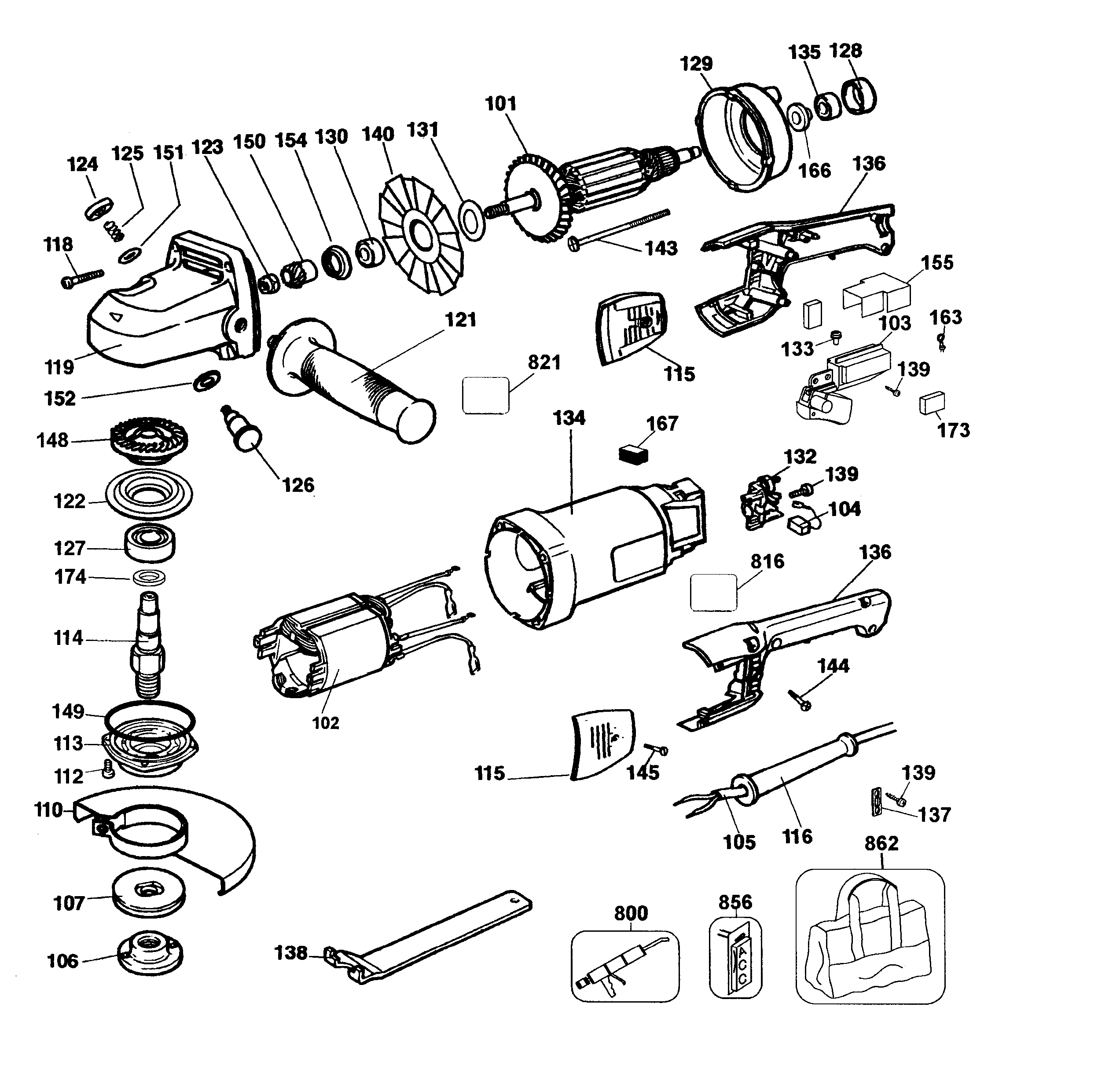

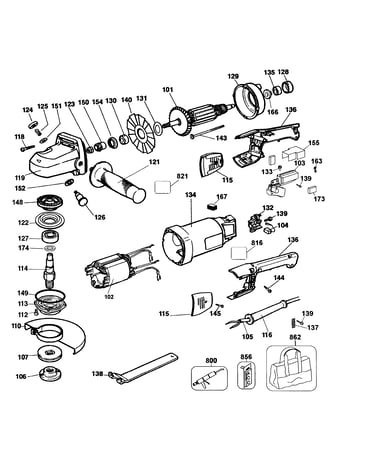

Grinder assy diagram

Label

Part #398941-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 387746-00
#133

Grinder assy diagram

Screw

Part #387746-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Ball Bearing 605040-03
#135

Grinder assy diagram

Craftsman ball bearing

Part #605040-03

This item is not returnable
$2.16
In Stock
Screw 562097-10
#118

Grinder assy diagram

Screw

Part #562097-10

The manufacturer no longer makes this part, and there's no substitute part

Holder 402869-17SV
#132

Grinder assy diagram

Holder

Part #402869-17SV

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Pinion Gear 403125-00
#150

Grinder assy diagram

Angle grinder pinion gear

Part #403125-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw 562097-12
#143

Grinder assy diagram

Craftsman screw

Part #562097-12

The manufacturer no longer makes this part, and there's no substitute part

Cover 395171-00
#115

Grinder assy diagram

Cover

Part #395171-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Washer 403148-00
#151

Grinder assy diagram

Angle grinder washer

Part #403148-00

The manufacturer no longer makes this part, and there's no substitute part

Seal 652001-00
#174

Grinder assy diagram

Seal

Part #652001-00

The manufacturer no longer makes this part, and there's no substitute part
