Kenmore
Gas Grill

Model # 14816154210 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 14816154210 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Gas Grill Firebox 2818-2T-2200
#NI

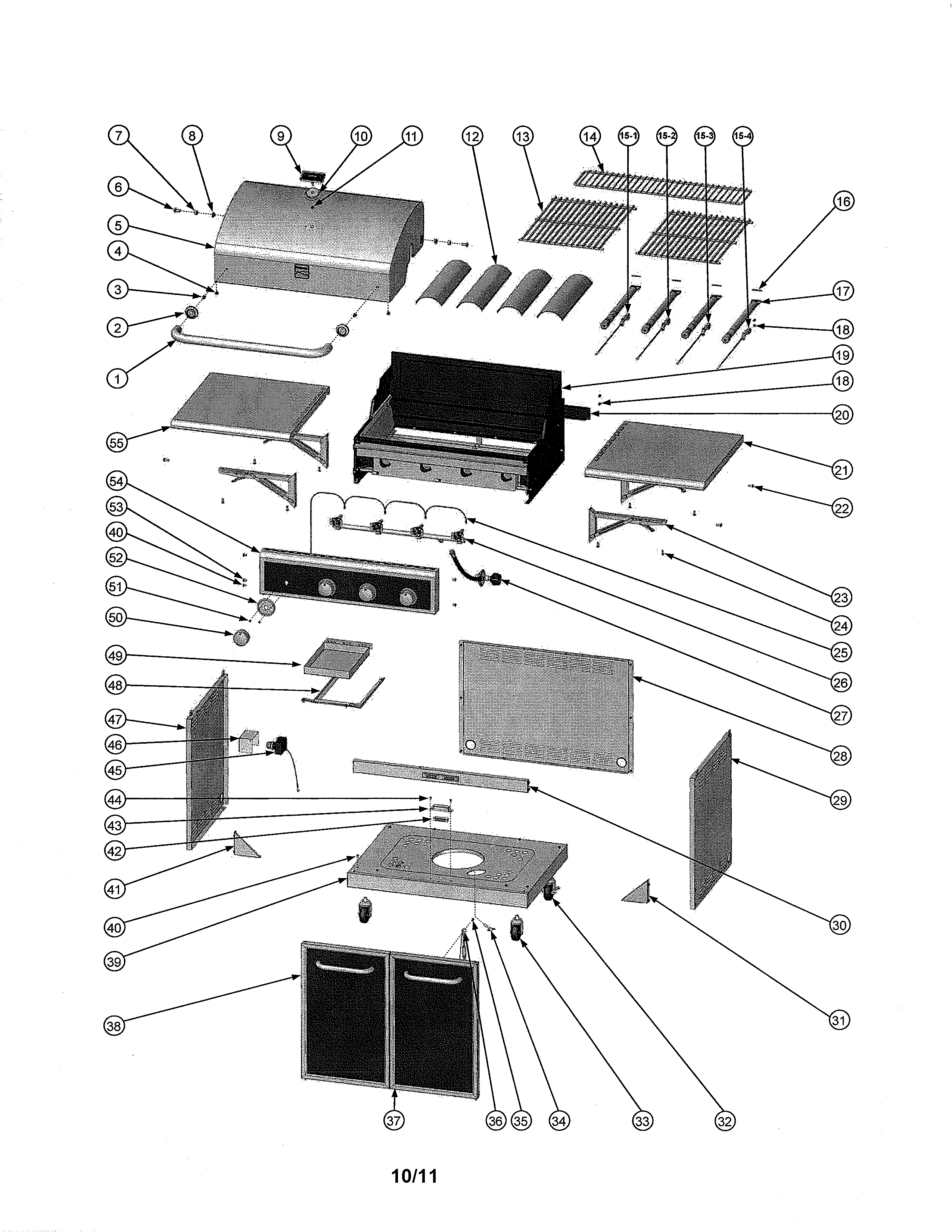

Gas grill diagram

Gas grill firebox

Part #2818-2T-2200

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Main Burner SH3118B-2004
#17

Gas grill diagram

Gas grill main burner

Part #SH3118B-2004

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Lid Handle 2818-2T-6200
#1

Gas grill diagram

Gas grill lid handle

Part #2818-2T-6200

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Caster Wheel 2518-3-8008
#33

Gas grill diagram

Gas grill caster wheel

Part #2518-3-8008

The manufacturer no longer makes this part, and there's no substitute part

Panel Assembly 2818-2T-1300
#47

Gas grill diagram

Panel assembly

Part #2818-2T-1300

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Cabinet Panel, Lower 2818-2T-1100
#39

Gas grill diagram

Gas grill cabinet panel, lower

Part #2818-2T-1100

The manufacturer no longer makes this part, and there's no substitute part

Table 2818-2T-5100
#21

Gas grill diagram

Table

Part #2818-2T-5100

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Grease Tray Support 2818-2T-1500
#48

Gas grill diagram

Gas grill grease tray support

Part #2818-2T-1500

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Door Magnet SH3118-1803
#42

Gas grill diagram

Gas grill door magnet

Part #SH3118-1803

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Igniter 2818-2T-A500-4/1
#15-1

Gas grill diagram

Gas grill igniter

Part #2818-2T-A500-4/1

The manufacturer no longer makes this part, and there's no substitute part
