Model # LC120JW5 Official Frigidaire laundry center - 84-385-50

Here are the diagrams and repair parts for Official Frigidaire LC120JW5 laundry center - 84-385-50, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 308 parts  |
H/c Fill Hos 6561384
#14

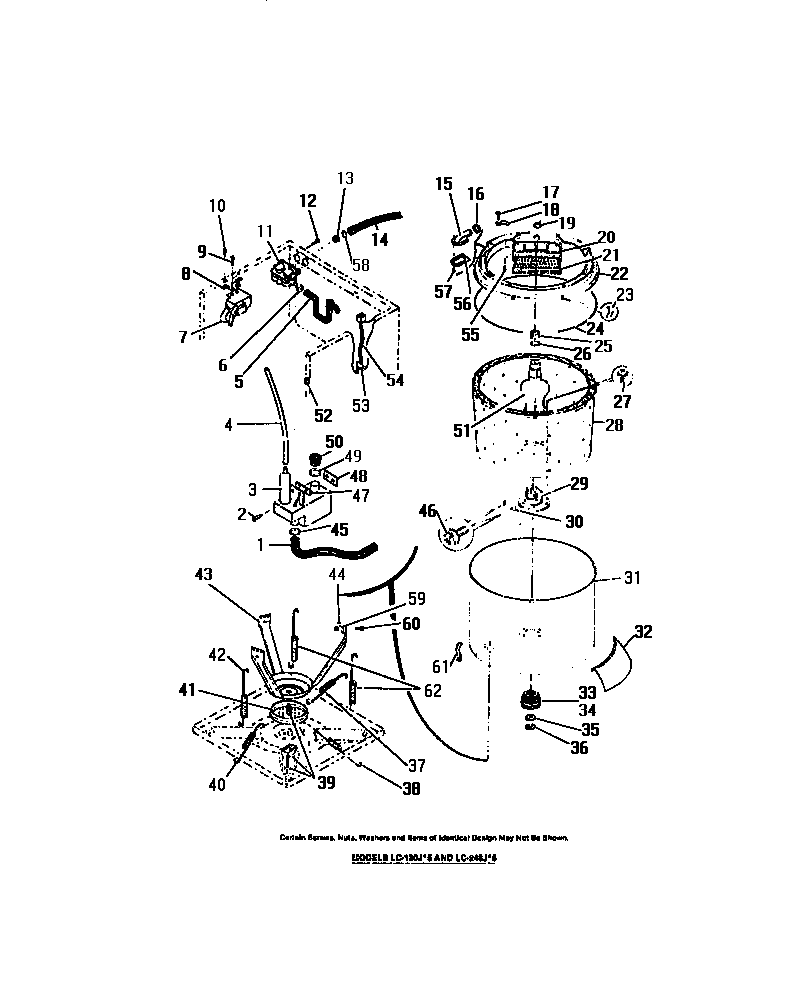

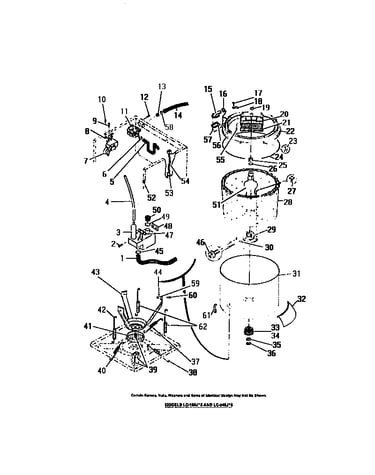

Washer tubs, subtop, water valve, snubber diagram

H/c fill hos

Part #6561384

Replaced by #5303912532

?
Manufacturer substitution
This part replaces 6561384. Substitute parts can look different from the original.
$67.57 |
8% OFF Phone Price : $73.57
In Stock
Belt 8004064
#50

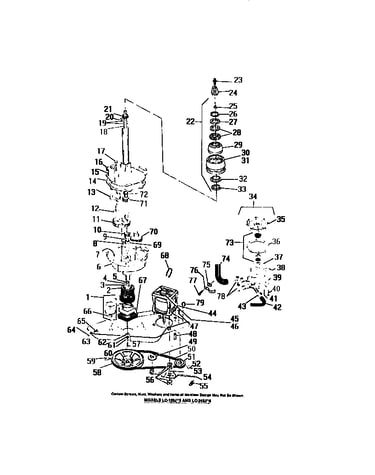

Washer transmission, motor, pump diagram

Belt

Part #8004064

Replaced by #5303280326

?
Manufacturer substitution
This part replaces 8004064. Substitute parts can look different from the original.
This item is not returnable
$33.14 |
15% OFF Phone Price : $39.14
In Stock
Nut 8001569
#42

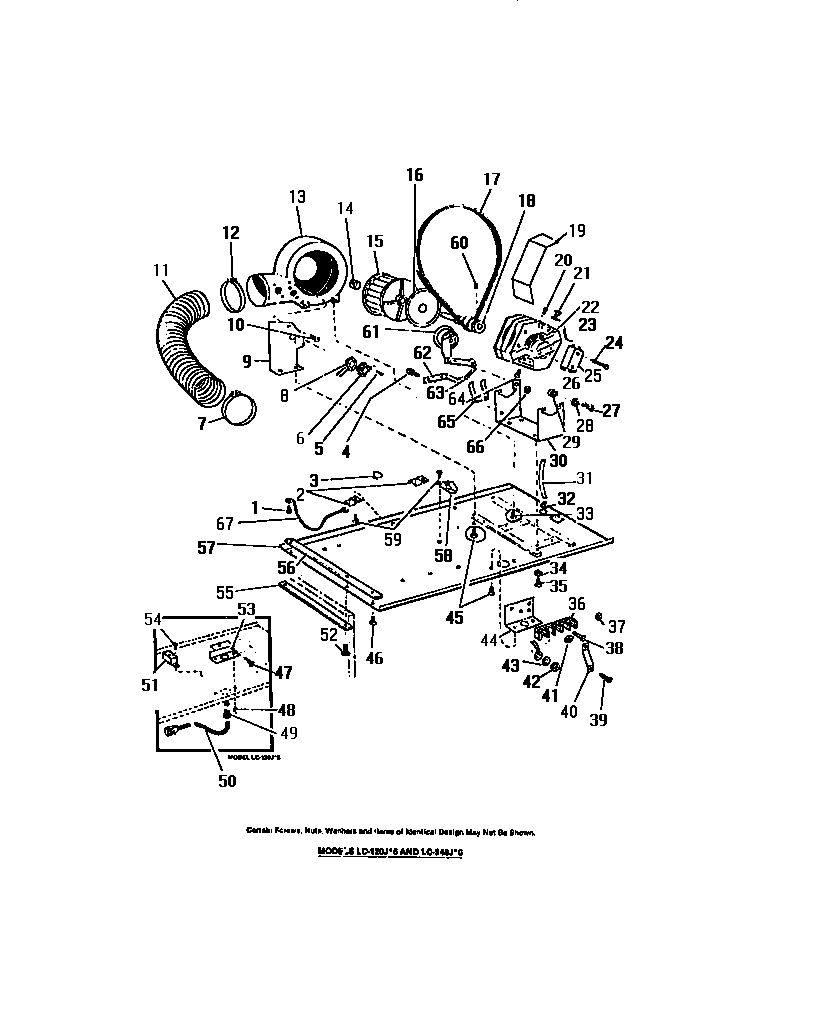

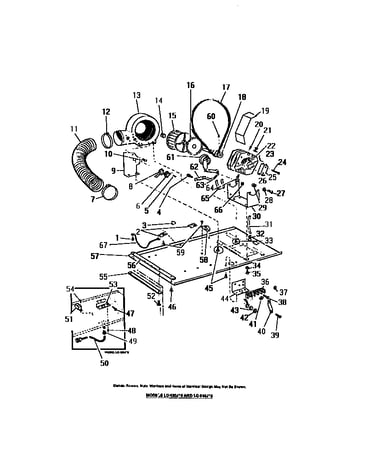

Dryer motor, base, housing and mounting diagram

Nut

Part #8001569

Replaced by #5303015673

?
Manufacturer substitution
This part replaces 8001569. Substitute parts can look different from the original.
This item is not returnable
$2.19
In Stock
Screw 8004649
#54

Dryer motor, base, housing and mounting diagram

Screw

Part #8004649

The manufacturer no longer makes this part, and there's no substitute part

Insulation 639756
#34

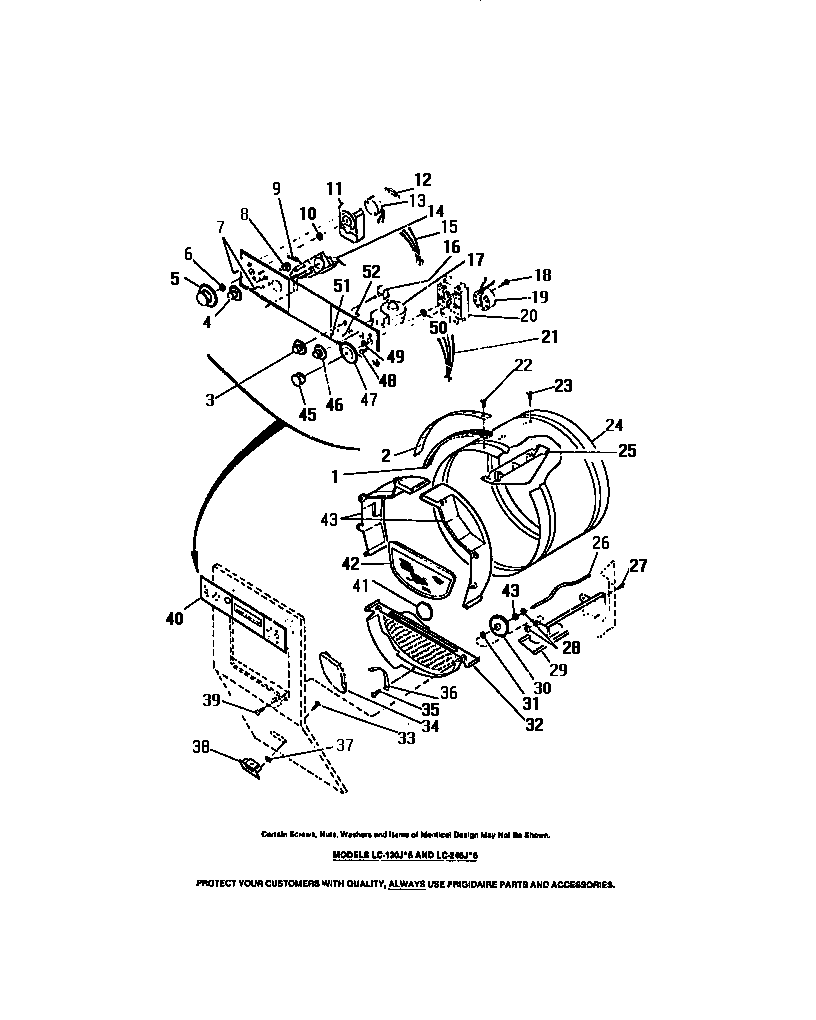

Timers, selector switches, dryer drum diagram

Insulation

Part #639756

The manufacturer no longer makes this part, and there's no substitute part

Seal-door 639378
#8

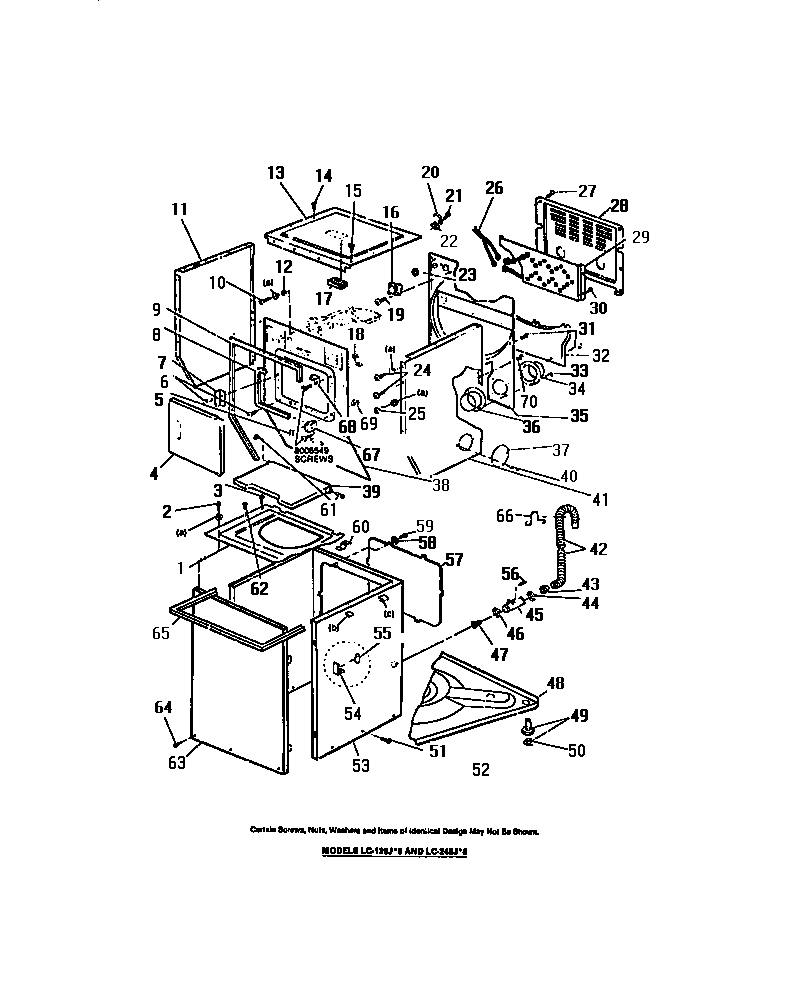

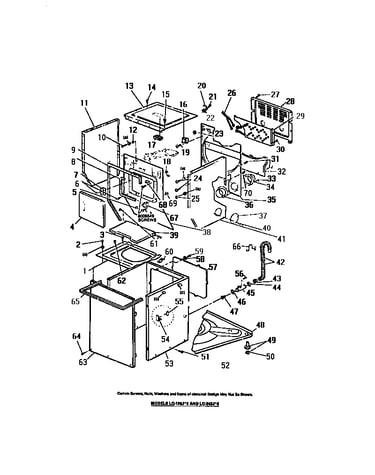

Exterior cabinet and heater diagram

Seal-door

Part #639378

The manufacturer no longer makes this part, and there's no substitute part

Gear 8002816
#70

Washer transmission, motor, pump diagram

Gear

Part #8002816

The manufacturer no longer makes this part, and there's no substitute part

Bracket 639339
#30

Dryer motor, base, housing and mounting diagram

Bracket

Part #639339

The manufacturer no longer makes this part, and there's no substitute part

Door-dryer 633871
#4

Exterior cabinet and heater diagram

Door-dryer

Part #633871

The manufacturer no longer makes this part, and there's no substitute part

Retainers-trim White 639327
#52

Exterior cabinet and heater diagram

Retainers-trim white

Part #639327

The manufacturer no longer makes this part, and there's no substitute part
