Model # AEM497W2-PAEM497W2 Official Speed Queen electric speedqueen dryer

Here are the diagrams and repair parts for Official Speed Queen AEM497W2-PAEM497W2 electric speedqueen dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

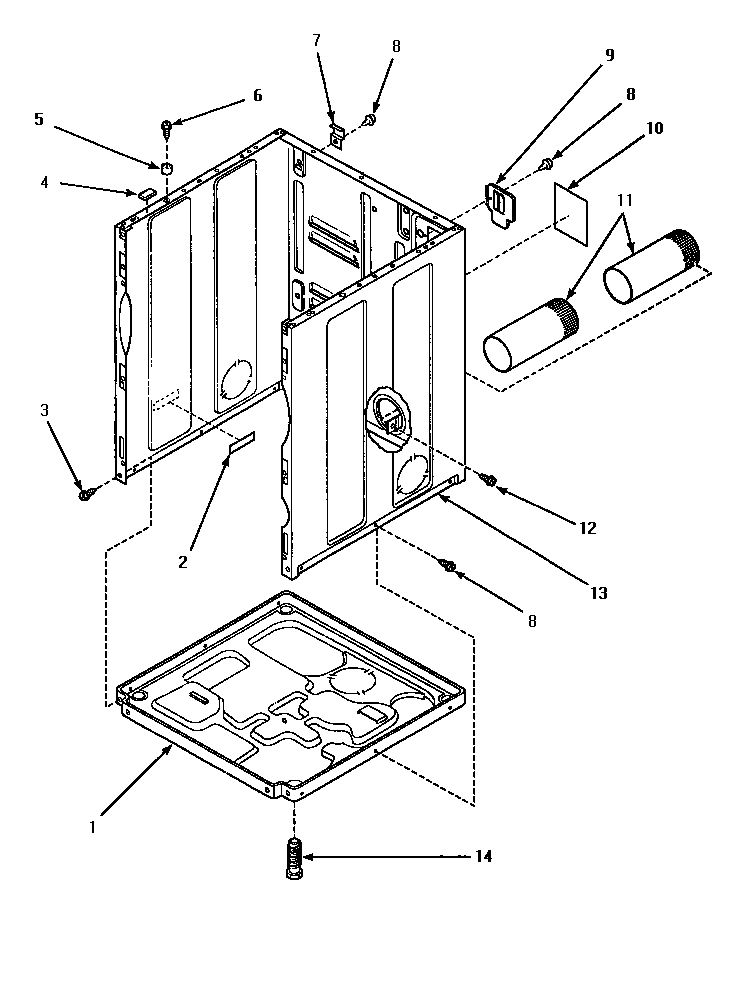

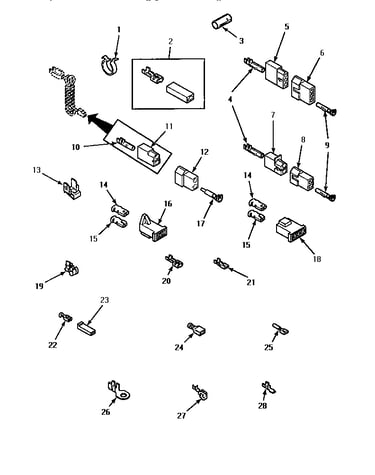

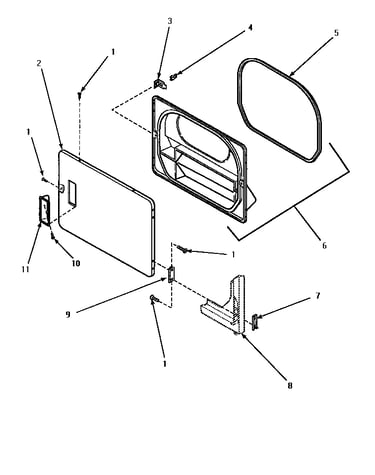

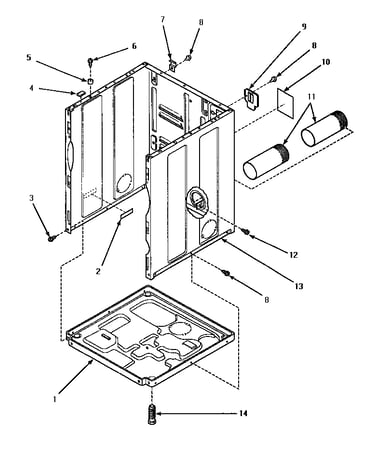

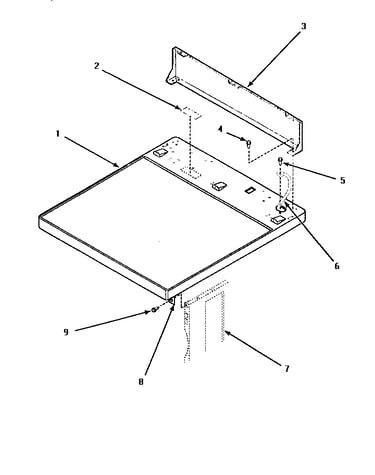

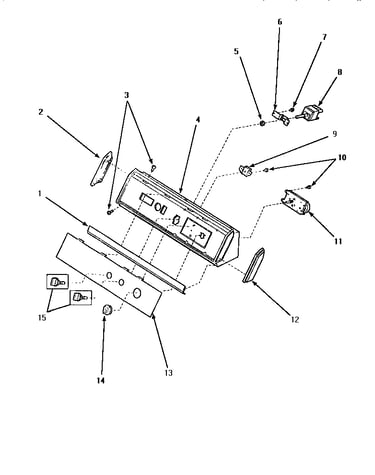

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Motor 501211
#9

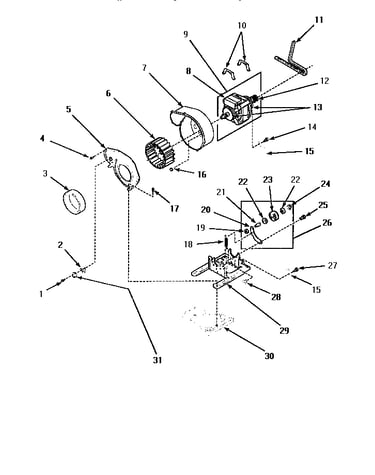

Motor, exhaust fan & belt diagram

Motor

Part #501211

Replaced by #WP2200376

?
Manufacturer substitution
This part replaces 501211. Substitute parts can look different from the original.
BEST SELLER
$132.01 |
8% OFF Phone Price : $144.01
In Stock
Fuse 62600
#7

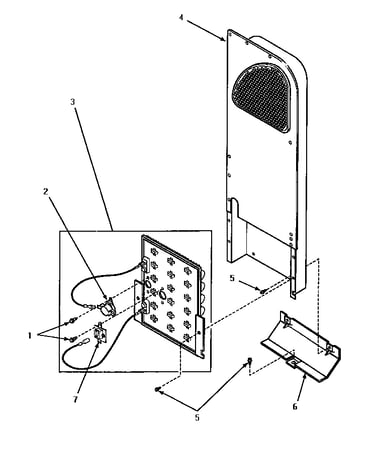

Heater box assy, original diagram

Fuse

Part #62600

Replaced by #WP40113801

?
Manufacturer substitution
This part replaces 62600. Substitute parts can look different from the original.
BEST SELLER
$14.01 |
12% OFF Phone Price : $16.01
In Stock
Door Switch 62872
#8

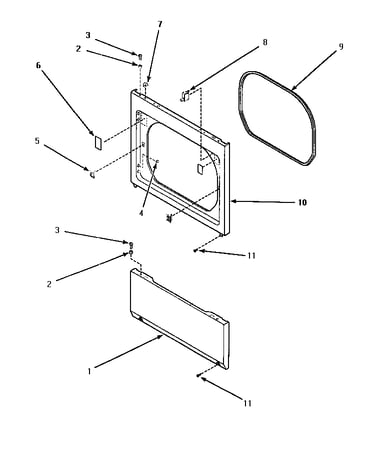

Lower access panel, front panel & seal diagram

Door switch

Part #62872

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 62641
#2

Heater box assy, original diagram

Thermostat

Part #62641

Replaced by #WPW10116735

?
Manufacturer substitution
This part replaces 62641. Substitute parts can look different from the original.
BEST SELLER
$44.72 |
12% OFF Phone Price : $50.72
In Stock
Washer 52549
Washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Retainer Ring 23748
Retainer ring

Part #23748

Replaced by #WP23748

?
Manufacturer substitution
This part replaces 23748. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Bracket 500062

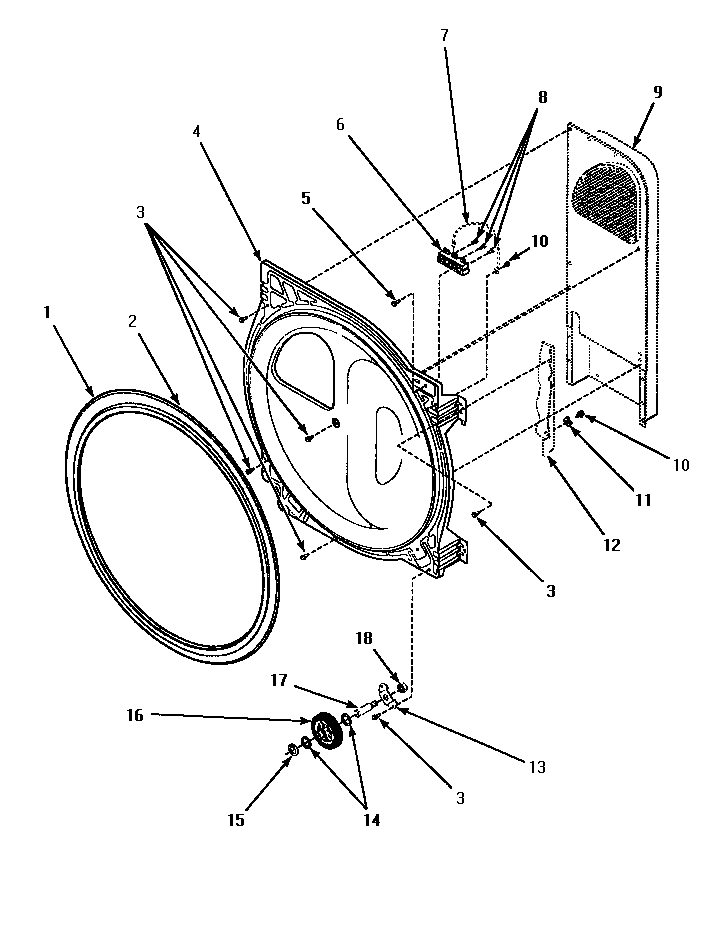

#13

Bulkhead/felt seal/cyl roller & term blk diagram

Bracket

Part #500062

Replaced by #WP40113601

?
Manufacturer substitution
This part replaces 500062. Substitute parts can look different from the original.
$38.50 |
13% OFF Phone Price : $44.50
In Stock
Felt Pad 500121

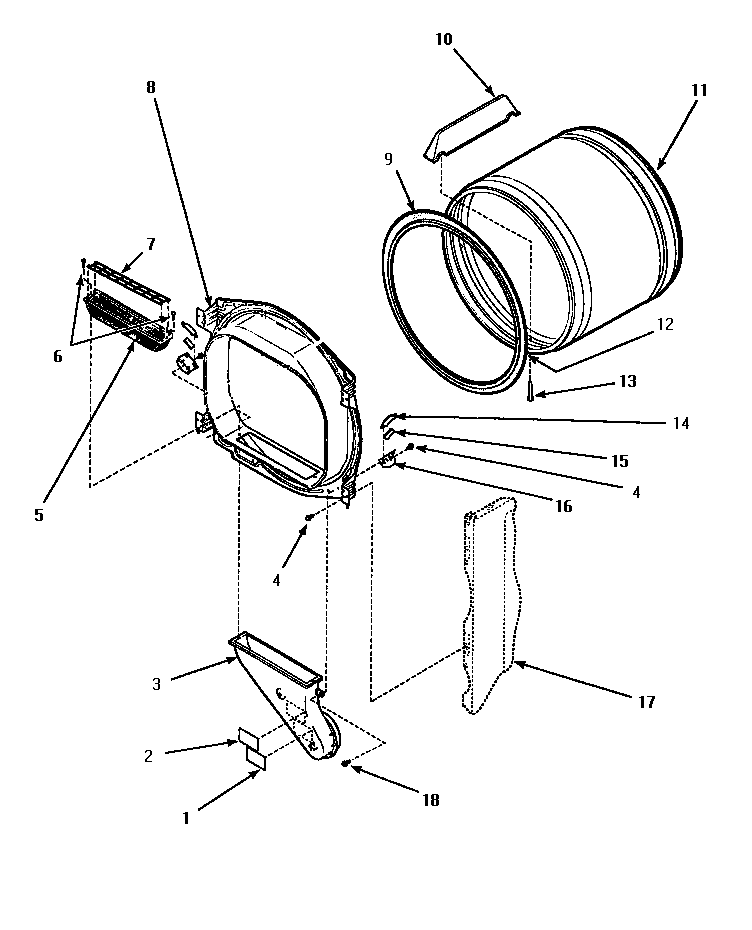

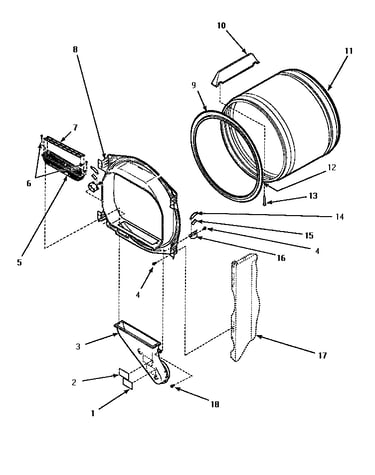

#15

Fr blkhd, air duct, felt seal & cylinder diagram

Felt pad

Part #500121

Replaced by #WP500121

?
Manufacturer substitution
This part replaces 500121. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Clip 28835
#7

Lower access panel, front panel & seal diagram

Clip

Part #28835

Replaced by #WP22001650

?
Manufacturer substitution
This part replaces 28835. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 20530
Screw

Part #20530

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 20530. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
