Kenmore
Gas Wall Oven

Model # 79040292410 Official Kenmore wall oven

Here are the diagrams and repair parts for Official Kenmore 79040292410 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

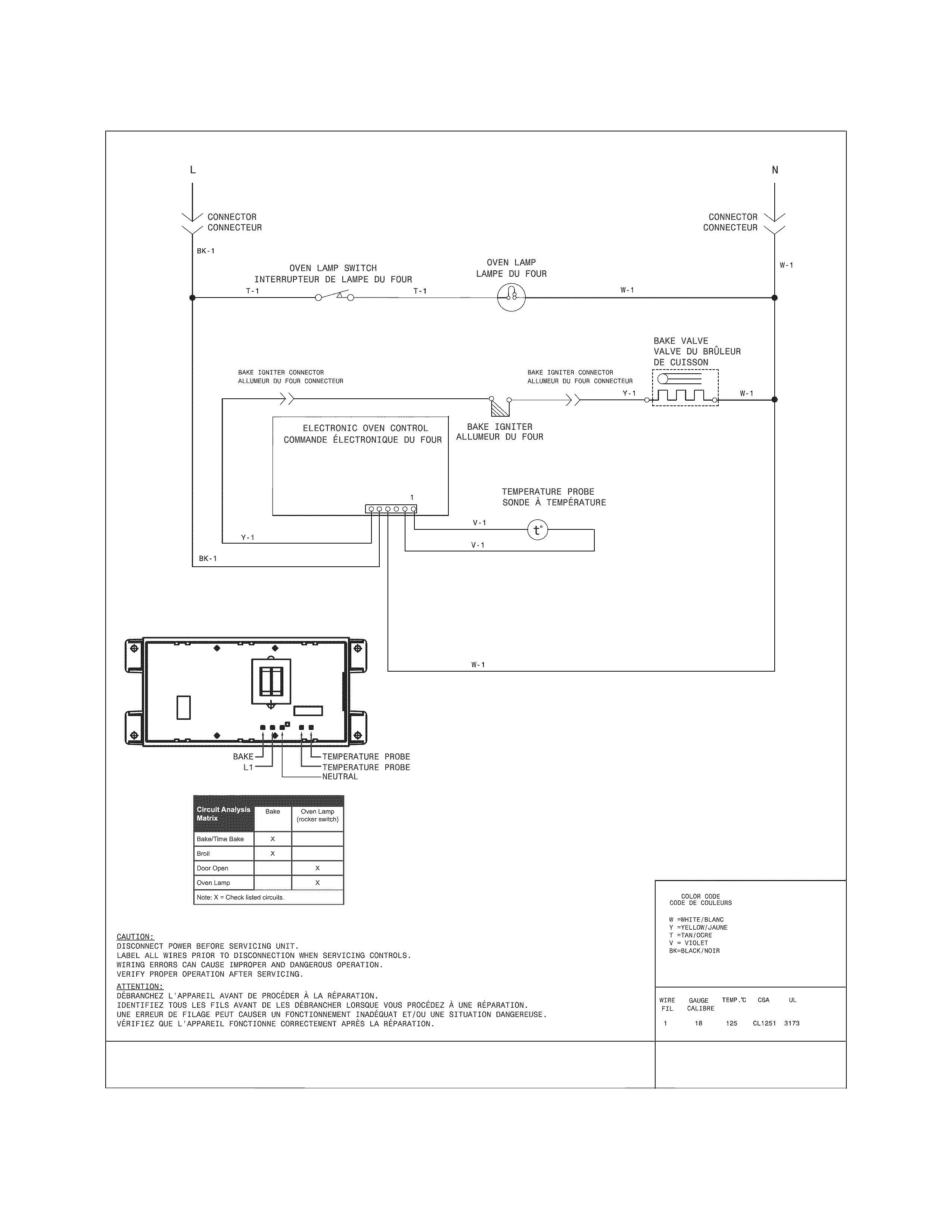

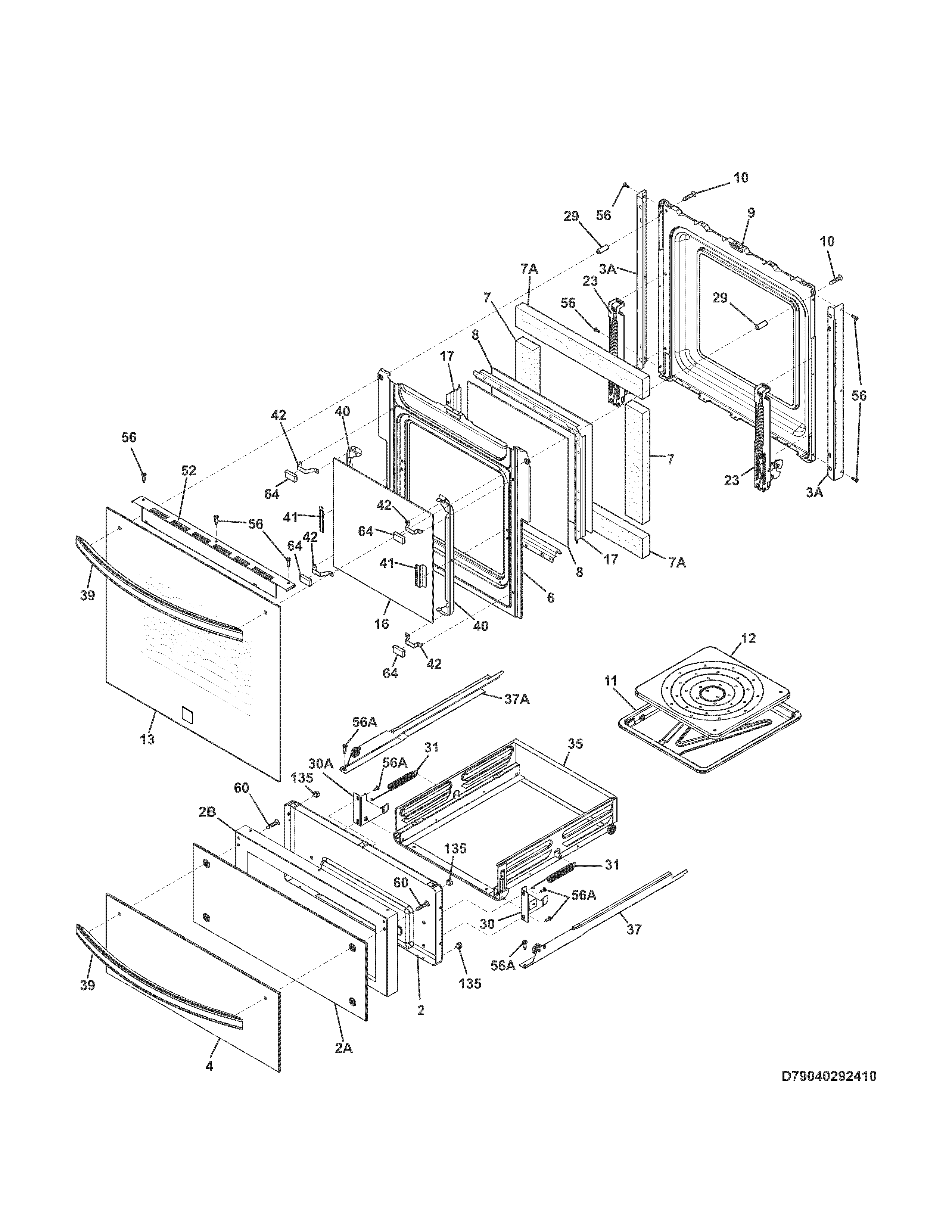

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Range Oven Temperature Sensor 318562500
#37

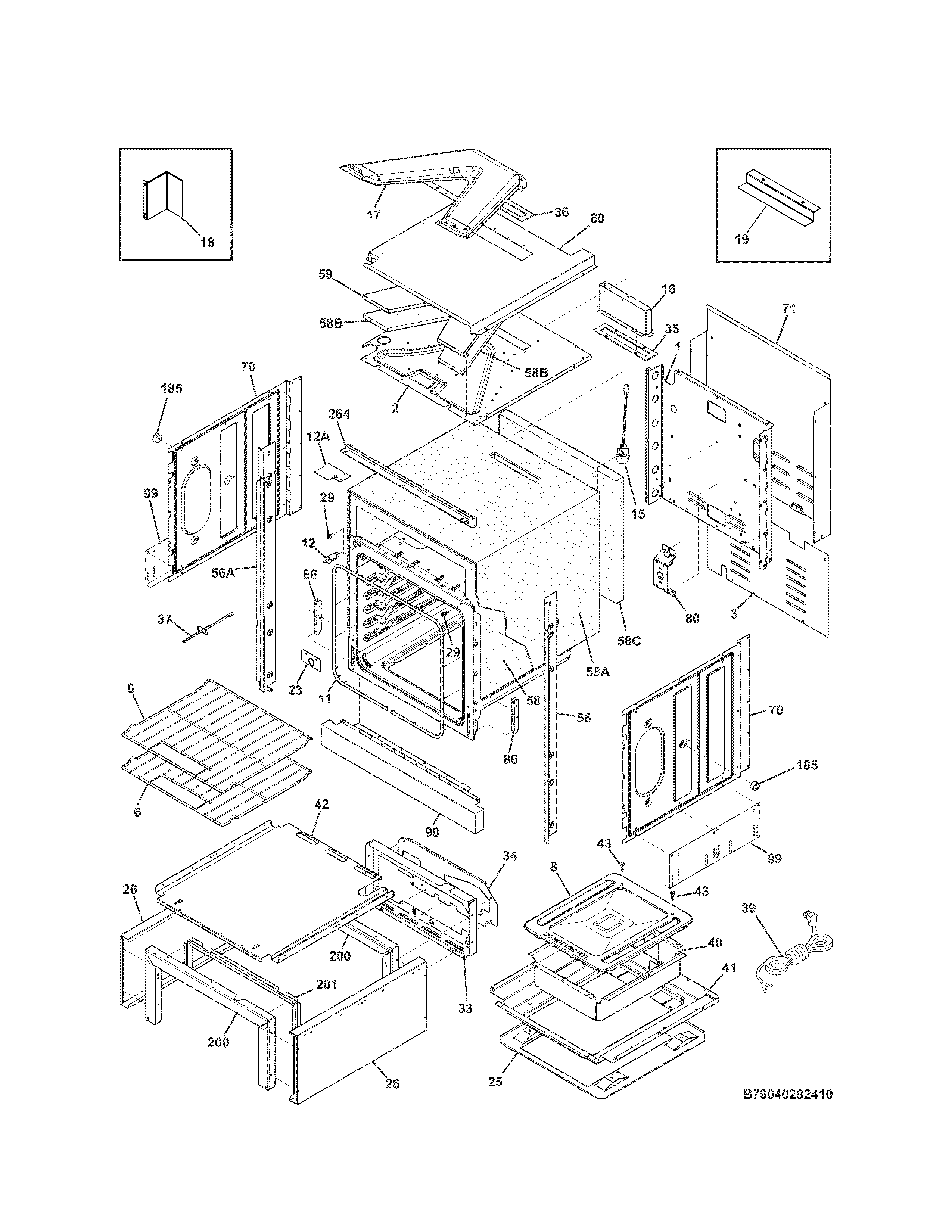

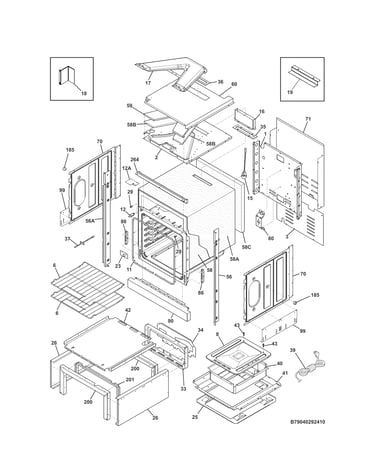

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Frigidaire Range Oven Burner Igniter (replaces 316428600, 5303308452, 5303308468, 7316428600, 7318177710) 318177710
#26

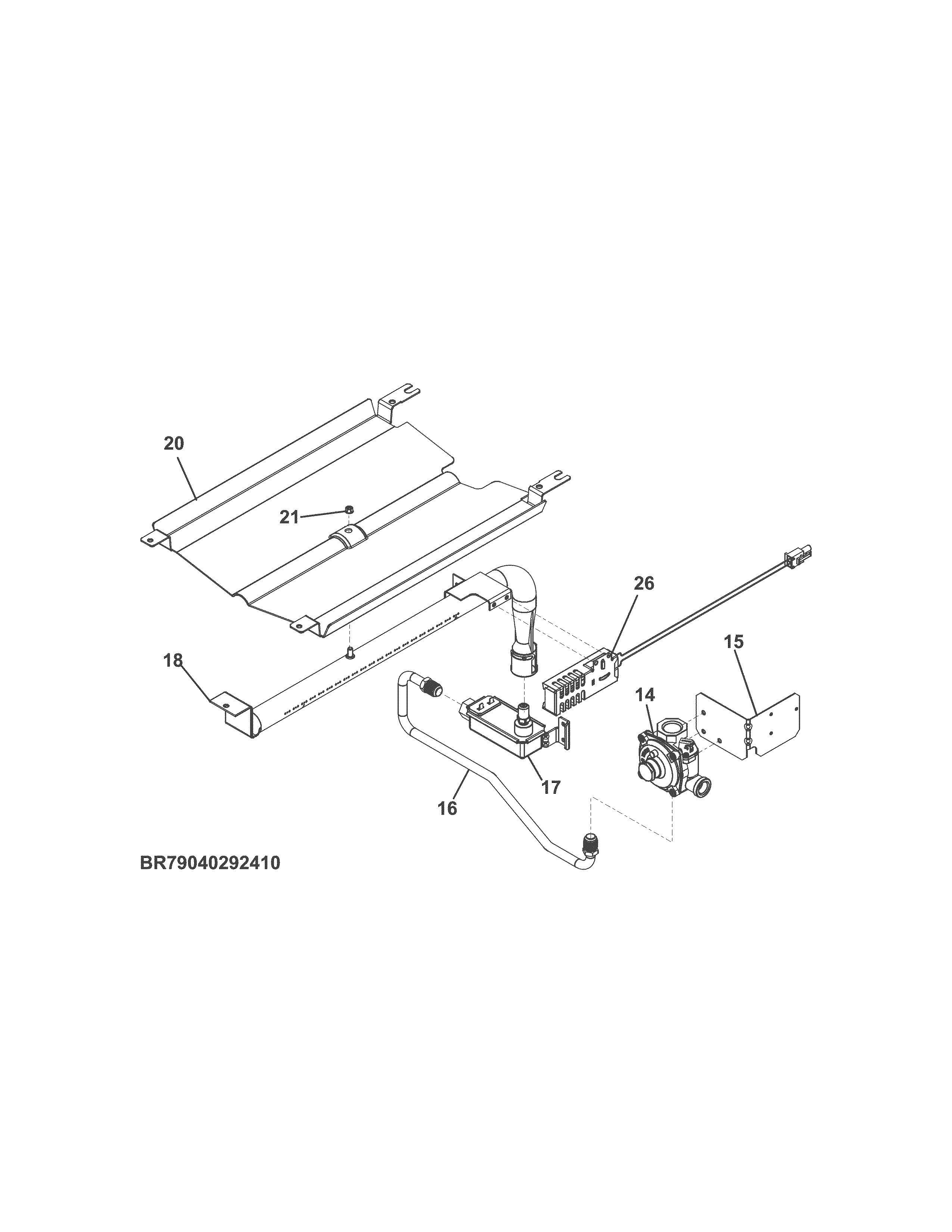

Burner diagram

Frigidaire range oven burner igniter (replaces 316428600, 5303308452, 5303308468, 7316428600, 7318177710)

Part #318177710

BEST SELLER
$152.42 |
7% OFF Phone Price : $164.42
In Stock
Wall Oven Control Overlay (black) 316220727
#20A

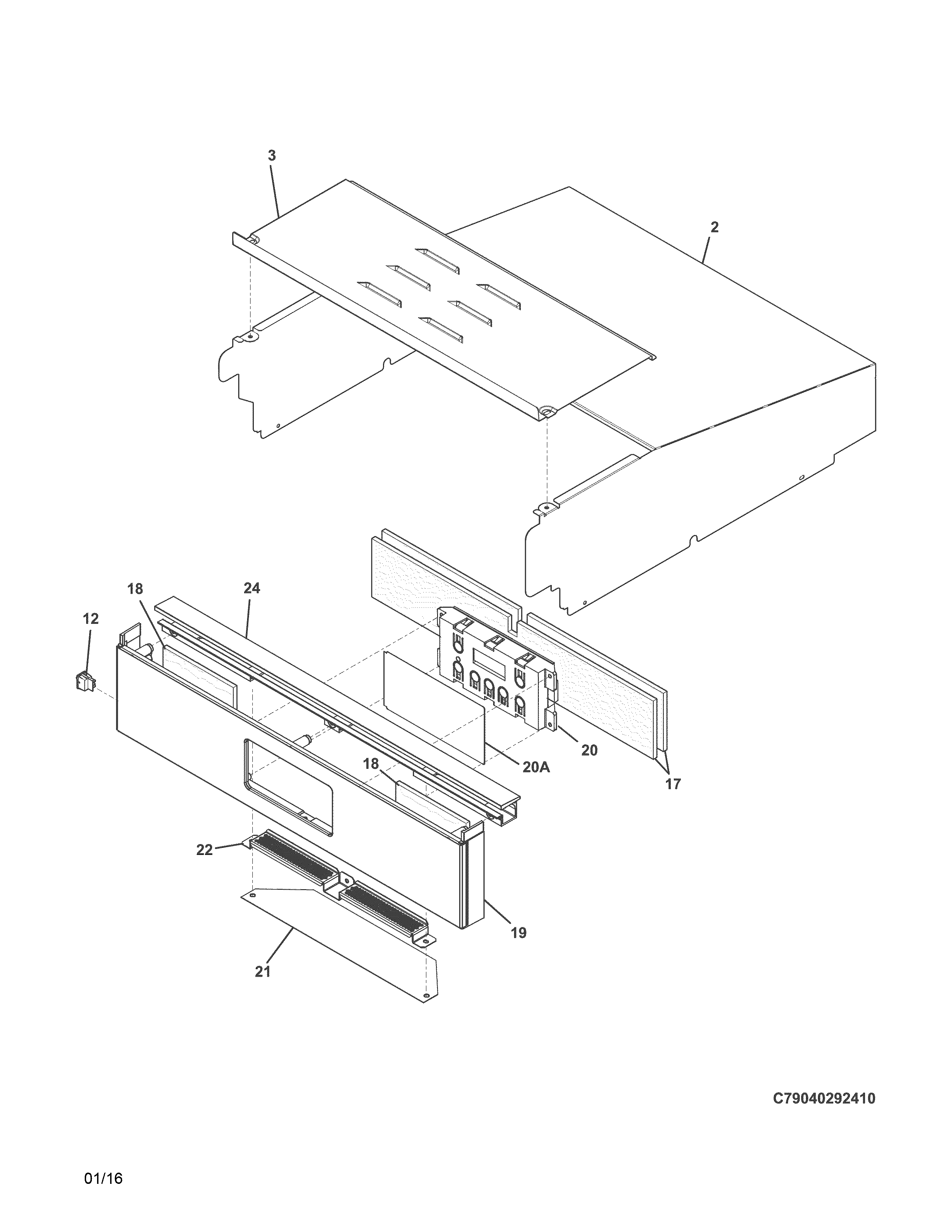

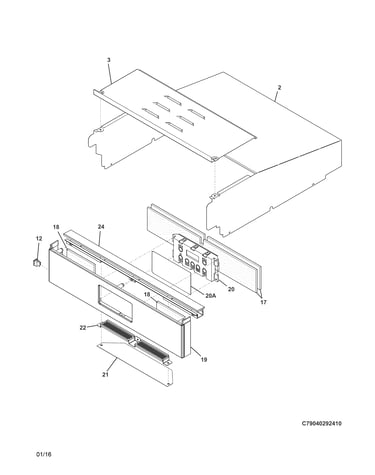

Control panel diagram

Wall oven control overlay (black)

Part #316220727

Replaced by #316220729

?
Manufacturer substitution
This part replaces 316220727. Substitute parts can look different from the original.
BEST SELLER
$33.92 |
15% OFF Phone Price : $39.92
In Stock
Wall Oven Control Overlay (white) 316220726
#20A

Control panel diagram

Wall oven control overlay (white)

Part #316220726

Replaced by #316220728

?
Manufacturer substitution
This part replaces 316220726. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$31.73 |
16% OFF Phone Price : $37.73
In Stock
Range Oven Door Switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, P351140) 316445501
#12

Body diagram

Range oven door switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, p351140)

Part #316445501

$63.47 |
9% OFF Phone Price : $69.47
In Stock
Range Oven Light Bulb (replaces 808564103) 318946500
#NI

Body diagram

Range oven light bulb (replaces 808564103)

Part #318946500

$38.98 |
13% OFF Phone Price : $44.98
In Stock
Range Screw 316001003
#NI

Body diagram

Range screw

Part #316001003

Replaced by #316001017

?
Manufacturer substitution
This part replaces 316001003. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Range Oven Light Rocker Switch (black) 316448700
#12

Control panel diagram

Range oven light rocker switch (black)

Part #316448700

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316448700. Substitute parts can look different from the original.
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Range Hex Nut 5303013272
Range hex nut

Part #5303013272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Range Screw 3131732
#43

Body diagram

Range screw

Part #3131732

Replaced by #316282700

?
Manufacturer substitution
This part replaces 3131732. Substitute parts can look different from the original.
This item is not returnable
$10.49 |
16% OFF Phone Price : $12.49
In Stock
