Ryobi
Drill/Driver

Model # D-38VSR Official Ryobi electric drill

Here are the diagrams and repair parts for Official Ryobi D-38VSR electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Switch 968303036
#11

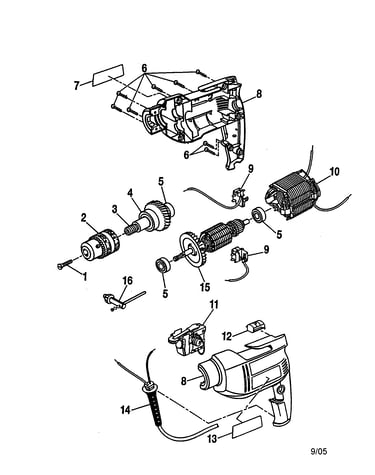

Electric drill diagram

Switch

Part #968303036

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 972000251

#NI02

All parts diagram

Owner's manual

Part #972000251

The manufacturer no longer makes this part, and there's no substitute part

Gear And Spindle (inc. Key #4 And One Of Key #5) 968308018
#3

Electric drill diagram

Gear and spindle (inc. key #4 and one of key #5)

Part #968308018

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 973755001
#7

Electric drill diagram

Data plate

Part #973755001

The manufacturer no longer makes this part, and there's no substitute part

Owners Manual (d38vsr) 612547913

#NI01

All parts diagram

Owners manual (d38vsr)

Part #612547913

The manufacturer no longer makes this part, and there's no substitute part

Bearing 622274001
#5

Electric drill diagram

Bearing

Part #622274001

The manufacturer no longer makes this part, and there's no substitute part

Screw 968702009
#6

Electric drill diagram

Screw

Part #968702009

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 971819001
#13

Electric drill diagram

Logo plate

Part #971819001

The manufacturer no longer makes this part, and there's no substitute part

Chuck (keyless) 973754001
#2

Electric drill diagram

Chuck (keyless)

Part #973754001

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 968307044
#10

Electric drill diagram

Field assembly

Part #968307044

The manufacturer no longer makes this part, and there's no substitute part
