Model # 86773645 Official Kenmore gas-fired direct vent wall furnace
Here are the diagrams and repair parts for Official Kenmore 86773645 gas-fired direct vent wall furnace, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
86773645 Gas-Fired Direct Vent Wall Furnace
#NI
All parts diagram
Thermostat
Part #504792
The manufacturer no longer makes this part, and there's no substitute part
#55

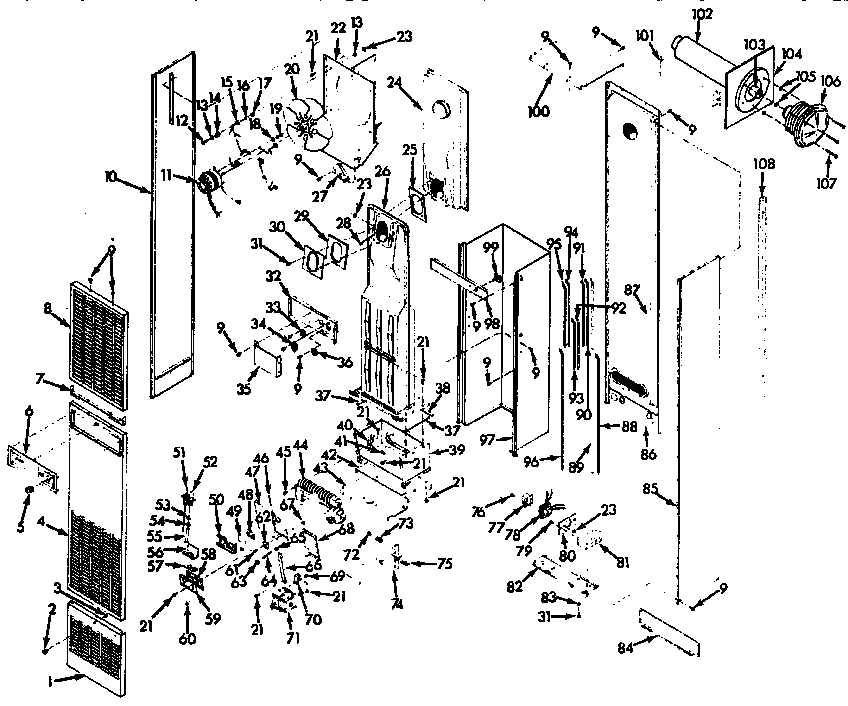

Unit parts diagram
Tubing pilot
Part #89031
The manufacturer no longer makes this part, and there's no substitute part
#51
Unit parts diagram
Thermocouple
Part #503758
Replaced by #H06E-36
?
Manufacturer substitution
This part replaces 503758. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
In Stock
#34
Unit parts diagram
Switch
Part #502171
Replaced by #505962
?
Manufacturer substitution
This part replaces 502171. Substitute parts can look different from the original.
$119.46
In Stock
#54
Unit parts diagram
Ferrule nut
Part #29441
Replaced by #100108370
?
Manufacturer substitution
This part replaces 29441. Substitute parts can look different from the original.
$36.67
In Stock
#71A
Unit parts diagram
Natural valve
Part #504107
The manufacturer no longer makes this part, and there's no substitute part
#71C
Unit parts diagram
Gas valve liquid propane
Part #504108
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Guarantee
Part #F642-18169A
The manufacturer no longer makes this part, and there's no substitute part
#52B
Unit parts diagram
Pilot burner
Part #503051
The manufacturer no longer makes this part, and there's no substitute part
#84
Unit parts diagram
Support
Part #504241
The manufacturer no longer makes this part, and there's no substitute part
