Maytag
Gas Range

Model # G3127WRA Official Maytag gas range

Here are the diagrams and repair parts for Official Maytag G3127WRA gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Clamp Screw 7101P080-60
#5

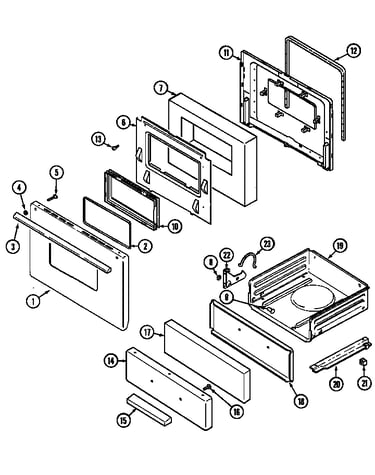

Door/drawer (g3127wr*,g3127wra-5) (g3127wra) (g3127wra-5) (g3127wrv) diagram

Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Burner Seal 3412D017-26
#6A

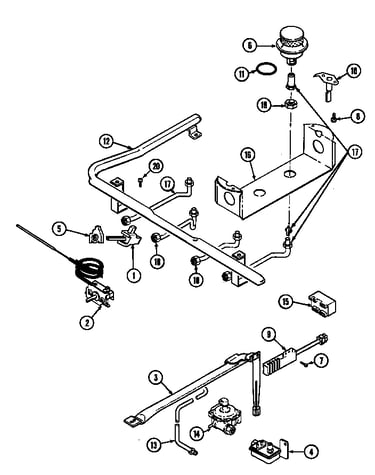

Gas controls diagram

Burner seal

Part #3412D017-26

Replaced by #WP3412D024-26

?
Manufacturer substitution
This part replaces 3412D017-26. Substitute parts can look different from the original.
$51.64 |
10% OFF Phone Price : $57.64
In Stock
Sealed Burner 3412D018-26
#6C

Gas controls diagram

Sealed burner

Part #3412D018-26

Replaced by #WP3412D024-26

?
Manufacturer substitution
This part replaces 3412D018-26. Substitute parts can look different from the original.
$51.64 |
10% OFF Phone Price : $57.64
In Stock
Bracket Screw 7101P040-60
#3

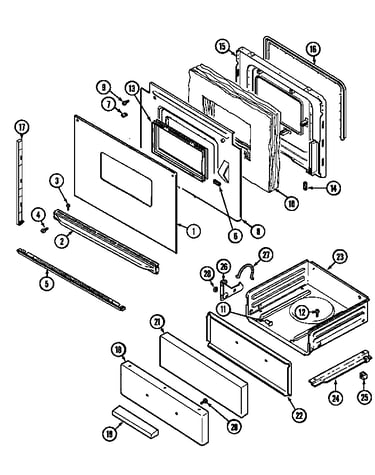

Door/drawer (g3127xra-5) (g3127xra-5) diagram

Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Screw 7118P019-60
#7C

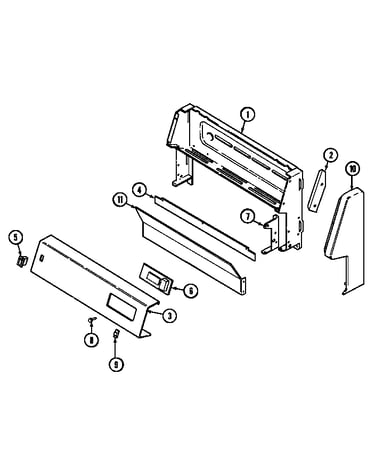

Control panel diagram

Screw

Part #7118P019-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7118P019-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
"bracket, Ant" 3801F218-51
#3

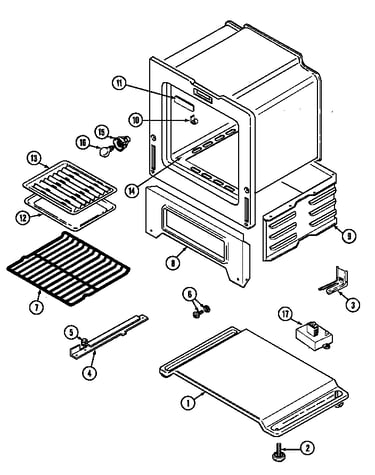

Oven/base diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Receptacle 7407P088-60
#15

Oven/base diagram

Receptacle

Part #7407P088-60

Replaced by #WP7407P182-60

?
Manufacturer substitution
This part replaces 7407P088-60. Substitute parts can look different from the original.
$42.19 |
12% OFF Phone Price : $48.19
In Stock
Screw 7101P315-60
#8

Gas controls diagram

Screw

Part #7101P315-60

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 7101P315-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Valve Knob 7733P027-60
#2

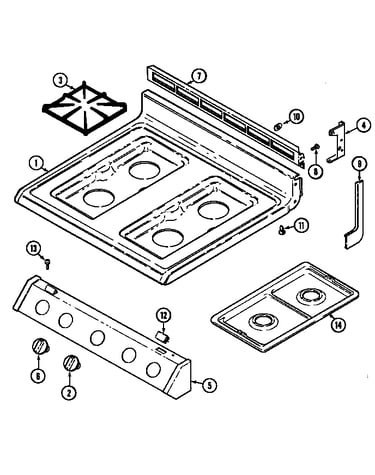

Top assembly diagram

Valve knob

Part #7733P027-60

Replaced by #WP7711P135-60

?
Manufacturer substitution
This part replaces 7733P027-60. Substitute parts can look different from the original.
This item is not returnable
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Screw 7101P300-60
#6

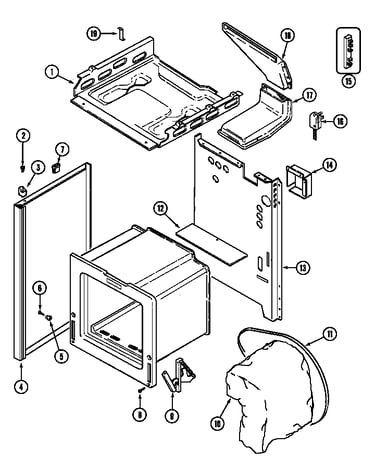

Body diagram

Screw

Part #7101P300-60

Replaced by #7101P345-60

?
Manufacturer substitution
This part replaces 7101P300-60. Substitute parts can look different from the original.
$12.49
In Stock
