Whirlpool
Range Hood

Model # WVU17UC0JW0 Official Whirlpool range hood

Here are the diagrams and repair parts for Official Whirlpool WVU17UC0JW0 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

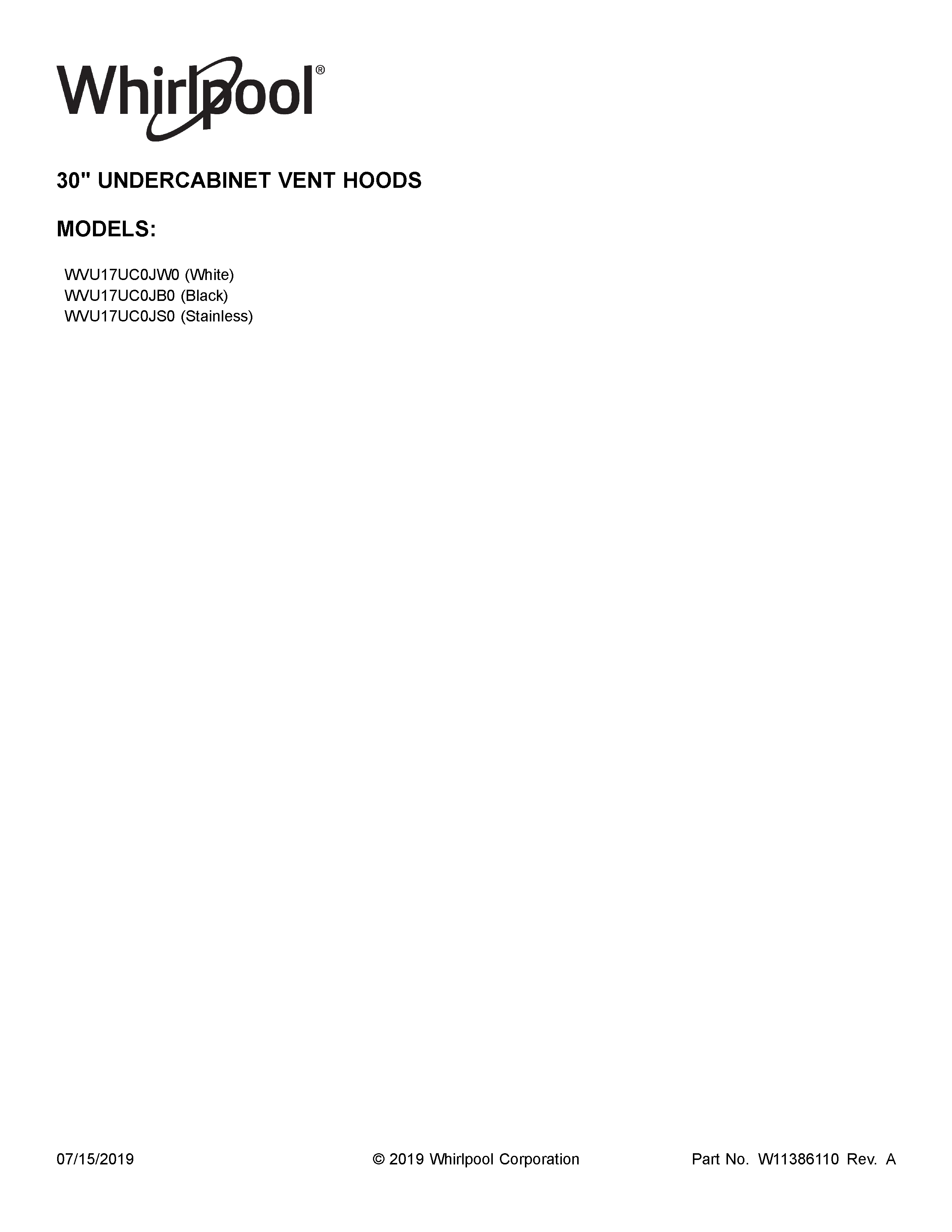

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Range Hood Charcoal Filter Kit W11371717
#NI

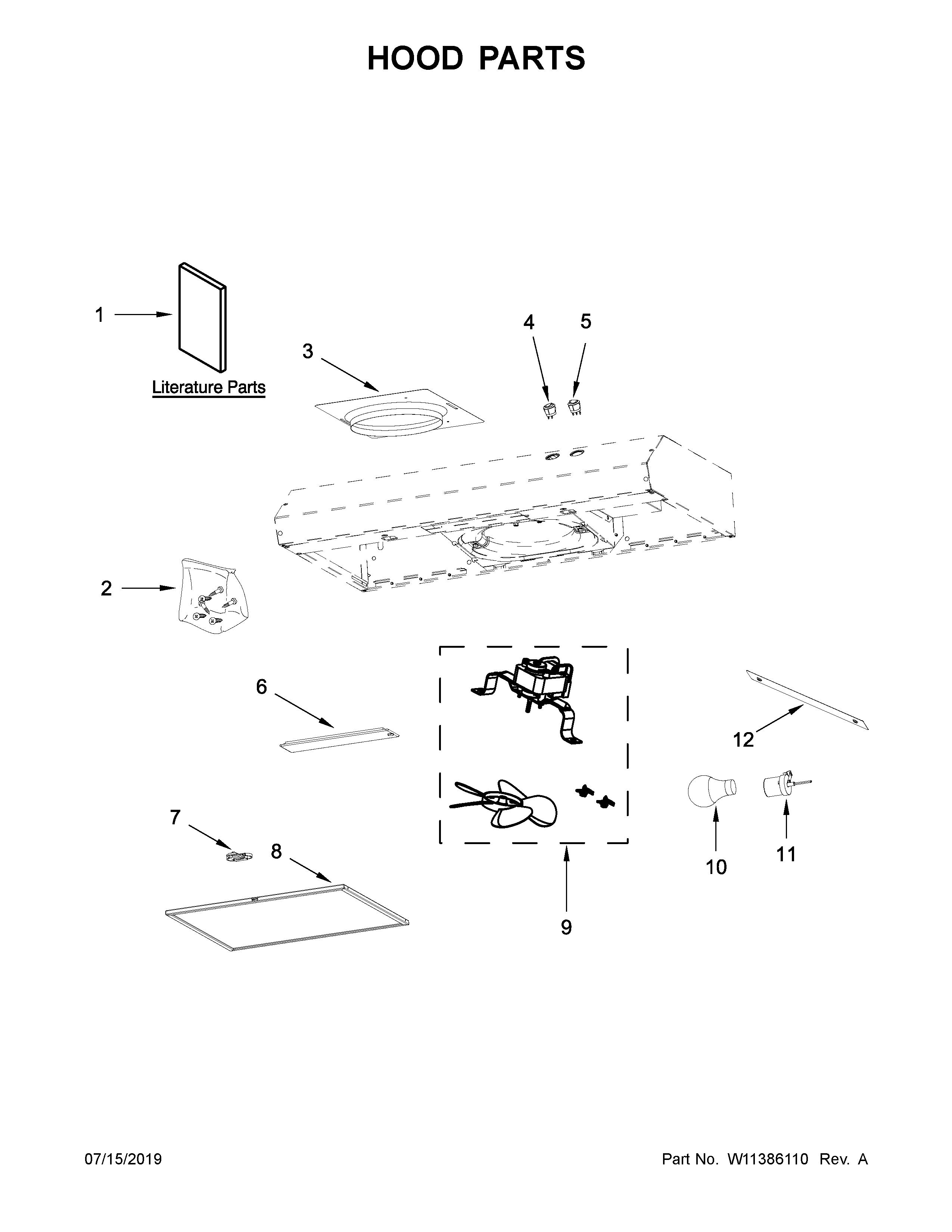

Hood parts diagram

Range hood charcoal filter kit

Part #W11371717

$42.89 |
12% OFF Phone Price : $48.89
In Stock
Light Cover W11369090
#6

Hood parts diagram

Light cover

Part #W11369090

$22.13 |
21% OFF Phone Price : $28.13
In Stock
Rocker Switc W11369105
#5B

Hood parts diagram

Rocker switc

Part #W11369105

$87.11
In Stock
Air Duct W10386343
#3

Hood parts diagram

Air duct

Part #W10386343

$82.47
In Stock
Rocker Switch W10394557
#5

Hood parts diagram

Rocker switch

Part #W10394557

$32.79 |
15% OFF Phone Price : $38.79
In Stock
Rocker Switch W10394521
#5A

Hood parts diagram

Rocker switch

Part #W10394521

$32.82
In Stock
Recirculatio W11360616
#12B

Hood parts diagram

Recirculatio

Part #W11360616

$55.89
In Stock
Light Socket W11369077
#11

Hood parts diagram

Light socket

Part #W11369077

$30.53
In Stock
Rocker Switch W10394520
#4A

Hood parts diagram

Rocker switch

Part #W10394520

$35.56
In Stock
Recirculatio W11360621
#12

Hood parts diagram

Recirculatio

Part #W11360621

$55.89
In Stock
