Model # 153336540 Official Kenmore power miser 10 gas water heater
Here are the diagrams and repair parts for Official Kenmore 153336540 power miser 10 gas water heater, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for153336540 Water Heaters
- #15

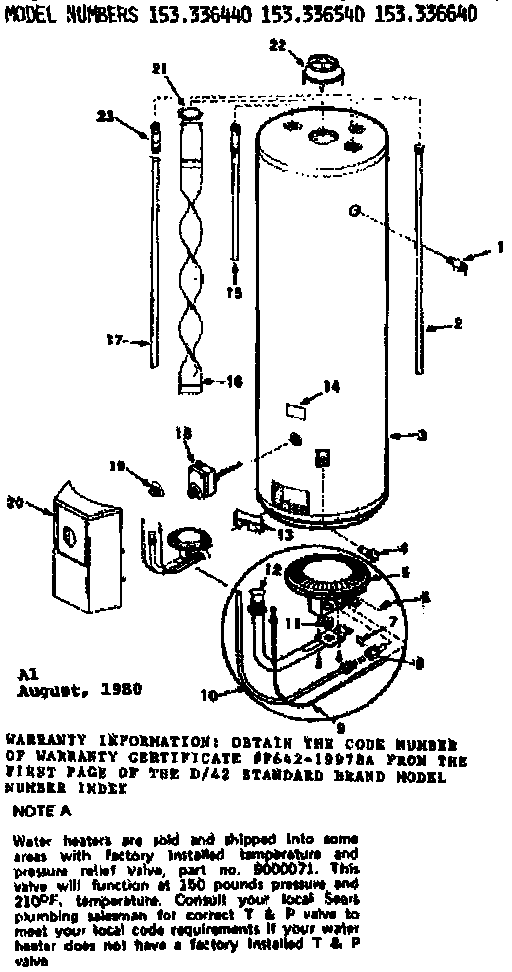

Replacement parts diagram
Anode rodPart #1511225
Replaced by #100300397
?Manufacturer substitutionThis part replaces 1511225. Substitute parts can look different from the original.$89.10 |6% OFF Phone Price : $95.10In Stock - #13
Replacement parts diagram
Water heater manifold inner doorPart #9000281
Replaced by #100108371
?Manufacturer substitutionThis part replaces 9000281. Substitute parts can look different from the original.$58.02In Stock - #4
Replacement parts diagram
DrainPart #9000058
Replaced by #100108269
?Manufacturer substitutionThis part replaces 9000058. Substitute parts can look different from the original.$27.93In Stock - #9
Replacement parts diagram
ThermocouplePart #42-9231
Replaced by #H06E-36
?Manufacturer substitutionThis part replaces 42-9231. Substitute parts can look different from the original.$14.91 |12% OFF Phone Price : $16.91In Stock - #19
Replacement parts diagram
Temperature knobPart #F145-0847
Replaced by #F145-0847
?Manufacturer substitutionThis part replaces F145-0847. Substitute parts can look different from the original.$9.49In Stock - #10
Replacement parts diagram
Water heater pilot tube assemblyPart #9000278
Replaced by #100108370
?Manufacturer substitutionThis part replaces 9000278. Substitute parts can look different from the original.$64.56Back Order - #22
Replacement parts diagram
Water heater vent draft hoodPart #9000274
Replaced by #100108368
?Manufacturer substitutionThis part replaces 9000274. Substitute parts can look different from the original.$64.56In Stock - #12B
Replacement parts diagram
ManifoldPart #0220105
Replaced by #100108783
?Manufacturer substitutionThis part replaces 0220105. Substitute parts can look different from the original.$97.82In Stock - #12C
Replacement parts diagram
ManifoldPart #0220106
Replaced by #100108784
?Manufacturer substitutionThis part replaces 0220106. Substitute parts can look different from the original.$97.82In Stock - #17A
Replacement parts diagram
Dip tubePart #0260127
Replaced by #100108763
?Manufacturer substitutionThis part replaces 0260127. Substitute parts can look different from the original.$51.58In Stock
