GE
Top-Mount Refrigerator

Model # TBT19PATERAA Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE TBT19PATERAA top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

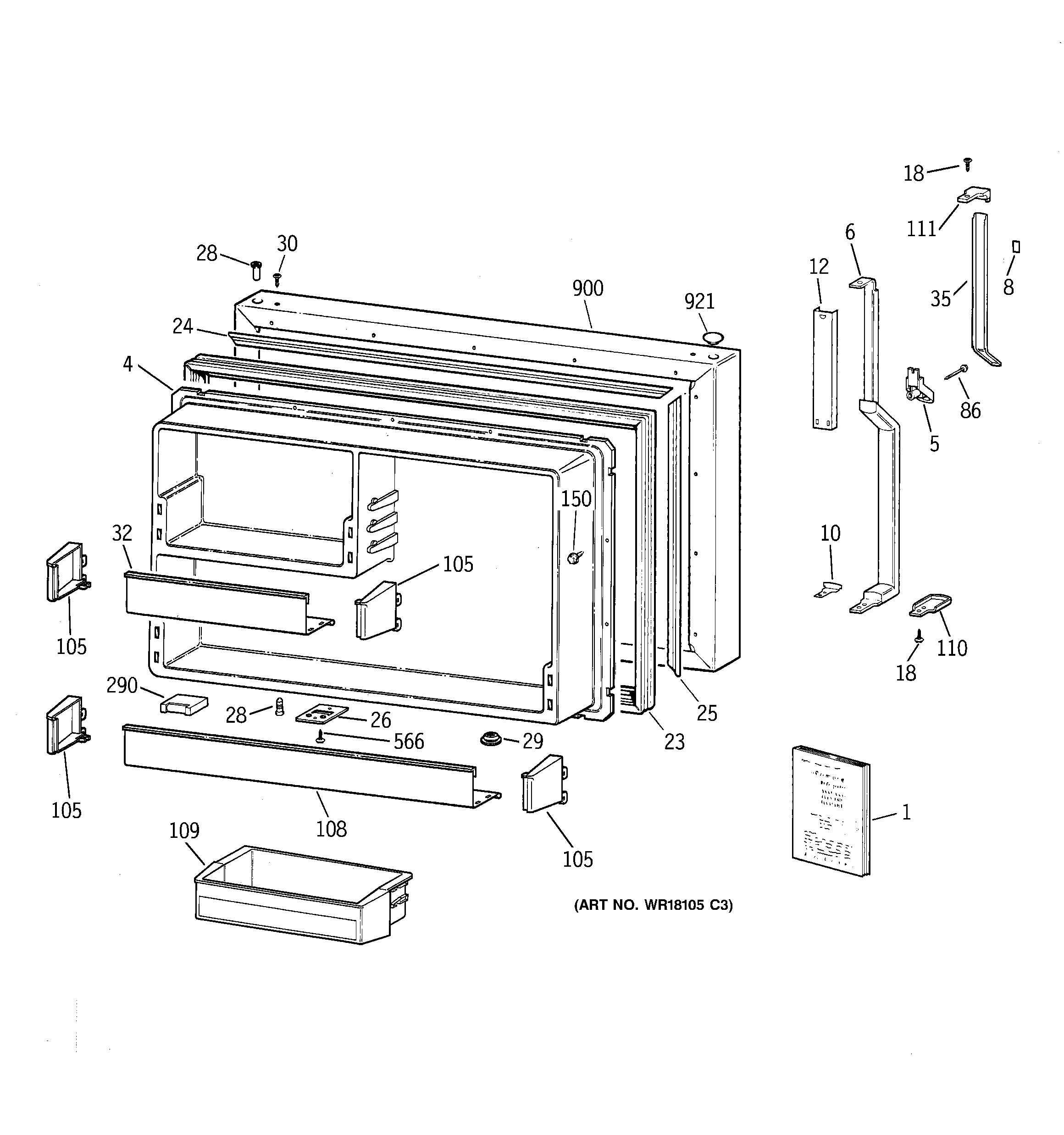

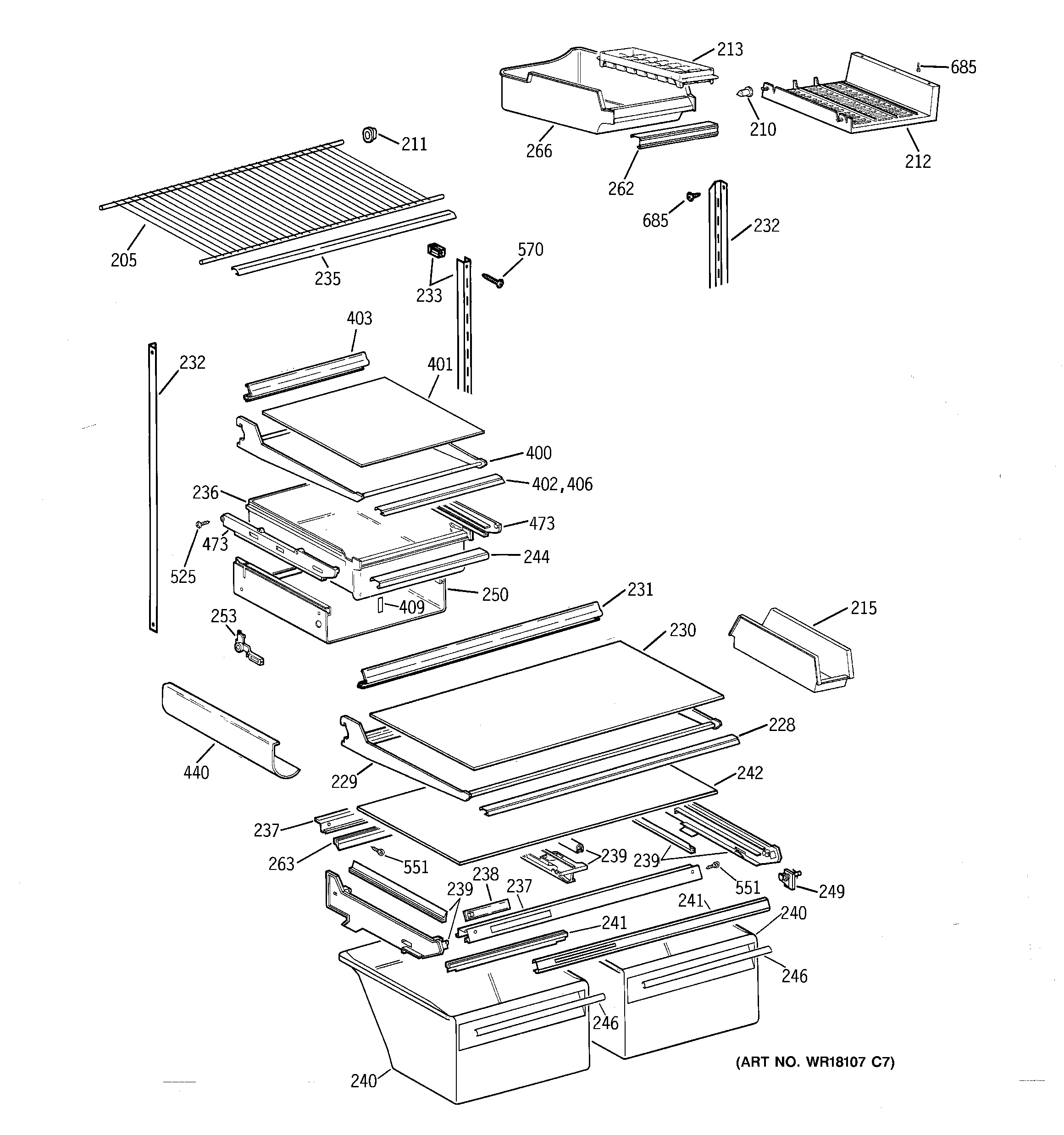

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 231 parts  |
Dryer Assembly WR86X0086
#740

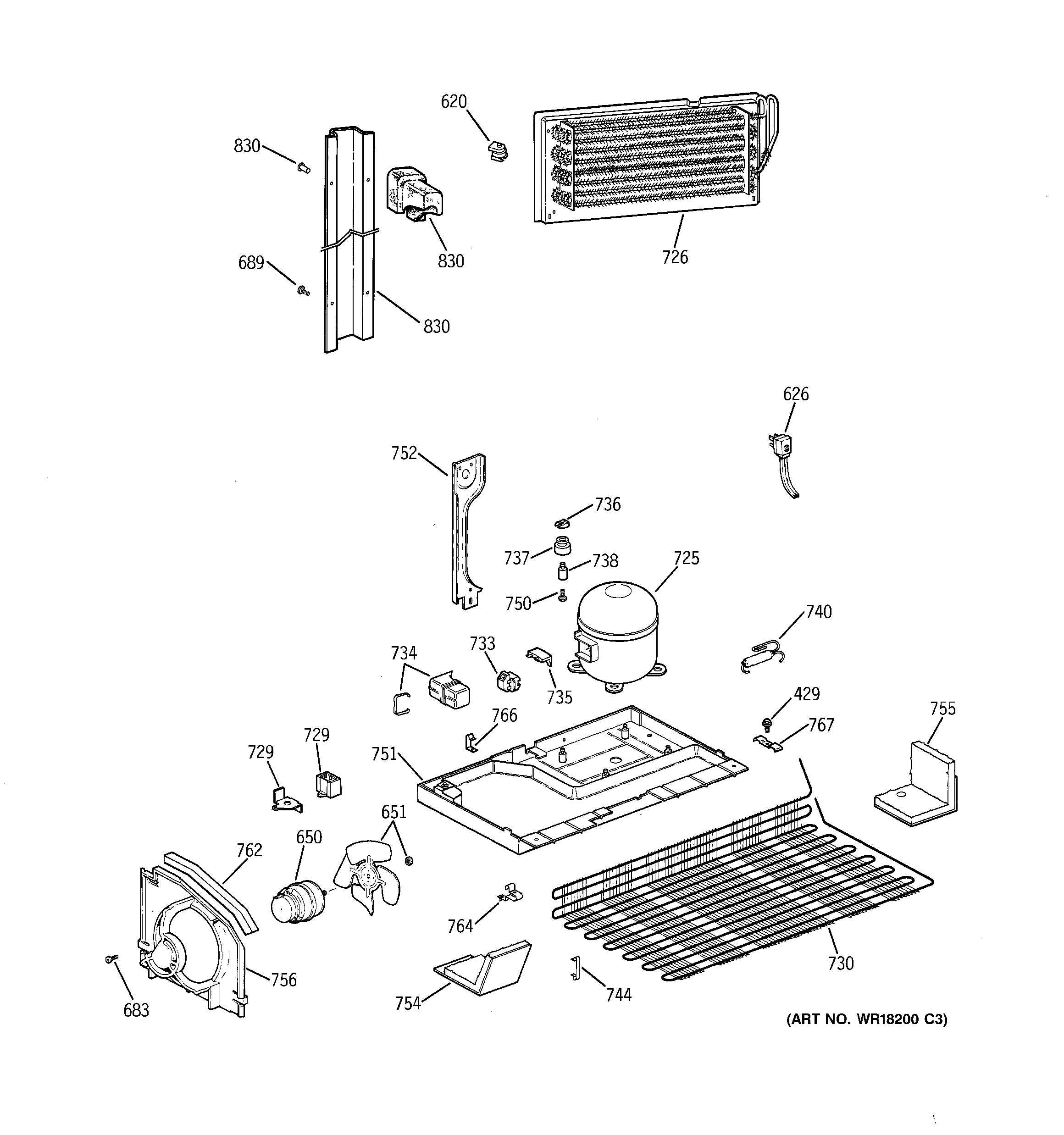

Unit parts diagram

Dryer assembly

Part #WR86X0086

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0086. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Defrost Control WR09X0490
#648

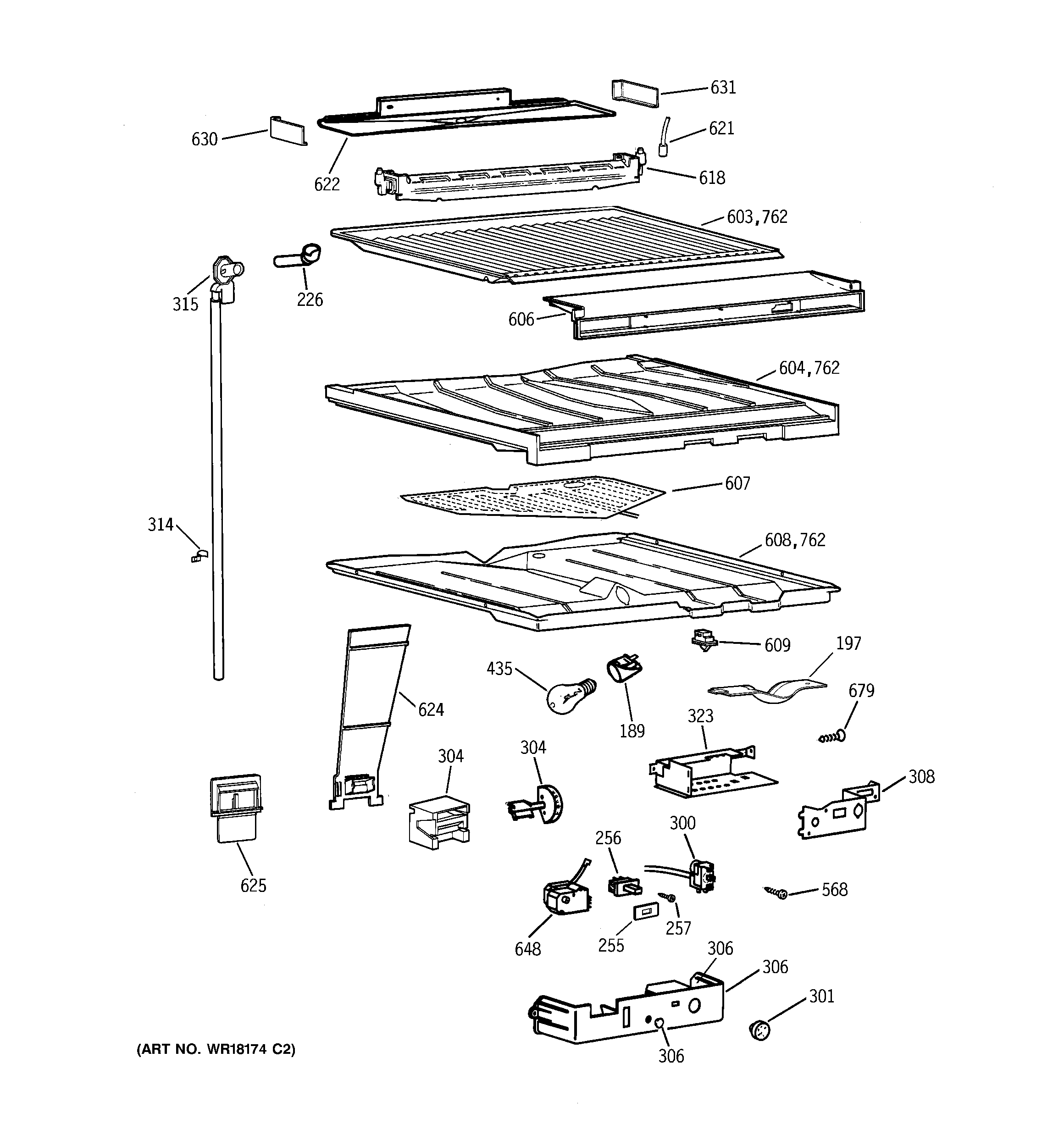

Compartment separator parts diagram

Refrigerator defrost control

Part #WR09X0490

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X0490. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Refrigerator Door Gasket WR24X0450
#104

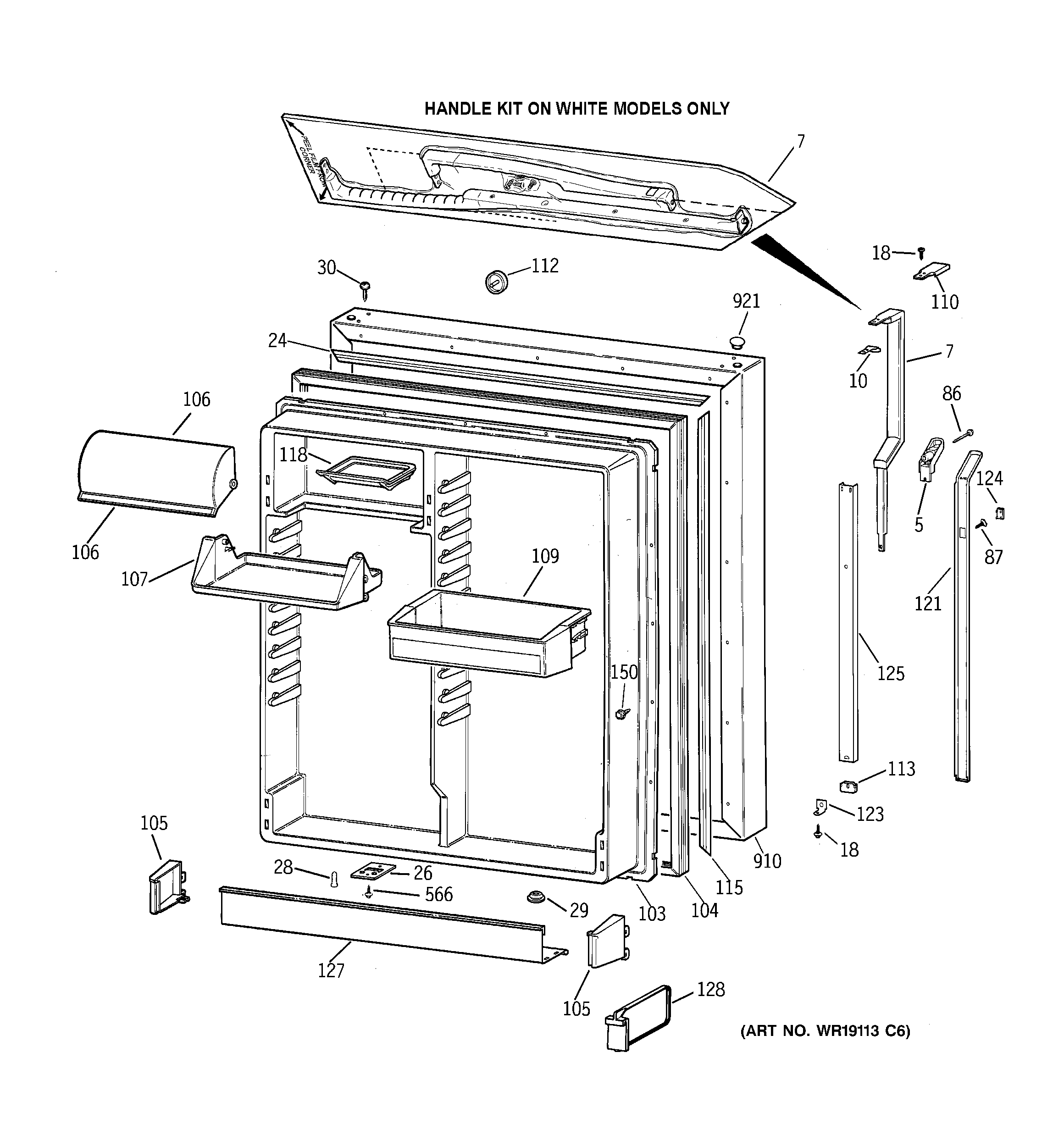

Fresh food door diagram

Refrigerator door gasket

Part #WR24X0450

Replaced by #WR24X450

?
Manufacturer substitution
This part replaces WR24X0450. Substitute parts can look different from the original.
$96.44 |
11% OFF Phone Price : $108.44
In Stock
Refrigerator Light Switch WR23X0359
#609

Compartment separator parts diagram

Refrigerator light switch

Part #WR23X0359

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0359. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Fan Blade WR60X0123
#613

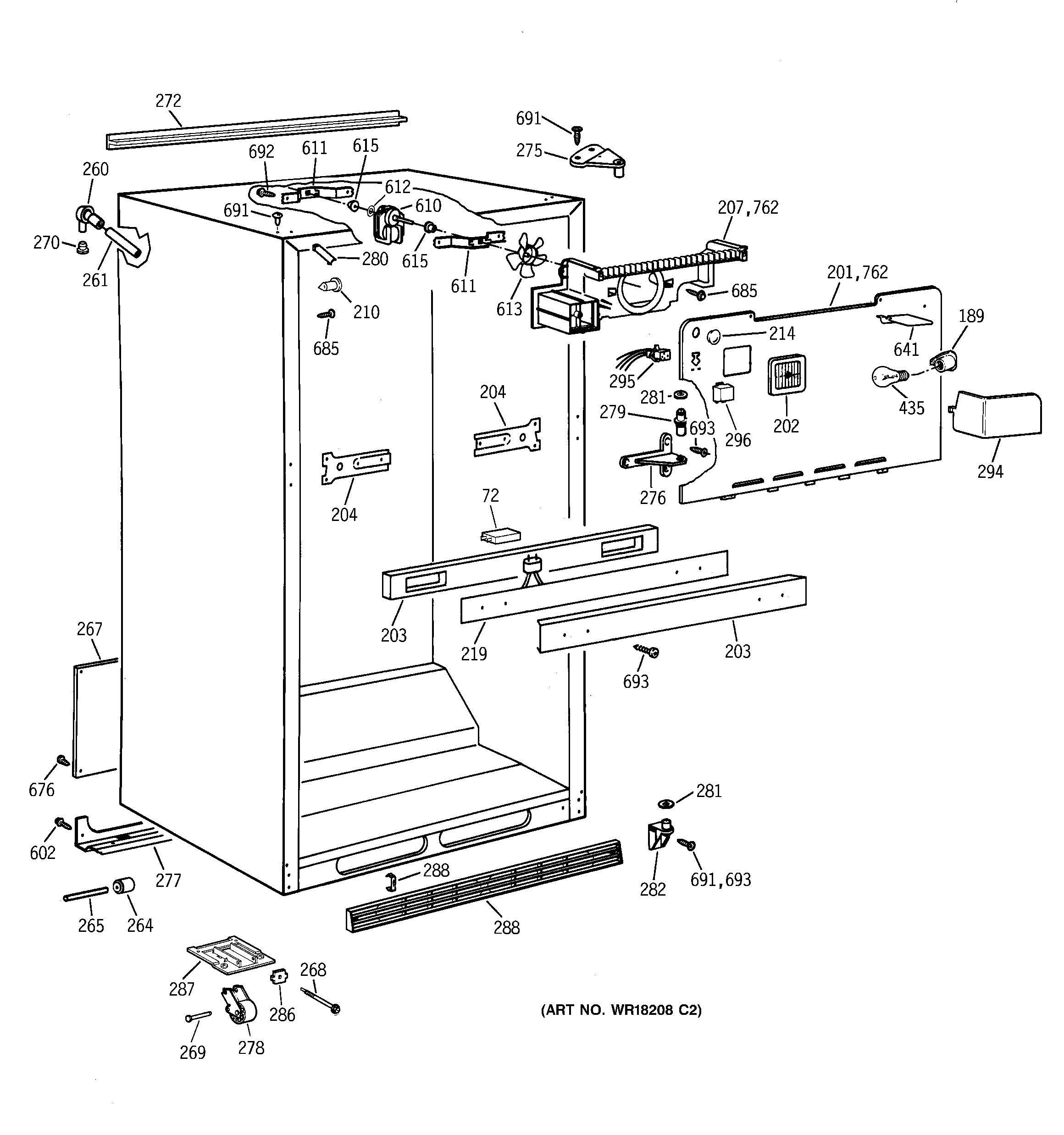

Cabinet parts diagram

Refrigerator fan blade

Part #WR60X0123

Replaced by #WR60X123

?
Manufacturer substitution
This part replaces WR60X0123. Substitute parts can look different from the original.
$65.59 |
8% OFF Phone Price : $71.59
In Stock
Drive Reversible Plug WR02X8693
#112

Fresh food door diagram

Drive reversible plug

Part #WR02X8693

Replaced by #WR01X21159

?
Manufacturer substitution
This part replaces WR02X8693. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Cover Gasket WR14X0313
Refrigerator cover gasket

Part #WR14X0313

Replaced by #WR14X313

?
Manufacturer substitution
This part replaces WR14X0313. Substitute parts can look different from the original.
$17.31 |
10% OFF Phone Price : $19.31
In Stock
Hinge Washer WR01X1797
#281

Cabinet parts diagram

Hinge washer

Part #WR01X1797

Replaced by #WR1X1797D

?
Manufacturer substitution
This part replaces WR01X1797. Substitute parts can look different from the original.
$23.67 |
20% OFF Phone Price : $29.67
In Stock
Refrigerator Screw WR01X1804
Refrigerator screw

Part #WR01X1804

Replaced by #WR01X10606

?
Manufacturer substitution
This part replaces WR01X1804. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
