Kenmore
Humidifier

Model # 303938012 Official Kenmore 20 central humidifier

Here are the diagrams and repair parts for Official Kenmore 303938012 20 central humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |

Twist-on Wire Connector STD375005
#49

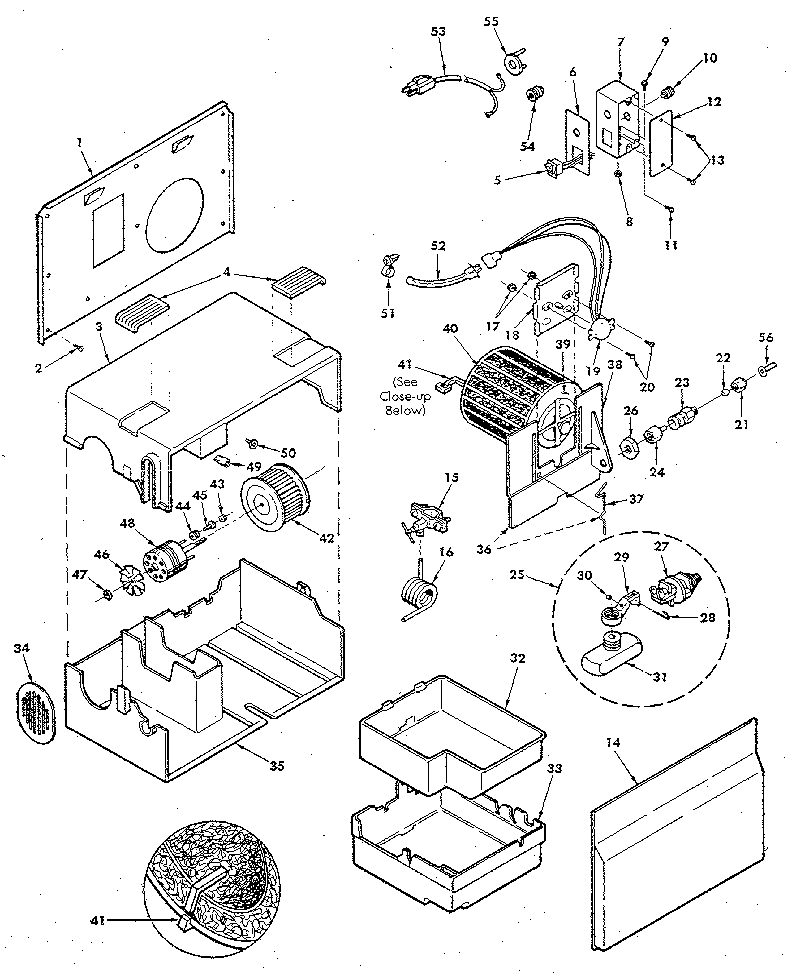

Replacement parts diagram

Twist-on wire connector

Part #STD375005

The manufacturer no longer makes this part, and there's no substitute part

Saddle Valve 355618-01
#15

Replacement parts diagram

Saddle valve

Part #355618-01

The manufacturer no longer makes this part, and there's no substitute part

Box Cover 225156-01
#12

Replacement parts diagram

Box cover

Part #225156-01

The manufacturer no longer makes this part, and there's no substitute part

Spring Clip 030114-08
#47

Replacement parts diagram

Spring clip

Part #030114-08

The manufacturer no longer makes this part, and there's no substitute part

Nut 030137-12
#43

Replacement parts diagram

Nut

Part #030137-12

The manufacturer no longer makes this part, and there's no substitute part

Socket 215702-01
#23

Replacement parts diagram

Socket

Part #215702-01

The manufacturer no longer makes this part, and there's no substitute part

Conduit Box 215725-01
#7

Replacement parts diagram

Conduit box

Part #215725-01

The manufacturer no longer makes this part, and there's no substitute part

Media Pad 355692-04
#40

Replacement parts diagram

Media pad

Part #355692-04

The manufacturer no longer makes this part, and there's no substitute part

Fastener 030213-03
#50

Replacement parts diagram

Fastener

Part #030213-03

The manufacturer no longer makes this part, and there's no substitute part

Float Arm 225138-01
#29

Replacement parts diagram

Float arm

Part #225138-01

The manufacturer no longer makes this part, and there's no substitute part
