Model # PGS960YP2FS Official GE gas range

Here are the diagrams and repair parts for Official GE PGS960YP2FS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

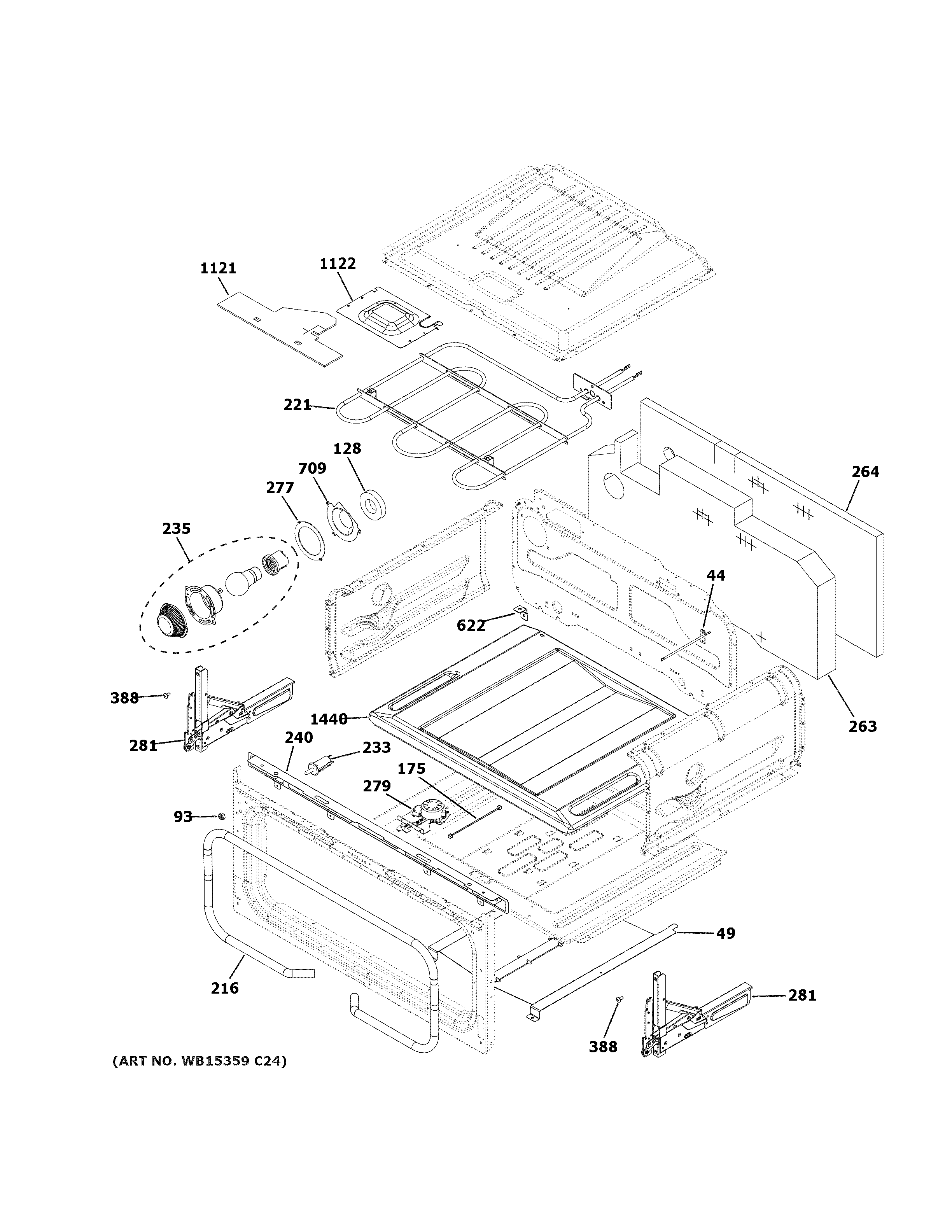

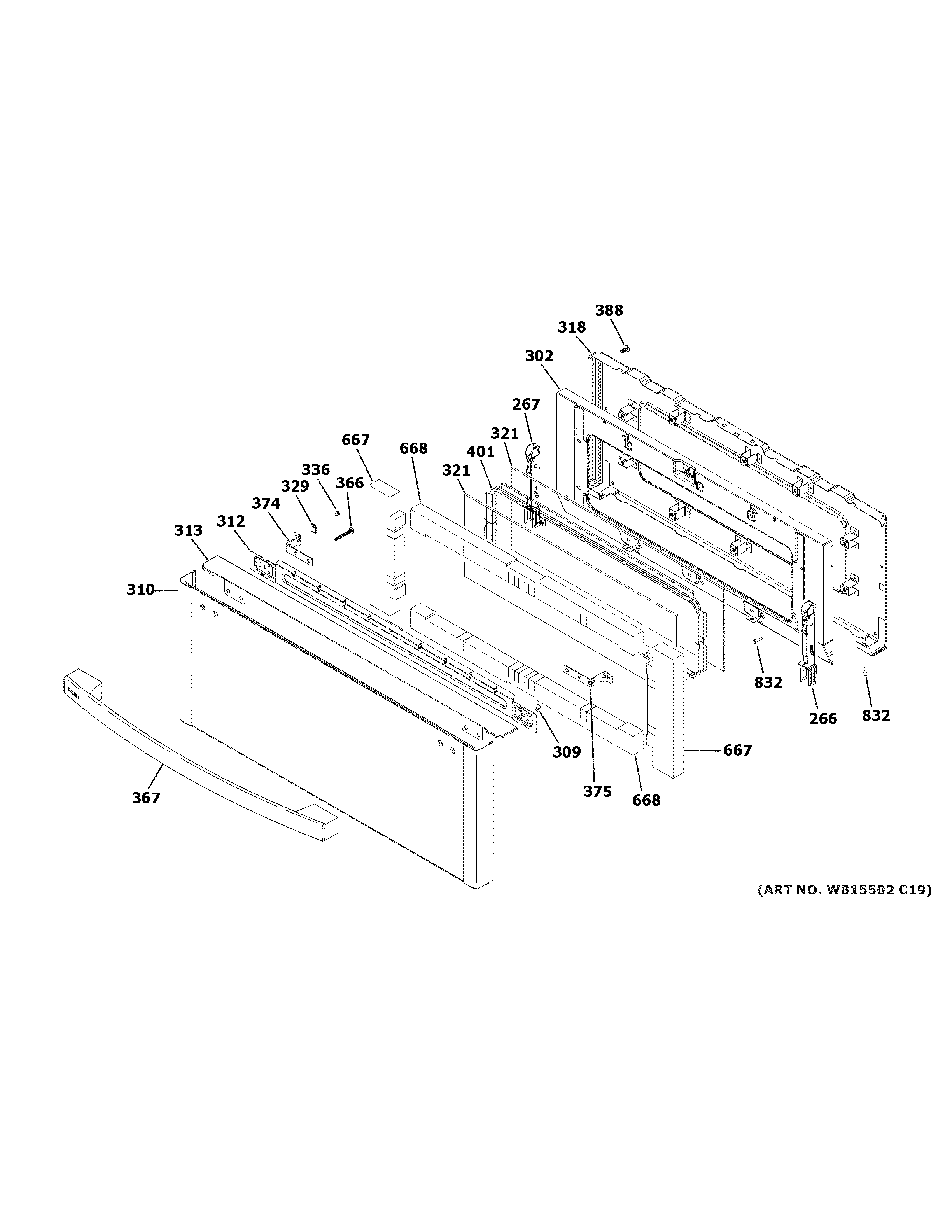

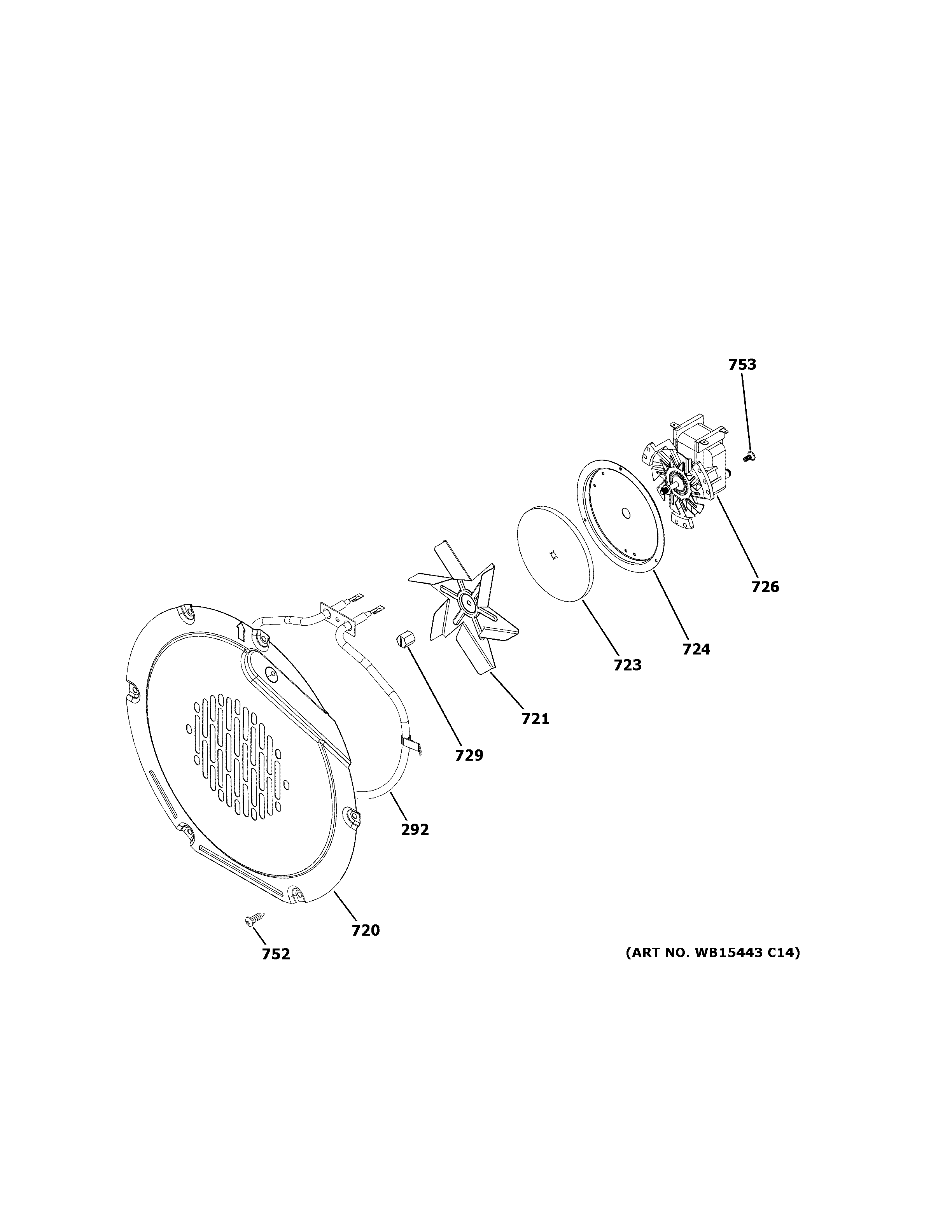

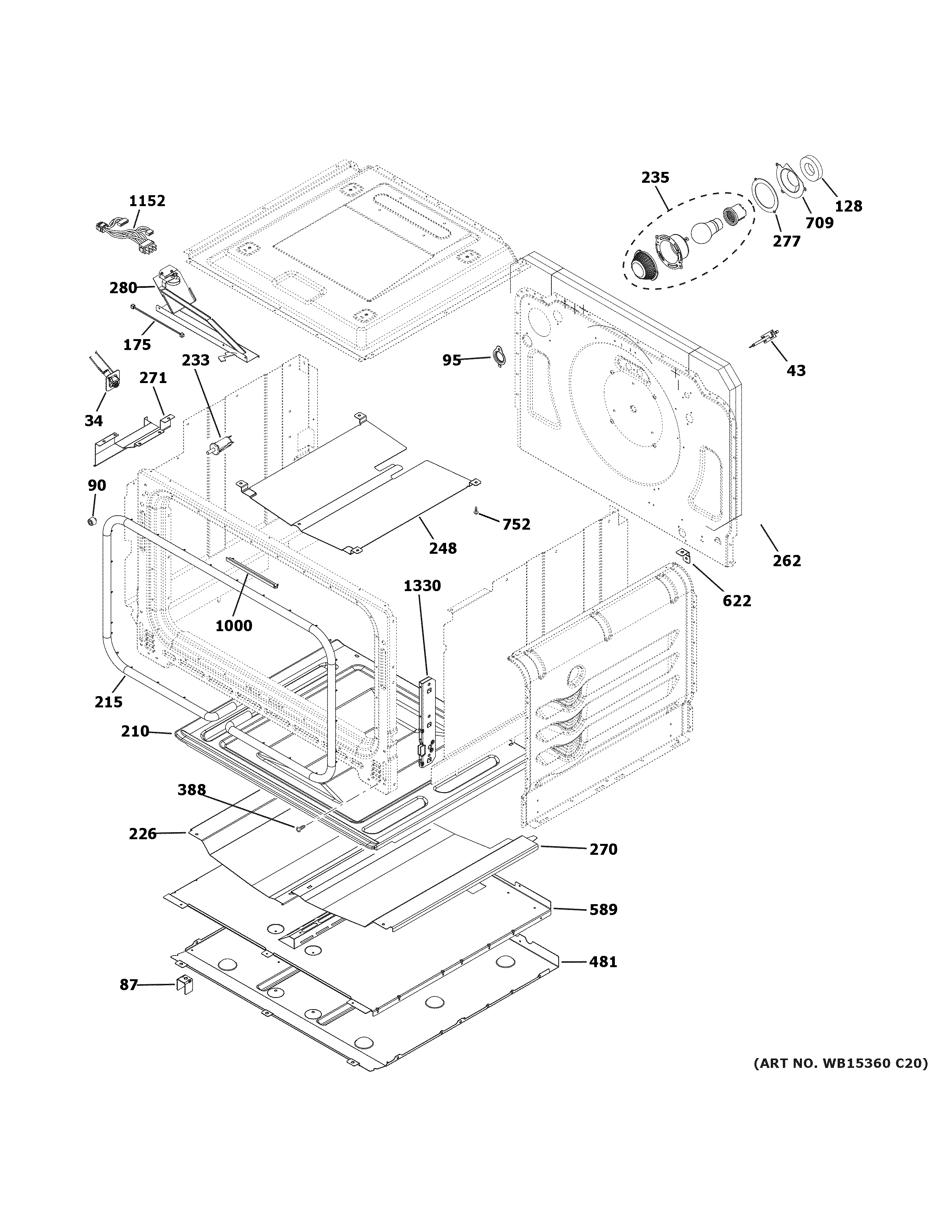

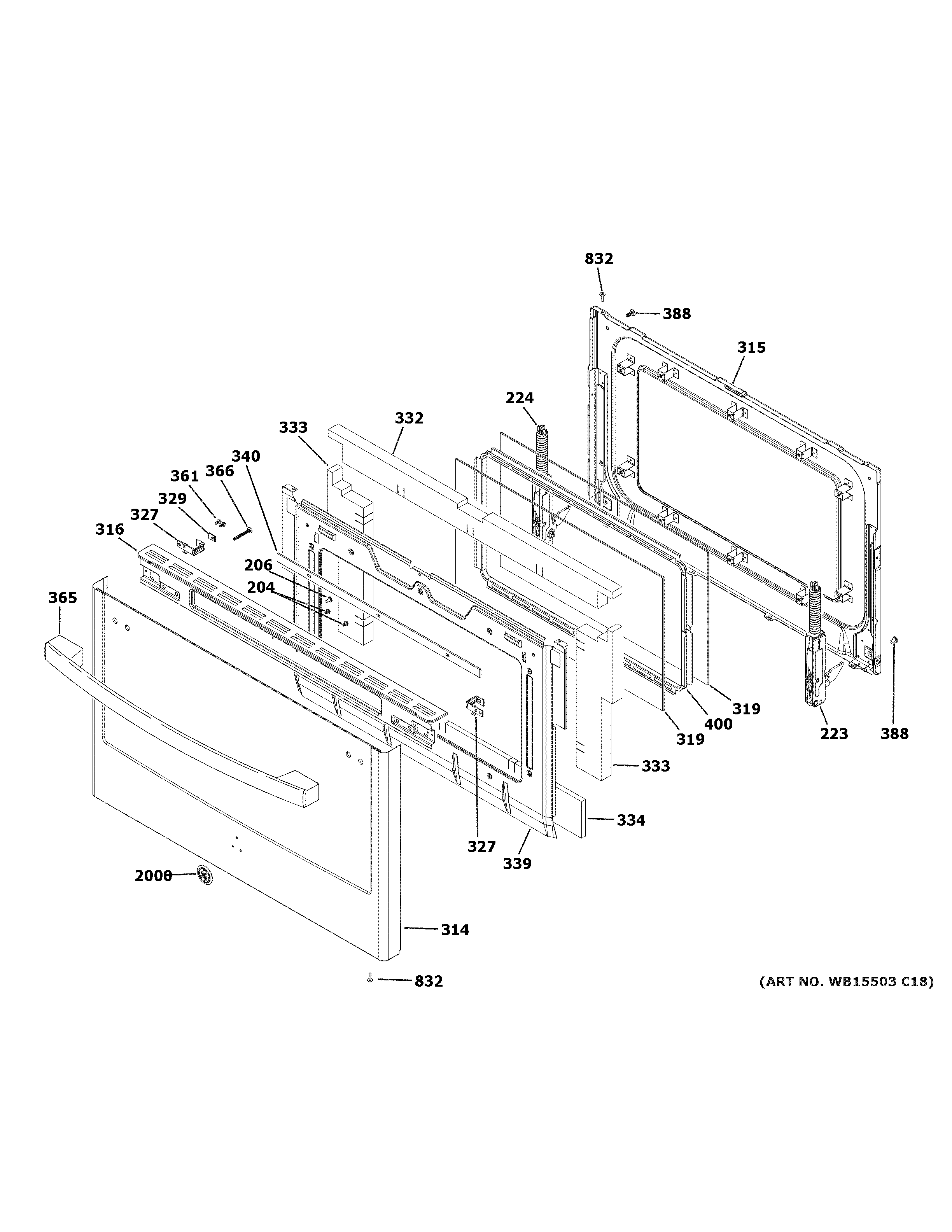

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 212 parts  |
Range Cooling Fan Sensor Board (replaces Wb27t11451, Wb27x23614) WB27X28659
#109

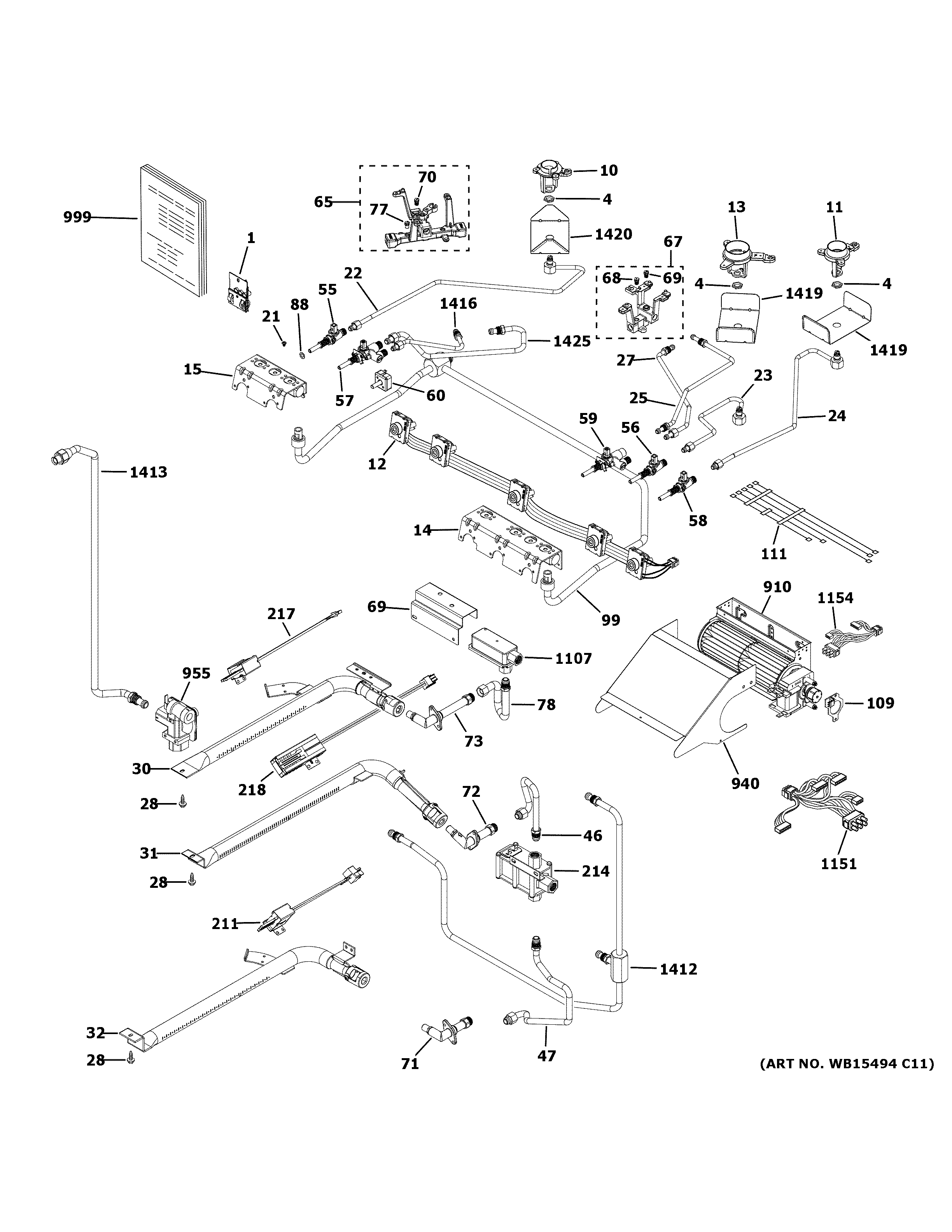

Gas & burner parts diagram

Range cooling fan sensor board (replaces wb27t11451, wb27x23614)

Part #WB27X28659

BEST SELLER
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Range Surface Burner Cap WB28K10222
#152

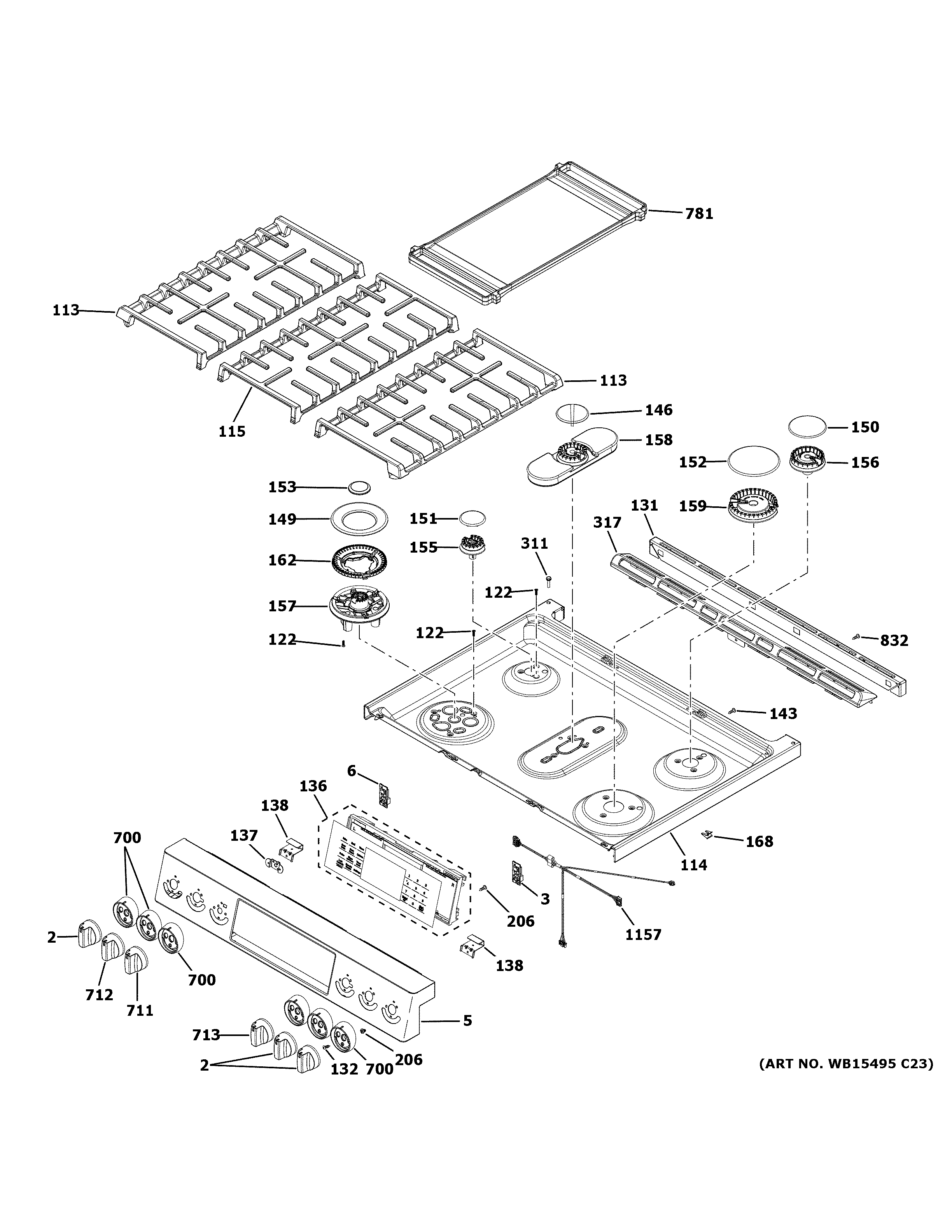

Control panel & cooktop diagram

Range surface burner cap

Part #WB28K10222

BEST SELLER
$18.35 |
10% OFF Phone Price : $20.35
In Stock
Range Extra Large Surface Burner, 18,000-btu WB16X24722
#159

Control panel & cooktop diagram

Range extra large surface burner, 18,000-btu

Part #WB16X24722

BEST SELLER
This item is not returnable
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Range Surface Burner Cap WB29K10023
#150

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10023

BEST SELLER
$22.10 |
21% OFF Phone Price : $28.10
In Stock
Range Surface Burner Valve WB21X20612
#58

Gas & burner parts diagram

Range surface burner valve

Part #WB21X20612

BEST SELLER
This item is not returnable
$22.33 |
21% OFF Phone Price : $28.33
In Stock
Oven Lamp Holder WB08T10002
Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Range Oven Meat Probe Sensor (replaces Wb20k5034, Wb20x5034, Wb20x5064) WB20X5050
#730

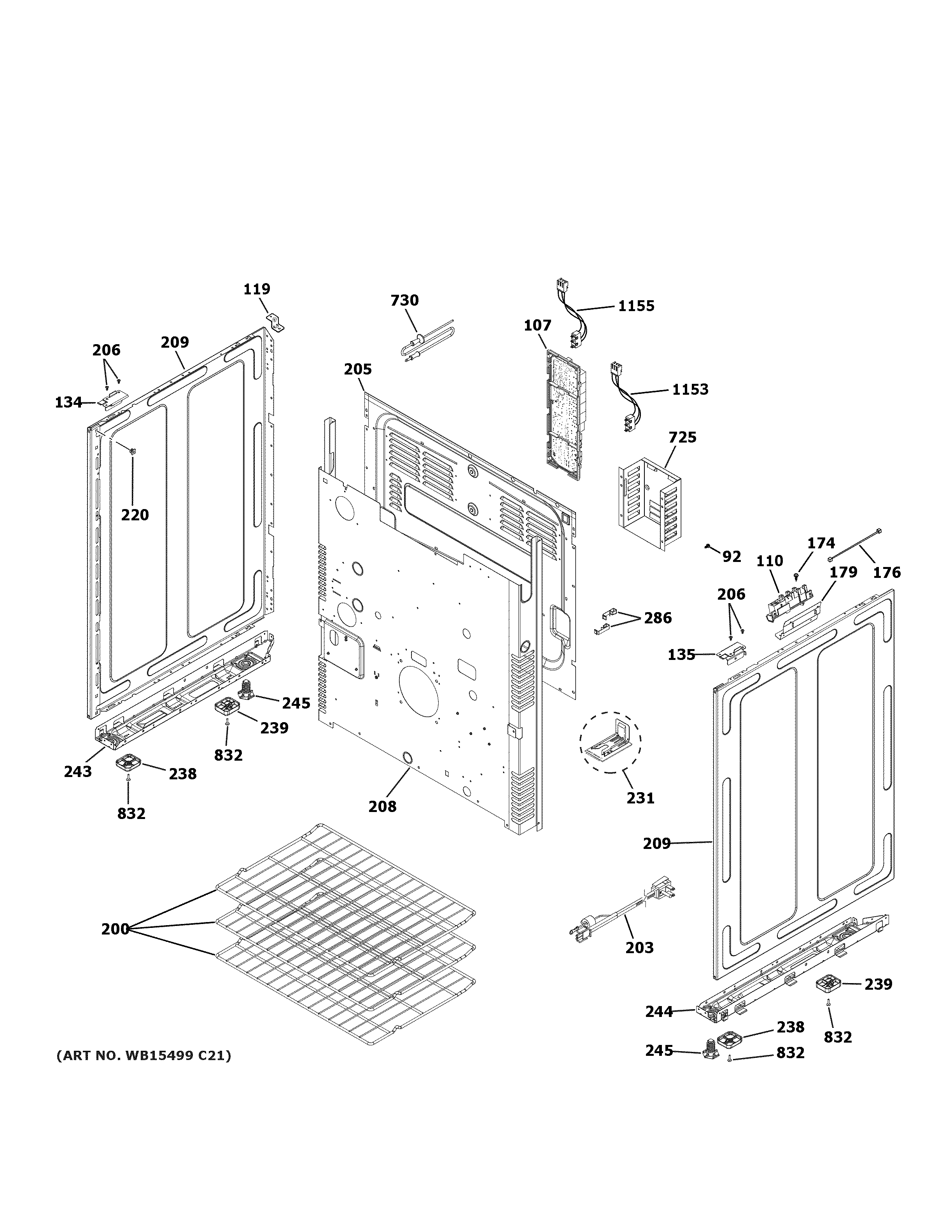

Body parts diagram
