Model # 41741942711 Official Kenmore washer
Here are the diagrams and repair parts for Official Kenmore 41741942711 washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

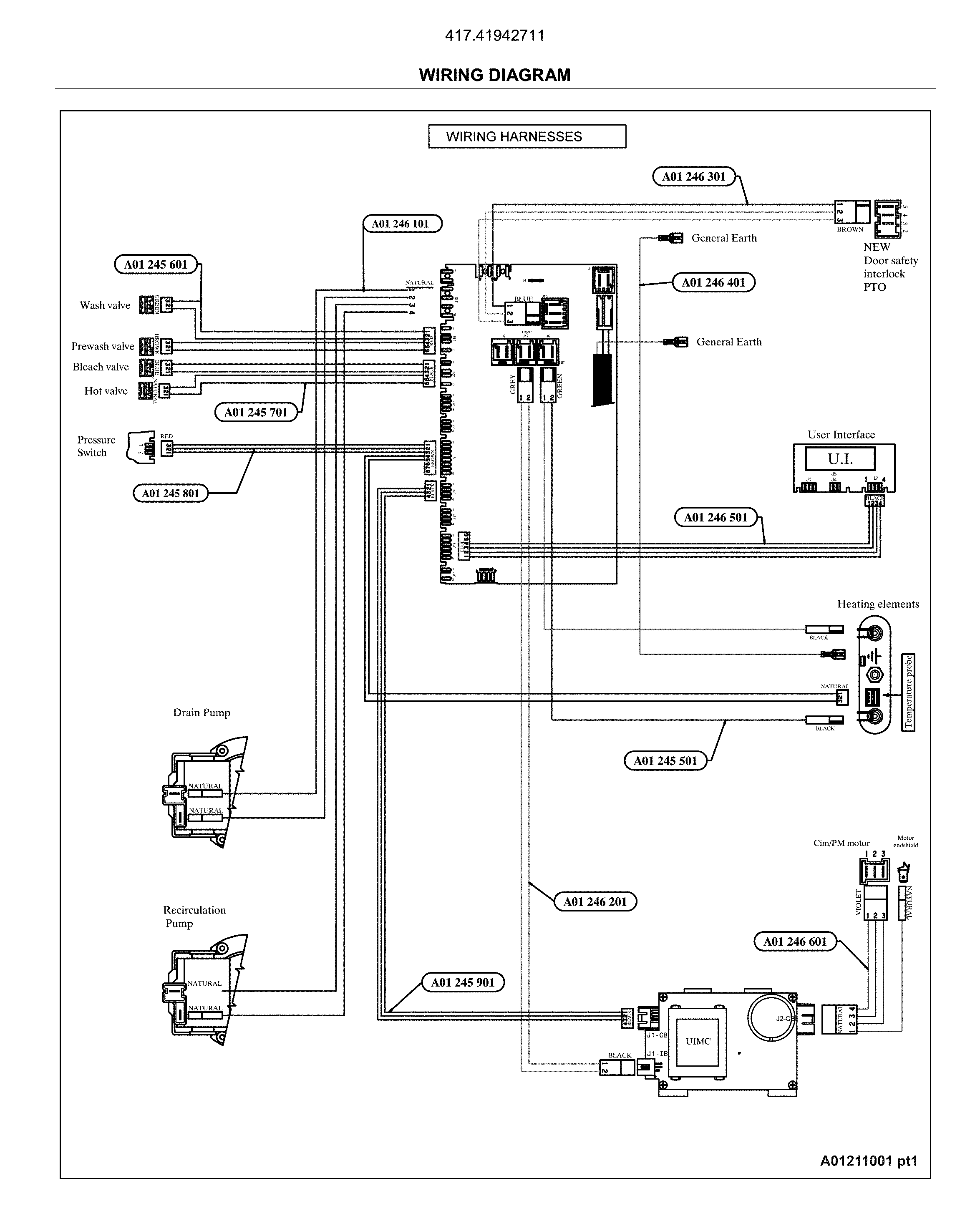

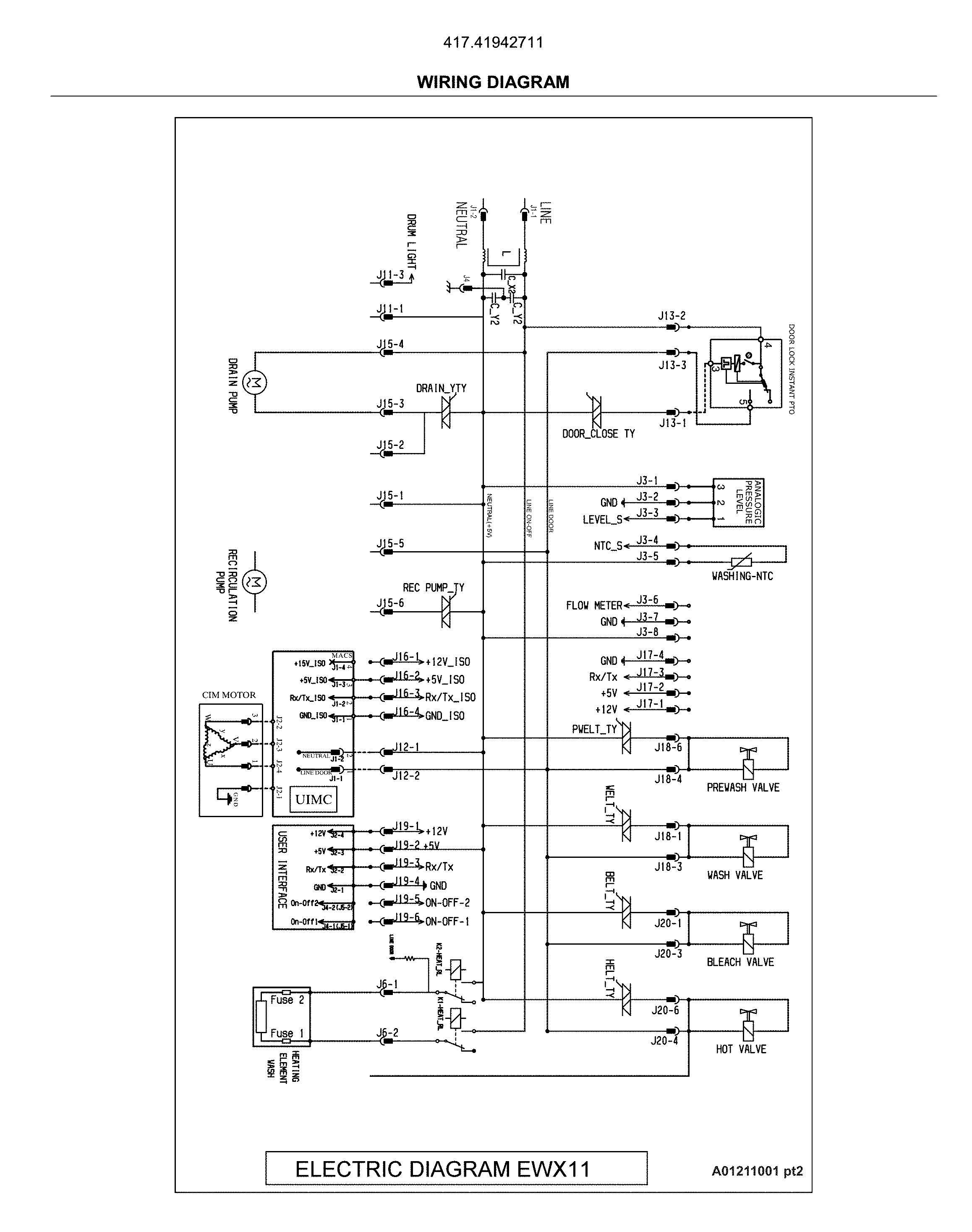

Error CodesBy Schematic
By Part

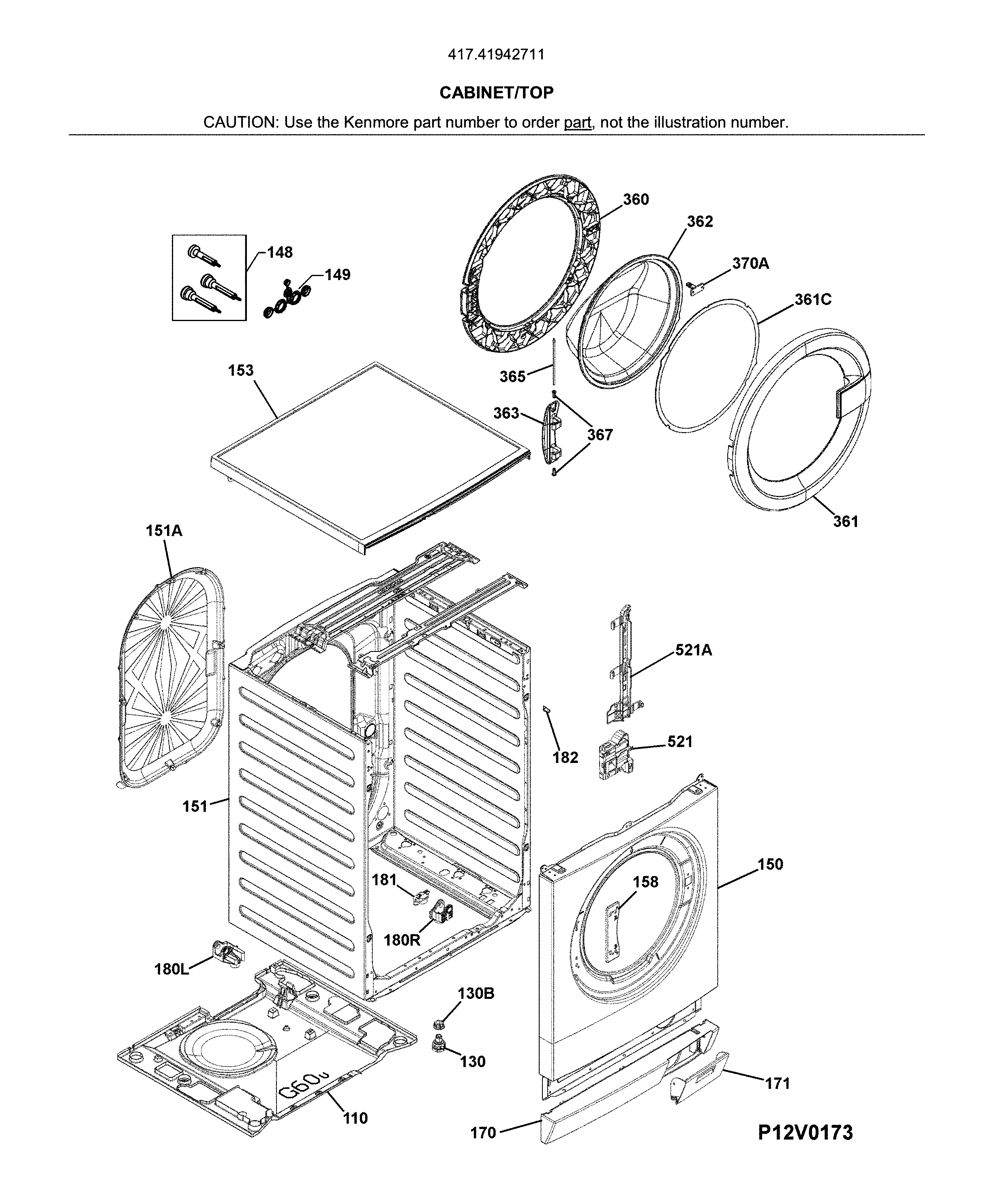

SELECT DIAGRAM
Browse Parts for
41741942711 Washer
#839

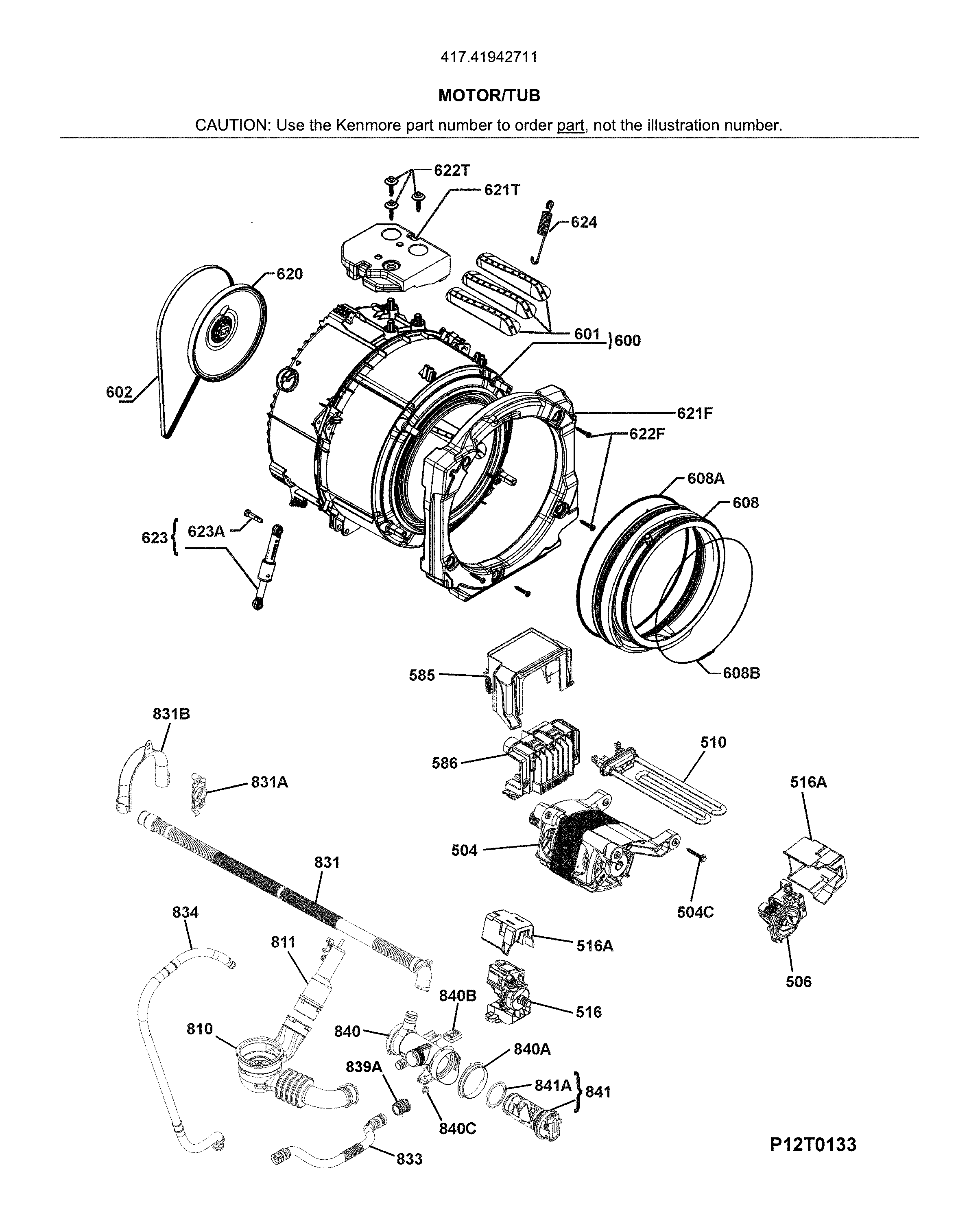

Motor/tub diagram
Hose
Part #132511300
Replaced by #5304526694
?
Manufacturer substitution
This part replaces 132511300. Substitute parts can look different from the original.
$34.67 |
15% OFF Phone Price : $40.67
In Stock
#507

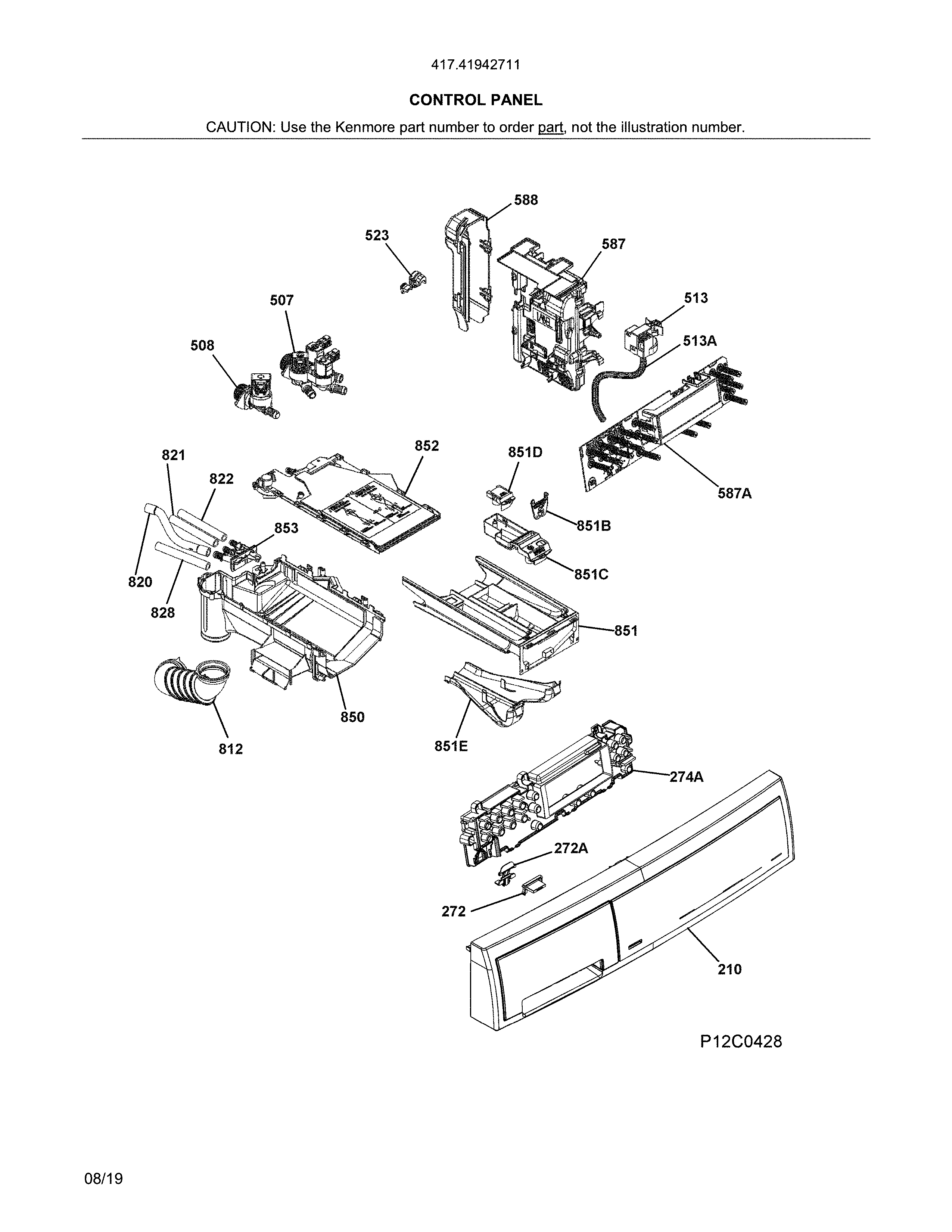

Control panel diagram
Washer 3-way water inlet valve
Part #132518842
$84.00 |
7% OFF Phone Price : $90.00
In Stock
#587
Control panel diagram
Kenmore washer user interface
Part #A10066602
This item is not returnable
$212.63 |
5% OFF Phone Price : $224.63
In Stock
#508
Control panel diagram
Washer dispenser valve
Part #132744701
$59.82 |
9% OFF Phone Price : $65.82
In Stock
#513
Control panel diagram
Switch
Part #132819501
Replaced by #379221604
?
Manufacturer substitution
This part replaces 132819501. Substitute parts can look different from the original.
$73.56
In Stock
#274
Control panel diagram
Washer user interface light diffuser
Part #136659600
$115.46
In Stock
#623
Motor/tub diagram
Cushion
Part #405536793
$102.70
In Stock
#586
Motor/tub diagram
Washer drive motor inverter board
Part #A01118401
$229.20 |
5% OFF Phone Price : $241.20
In Stock
#840
Motor/tub diagram
Washer gasket
Part #132765200
$44.32 |
12% OFF Phone Price : $50.32
In Stock
#851
Control panel diagram
Funnel
Part #809169801
$56.99 |
10% OFF Phone Price : $62.99
In Stock
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
