GE
Top-Mount Refrigerator

Model # GTH20JBBARWW Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE GTH20JBBARWW refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

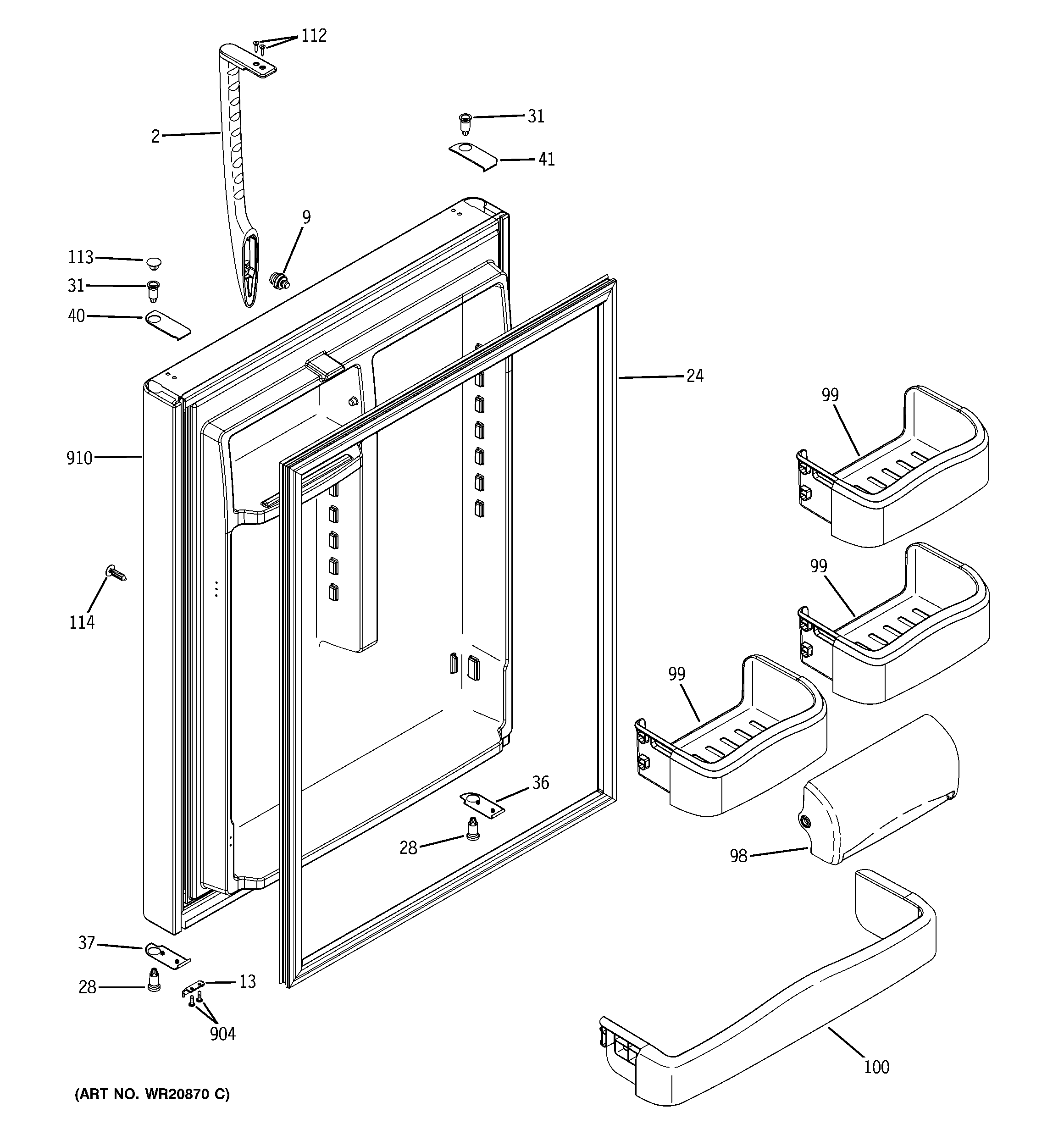

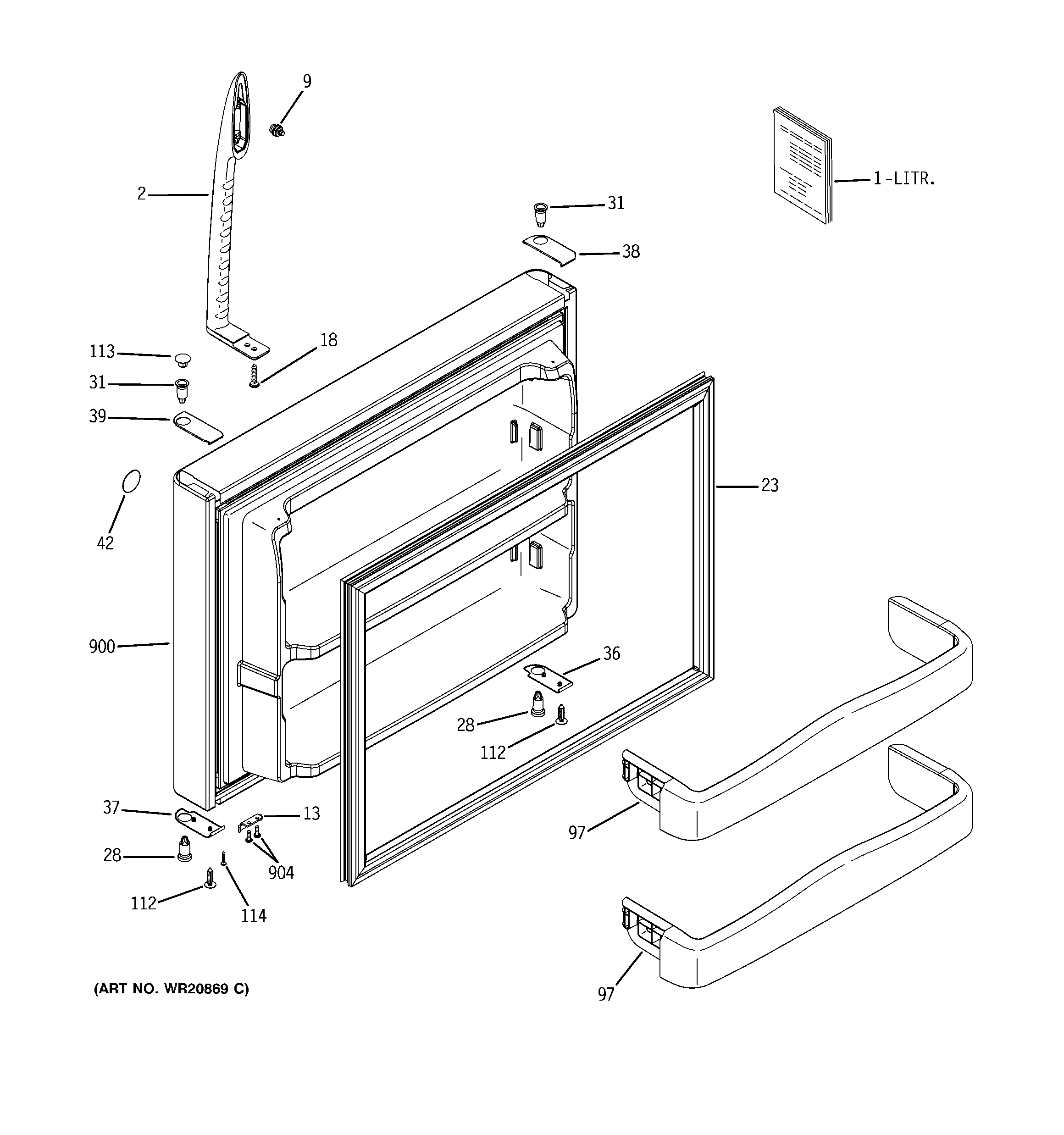

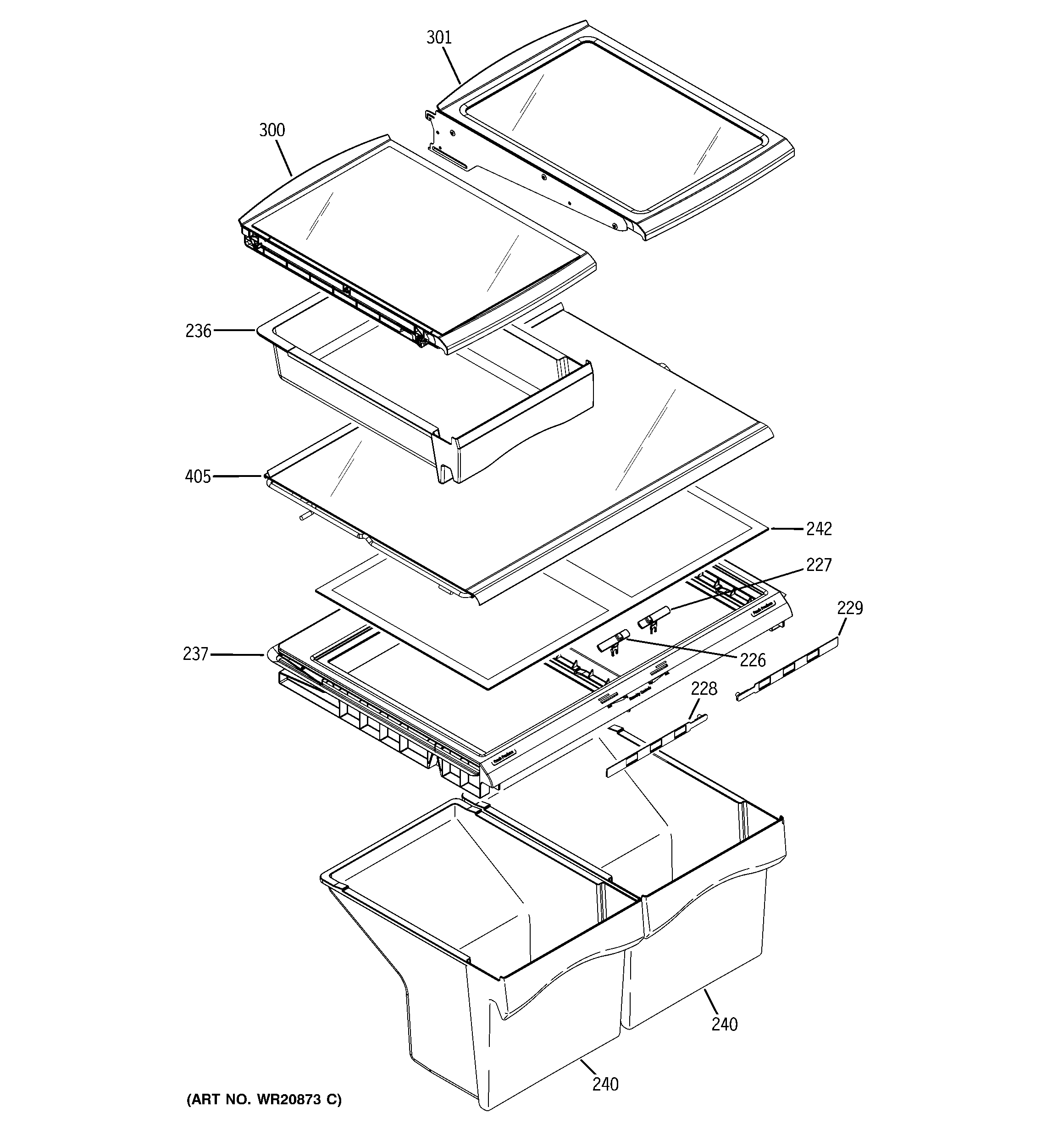

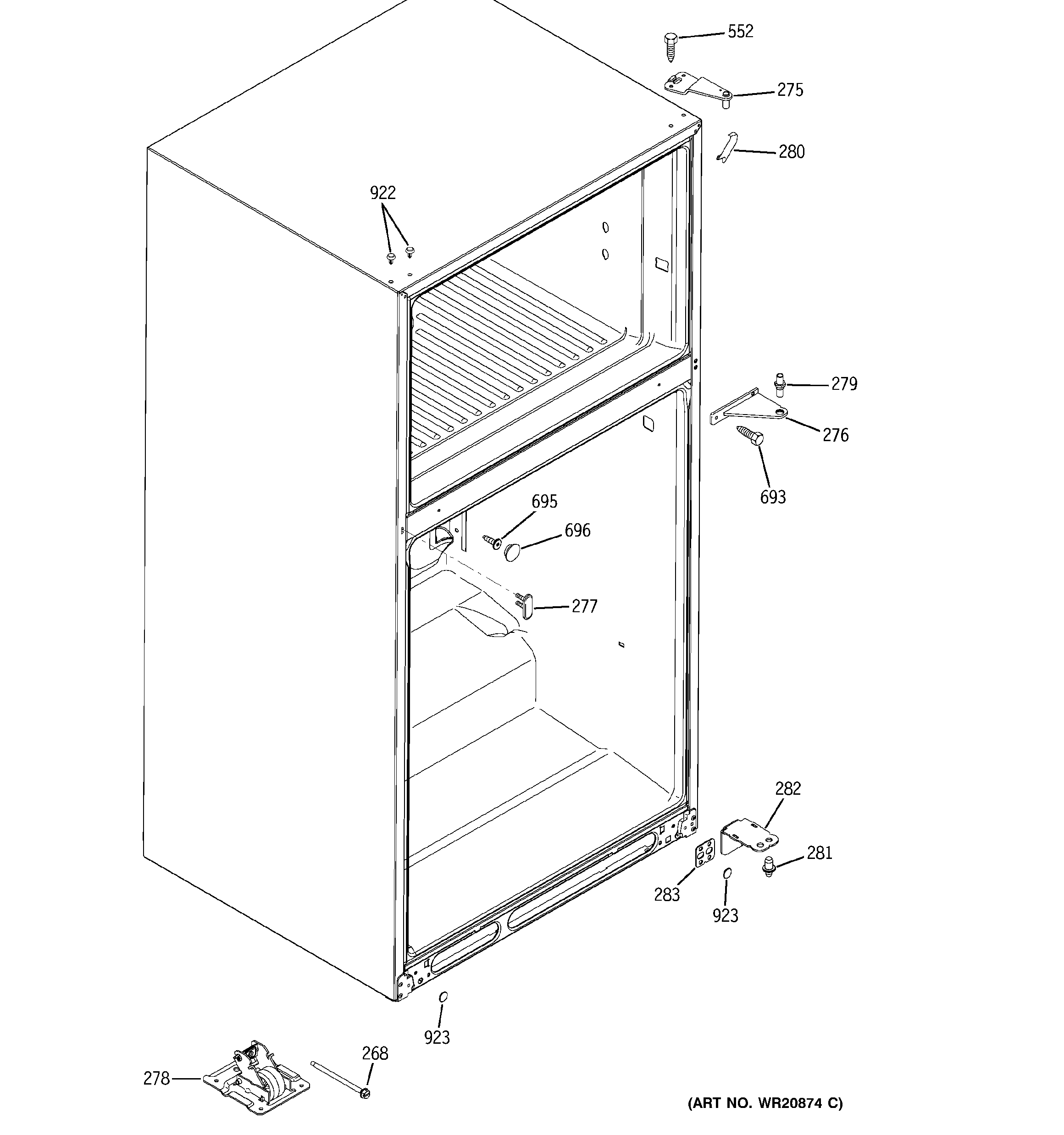

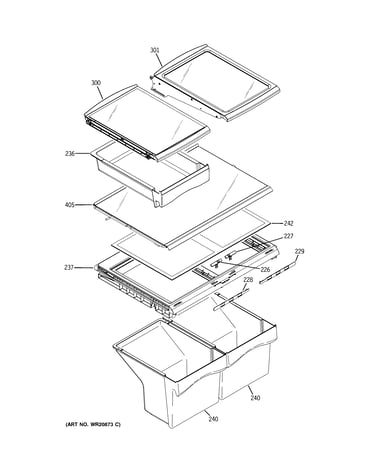

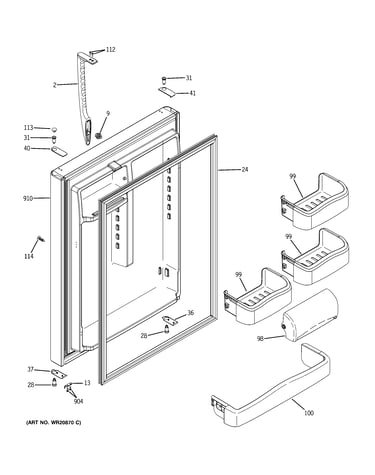

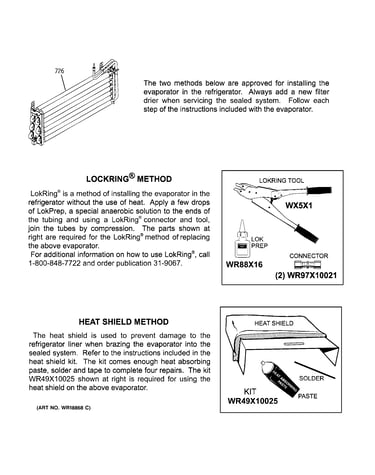

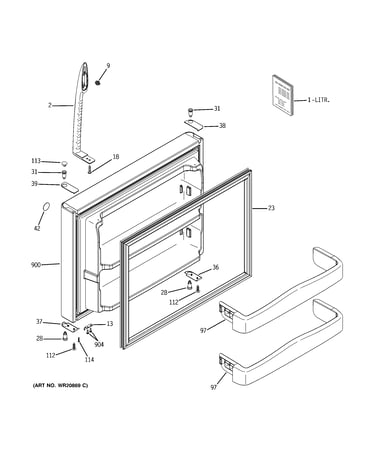

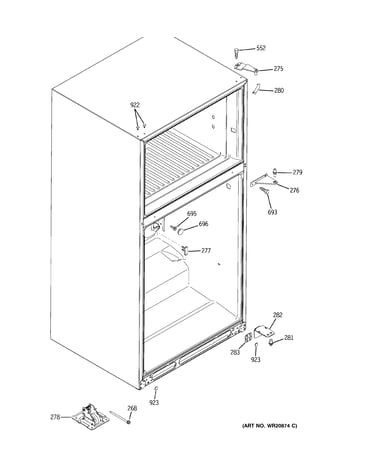

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |

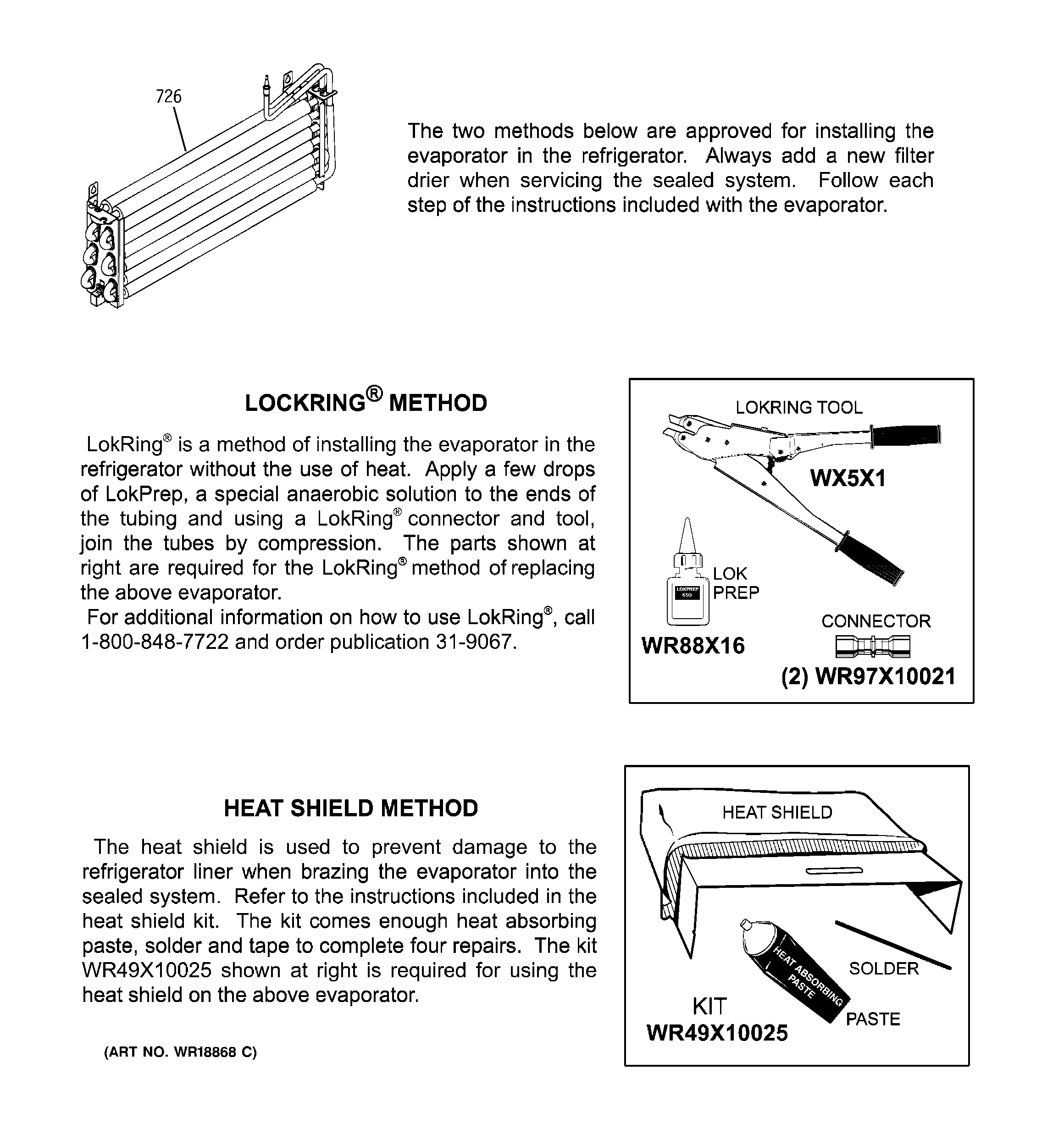

Dryer Filter WR86X0096
#740

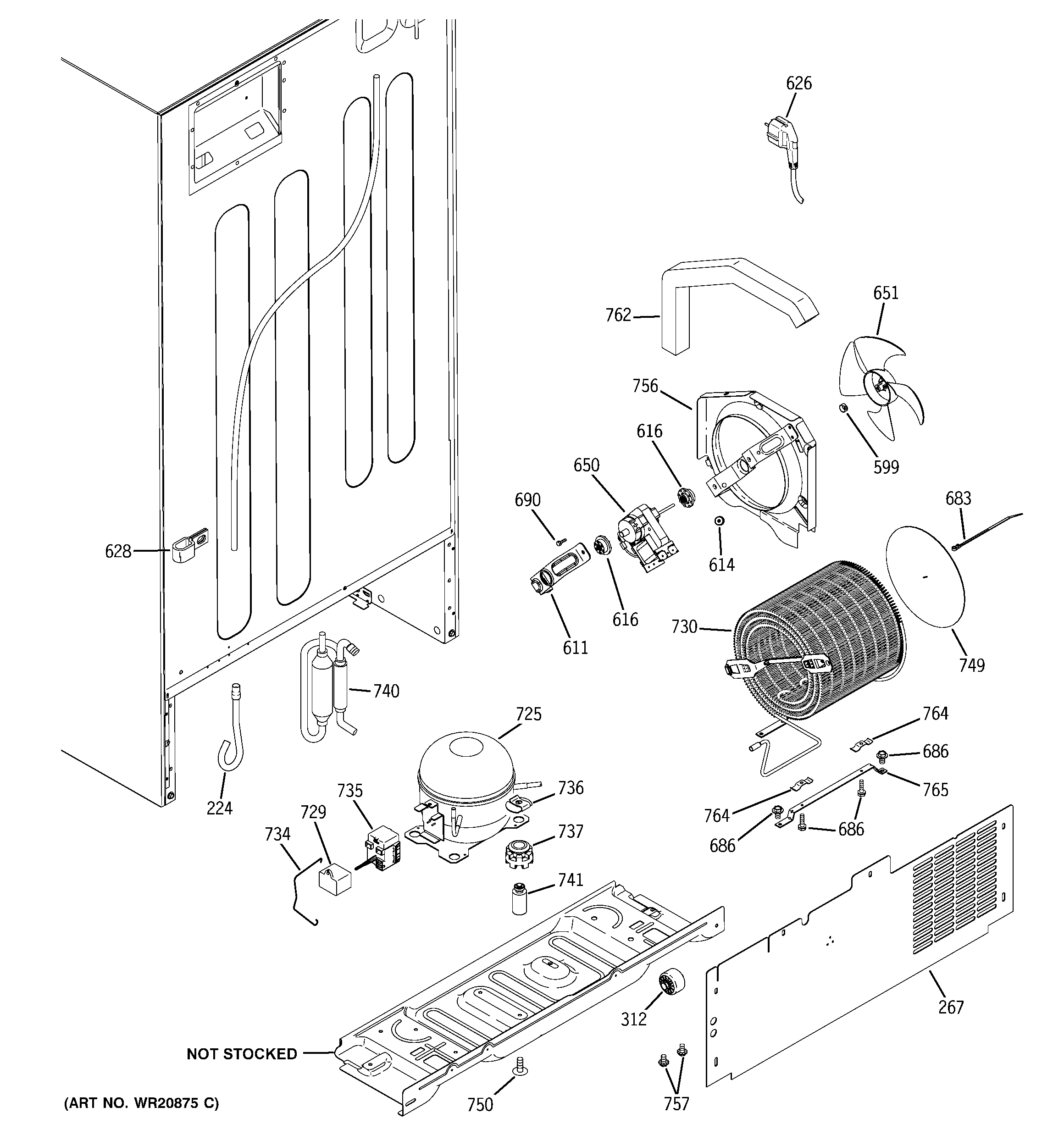

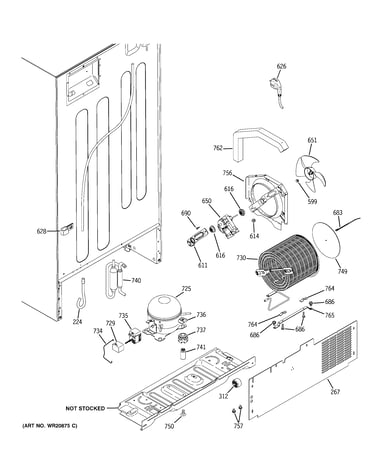

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock

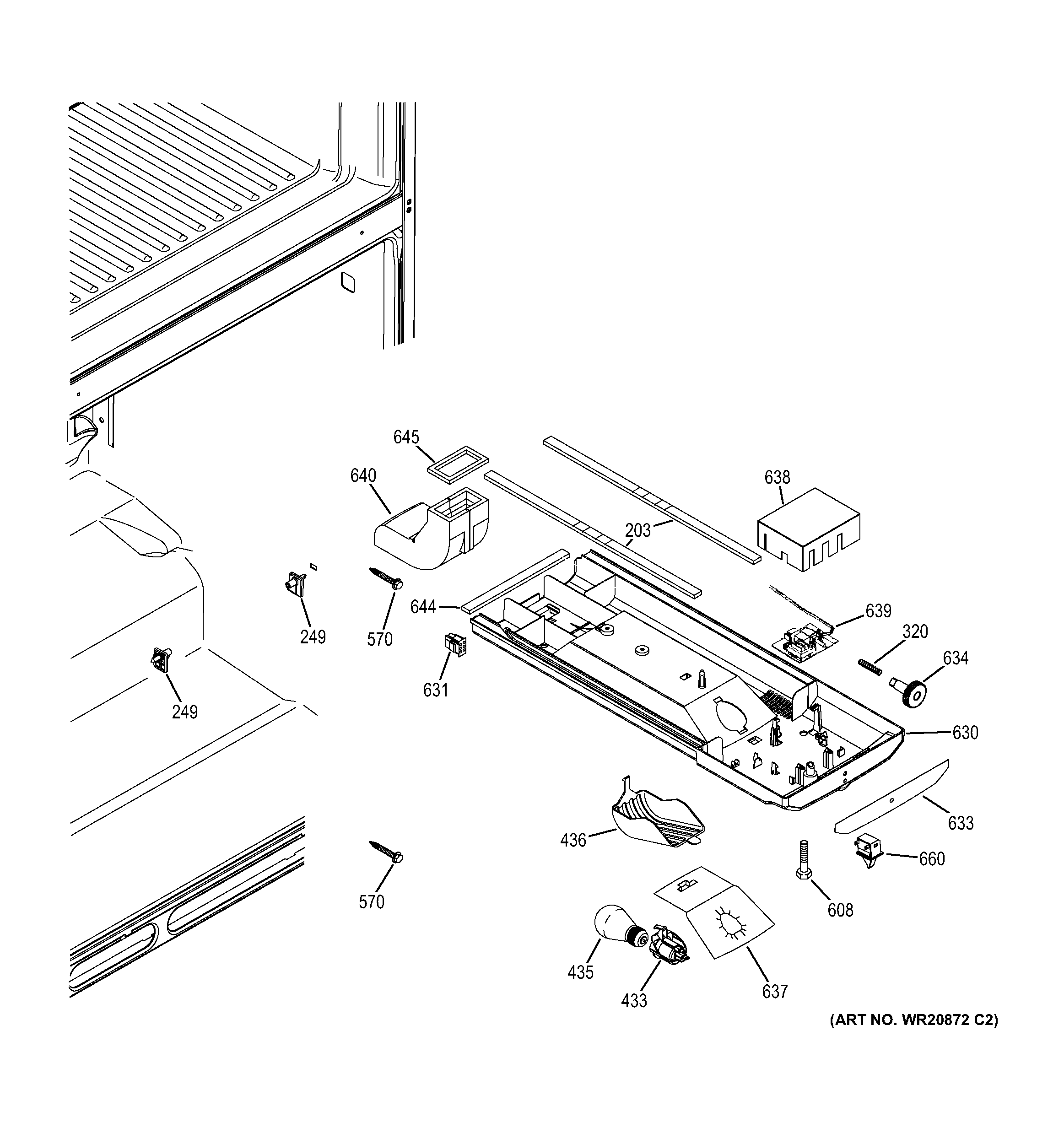

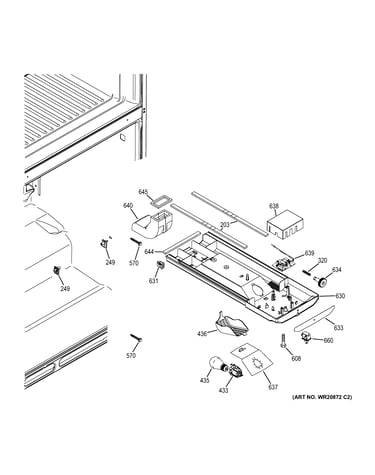

Refrigerator Lamp WR02X12327
Refrigerator lamp

Part #WR02X12327

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12327. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Comp. Repl. WR87X10182
#725

Machine compartment diagram

Comp. repl.

Part #WR87X10182

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10182. Substitute parts can look different from the original.
BEST SELLER
$382.57 |
$12.00 OFF Phone Price : $394.57
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#613

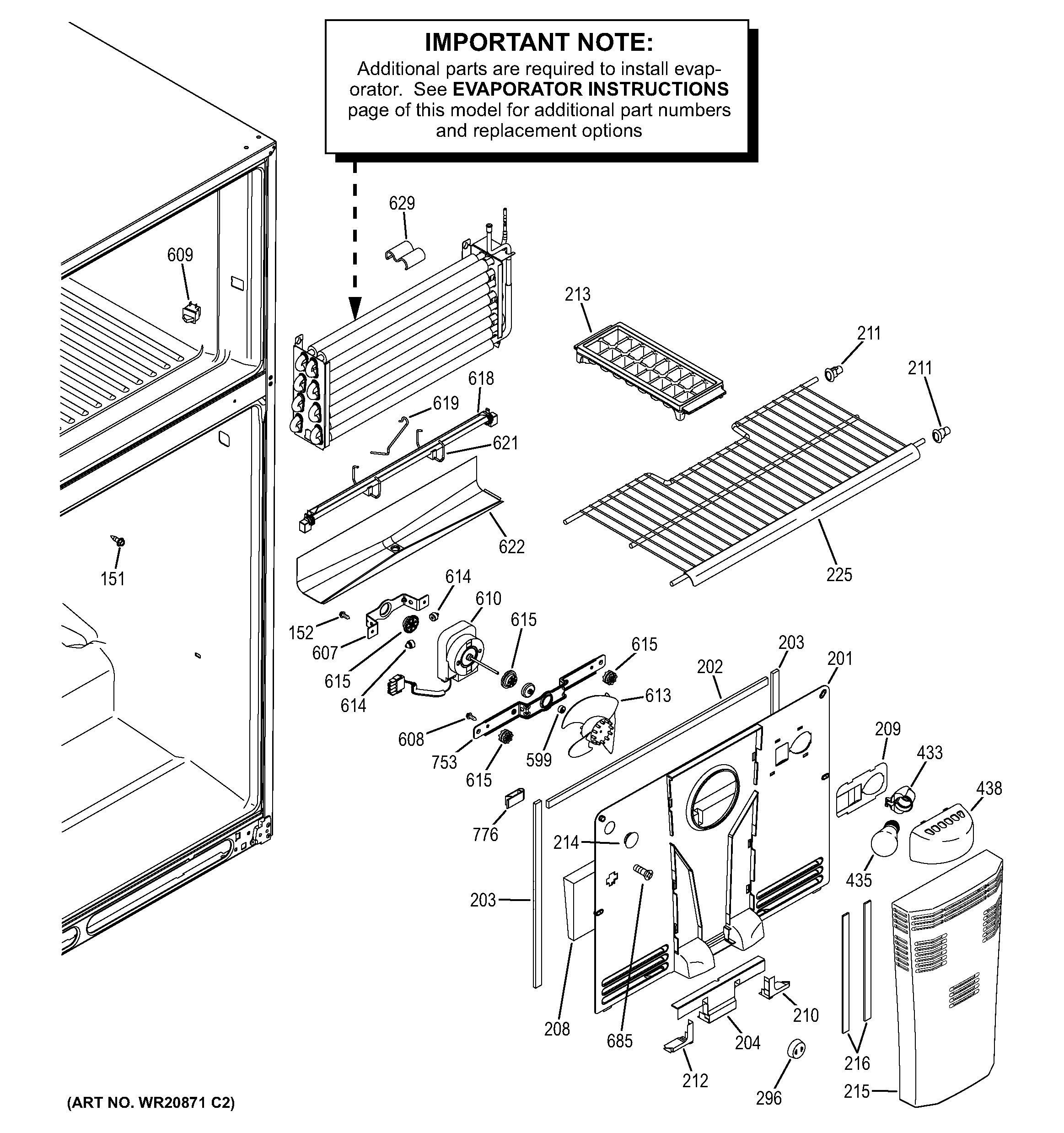

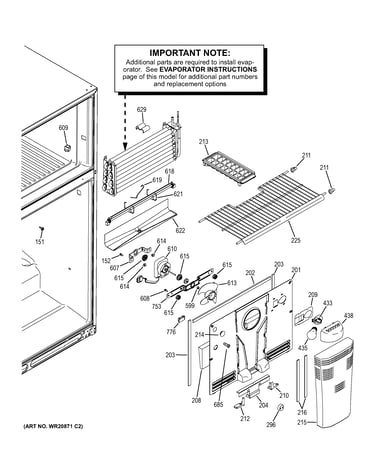

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Refrigerator Condenser Fan (replaces Wr60x10171) WR60X10220
#650

Machine compartment diagram

Refrigerator condenser fan (replaces wr60x10171)

Part #WR60X10220

BEST SELLER
$42.92 |
12% OFF Phone Price : $48.92
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Machine compartment diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Drain Tube (replaces Wr02x10661, Wr02x12058) WR02X11426
#224

Machine compartment diagram

Refrigerator drain tube (replaces wr02x10661, wr02x12058)

Part #WR02X11426

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Fan Blade Retainer Ring (replaces Wr02x10509, Wr02x10581) WR02X12149
Refrigerator fan blade retainer ring (replaces wr02x10509, wr02x10581)

Part #WR02X12149

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Terminal Socket WR02X9391
Terminal socket

Part #WR02X9391

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR02X9391. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr17x12252) WR02X11331
#616

Machine compartment diagram

Refrigerator evaporator fan motor grommet (replaces wr17x12252)

Part #WR02X11331

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
